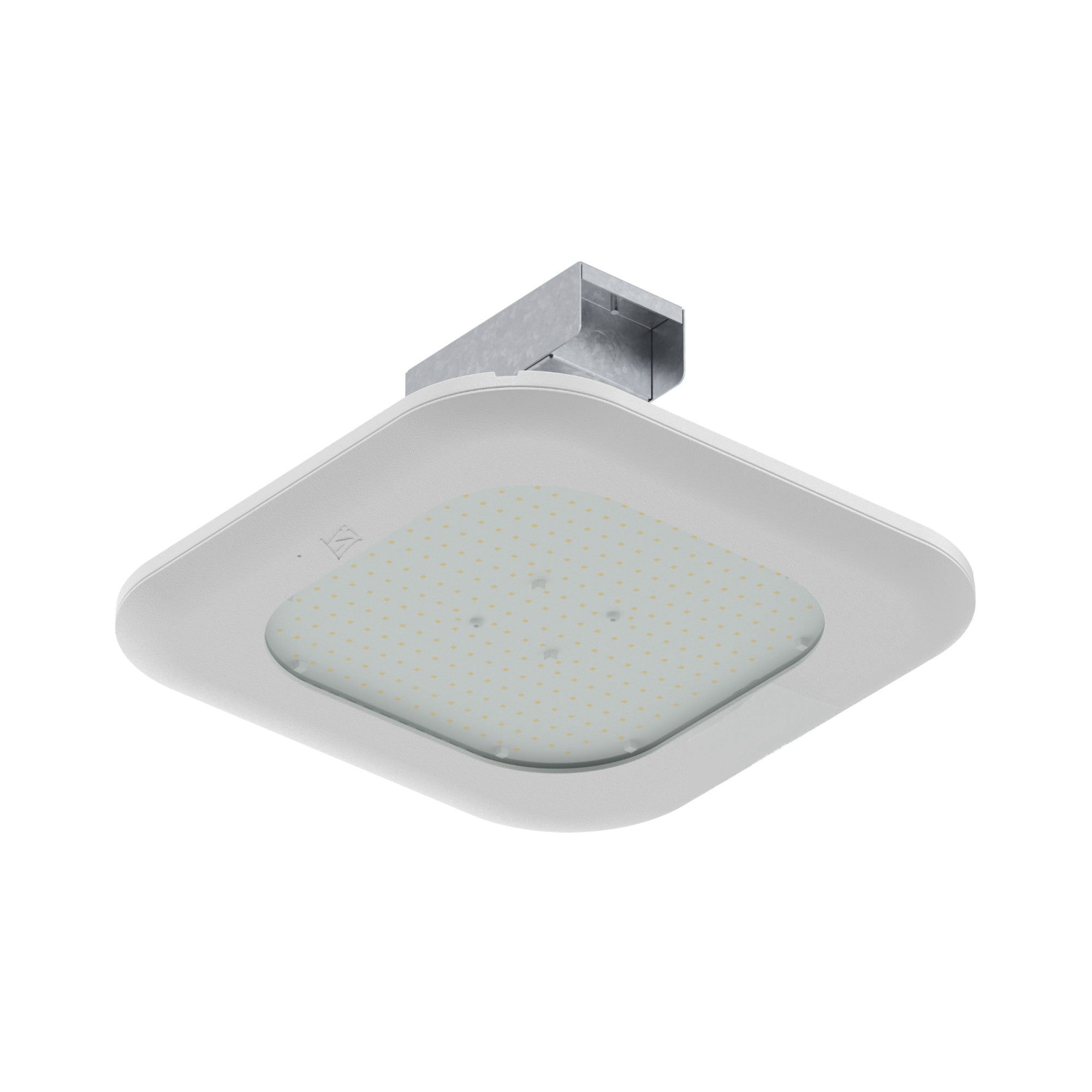

LSI CRUSX Series Canopy Light — 19,277 Lumens, 129W, 5000K, 120-277V

The LSI CRUSX canopy luminaire provides outstanding illumination for petroleum stations and commercial drive-thrus. Delivering 19,277 lumens at a highly efficient 129W, this 120-277V fixture ensures bright, dependable lighting with its crisp 5000K color temperature. Its ultra-slim 15/16-inch die-cast housing features an IP66 wet rating, making it fully protected against harsh weather while maintaining a low-profile aesthetic. Furthermore, this Buy American Act (BAA) compliant and DLC Premium fixture guarantees reliable performance and strict energy code compliance.

Key Features

• Distribution Type: Symmetric distribution
• Wattage: 129W
• Lumens: 19,277 Lumens
• Color Temperature: 5000K
• Input Voltage: 120-277V
• Environmental Rating: IP66 Wet Location Rated

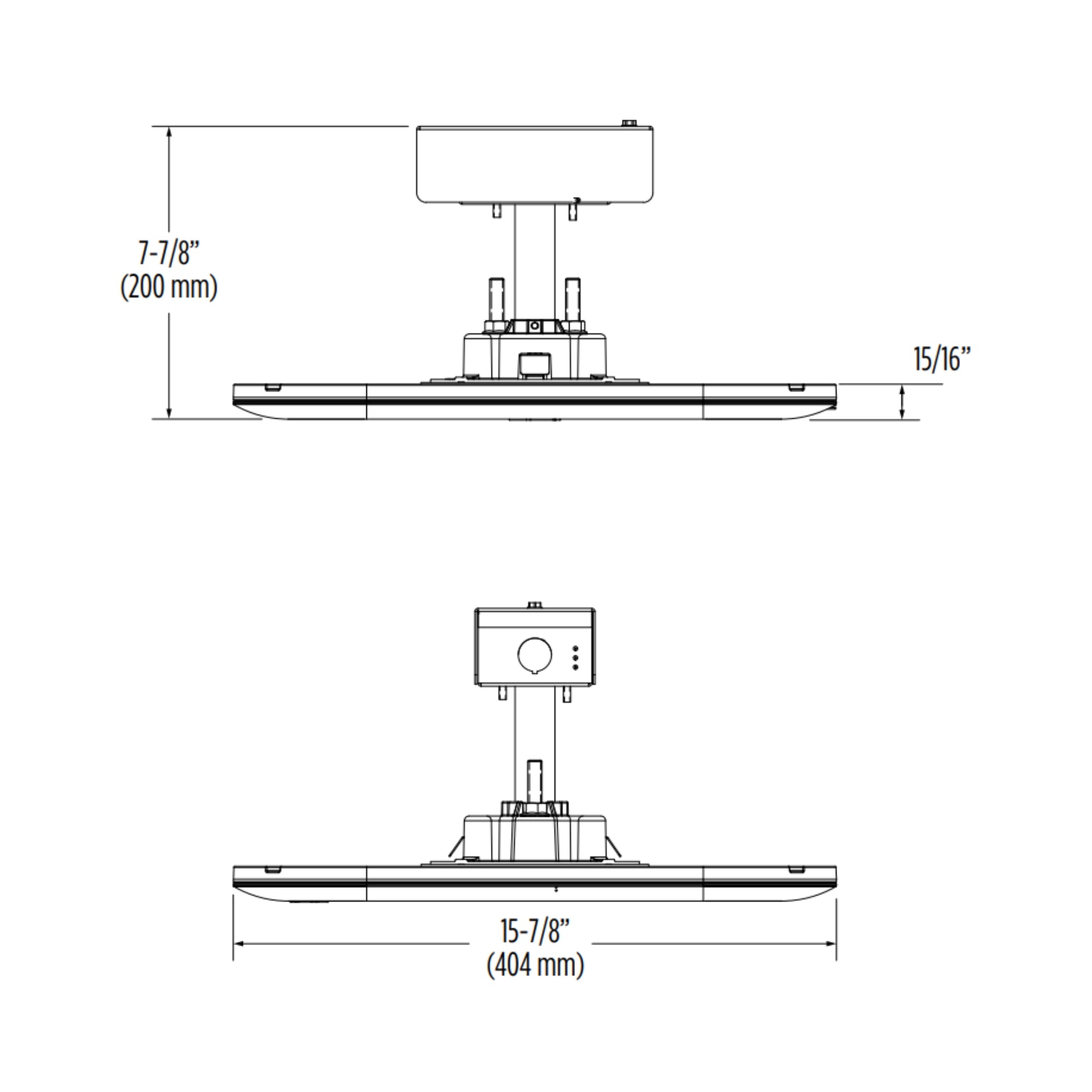

• Housing Profile: Ultra-slim 15/16-inch
• Finish: DuraGrip White powder coat
• Certifications: DLC Premium, BAA Compliant

Typical Applications

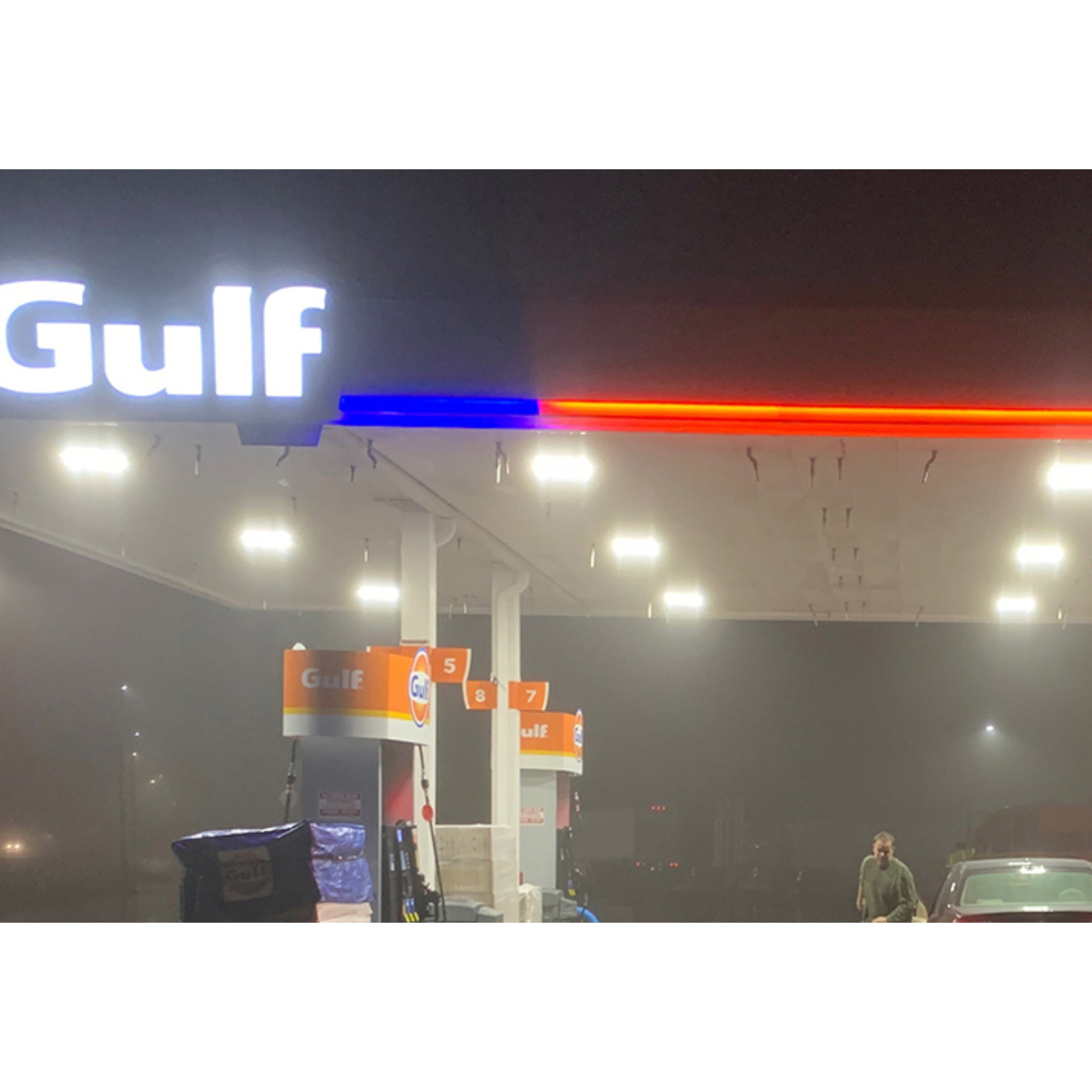

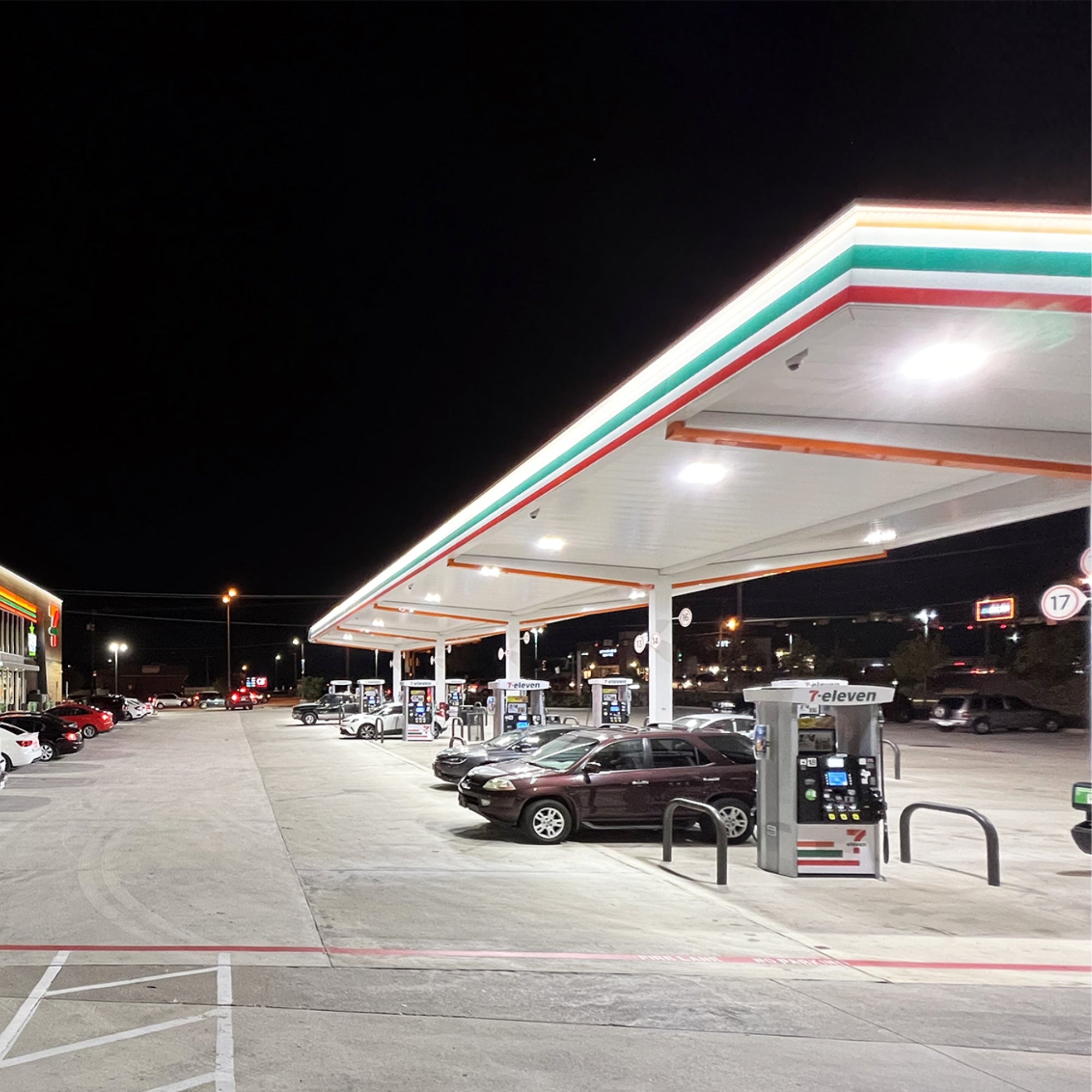

• Petroleum and Gas Station Canopies
• Convenience Store (C-Store) Exteriors
• Bank and Fast-Food Drive-Thrus
• Parking Garage Soffits
• Commercial Loading Docks

Performance & Light Output

Equipped with a high-efficiency LED array, this fixture delivers 19,277 lumens with excellent target efficiency. The symmetric distribution optical system pushes light smoothly and uniformly across wide areas through a flat tempered glass lens. Designed for longevity, the advanced LED engine ensures stable, flicker-free operation and high efficacy over its extensive operational lifespan.

Electrical & Controls

This luminaire operates on a universal 120-277V input and features a reliable standard non-dimming driver. Built to handle electrical anomalies, the unit includes integral 6kV surge protection alongside over-voltage and short-circuit safeguards to ensure uninterrupted performance in commercial environments.

Construction & Durability

The ultra-slim 15/16-inch profile housing is constructed from rugged die-cast aluminum, treated with a DuraGrip polyester powder coat white finish that resists cracking and peeling in extreme weather. It integrates a sealed heat sink that prevents dirt buildup and ensures cool operation in ambient temperatures ranging from -40°C to 55°C. A pressure stabilizing vent breather prevents seal fatigue, guaranteeing the integrity of its IP66 wet location rating.

Installation & Mounting

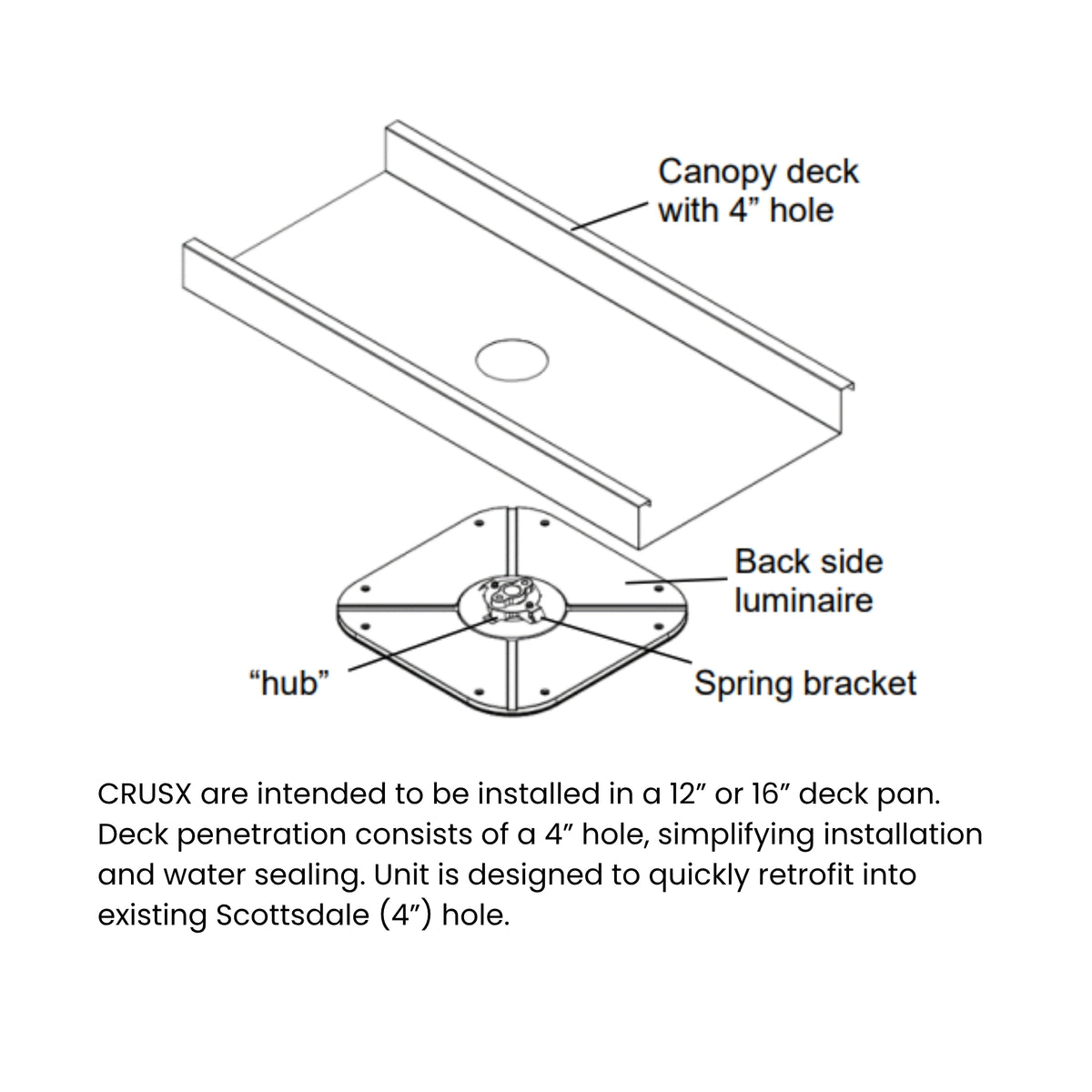

Engineered for a straightforward one-person installation, the fixture seamlessly installs into 12-inch or 16-inch deck pans utilizing a standard 4-inch hole. The design allows for swift retrofitting into existing Scottsdale footprints without relocating conduit. Additional mounting brackets and optional REDiMount kits are available (sold separately) to further expedite overhead surface mounting procedures.

What's Included

• (1) CRUSX LED Canopy Fixture
• (1) Pre-assembled Tether and Optical Unit
• (1) Set of Standard Support Brackets
• Installation Instructions
