LSI CRUSK Series Universal Canopy Retrofit Kit — 9,360 Lumens, 60W, 5000K, 120-277V

The LSI Scottsdale Legacy CRUSK Universal Superkit provides an exceptional retrofit lighting solution for modern petroleum stations and commercial drive-thrus. Delivering 9,360 lumens while consuming only 60W on a universal 120-277V input, this kit ensures crisp 5000K illumination. Engineered to seamlessly upgrade existing 2x2 legacy canopy fixtures, this ultra-slim profile system maintains strict compliance with both the Buy American Act (BAA) and DLC standards.

Key Features

• Distribution Type: Symmetric (SC)
• Wattage: 60W
• Lumens: 9,360 Lumens
• Input Voltage: 120-277V
• Color Temperature: 5000K
• Environmental Rating: IP66 Wet Location Rated
• Dimming: 0-10V Dimming
• Lens Type: Clear Tempered Glass
• Finish: White DuraGrip Polyester Powder Coat
• Certifications: DLC Qualified, BAA Compliant

Typical Applications

• Petroleum and Gas Station Canopies
• Parking Garages and Soffits
• Commercial Loading Docks
• Retail Entrances and Walkways
• Drive-Thru Areas

Performance & Light Output

Equipped with a high-efficiency LED array, this retrofit kit reliably delivers 9,360 lumens with an outstanding efficacy to support demanding commercial needs. The symmetric distribution optical system smoothly pushes uniform light across wide target areas through a clear tempered glass lens. The advanced LED engine ensures stable operation and crisp color rendering throughout its extensive lifespan, which extends up to 100,000 hours depending on site conditions.

Electrical & Controls

This luminaire operates on a standard universal 120-277V input and features a factory-programmable, fully potted driver to resist moisture. To handle electrical anomalies in harsh outdoor environments, the unit is equipped with integral 6kV surge protection, alongside comprehensive over-voltage, under-voltage, short-circuit, and over-temperature safeguards. It also supports standard 0-10V dimming, empowering facility managers to seamlessly adjust output for energy optimization and strict local lighting codes.

Construction & Durability

The rugged ultra-slim 11/16-inch optical housing is constructed from high-quality die-cast aluminum and finished with a resilient white DuraGrip polyester powder coat designed to resist weathering without cracking or peeling. It features a robust IP66 wet location rating, fully protecting the internal driver and electrical components against heavy rain, dust, and debris. This durable construction ensures uninterrupted performance across varying commercial climates.

Installation & Mounting

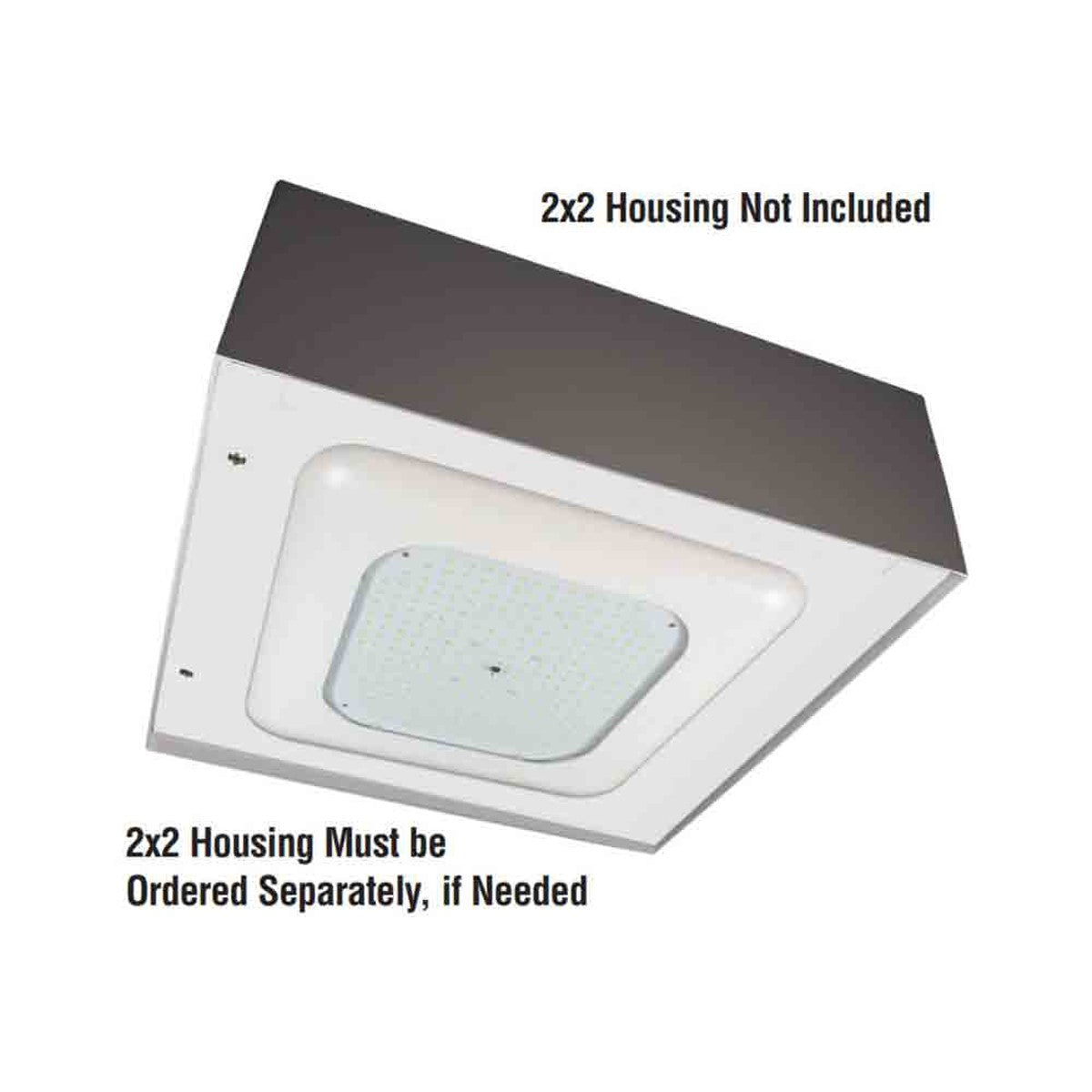

Designed specifically to streamline overhead retrofit applications, the Universal Superkit facilitates straightforward mounting directly into existing 2x2 canopy fixture housings, including older LSI, Whiteway, and Jet-Philips models. It is built for a simplified one-person setup, utilizing a pre-assembled optical unit, tether, and a hinged adaptor panel to ensure wiring connections remain secure and manageable. This intelligent design drastically reduces site downtime and required labor resources.

What's Included

• (1) Pre-assembled Optical Unit
• (1) Adaptor Panel
• (1) Driver Assembly
• Installation Instructions
