LED Gas Station Canopy Light, 22695 Lumens, 152 Watts, 5000K, 120-277V, Universal Superkit
Made to Order
About this item
About this item
- Lumens: Provides 22,500 lumens for high visibility in canopy applications.
- Wattage: Operates at 152 watts, ensuring energy efficiency.
- Voltage: Compatible with 120-277V for versatile installation options.
- Color Temperature: Emits a 5000K daylight color for clear illumination.
- Environmental Rating: IP67 rated for protection against dust and water ingress.
We process payments securely and do not store credit card information.
Description
Description

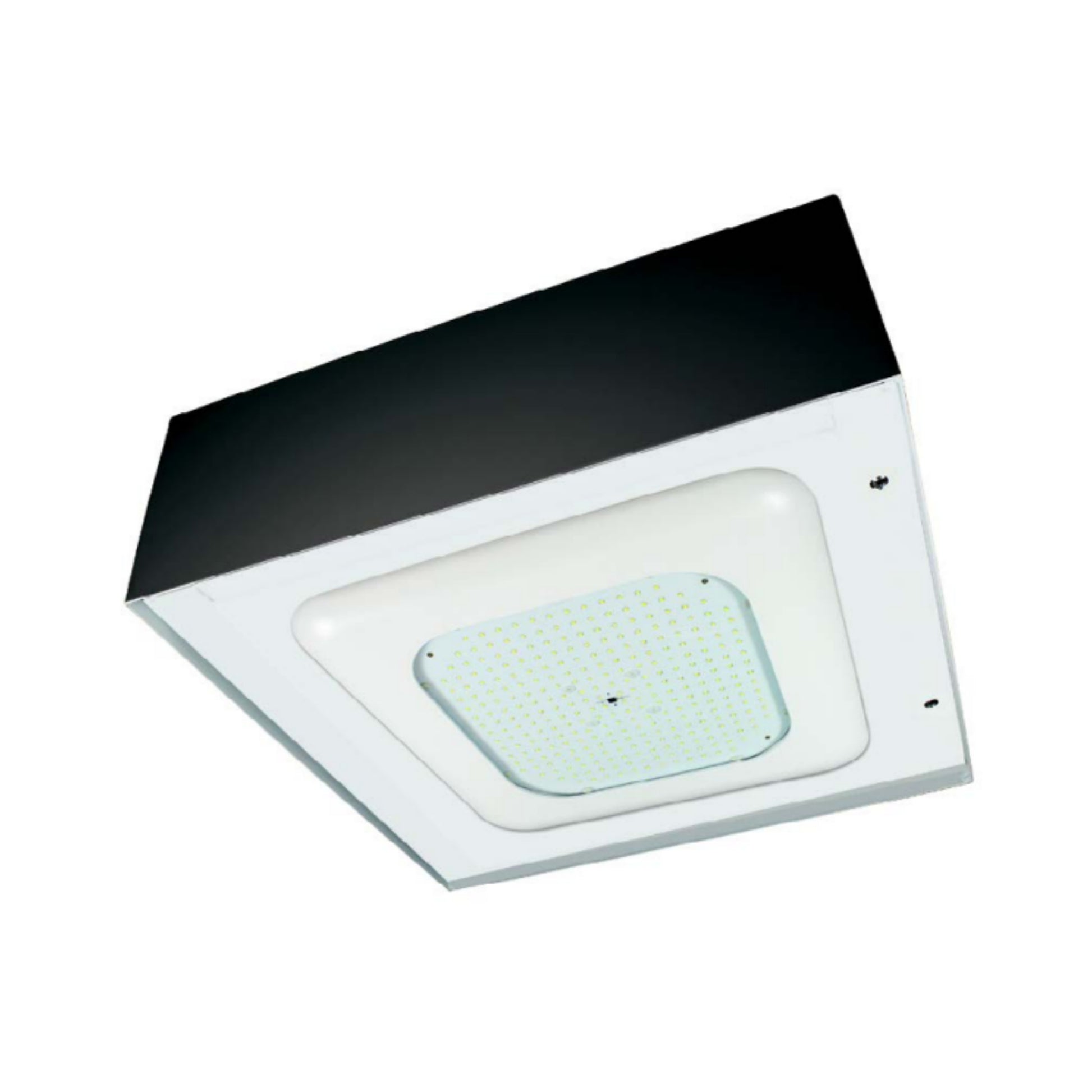

LSI Scottsdale Series Canopy Light - 152W Configuration
The LSI CRUSK-UNV-SC-LED-VHO-50-UE-WHT is a 2x2 canopy light delivering 22,500 lumens at 152 watts. It operates on a 120-277V input and features a 5000K color temperature. This fixture is IP67 rated, making it suitable for wet locations.
Key Features
- Construction: Ultra-slim profile with die-cast housing and tempered glass lens for durability.
- Optical System: Features high-efficiency LEDs with symmetric distribution for wide coverage.
- Electrical: Includes a programmable driver with 6kV surge protection and 0-10V dimming.
- Installation: Designed for easy retrofit into existing 2x2 canopy fixtures.
- Compliance: UL and ETL listed, meeting international safety standards.
- Finish: White DuraGrip polyester powder coat for weather resistance.
- Warranty: Backed by a 5-year warranty for peace of mind.
- Performance: Efficacy of 150 LPW ensures energy-efficient operation.
- Temperature Range: Operates in ambient temperatures from -40°C to 55°C.
- Surge Protection: Additional field-replaceable 10kV surge protection device available.
Typical Applications
- Gas Stations
- Parking Garages
- Retail Entrances
- Loading Docks
- Drive-Thrus
Performance & Light Output
This fixture offers a high lumen output of 22,500 lumens with an efficacy of 150 LPW, ensuring bright and efficient lighting. It maintains a CRI of 80 for accurate color rendering.
Electrical & Controls
The canopy light operates on a universal voltage range of 120-277V and includes a 0-10V dimming driver. It features integral surge protection and complies with IEC and FCC standards.
Construction & Durability
Constructed with a die-cast housing and tempered glass lens, this fixture is IP67 rated for protection against dust and water ingress. The DuraGrip finish withstands extreme weather conditions.
Installation & Mounting

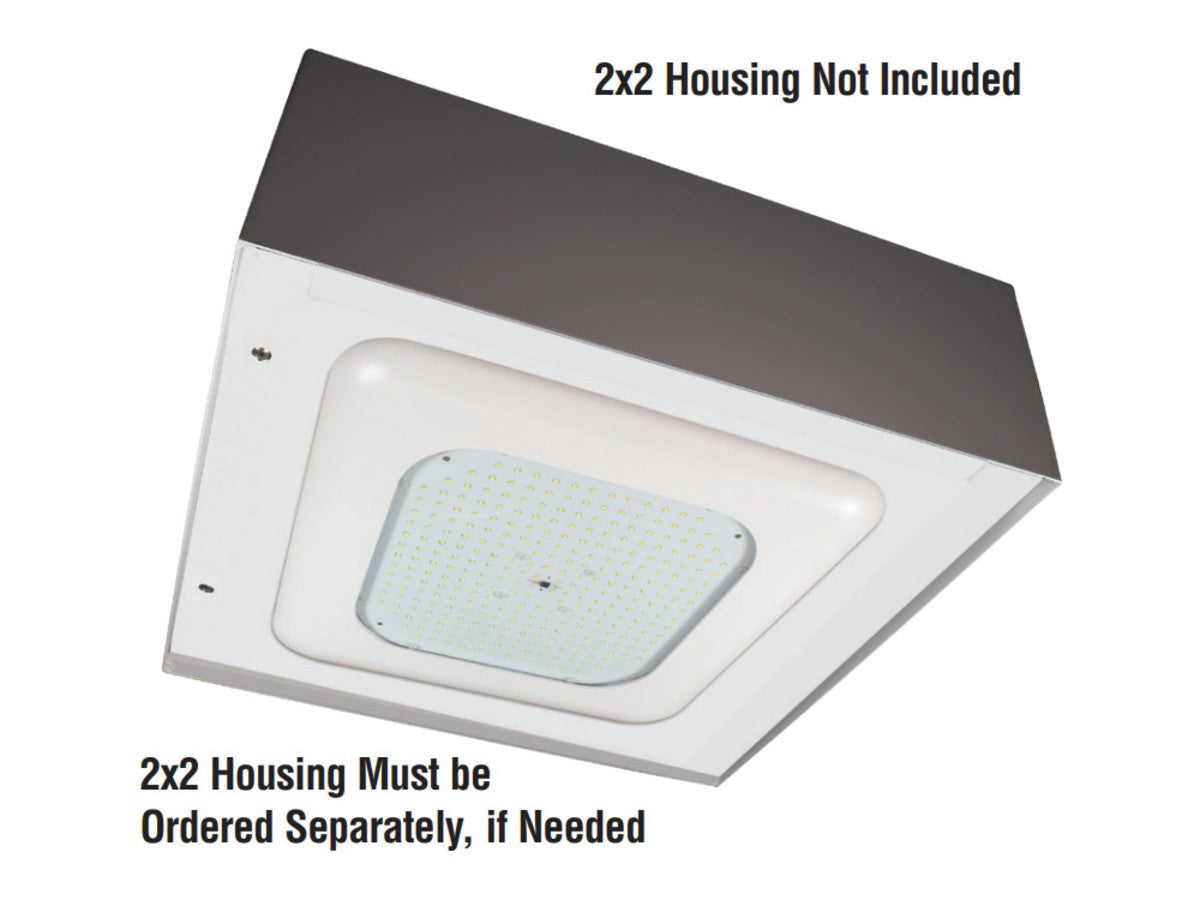

Designed for one-person installation, the pre-assembled optical unit easily retrofits into existing 2x2 canopy fixtures. The adaptor panel hinges and fastens to replace the existing door assembly.
What's Included

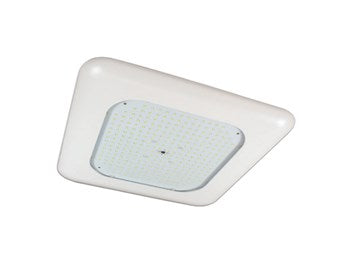

- Pre-assembled optical unit
- Adaptor panel
- Driver pre-mounted to assembly
Specifications
Specifications

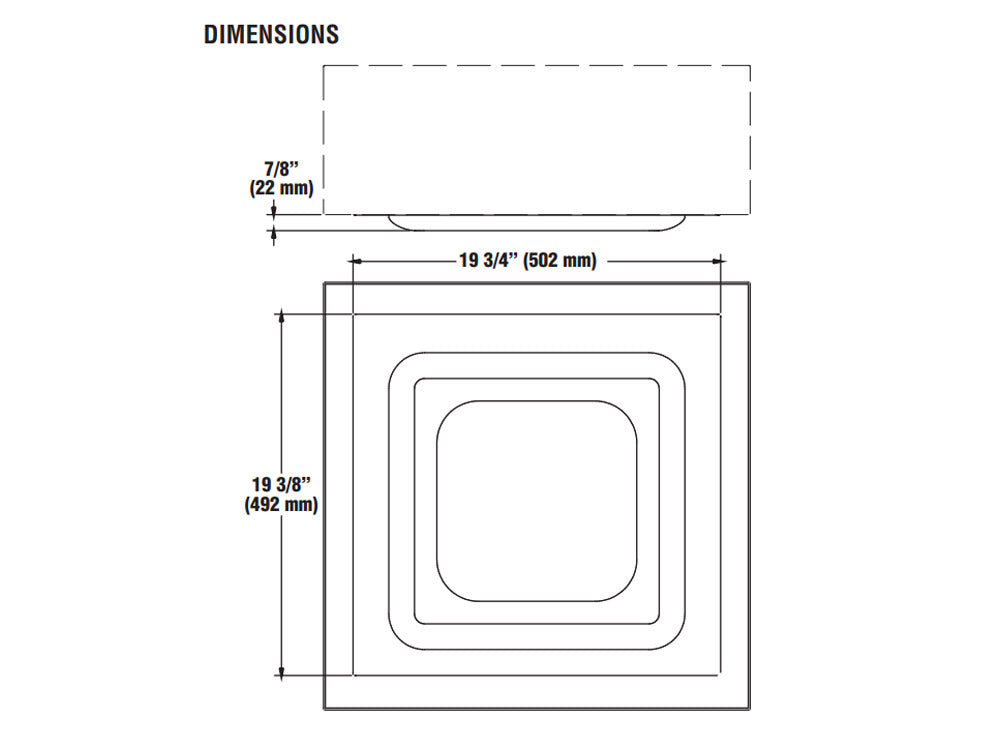

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the lumen output of the LSI CRUSK-UNV-SC canopy light?
What is the lumen output of the LSI CRUSK-UNV-SC canopy light?
Is the LSI CRUSK-UNV-SC canopy light dimmable?
Is the LSI CRUSK-UNV-SC canopy light dimmable?
What is the voltage range for the LSI CRUSK-UNV-SC canopy light?
What is the voltage range for the LSI CRUSK-UNV-SC canopy light?
What is the IP rating of the LSI CRUSK-UNV-SC canopy light?
What is the IP rating of the LSI CRUSK-UNV-SC canopy light?
What is the color temperature of the LSI CRUSK-UNV-SC canopy light?
What is the color temperature of the LSI CRUSK-UNV-SC canopy light?
