LED Gas Station Canopy Light, 13980 Lumens, 93 Watts, 5000K, 120-277V, Universal Superkit
Made to Order
About this item
About this item
- Lumens: Provides 14000 lumens for efficient canopy lighting.
- Wattage: Operates at 93 watts, ensuring energy efficiency.
- Voltage: Compatible with 120-277V for versatile installations.
- Color Temperature: Offers a crisp 5000K light output.
- Environmental Rating: IP67 rated for wet locations, ensuring durability.
We process payments securely and do not store credit card information.
Description
Description

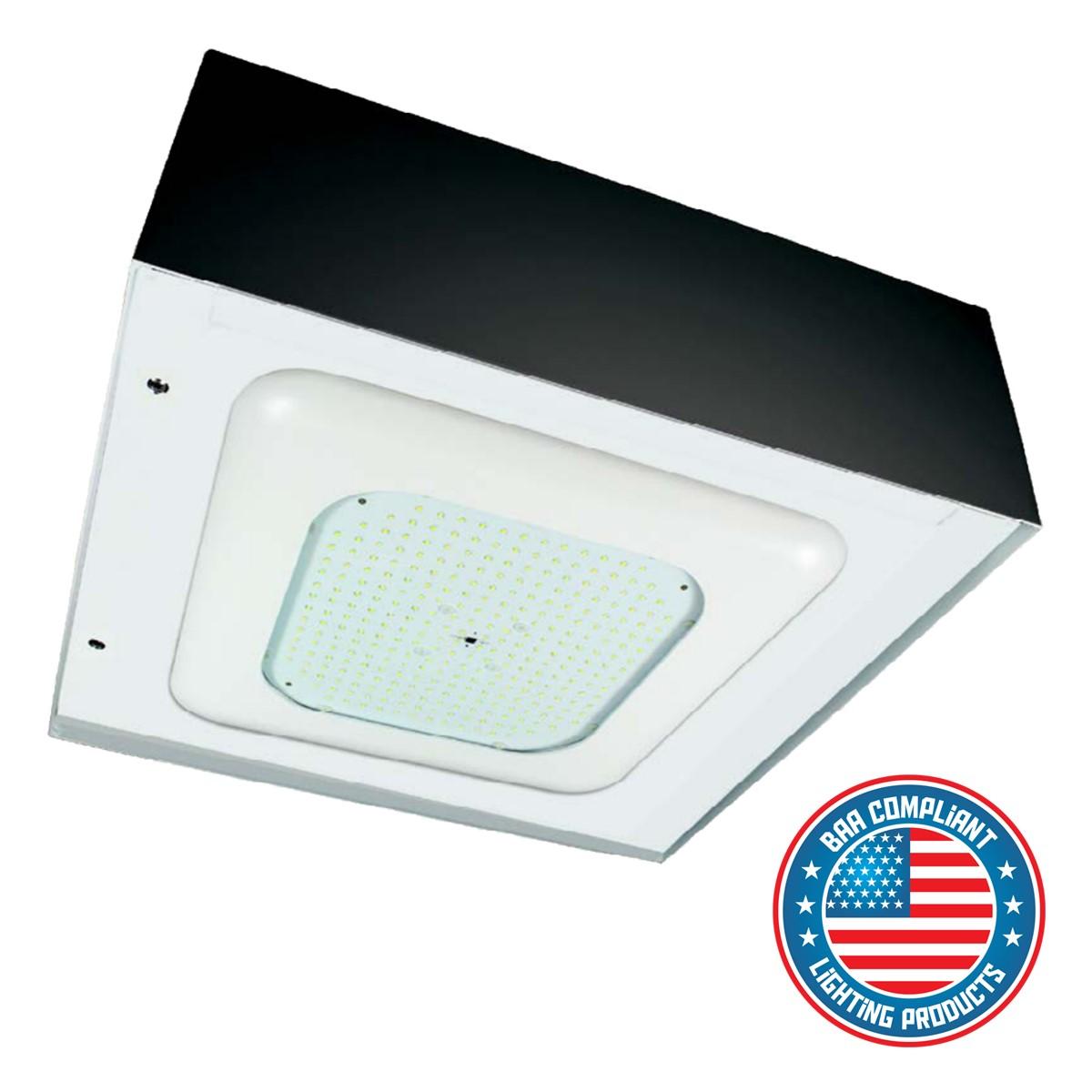

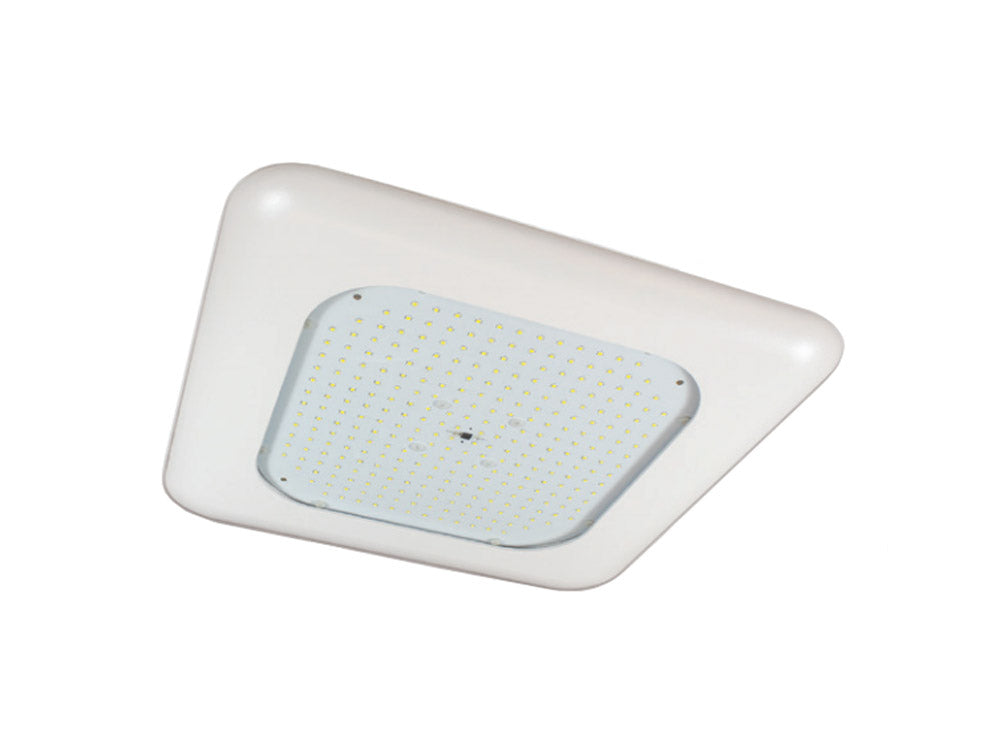

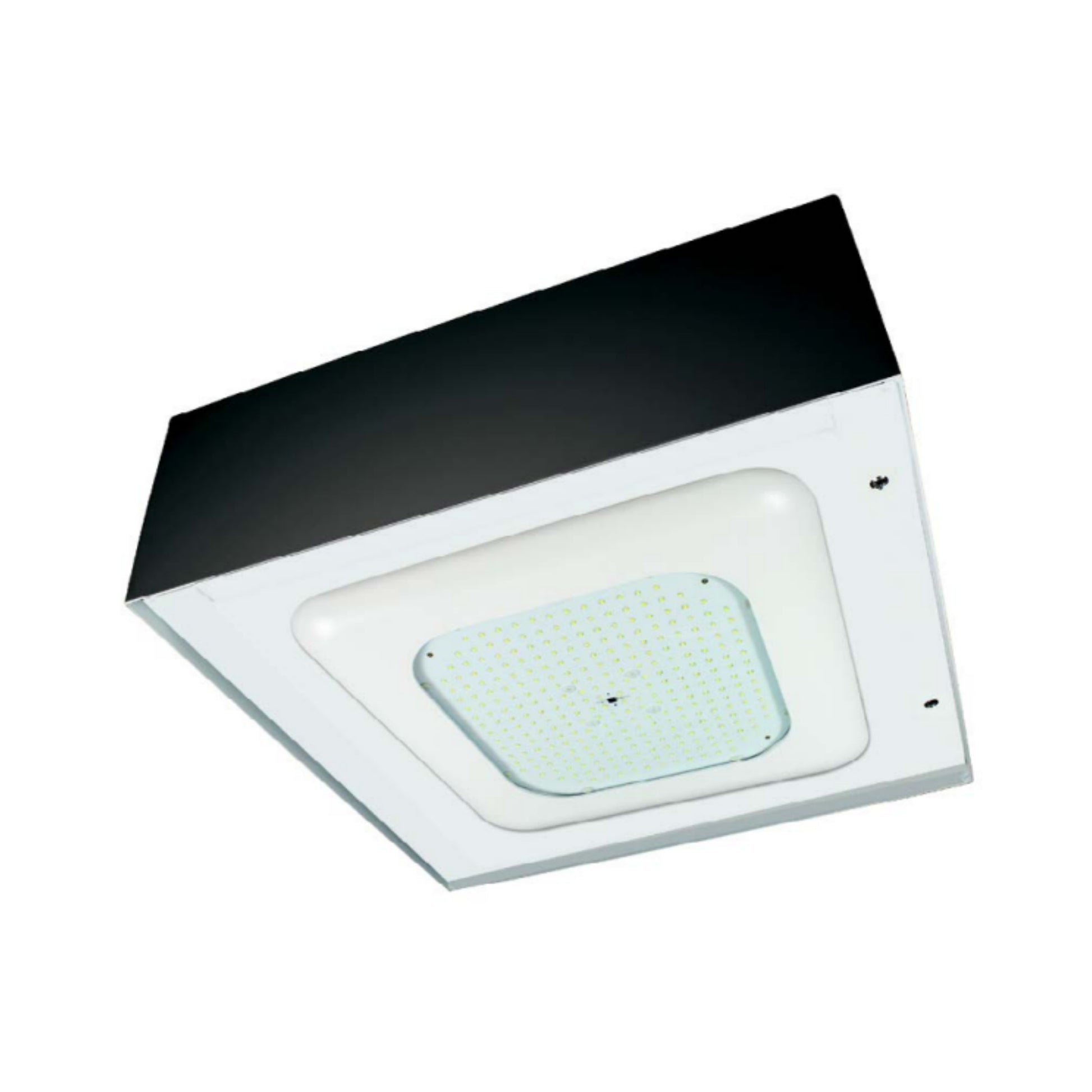

LSI Scottsdale Series Canopy Light - 93W Configuration
The LSI CRUSK-UNV-SC-LED-SS-50-UE-WHT is a 2x2 canopy light delivering 14000 lumens at 93 watts. It operates on a 120-277V power supply and features a 5000K color temperature, making it suitable for various canopy lighting applications. This fixture is IP67 rated for wet locations, ensuring reliable performance in challenging environments.
Key Features
- Ultra-Slim Profile: Features a die-cast housing with a flat clear tempered glass lens.
- Durable Finish: Finished with LSI's DuraGrip polyester powder coat for weather resistance.
- Optical System: Offers symmetric distribution for wide coverage.
- Driver Protection: Includes over-voltage, under voltage, and short-circuit protection.
- Dimming Capability: Standard 0-10V dimming for customizable light levels.
- Surge Protection: Integral 6kV surge protection for enhanced safety.
- Long Lifespan: Designed for 60,000 to 100,000 hours of operation.
- Easy Installation: One-person installation with pre-assembled optical unit.
- Compliance: UL and ETL listed, meeting international safety standards.
- Warranty: Backed by a 5-year warranty for peace of mind.
Typical Applications
- Gas Stations
- Parking Garages
- Retail Entrances
- Loading Docks
- Drive-Thrus
Performance & Light Output
This fixture delivers 14000 lumens with an efficacy of 150 LPW, ensuring bright and efficient lighting. It features an 80 CRI for accurate color rendering and is designed for a long lifespan with L70 ratings up to 100,000 hours.
Electrical & Controls
The canopy light operates on a universal voltage range of 120-277V and includes a high-performance driver with integral surge protection. It supports 0-10V dimming for adjustable lighting levels.
Construction & Durability
Constructed with a die-cast housing and tempered glass lens, the fixture is IP67 rated for wet locations. The DuraGrip finish ensures resistance to extreme weather conditions.
Installation & Mounting

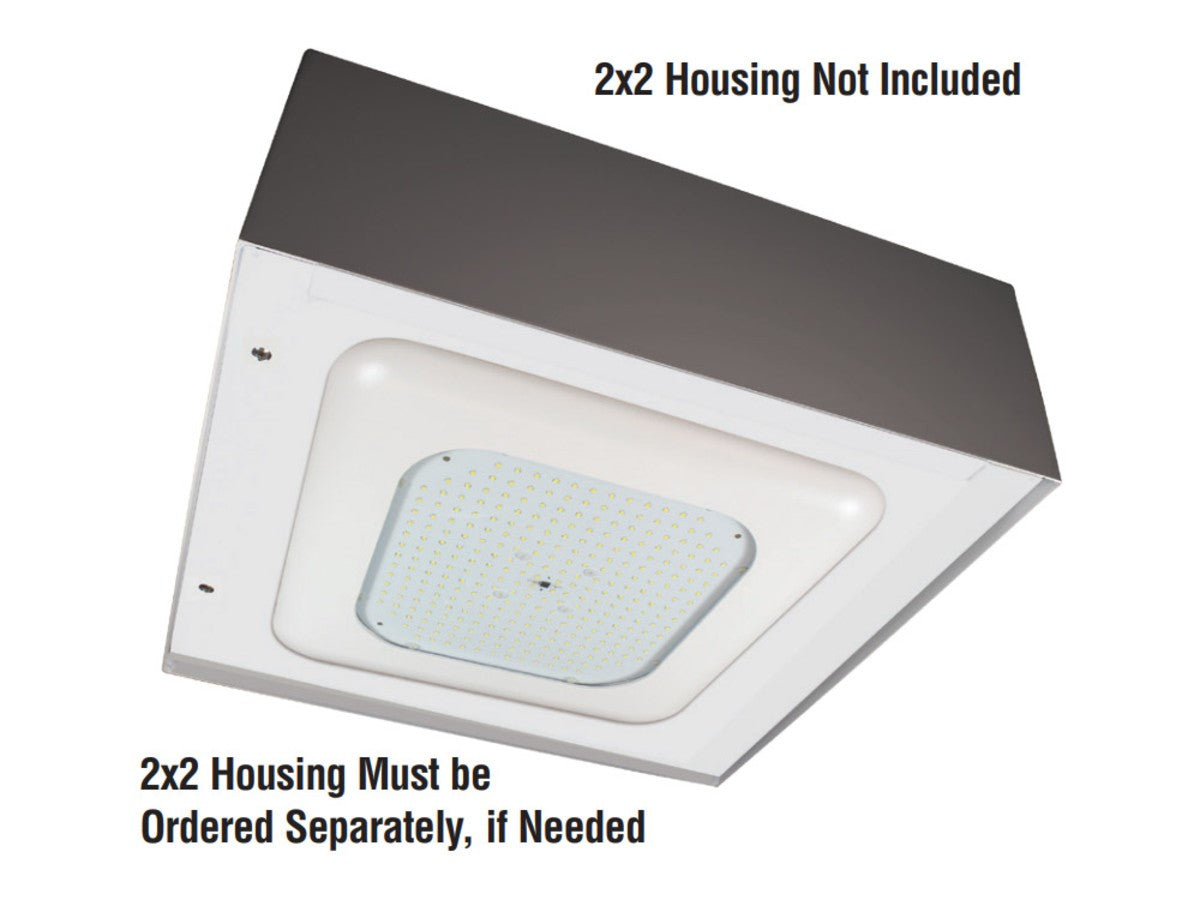

Designed for easy one-person installation, the fixture includes a pre-assembled optical unit and an adaptor panel that hinges to existing fixture housings.
What's Included
- Pre-assembled optical unit
- Adaptor panel
- Driver pre-mounted to assembly
Specifications
Specifications

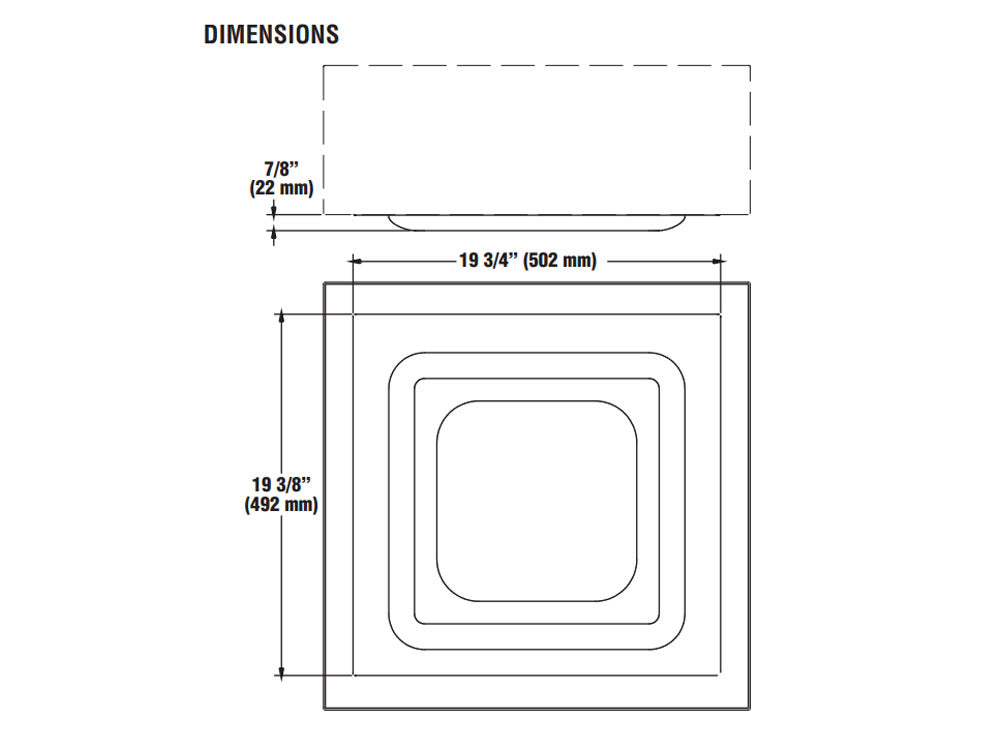

Dimensions
