LSI CRUSK Series Universal 2x2 Canopy Retrofit Kit 11,150 Lumens 73W 5000K 120-277V Symmetric White
Made to Order
About this item
About this item
- Distribution Type: Symmetric distribution provides broad, even lighting designed for gas station canopies and drive-thrus.
- Wattage & Lumens: 73W delivering 11,150 lumens ensures premium visibility and a highly efficient site lighting upgrade.
- Voltage: 120-277V universal voltage compatibility allows for simple integration into standard commercial electrical systems.
- Mounting: Universal Superkit design engineered for efficient one-person retrofit installation into existing 2x2 canopy housings.
- Environmental Rating: Sealed construction prevents dust and moisture ingress, ensuring long-lasting outdoor performance.
We process payments securely and do not store credit card information.
Description
Description

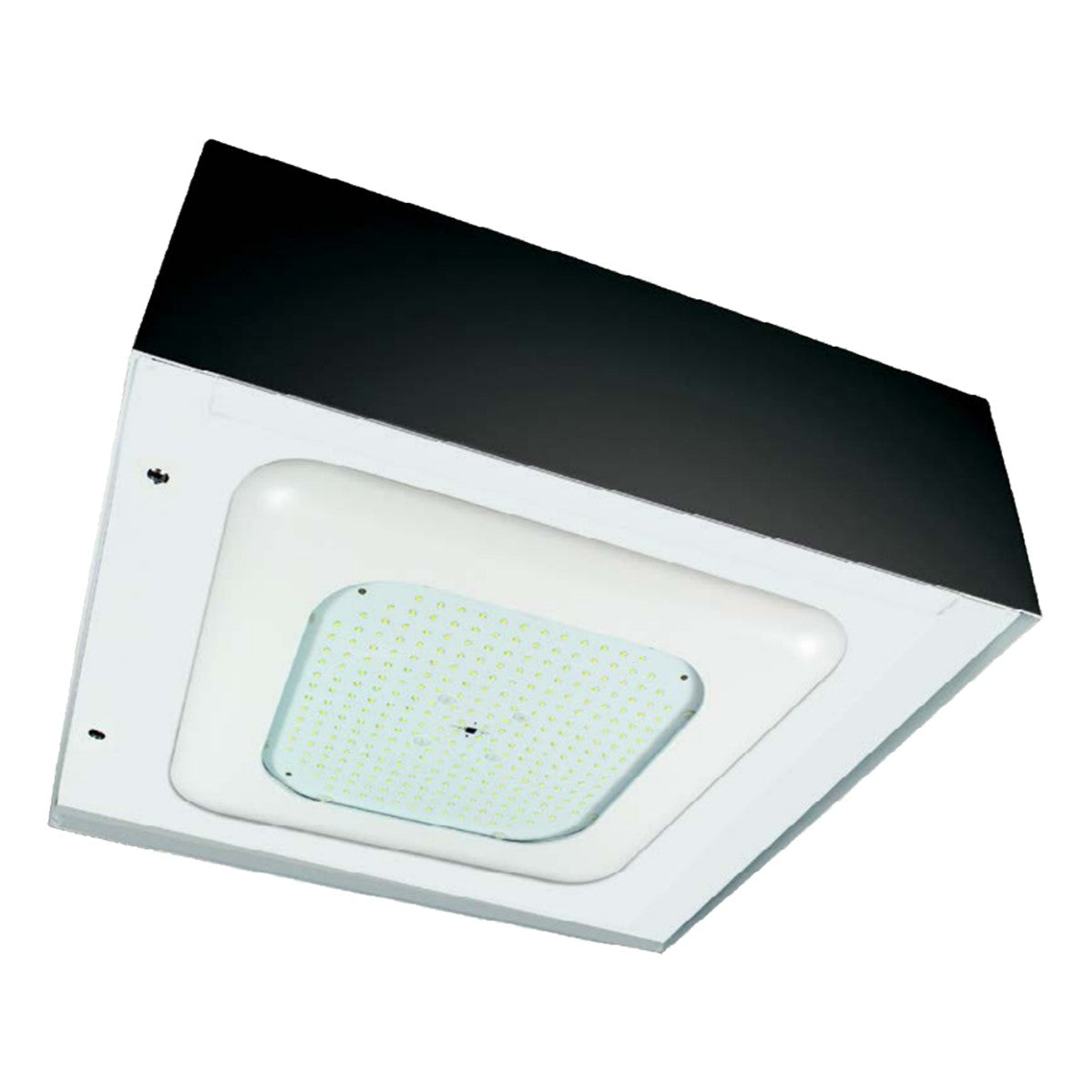

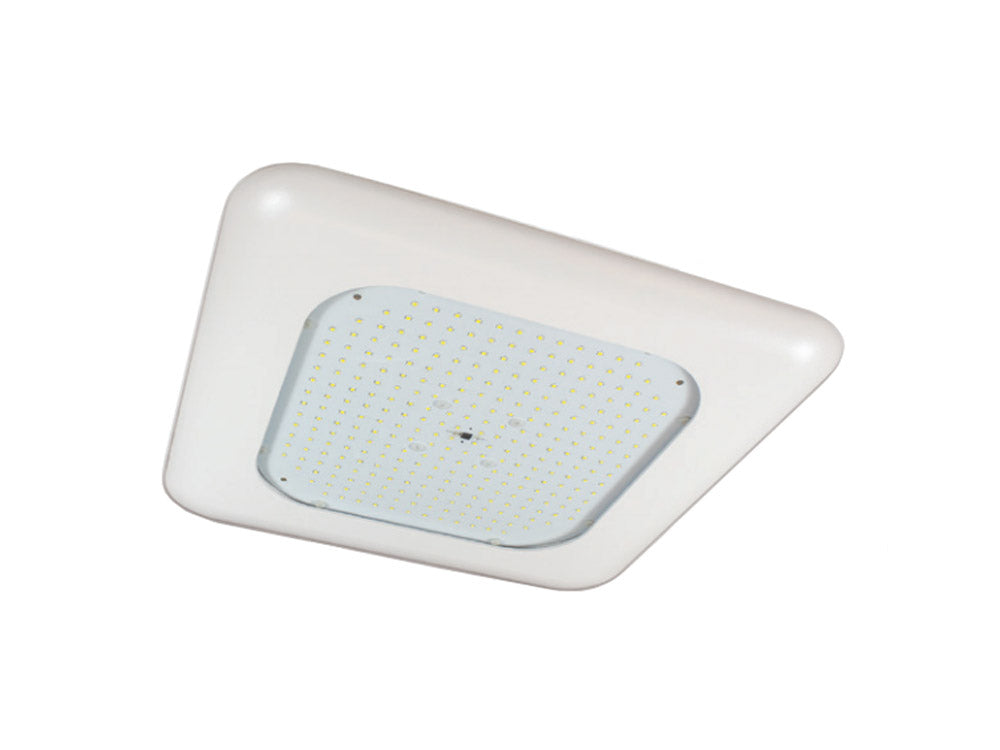

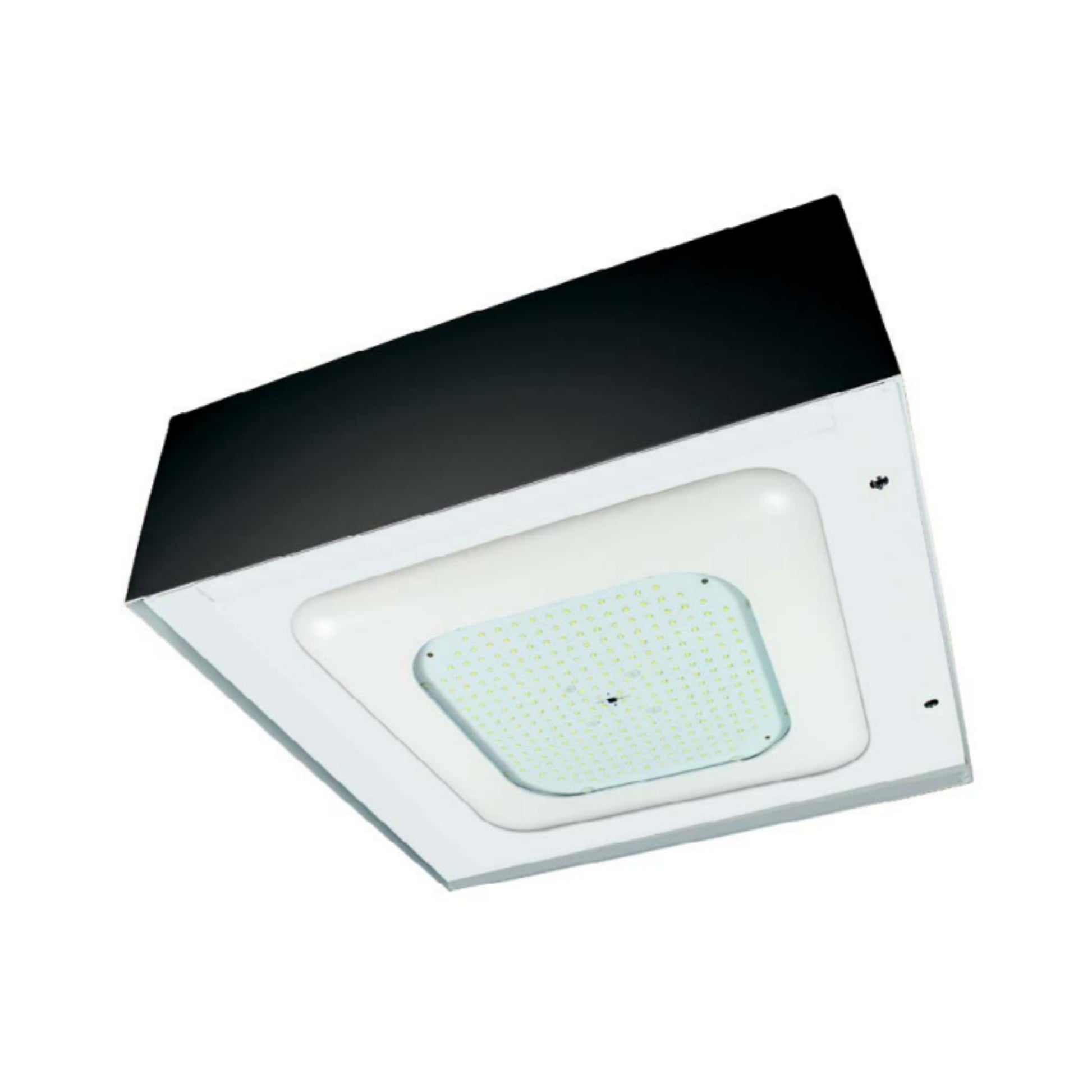

LSI CRUSK Series Universal Canopy Retrofit Kit — 11,150 Lumens, 73W, 5000K, 120-277V
The LSI Scottsdale Legacy CRUSK Universal Superkit provides an exceptional retrofit lighting solution for modern petroleum stations and commercial drive-thrus. Delivering 11,150 lumens while consuming only 73W on a universal 120-277V input, this kit ensures crisp 5000K illumination. Engineered to seamlessly upgrade existing 2x2 legacy canopy fixtures, this ultra-slim profile system maintains strict compliance with both the Buy American Act (BAA) and DLC standards.
Key Features
- Distribution Type: Symmetric (SC)
- Wattage: 73W
- Lumens: 11,150 Lumens
- Input Voltage: 120-277V
- Color Temperature: 5000K
- Environmental Rating: IP66 Wet Location Rated
- Dimming: 0-10V Dimming
- Lens Type: Clear Tempered Glass
- Finish: White DuraGrip Polyester Powder Coat
- Certifications: DLC Qualified, BAA Compliant
Typical Applications
- Petroleum and Gas Station Canopies
- Parking Garages and Soffits
- Commercial Loading Docks
- Retail Entrances and Walkways
- Drive-Thru Areas
Performance & Light Output
Equipped with a high-efficiency LED array, this retrofit kit reliably delivers 11,150 lumens with an outstanding efficacy to support demanding commercial needs. The symmetric distribution optical system smoothly pushes uniform light across wide target areas through a clear tempered glass lens. The advanced LED engine ensures stable operation and crisp color rendering throughout its extensive lifespan, which extends up to 100,000 hours depending on site conditions.
Electrical & Controls
This luminaire operates on a standard universal 120-277V input and features a factory-programmable, fully potted driver to resist moisture. To handle electrical anomalies in harsh outdoor environments, the unit is equipped with integral 6kV surge protection, alongside comprehensive over-voltage, under-voltage, short-circuit, and over-temperature safeguards. It also supports standard 0-10V dimming, empowering facility managers to seamlessly adjust output for energy optimization and strict local lighting codes.
Construction & Durability
The rugged ultra-slim 11/16-inch optical housing is constructed from high-quality die-cast aluminum and finished with a resilient white DuraGrip polyester powder coat designed to resist weathering without cracking or peeling. It features a robust IP66 wet location rating, fully protecting the internal driver and electrical components against heavy rain, dust, and debris. This durable construction ensures uninterrupted performance across varying commercial climates.
Installation & Mounting

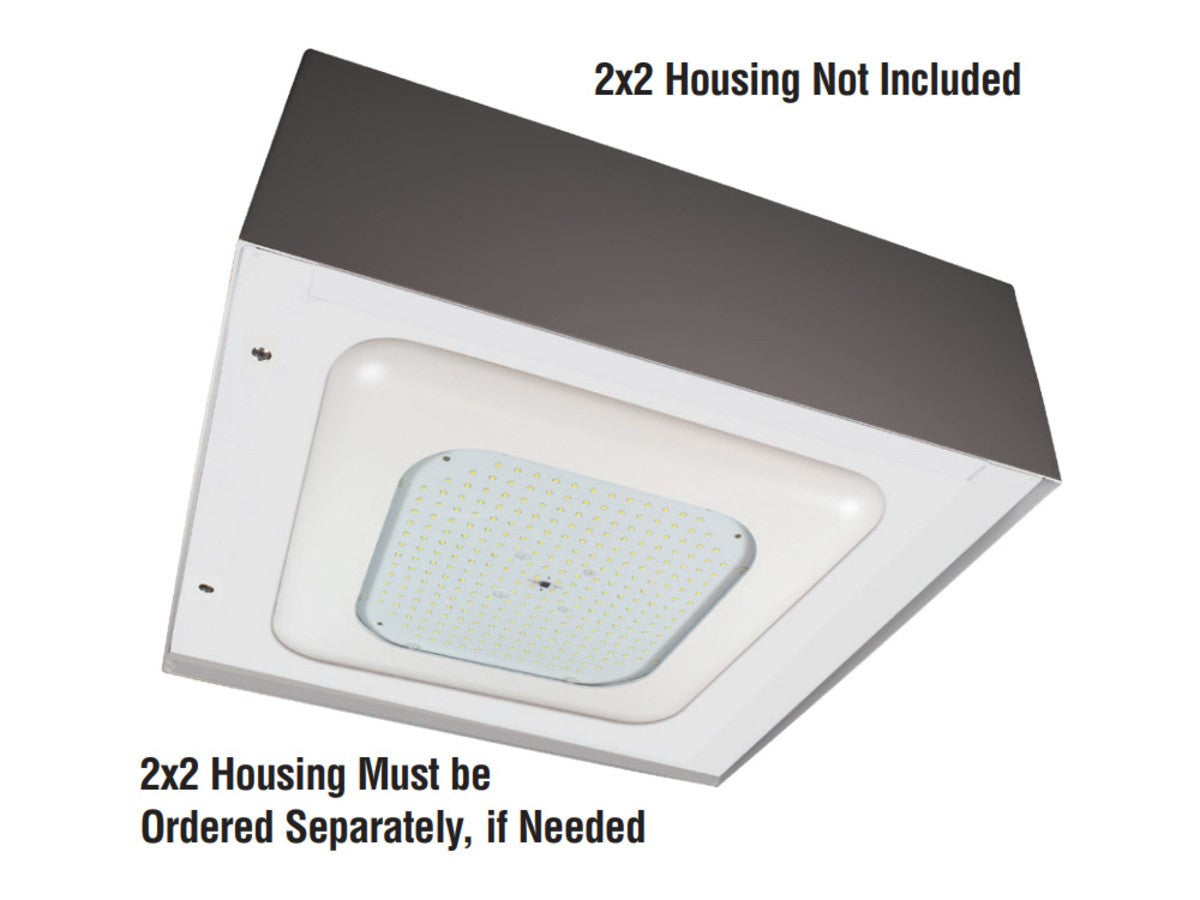

Designed specifically to streamline overhead retrofit applications, the Universal Superkit facilitates straightforward mounting directly into existing 2x2 canopy fixture housings, including older LSI, Whiteway, and Jet-Philips models. It is built for a simplified one-person setup, utilizing a pre-assembled optical unit, tether, and a hinged adaptor panel to ensure wiring connections remain secure and manageable. This intelligent design drastically reduces site downtime and required labor resources.
What's Included
- (1) Pre-assembled Optical Unit
- (1) Adaptor Panel
- (1) Driver Assembly
- Installation Instructions
Specifications
Specifications

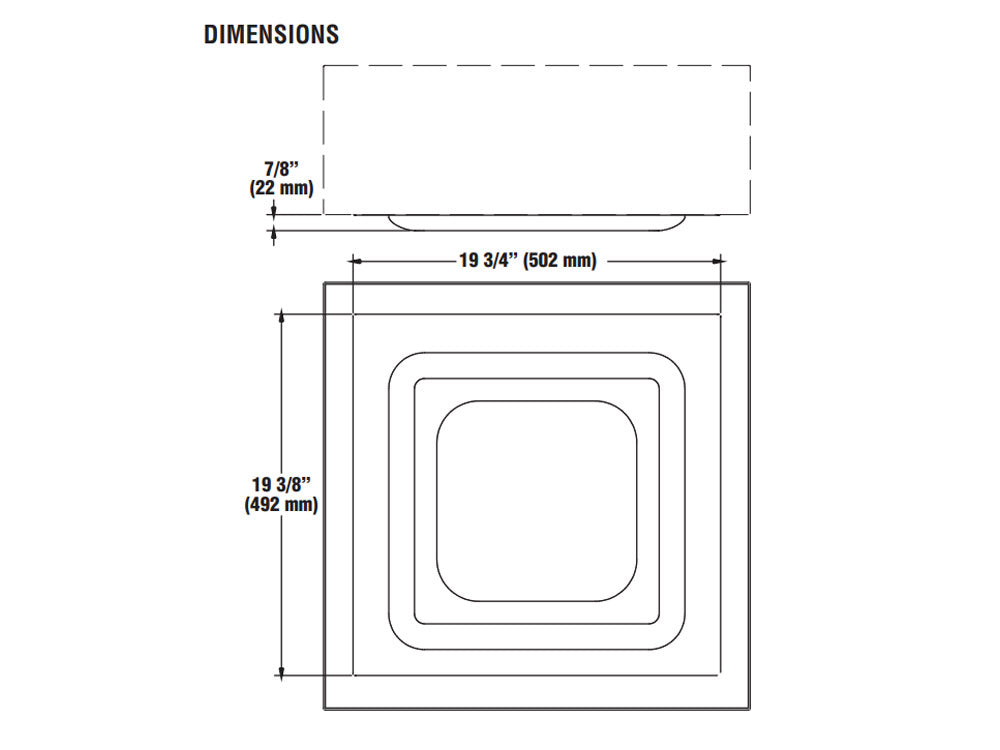

Dimensions
