LED Gas Station Canopy Light, 22700 Lumens, 152 Watts, 5000K, 120-277V, Recessed Superkit
Made to Order
About this item
About this item
- Lumens: Delivers 22,500 lumens for bright and efficient lighting.
- Wattage: Operates at 152 watts, ensuring energy efficiency.
- Voltage: Compatible with 120-277V for versatile installation.
- Color Temperature: Provides a crisp 5000K light for clear visibility.
- Environmental Rating: IP67 rated for wet locations, ensuring durability.
We process payments securely and do not store credit card information.
Description
Description

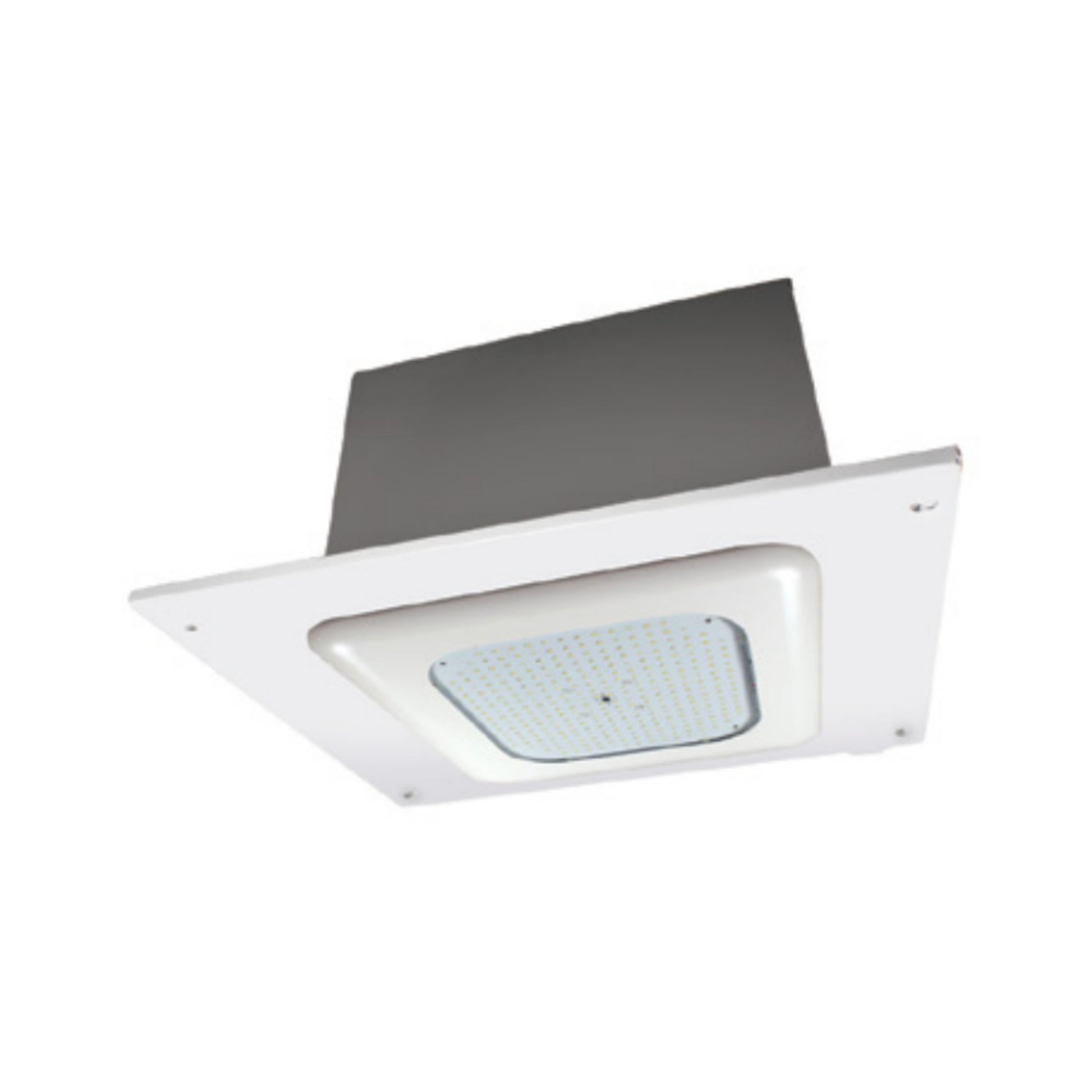

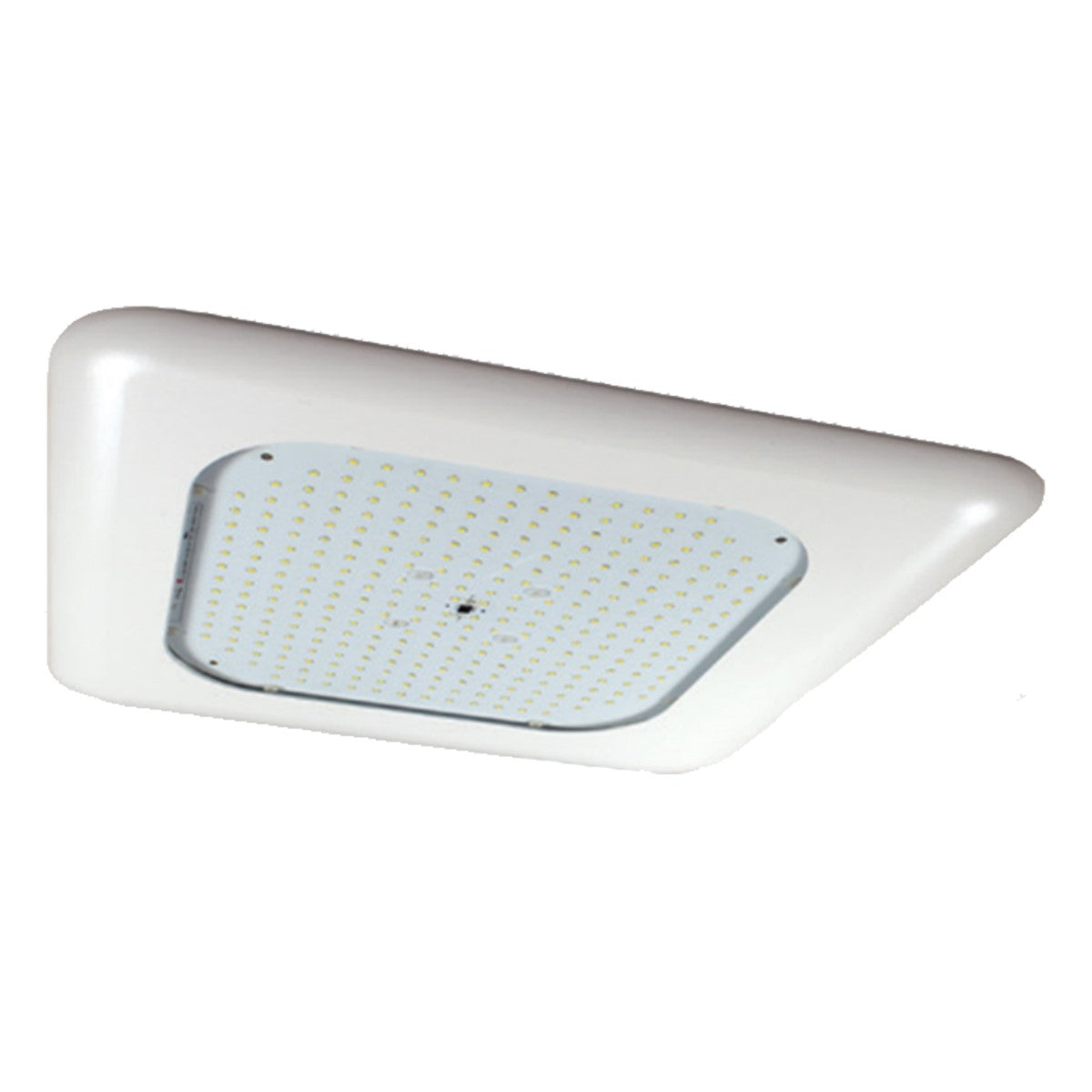

LSI Scottsdale Series Canopy Light - 152W Configuration
The LSI CRUSK-RECU-SC-LED-VHO-50-UE-WHT is a high-efficiency canopy light delivering 22,500 lumens at 152 watts. It operates on a 120-277V power supply and features a 5000K color temperature. This fixture is ideal for outdoor canopy applications and is IP67 rated for wet locations.
Key Features
- Die-Cast Housing: Ultra-slim profile with a die-cast housing and tempered glass lens for durability.
- Symmetric Distribution: Provides uniform light distribution for consistent illumination.
- High Efficiency LEDs: Utilizes mid-power, high brightness LEDs for optimal performance.
- Surge Protection: Includes 6kV surge protection, meeting IEEE and ANSI standards.
- DuraGrip Finish: Polyester powder coat finish withstands extreme weather without cracking.
- Pressure Stabilizing Vent: Prevents seal fatigue and failure, enhancing longevity.
- Universal Voltage: Supports 120-277V and 347-480V inputs for flexible installation.
- Dimming Capability: Standard 0-10V dimming for adjustable light levels.
- Long Lifespan: Rated for 60,000 to 100,000 hours depending on conditions.
- UL and ETL Listed: Complies with UL 1598 and UL 8750 standards for safety.
Typical Applications
- Gas Stations
- Parking Garages
- Commercial Canopies
- Service Stations
- Retail Entrances
Performance & Light Output
With a luminous efficacy of up to 150 LPW, this fixture ensures high performance. It features an 80 CRI for accurate color rendering and a symmetric distribution for even light spread.
Electrical & Controls
The fixture includes a factory programmable driver with over-voltage, under-voltage, short-circuit, and over-temperature protection. It supports 0-10V dimming and includes a 6kV surge protection device.
Construction & Durability
Constructed with a die-cast housing and tempered glass lens, the fixture is IP67 rated for wet locations. The DuraGrip polyester powder coat finish ensures resistance to weather changes.
Installation & Mounting
Designed for one-person installation, the fixture includes a tether for the optical unit and a hinged adaptor panel for simplified wiring. It is compatible with various existing recessed canopy fixtures.
What's Included
- Canopy Light Fixture
- Pre-mounted Driver
- Installation Tether
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the lumen output of the LSI CRUSK-RECU-SC-LED-VHO-50-UE-WHT?
What is the lumen output of the LSI CRUSK-RECU-SC-LED-VHO-50-UE-WHT?
Is the LSI CRUSK-RECU-SC-LED-VHO-50-UE-WHT dimmable?
Is the LSI CRUSK-RECU-SC-LED-VHO-50-UE-WHT dimmable?
What is the voltage range for this canopy light?
What is the voltage range for this canopy light?
What environmental rating does this fixture have?
What environmental rating does this fixture have?
What is included with the LSI CRUSK-RECU-SC-LED-VHO-50-UE-WHT?
What is included with the LSI CRUSK-RECU-SC-LED-VHO-50-UE-WHT?
