LED Gas Station Canopy Light, 13980 Lumens, 93 Watts, 5000K, 120-277V, Recessed Superkit
Made to Order
About this item
About this item
- Lumens: Delivers 14000 lumens for bright and efficient lighting.
- Wattage: Operates at 93 watts, ensuring energy efficiency.
- Voltage: Compatible with 120-277V for versatile installation.
- Environmental Rating: IP67 rated, suitable for wet locations.
- Color Temperature: Provides a 5000K color temperature for clear visibility.
We process payments securely and do not store credit card information.
Description
Description

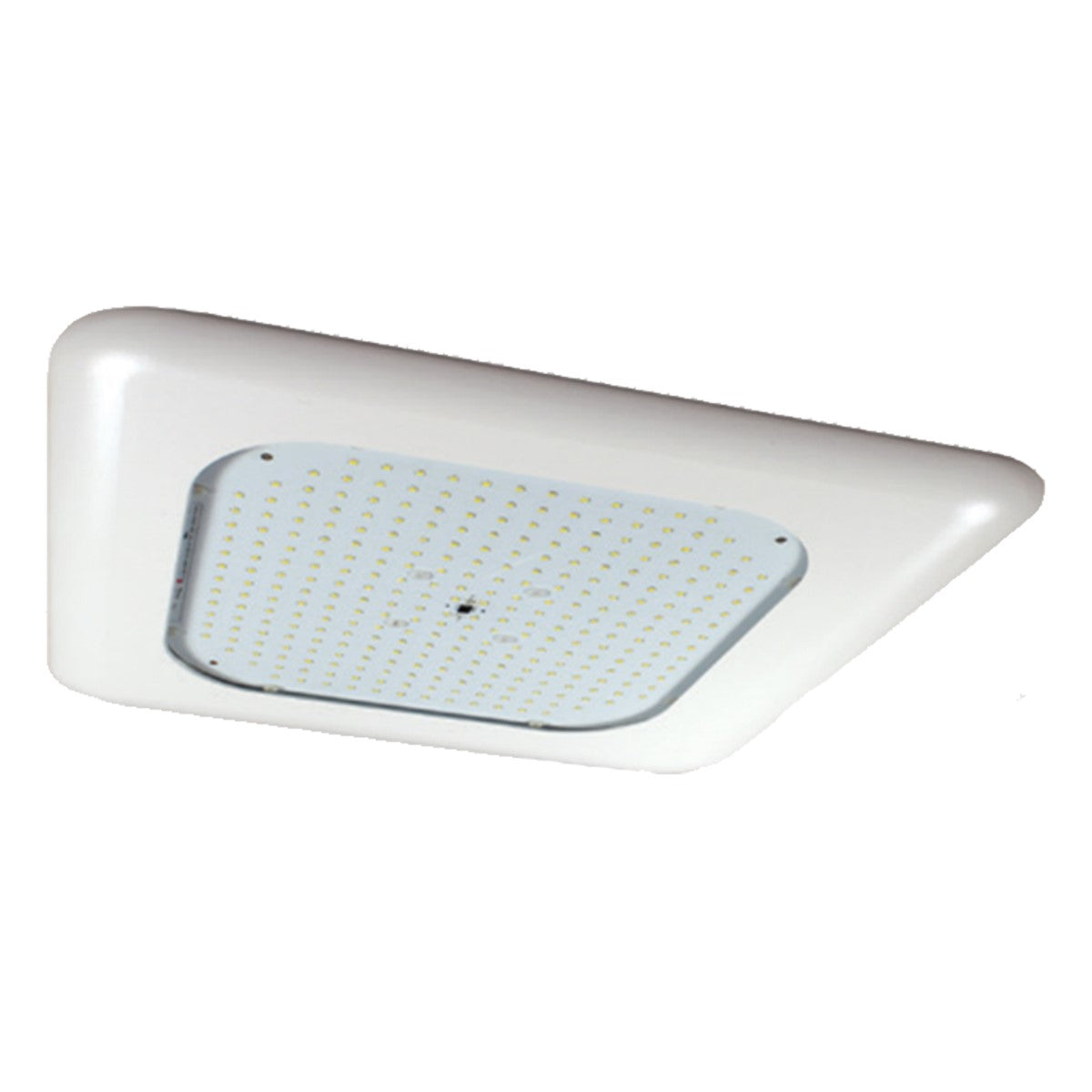

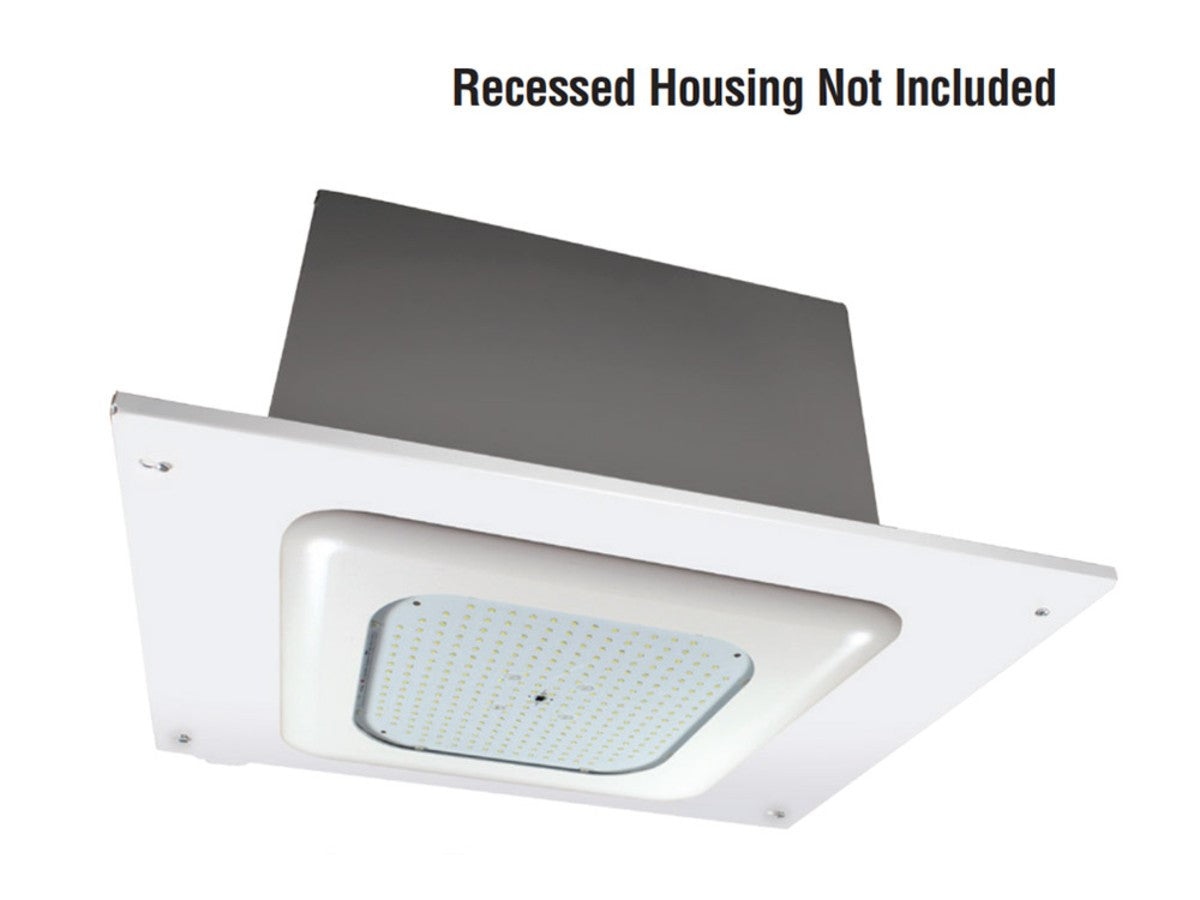

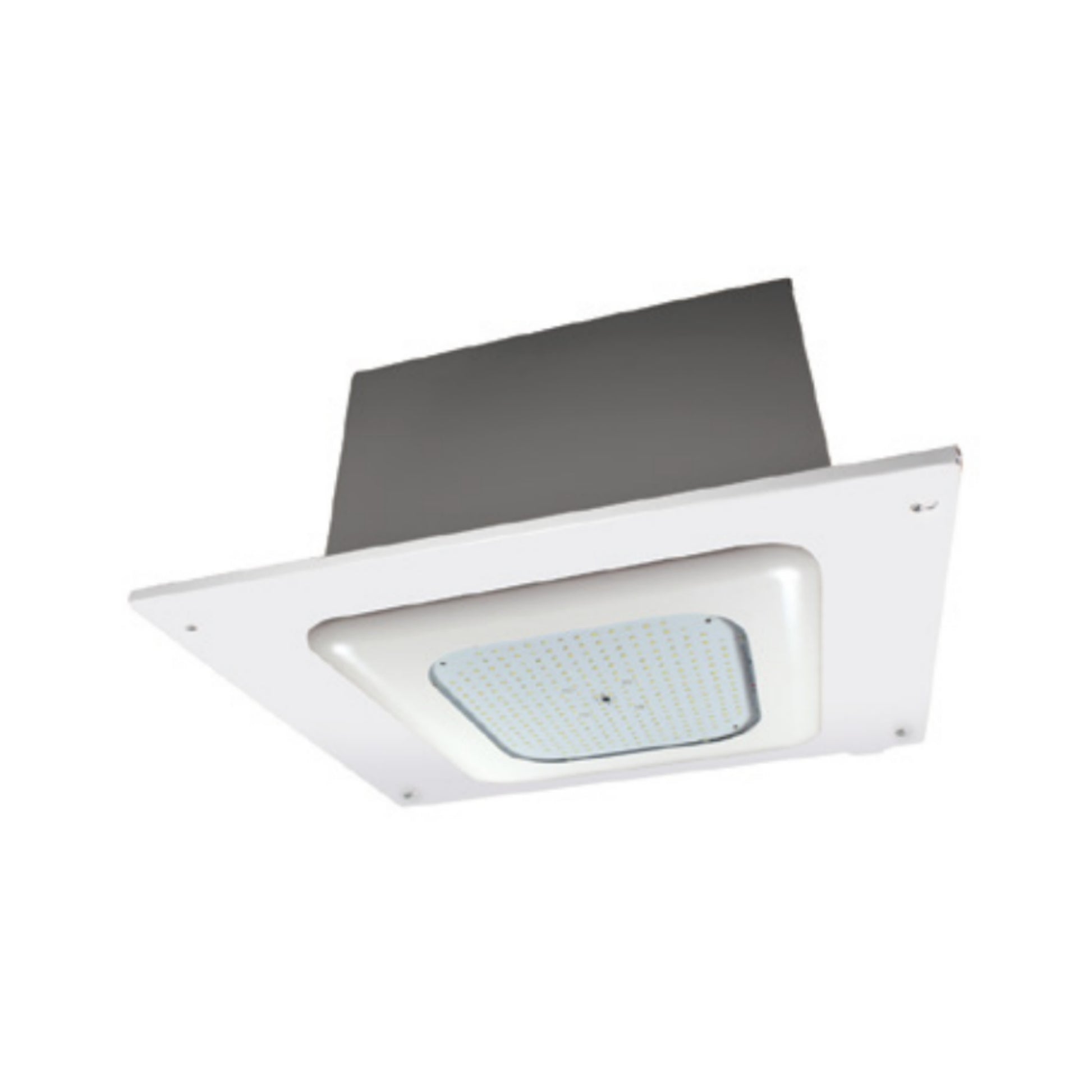

LSI Scottsdale Series Canopy Light - 93W Configuration
The LSI CRUSK-RECU-SC-LED-SS-50 is a recessed canopy light delivering 14000 lumens at 93 watts. It operates on a 120-277V input and features a 5000K color temperature. This fixture is IP67 rated for wet locations, making it ideal for outdoor applications.
Key Features
- Construction: Ultra-slim die-cast housing with a tempered glass lens for durability.
- Optical System: Symmetric distribution for uniform light output.
- Driver: Factory programmable with over-voltage and short-circuit protection.
- Dimming: Standard 0-10V dimming for adjustable light levels.
- Surge Protection: Integrated 6kV surge protection for enhanced reliability.
- Finish: White DuraGrip polyester powder coat for weather resistance.
- Installation: Designed for one-person installation with a hinged adaptor panel.
- Compliance: UL and ETL listed, DLC qualified for energy efficiency.
Typical Applications
- Gas Stations
- Parking Garages
- Drive-Thrus
- Loading Docks
- Underpasses
Performance & Light Output
This fixture offers a high efficacy of 150 LPW with a CRI of 80, ensuring excellent color rendering and long-lasting performance with an L70 rating of up to 100,000 hours.
Electrical & Controls
Equipped with a universal voltage driver (120-277V), it includes standard 0-10V dimming and surge protection, ensuring compatibility with various control systems.
Construction & Durability
The fixture features a robust die-cast housing and tempered glass lens, with an IP67 rating for protection against dust and water ingress.
Installation & Mounting
Designed for easy retrofit installation, it includes a tether for the optical unit and a hinged adaptor panel for simplified wiring.
What's Included
- Canopy Light Fixture
- Pre-assembled Optical Unit
- Adaptor Panel
Specifications
Specifications

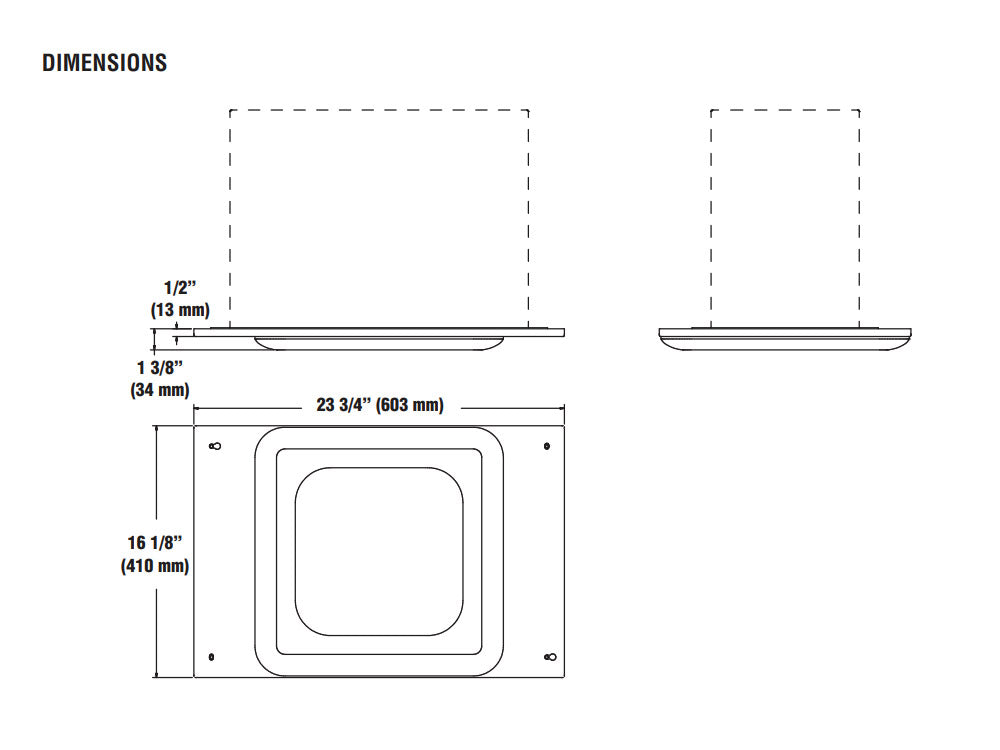

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
