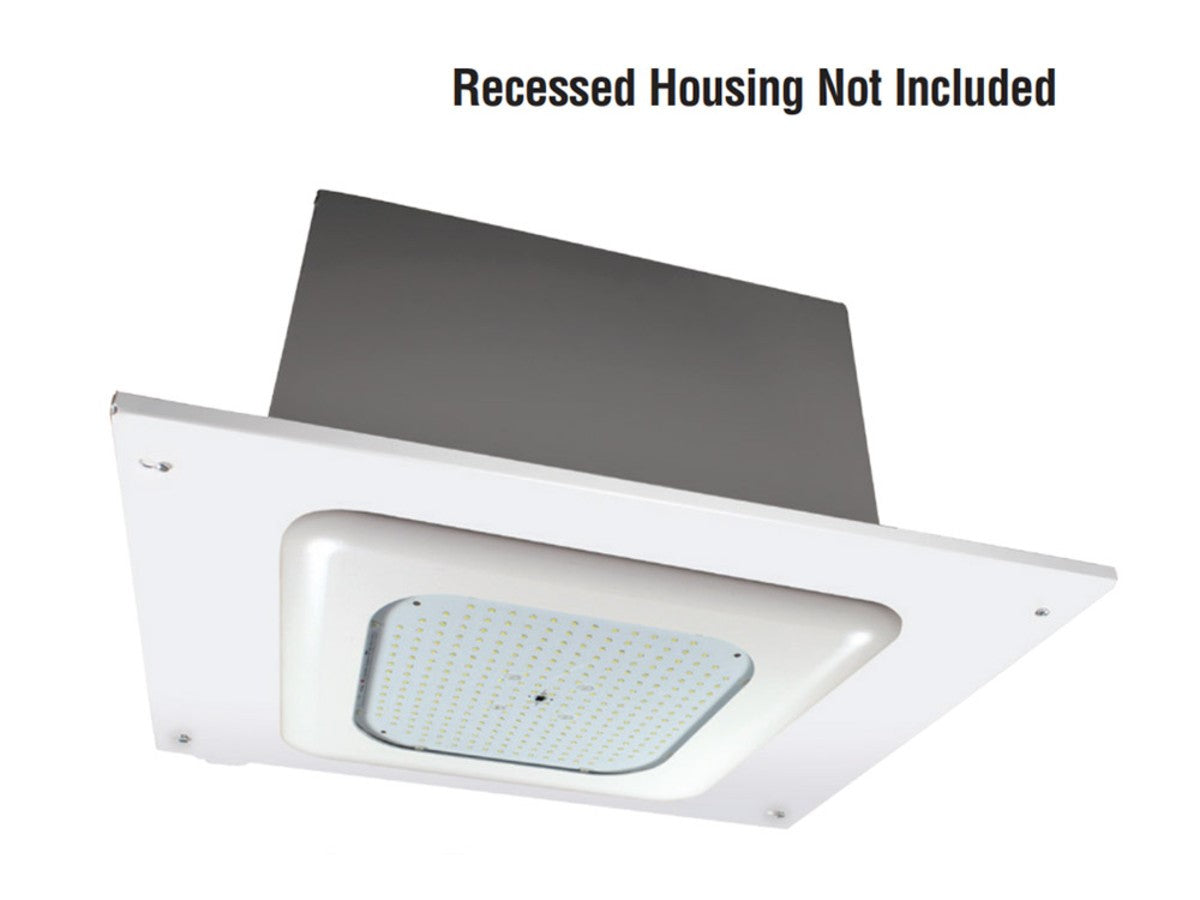

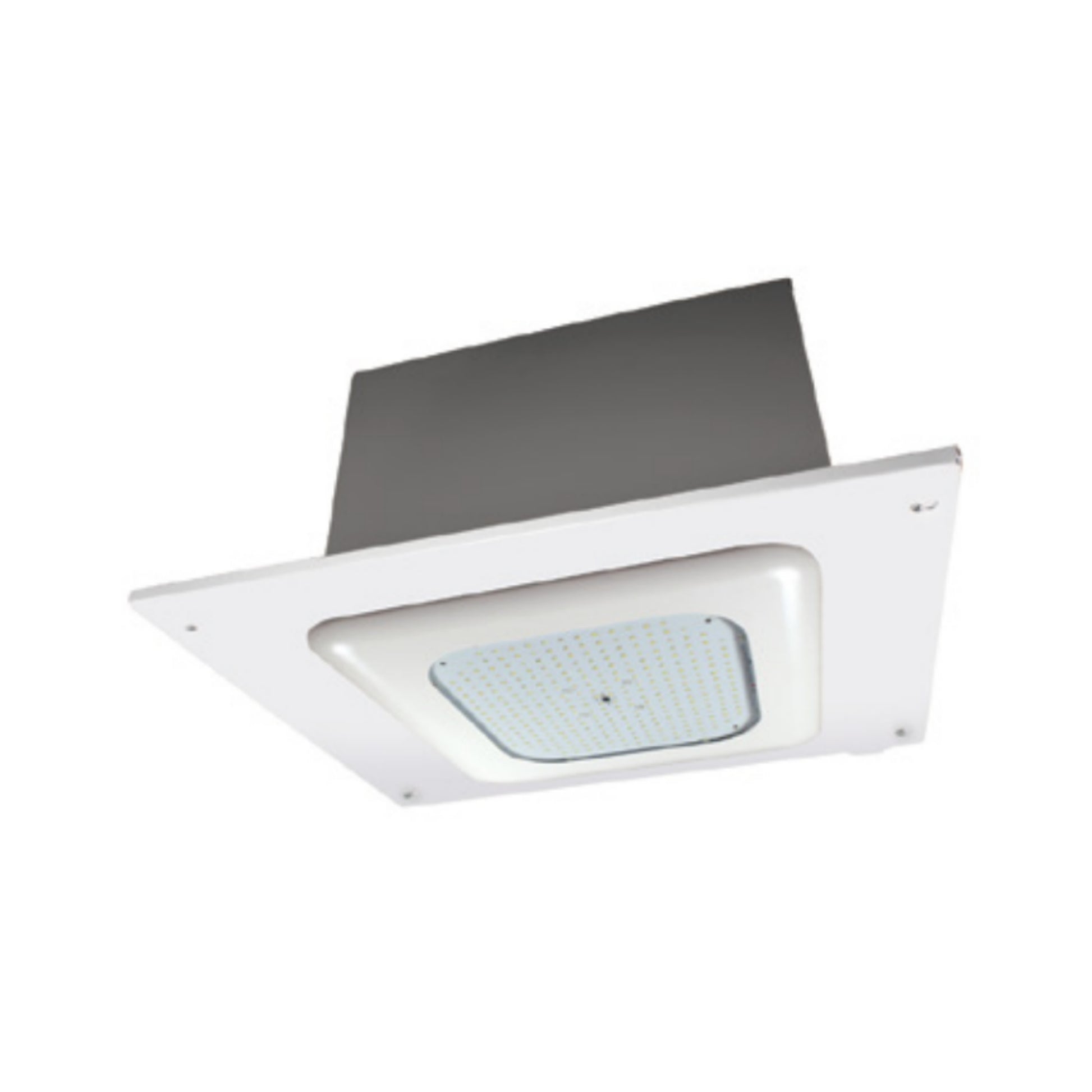

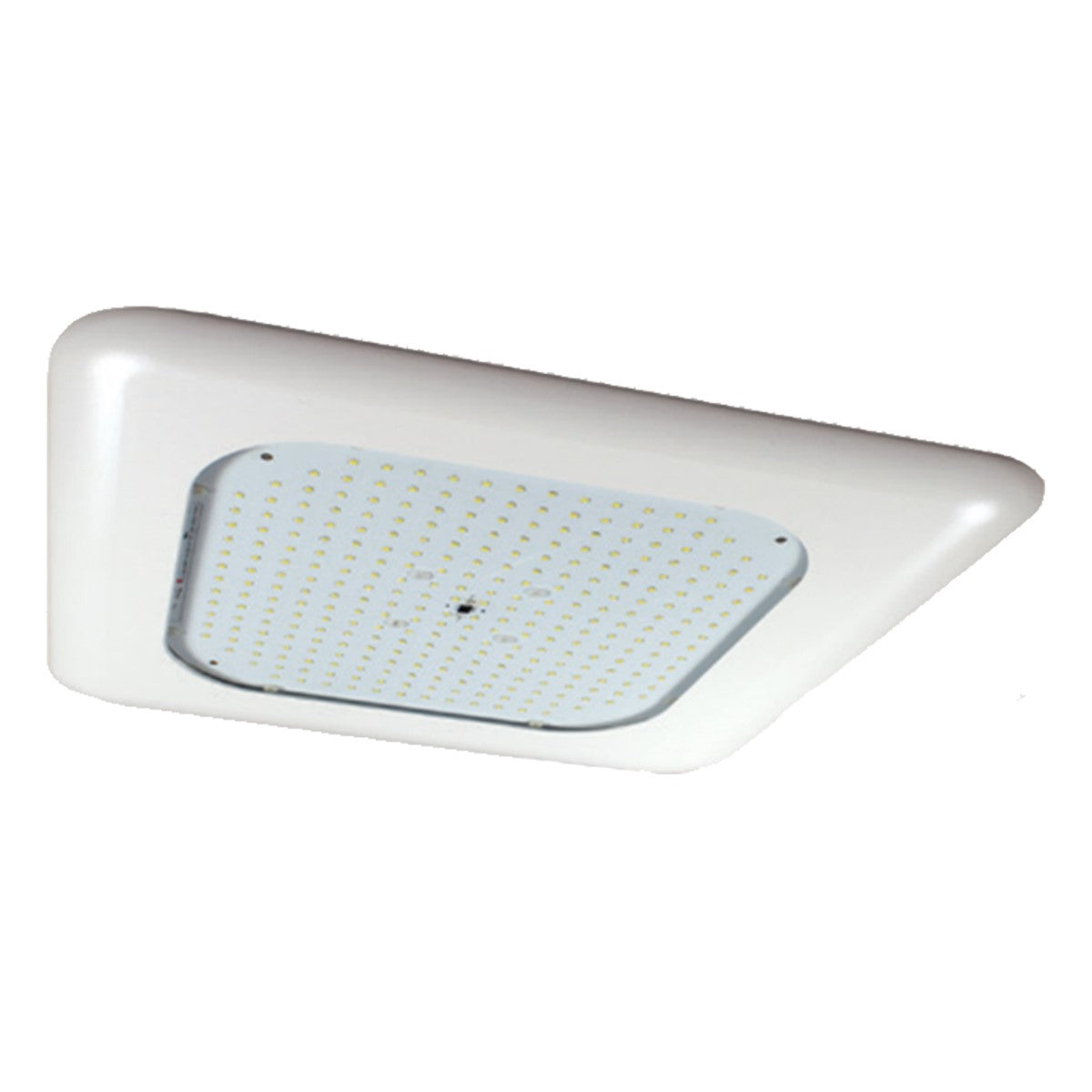

LSI Scottsdale Series Canopy Light - 73W Configuration

The LSI CRUSK-RECU-SC-LED-LW is a recessed canopy light delivering 11000 lumens at 73 watts. It operates on a 120-277V power supply and features a 5000K color temperature. This fixture is IP67 rated for wet locations, making it ideal for outdoor applications.

Key Features

• Construction: Ultra-slim die-cast housing with a tempered glass lens for durability.
• Finish: White finish using LSI's DuraGrip polyester powder coat for weather resistance.
• Optics: Symmetric distribution for uniform light spread.
• Driver: Factory programmable with over-voltage and surge protection.
• Dimming: Standard 0-10V dimming for adjustable light levels.
• Installation: Designed for easy one-person installation with a hinged adaptor panel.
• Compatibility: Retrofit kit suitable for various existing canopy fixtures.
• Warranty: Backed by a 5-year limited warranty.

Typical Applications

• Gas Stations
• Parking Garages
• Service Stations
• Retail Canopies
• Commercial Entrances

Performance & Light Output

This fixture offers a luminous efficacy of 154 LPW with a CRI of 80, ensuring high-quality light output. The symmetric distribution provides even illumination across the covered area.

Electrical & Controls

Equipped with a universal voltage driver, it supports 120-277V input. The fixture includes integral 6kV surge protection and is compatible with 0-10V dimming controls.

Construction & Durability

The housing is constructed from die-cast aluminum with a tempered glass lens, ensuring durability. It is IP67 rated, suitable for wet locations, and operates in temperatures from -40°C to 55°C.

Installation & Mounting

Designed for recessed mounting, the fixture includes a tether for easy handling during installation. It is compatible with various existing canopy fixtures.

What's Included

• Recessed Canopy Light Fixture
• Pre-mounted Driver
• Adaptor Panel
