LSI Scottsdale Series Recessed Canopy Light - 125W Configuration

The LSI CRUSK-RECU-SC-LED-HO-50-UE-WHT is a recessed canopy light designed for high-output applications, delivering 19000 lumens at 125 watts. It operates on a 120-277V input and features a 5000K color temperature, making it suitable for various commercial and industrial environments. This fixture is IP67 rated, ensuring protection against dust and water ingress.

Key Features

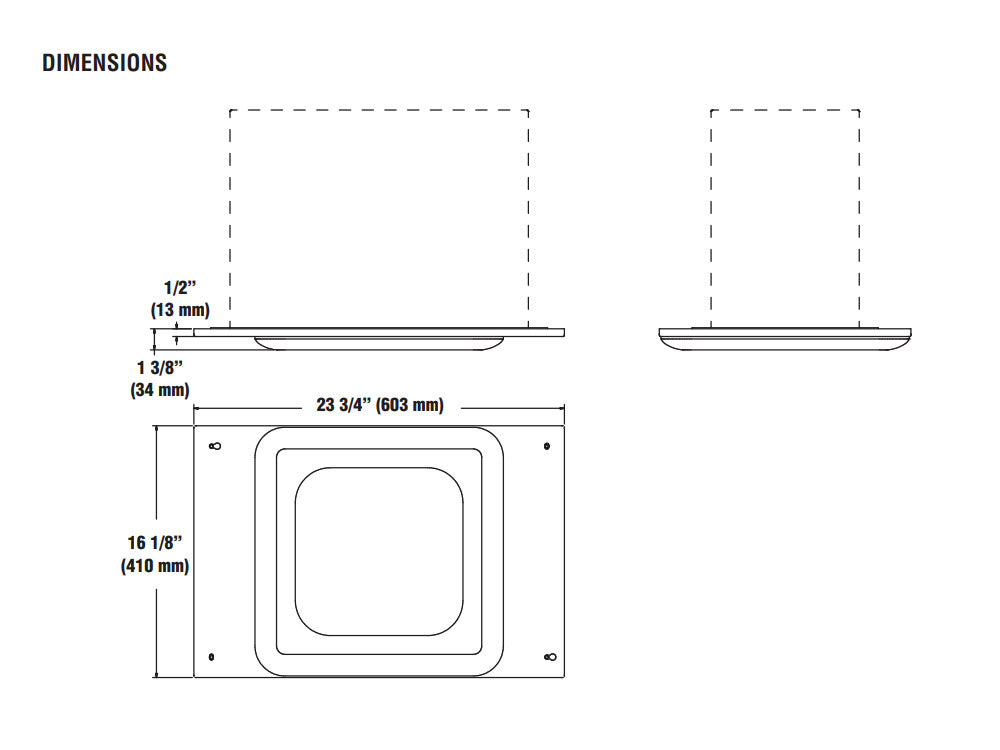

• Ultra-Slim Profile: Features a die-cast housing with a slim 11/16 in. profile for a sleek installation.
• Durable Finish: White finish with LSI's DuraGrip polyester powder coat for weather resistance.
• High Efficiency LEDs: Utilizes mid-power, high brightness LEDs for optimal performance.
• Symmetric Distribution: Provides uniform light distribution for consistent coverage.
• Programmable Driver: Includes a factory programmable driver with over-voltage and temperature protection.
• Surge Protection: Integrated 6kV surge protection with optional 10kV device for enhanced safety.
• Moisture Resistant: Driver components are potted for moisture resistance, complying with IEC and FCC standards.
• Wide Operating Temperature: Functions in temperatures from -40°C to 55°C.
• Long Lifespan: Offers 60,000 to 100,000 hours of operation based on ambient conditions.
• Easy Installation: Designed for one-person installation with a tethered optical unit and hinged adaptor panel.

Typical Applications

• Gas Stations
• Parking Garages
• Loading Docks
• Service Stations
• Industrial Facilities

Performance & Light Output

This fixture delivers 19000 lumens with an efficacy of 152 LPW, ensuring bright and efficient lighting. It features a symmetric distribution for uniform light coverage.

Electrical & Controls

The canopy light operates on a universal voltage range of 120-277V and includes a 0-10V dimming capability. It is equipped with a high-performance driver and surge protection.

Construction & Durability

Constructed with a die-cast housing and tempered glass lens, this fixture is IP67 rated for wet locations. It features a durable white finish that withstands extreme weather conditions.

Installation & Mounting

Designed for easy installation, the fixture includes a pre-mounted driver and a hinged adaptor panel for simplified wiring. It is compatible with various existing recessed canopy fixtures.

What's Included

• Recessed Canopy Light Fixture
• Pre-mounted Driver
• Adaptor Panel
