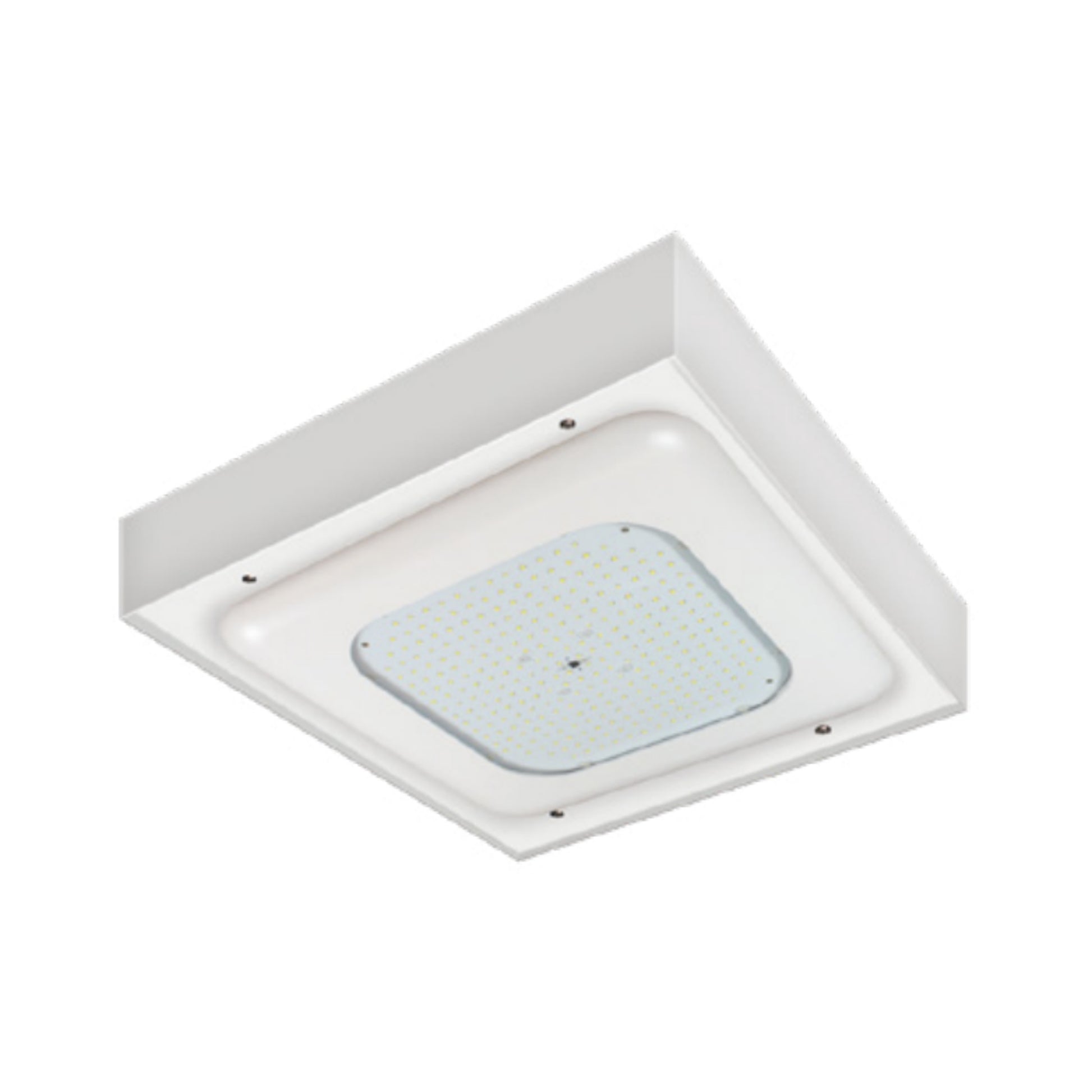

LSI Scottsdale Series Canopy Light - 60W Configuration

The LSI CRUS-SM-SC-LED-VLW is a canopy light designed for efficient lighting solutions with 9300 lumens output at 60 watts. It operates on a 120-277V input, making it suitable for various applications. This fixture is IP66 rated, ensuring durability in wet locations.

Key Features

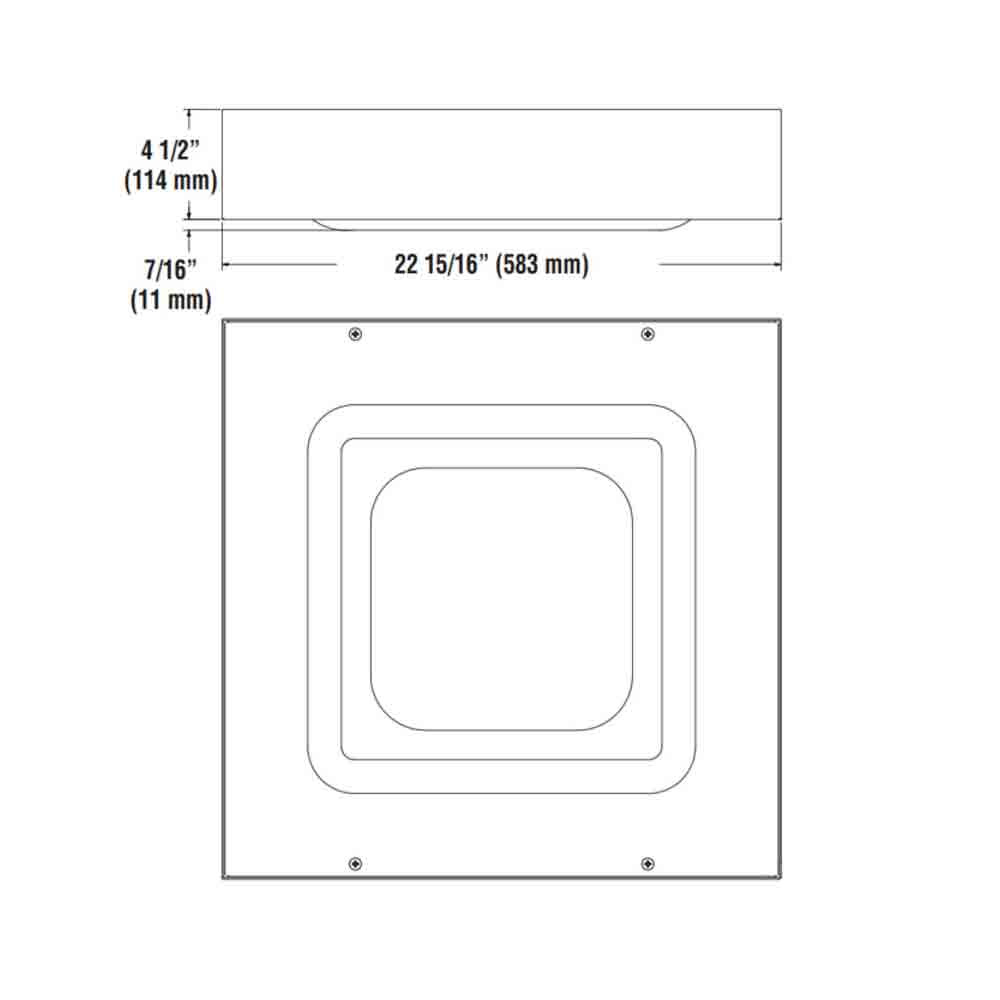

• Construction: Ultra-slim profile with die-cast housing and tempered glass lens.
• Finish: White finish with DuraGrip polyester powder coat for weather resistance.
• Optical System: Symmetric distribution for uniform light spread.
• Driver: Factory programmable with over-voltage and surge protection.
• Dimming: Standard 0-10V dimming capability included.
• Installation: One-person installation with tether and hinged adaptor panel.
• Warranty: Comes with a 5-year limited warranty.
• Compliance: UL and ETL listed, DLC qualified, and meets Buy American Act.

Typical Applications

• Gas Stations
• Parking Garages
• Loading Docks
• Retail Entrances
• Service Stations

Performance & Light Output

This fixture delivers a luminous efficacy of 155 LPW with a CRI of 80, ensuring high-quality light output. It is designed for a long lifespan with L70 ratings between 60,000 to 100,000 hours depending on conditions.

Electrical & Controls

The canopy light supports universal voltage (120-277V) and includes a high-performance driver with integral 6kV surge protection. It is compatible with 0-10V dimming controls.

Construction & Durability

Constructed with a die-cast aluminum housing and a clear tempered glass lens, this fixture is IP66 rated for water resistance and is finished with a durable polyester powder coat.

Installation & Mounting

Designed for easy installation with a one-person setup, it includes a tether for the optical unit and a hinged adaptor panel for simplified wiring. Retrofit kits are available for existing installations.

What's Included

• Canopy Light Fixture
• Installation Tether
• Adaptor Panel
