LSI CRUS-SM Series Canopy Light — 22,697 Lumens, 152W, 5000K, 120-277V

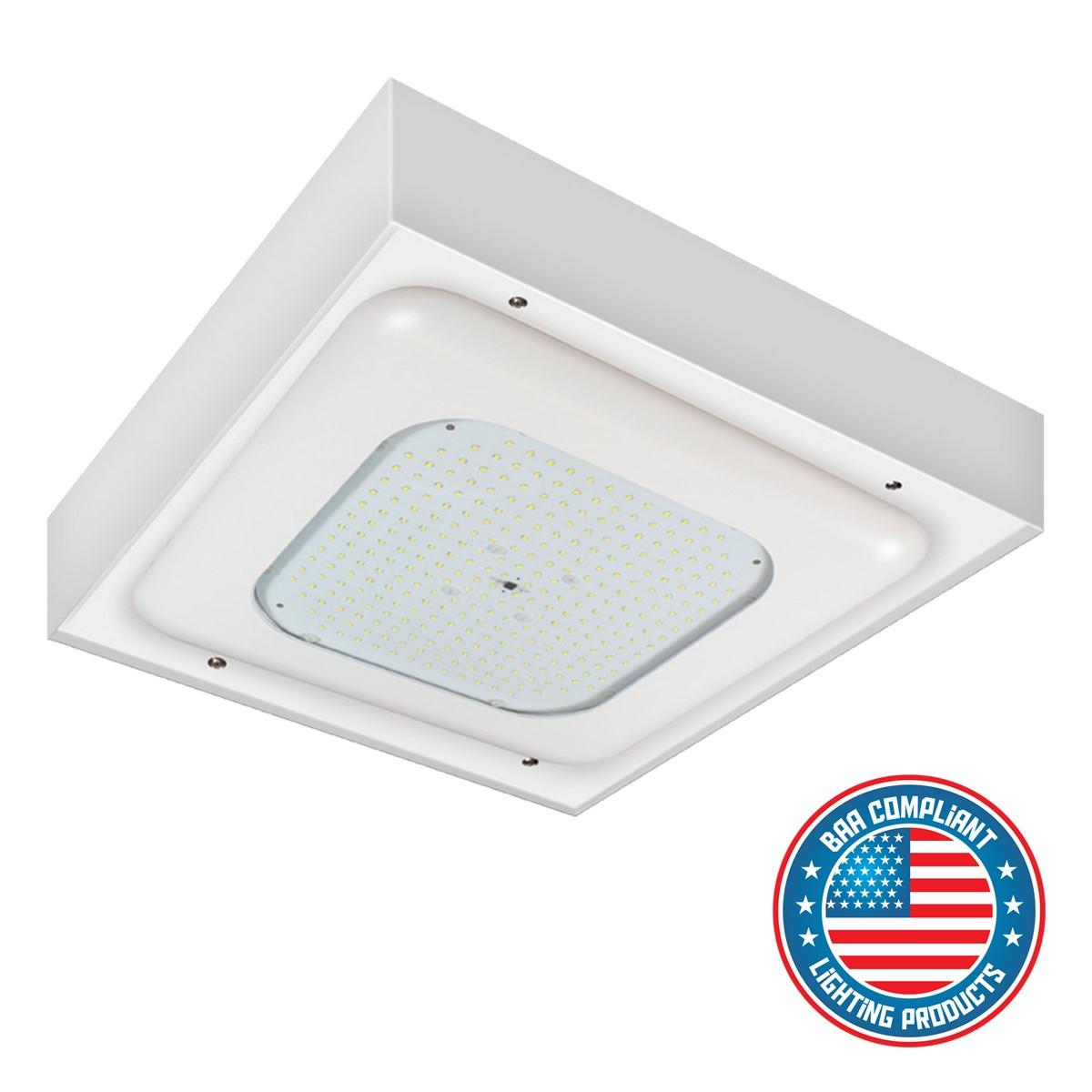

The LSI Scottsdale Legacy CRUS-SM canopy luminaire provides an exceptional lighting solution for modern petroleum stations and commercial drive-thrus. This surface-mounted fixture delivers 22,697 lumens while consuming 152W on a universal 120-277V input, ensuring crisp 5000K illumination. Engineered for demanding environments, this ultra-slim profile housing integrates seamlessly into overhead canopies and maintains strict compliance with both the Buy American Act (BAA) and DLC standards.

Key Features

• Distribution Type: Symmetric (SC)
• Wattage: 152W
• Lumens: 22,697 Lumens
• Input Voltage: 120-277V
• Mounting: Surface Mount
• Environmental Rating: IP66 Wet Location Rated
• Dimming: 0-10V Dimming
• Color Temperature: 5000K
• Lens Type: Clear Tempered Glass
• Finish: White DuraGrip Polyester Powder Coat
• Certifications: UL/ETL Listed, DLC Qualified, BAA Compliant

Typical Applications

• Petroleum and Gas Station Canopies
• Parking Garages and Soffits
• Commercial Loading Docks
• Retail Entrances and Walkways
• Service Stations

Performance & Light Output

Equipped with a high-efficiency LED array, this canopy light reliably delivers 22,697 lumens with an outstanding efficacy to support demanding commercial needs. The symmetric distribution optical system smoothly pushes uniform light across wide target areas through a clear tempered glass lens. The advanced LED engine ensures stable operation and crisp color rendering throughout its long lifespan, which ranges from 60,000 to 100,000 hours depending on the installation conditions.

Electrical & Controls

This luminaire operates on a standard universal 120-277V input and features a factory-programmable driver. To handle electrical anomalies in harsh outdoor environments, the unit is equipped with integral 6kV surge protection, alongside comprehensive over-voltage, under-voltage, short-circuit, and over-temperature safeguards. It also supports standard 0-10V dimming, empowering facility managers to seamlessly adjust output for energy optimization and strict local lighting codes.

Construction & Durability

The rugged ultra-slim housing is constructed from high-quality die-cast aluminum and finished with a resilient white DuraGrip polyester powder coat designed to resist weathering. It features a robust IP66 wet location rating, fully protecting the internal driver and electrical components against heavy rain, dust, and debris. This durable construction ensures uninterrupted performance across varying commercial climates.

Installation & Mounting

Designed specifically to streamline overhead applications, the fixture facilitates straightforward surface mounting directly to canopy ceilings. It is built for a simplified one-person setup, utilizing an included optical tether and a hinged adaptor panel to ensure wiring connections remain secure and manageable. This intelligent design drastically reduces installation time and required labor resources.

What's Included

• (1) CRUS-SM LED Canopy Fixture
• (1) Pre-assembled Optical Unit Tether
• (1) Hinged Adaptor Panel
• Installation Instructions
