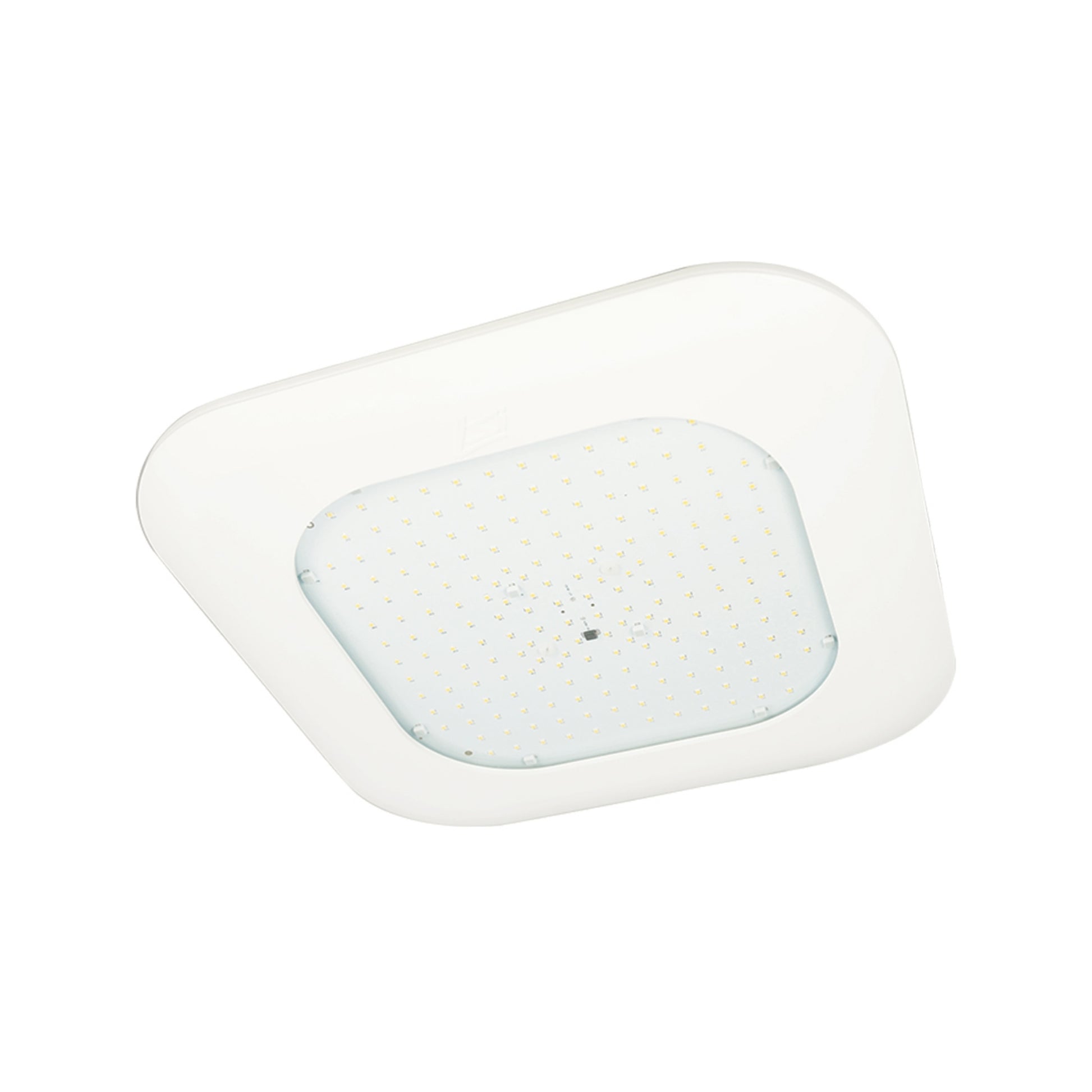

LSI Scottsdale Series LED Canopy Light - 60W Configuration

The LSI CRUS-SC-LED-VLW-50-UE-WHT is a 60-watt LED canopy light delivering 9300 lumens with a 5000K color temperature. Designed for use in gas station canopies, it operates on 120-277V and is IP66 rated for wet locations.

Key Features

• Construction: Ultra-slim die-cast housing with a flat tempered glass lens.
• Optical System: Offers symmetric distribution with optional diffused lens.
• Electrical: Includes a factory programmable driver with 6kV surge protection.
• Dimming: Standard 0-10V dimming for adjustable light output.
• Durability: Finished with DuraGrip polyester powder coat for weather resistance.
• Installation: Designed for easy retrofit into existing 12' or 16' deck pans.
• Compliance: UL and ETL listed, DLC Premium qualified.
• Warranty: Backed by a 5-year limited warranty.

Typical Applications

• Gas Station Canopies
• Parking Garages
• Retail Entrances
• Loading Docks
• Drive-Thru Areas

Performance & Light Output

This fixture provides a high lumen output of 9300 lumens with an efficacy of 155 lumens per watt, ensuring bright and efficient lighting. It features an 80 CRI for accurate color rendering and a long lifespan of up to 100,000 hours.

Electrical & Controls

The canopy light operates on a universal voltage range of 120-277V and includes a high-performance driver with integral surge protection. It supports 0-10V dimming for flexible lighting control.

Construction & Durability

Constructed with a die-cast aluminum housing and a tempered glass lens, this fixture is IP66 rated for protection against dust and water ingress, ensuring reliable performance in outdoor environments.

Installation & Mounting

Designed for one-person installation, it fits into 12' or 16' deck pans with a 4' hole, simplifying the retrofit process. Support brackets are included to prevent deck sagging.

What's Included

• LED Canopy Light Fixture
• Support Brackets
