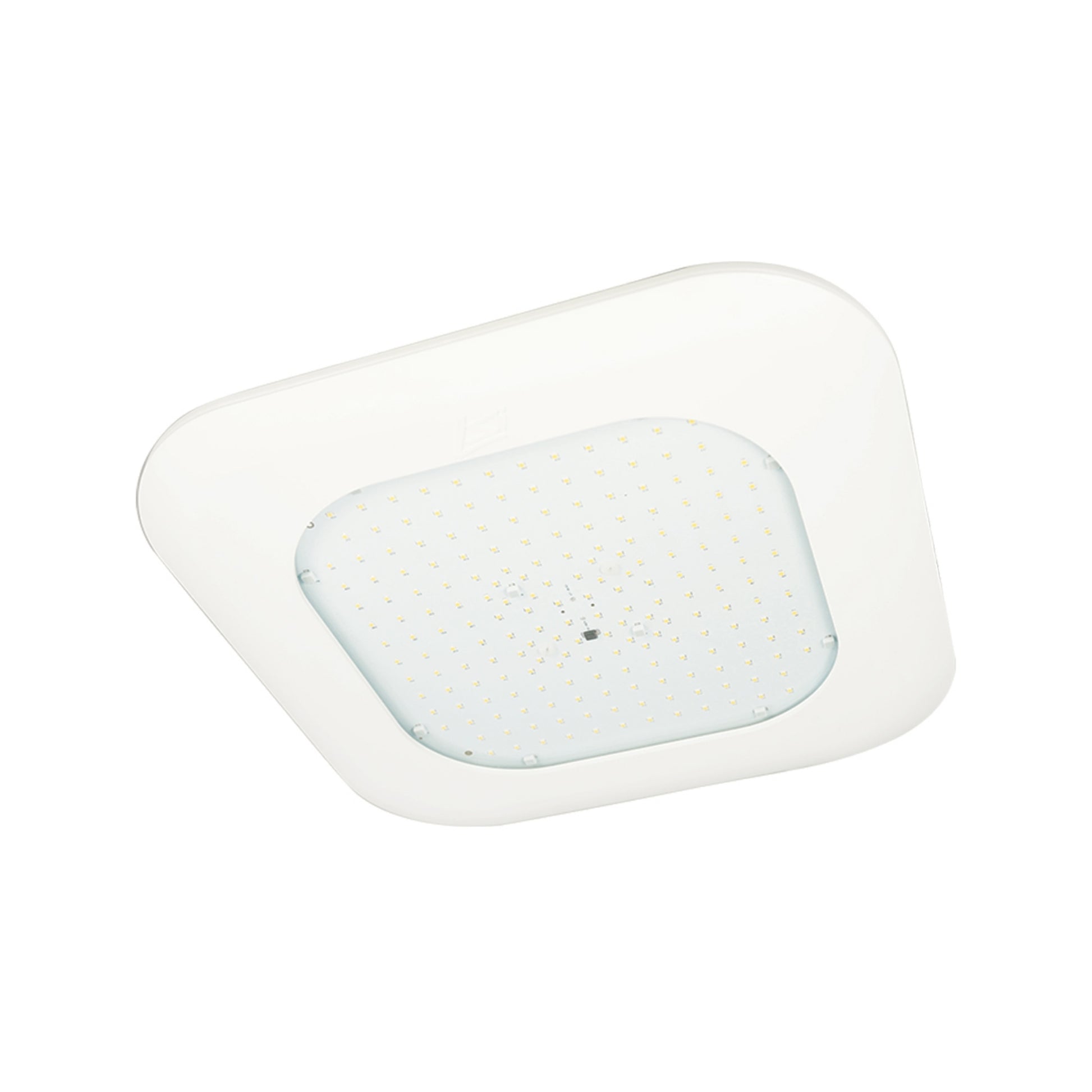

LSI CRUS-SC Series Canopy Light — 22,500 Lumens, 152W, 5000K, 120-277V

The LSI Scottsdale Legacy CRUS-SC canopy luminaire provides an exceptional lighting solution for modern petroleum stations and commercial drive-thrus. Delivering 22,500 lumens while consuming 152W on a universal 120-277V input, this fixture ensures crisp 5000K illumination. Engineered for demanding environments, this ultra-slim profile housing integrates seamlessly into overhead canopies and maintains strict compliance with both the Buy American Act (BAA) and DLC Premium standards.

Key Features

• Distribution Type: Symmetric (SC)
• Wattage: 152W
• Lumens: 22,500 Lumens
• Input Voltage: 120-277V
• Color Temperature: 5000K
• Environmental Rating: IP66 Wet Location Rated
• Dimming: 0-10V Dimming
• Lens Type: Clear Tempered Glass
• Finish: White DuraGrip Polyester Powder Coat
• Certifications: DLC Qualified, BAA Compliant

Typical Applications

• Petroleum and Gas Station Canopies
• Parking Garages and Soffits
• Commercial Loading Docks
• Retail Entrances and Walkways
• Drive-Thru Areas

Performance & Light Output

Equipped with a high-efficiency LED array, this canopy light reliably delivers 22,500 lumens with an outstanding efficacy to support demanding commercial needs. The symmetric distribution optical system smoothly pushes uniform light across wide target areas through a clear tempered glass lens. The advanced LED engine ensures stable operation and crisp color rendering throughout its long lifespan, which extends up to 100,000 hours depending on the installation conditions.

Electrical & Controls

This luminaire operates on a standard universal 120-277V input and features a factory-programmable driver. To handle electrical anomalies in harsh outdoor environments, the unit is equipped with integral 6kV surge protection, alongside comprehensive over-voltage, under-voltage, short-circuit, and over-temperature safeguards. It also supports standard 0-10V dimming, empowering facility managers to seamlessly adjust output for energy optimization and strict local lighting codes.

Construction & Durability

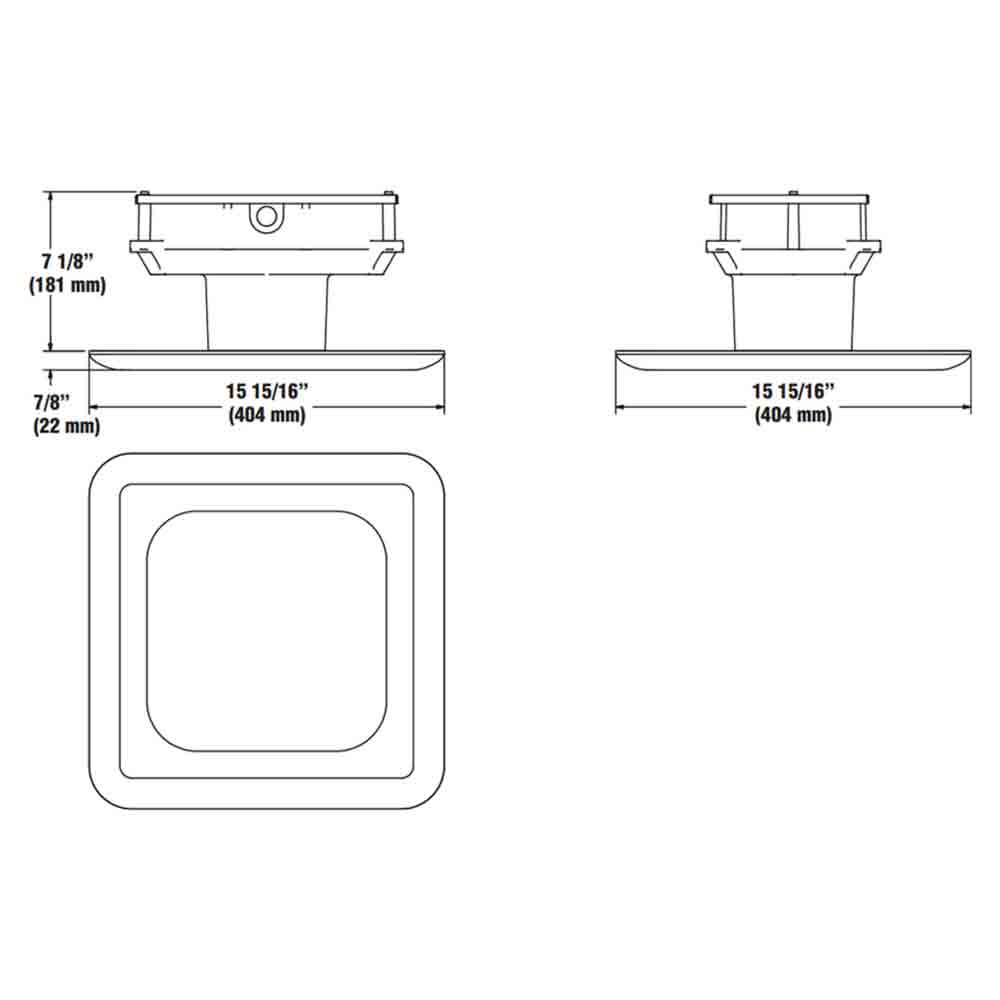

The rugged ultra-slim 7/8-inch housing is constructed from high-quality die-cast aluminum and finished with a resilient white DuraGrip polyester powder coat designed to resist weathering. It features a robust IP66 wet location rating, fully protecting the internal driver and electrical components against heavy rain, dust, and debris. This durable construction ensures uninterrupted performance across varying commercial climates.

Installation & Mounting

Designed specifically to streamline overhead applications, the fixture facilitates straightforward retrofit mounting directly into existing 12-inch or 16-inch deck pans using a standard 4-inch hole. It is built for a simplified one-person setup, utilizing an included optical tether and a hinged adaptor panel to ensure wiring connections remain secure and manageable. This intelligent design drastically reduces installation time and required labor resources.

What's Included

• (1) CRUS-SC LED Canopy Fixture
• (1) Pre-assembled Optical Unit Tether
• (1) Hinged Adaptor Panel
• Installation Instructions
