LED Gas Station Canopy Light, 11150 Lumens, 73 Watts, 5000K, 120-277V
Made to Order
About this item
About this item
- Lumens: This canopy light delivers 11,000 lumens, providing bright illumination for large areas.
- Wattage: Operates at 73 watts, ensuring energy-efficient performance.
- Voltage: Supports a universal voltage range of 120-277V, suitable for various installations.
- Color Temperature: Emits light at 5000K, offering a daylight-like appearance.
- Environmental Rating: IP67 rated for wet locations, ensuring durability in harsh conditions.
We process payments securely and do not store credit card information.
Description
Description

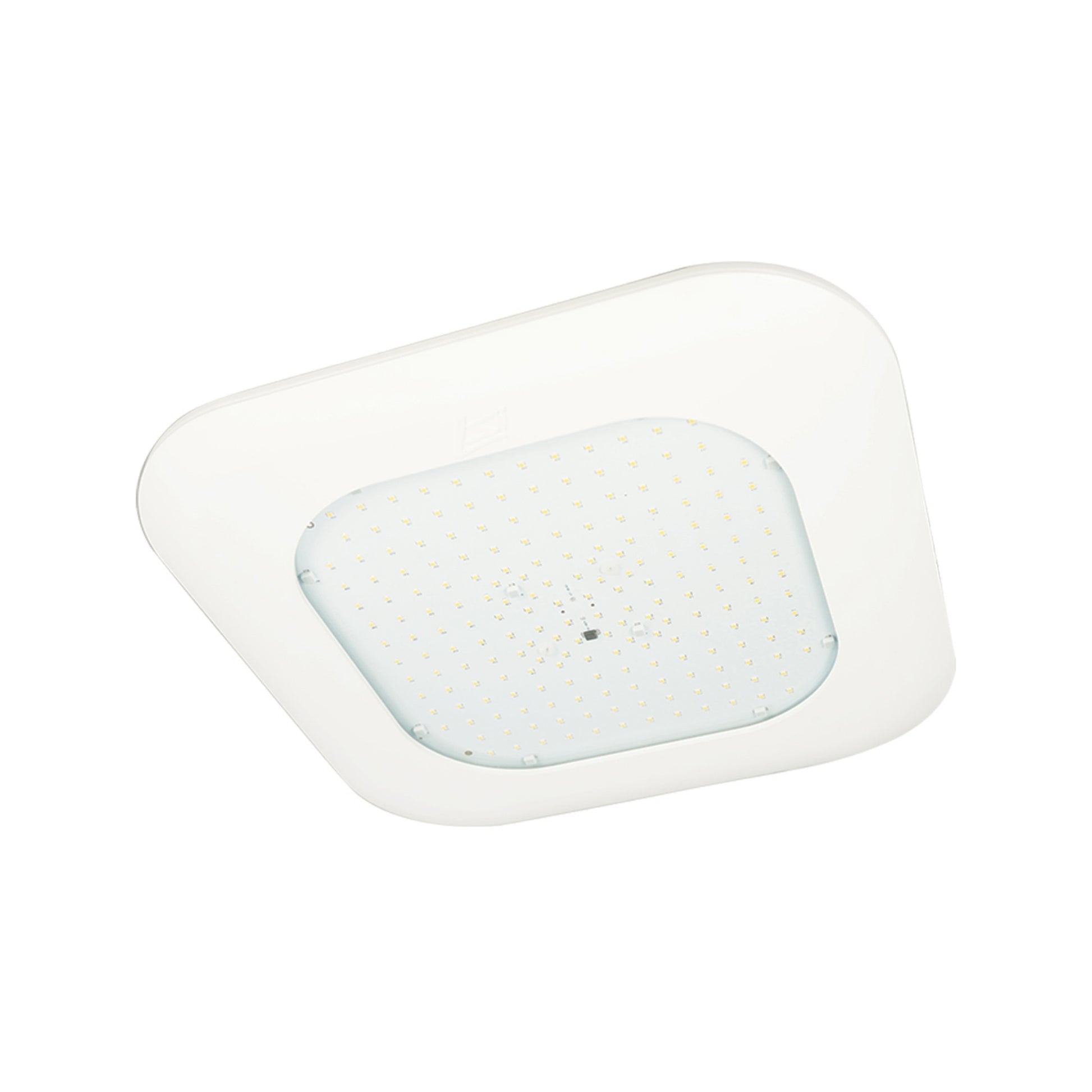

LSI Scottsdale Series Canopy Light - 73W Configuration
The LSI CRUS-SC-LED-LW-50-UE-WHT is a canopy light designed to deliver 11,000 lumens at 73 watts. It operates within a 120-277V range and features a 5000K color temperature. This fixture is ideal for outdoor canopy applications, meeting DLC Premium standards.
Key Features
- Construction: Features a die-cast housing with a flat tempered glass lens, ensuring durability and water resistance.
- Optical System: Offers symmetric and asymmetric distribution options for versatile lighting coverage.
- Driver: Includes a factory programmable driver with over-voltage and surge protection.
- Dimming: Standard 0-10V dimming capability for adjustable light output.
- Finish: White finish with LSI's DuraGrip polyester powder coat for weather resistance.
- Installation: Designed for easy retrofit into existing installations with a 4-inch hole.
- Warranty: Backed by a 5-year limited warranty for peace of mind.
- Listings: UL and ETL listed, suitable for wet locations, and DLC Premium qualified.
Typical Applications
- Gas Stations
- Parking Garages
- Service Stations
- Retail Canopies
- Drive-Thrus
Performance & Light Output
This fixture provides 11,000 lumens with an efficacy of 154 LPW. It features a CRI of 80 and is designed for long-lasting performance with a minimum L70 of 60,000 hours.
Electrical & Controls
The canopy light operates on a universal voltage of 120-277V and includes a 0-10V dimming driver. It is equipped with a 6kV surge protection device.
Construction & Durability
The housing is made from die-cast aluminum with an IP67 rating, ensuring protection against dust and water ingress. It operates in temperatures ranging from -40°C to 55°C.
Installation & Mounting
Designed for one-person installation, it fits into a 12-inch or 16-inch deck pan with a 4-inch hole for easy mounting and water sealing.
What's Included
- Canopy Light Fixture
- Installation Hardware
Specifications
Specifications

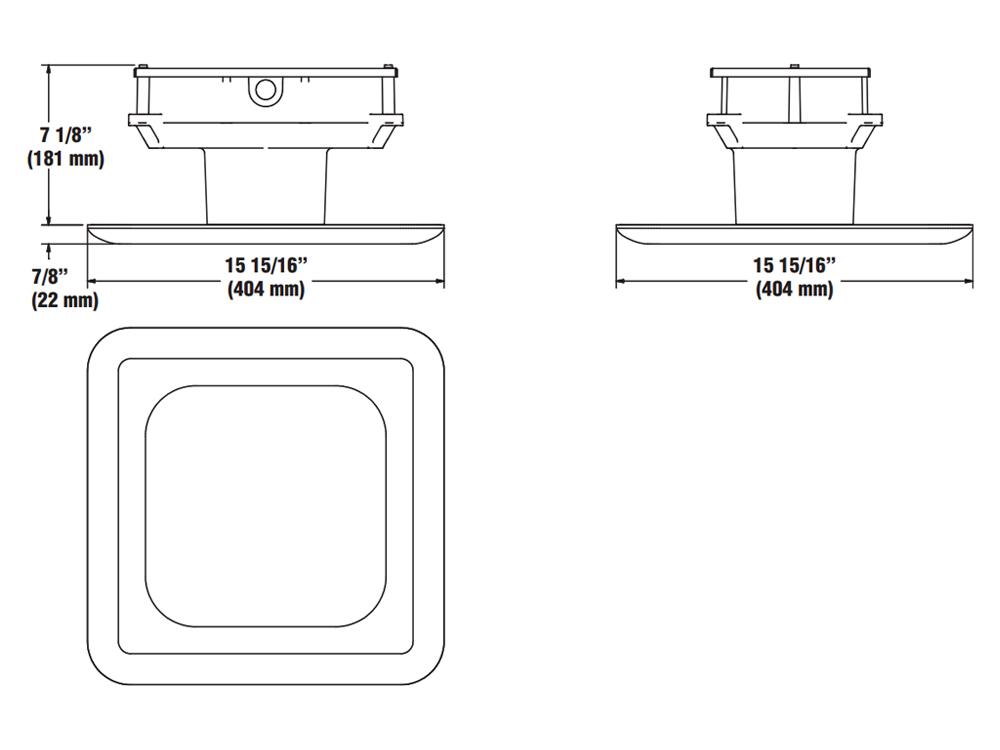

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the lumen output of the LSI CRUS-SC-LED-LW-50-UE-WHT?
What is the lumen output of the LSI CRUS-SC-LED-LW-50-UE-WHT?
Is the LSI CRUS-SC-LED-LW-50-UE-WHT dimmable?
Is the LSI CRUS-SC-LED-LW-50-UE-WHT dimmable?
What voltage range does the LSI CRUS-SC-LED-LW-50-UE-WHT support?
What voltage range does the LSI CRUS-SC-LED-LW-50-UE-WHT support?
What is the environmental rating of the LSI CRUS-SC-LED-LW-50-UE-WHT?
What is the environmental rating of the LSI CRUS-SC-LED-LW-50-UE-WHT?
What is included with the LSI CRUS-SC-LED-LW-50-UE-WHT?
What is included with the LSI CRUS-SC-LED-LW-50-UE-WHT?
