LED Gas Station Canopy Light, 19070 Lumens, 125 Watts, 5000K, 120-277V
Made to Order
About this item
About this item
- Lumens: Delivers a powerful 19000 lumens for optimal illumination.
- Wattage: Operates at 125 watts, ensuring energy efficiency.
- Voltage: Compatible with 120-277V for versatile installation.
- Color Temperature: Provides a crisp 5000K light for clear visibility.
- Finish: Features a durable white finish with DuraGrip polyester powder coat.
We process payments securely and do not store credit card information.
Description
Description

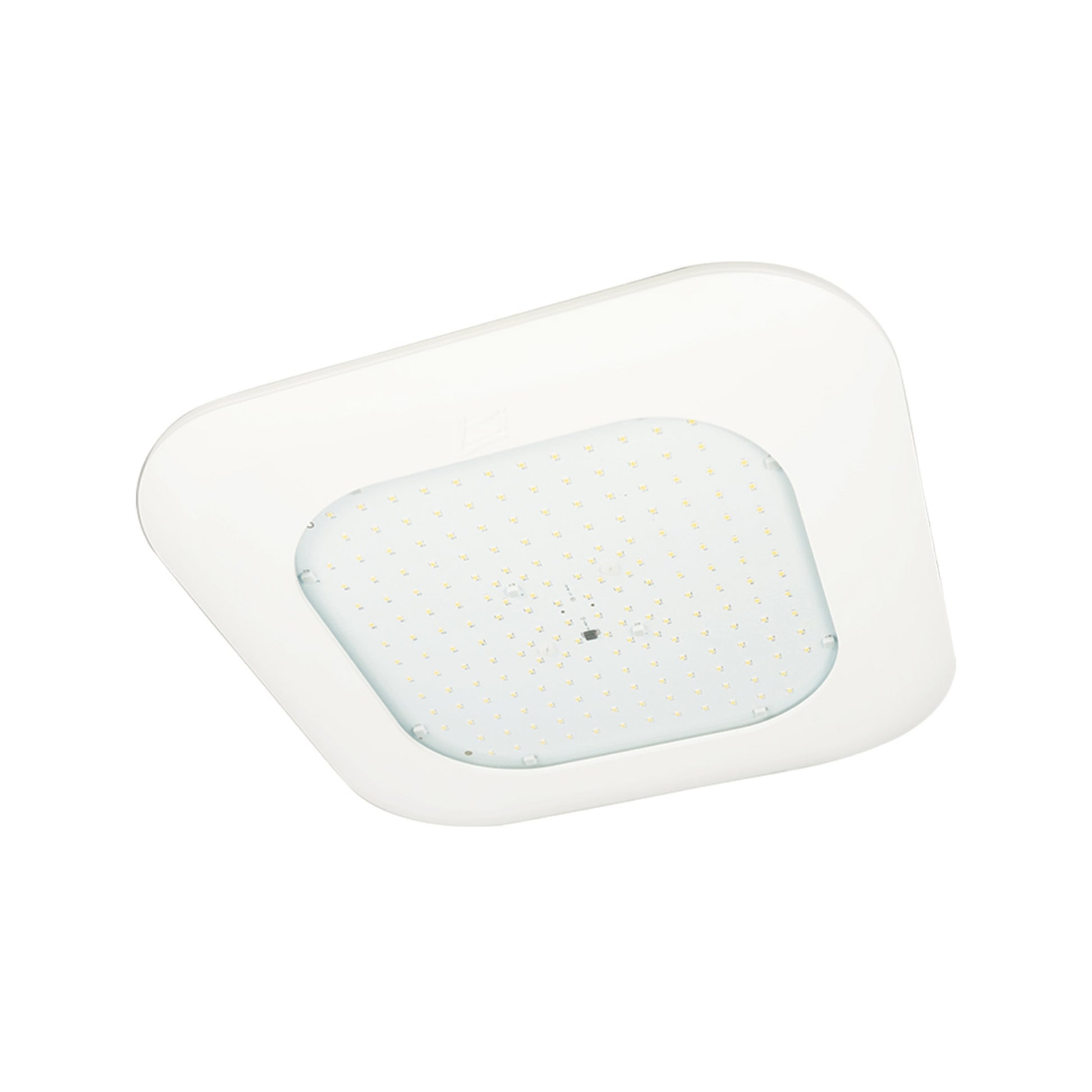

LSI Scottsdale Series LED Canopy Light - 125W Configuration
The LSI CRUS-SC-LED-HO-50-UE-WHT is a high-output LED canopy light delivering 19000 lumens at 125 watts. It operates on 120-277V and is designed for canopy applications, offering a 5000K color temperature. This fixture is IP66 rated for wet locations and is DLC Premium qualified.
Key Features
- Optical System: Features symmetric distribution with optional diffused lens for reduced glare.
- Driver Protection: Includes over-voltage, under-voltage, and short-circuit protection with a 6kV surge protection.
- Construction: Die-cast housing with a pressure stabilizing vent breather to prevent seal fatigue.
- Installation: Designed for easy one-person installation in 12' or 16' deck pans.
- Durability: Finished with LSI's DuraGrip polyester powder coat for weather resistance.
- Temperature Range: Operates in ambient temperatures from -40°C to 55°C.
- Dimming: Standard 0-10V dimming capability for flexible lighting control.
- Compliance: UL and ETL listed, meeting various U.S. and international safety standards.
- Warranty: Backed by a 5-year limited warranty.
Typical Applications
- Gas Stations
- Parking Garages
- Service Stations
- Retail Canopies
- Industrial Canopies
Performance & Light Output
This fixture provides 19000 lumens with an efficacy of 152 LPW, ensuring bright and efficient lighting. It maintains a CRI of 80 and offers a symmetric distribution pattern.
Electrical & Controls
The canopy light supports a universal voltage range of 120-277V and includes a factory programmable driver with integral surge protection. It is dimmable via 0-10V controls.
Construction & Durability
Constructed with a die-cast aluminum housing and a tempered glass lens, this fixture is IP66 rated for wet locations and features a durable white finish.
Installation & Mounting
Designed for quick retrofitting into existing 4' holes, it supports installation in 12' or 16' deck pans with included support brackets to prevent sagging.
What's Included
- LED Canopy Light Fixture
- Installation Hardware
Specifications
Specifications

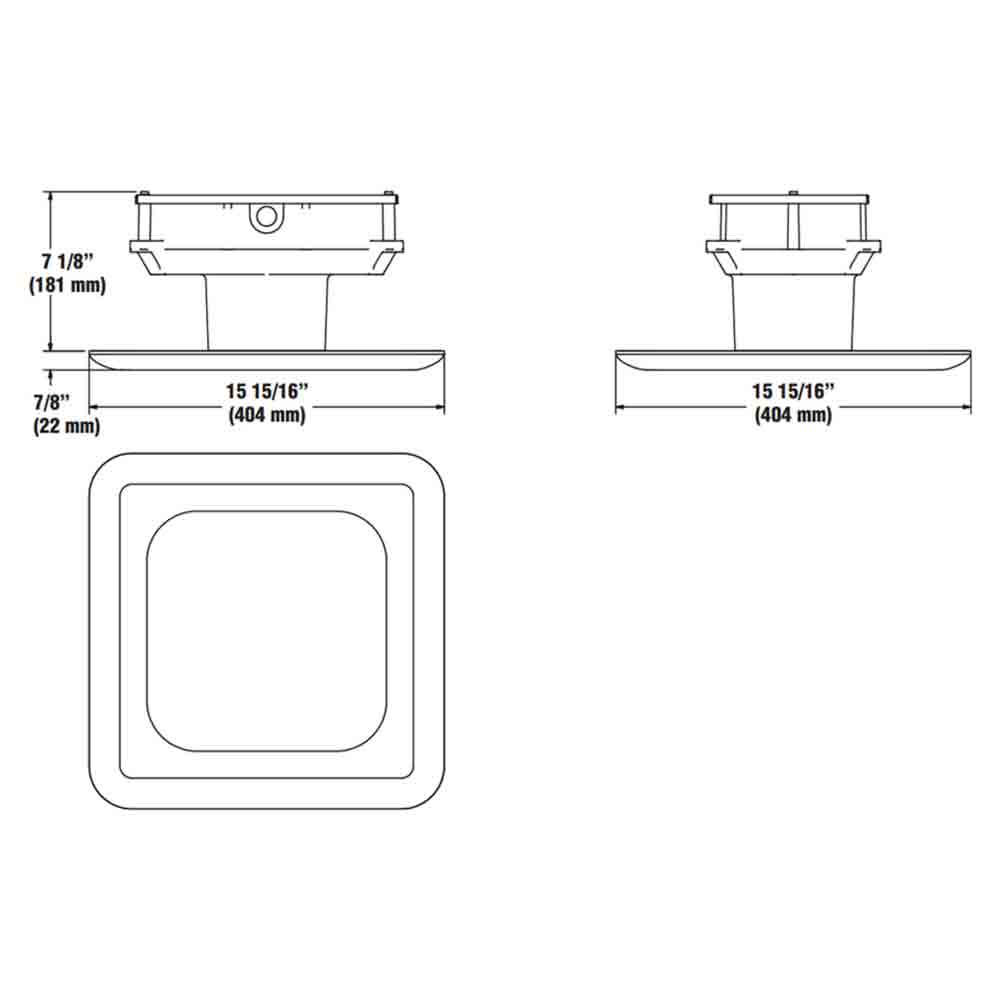

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
