Lithonia Lighting TZL1N-L96 8ft Tandem LED Strip Light — 6,000/10,000 lm — 3000K/3500K/4000K/5000K — White
Hurry up, only 1 item left in stock.
About this item
About this item
- Output & Efficiency: Nominal 6,000 lm and 10,000 lm packages operate at 48W and 68W, respectively. Delivered output reaches 9,019 lm among the offered configurations, with manufacturer-listed T8, T5HO, and HID comparisons.
- Lens & Optics: Snap-on/snap-off frosted diffuse lens eliminates pixels, improves uniformity, and minimizes glare.
- Fixed Color Options: The offered family spans 3000K, 3500K, 4000K, and 5000K, with nominal 80 CRI. Color temperature and lumen package are fixed by the selected configuration.
- Controls & Dimming: Standard 0–10V dimming with MVOLT 120–277V input.
- Listing & Environment: CSA certified to US and Canadian safety standards for damp locations from −40°F (−40°C) to 86°F (30°C).
Description
Description
Lithonia Lighting TZL1N-L96 8ft Tandem LED Strip Light — 6,000/10,000 lm Options — 3000K/3500K/4000K/5000K — White

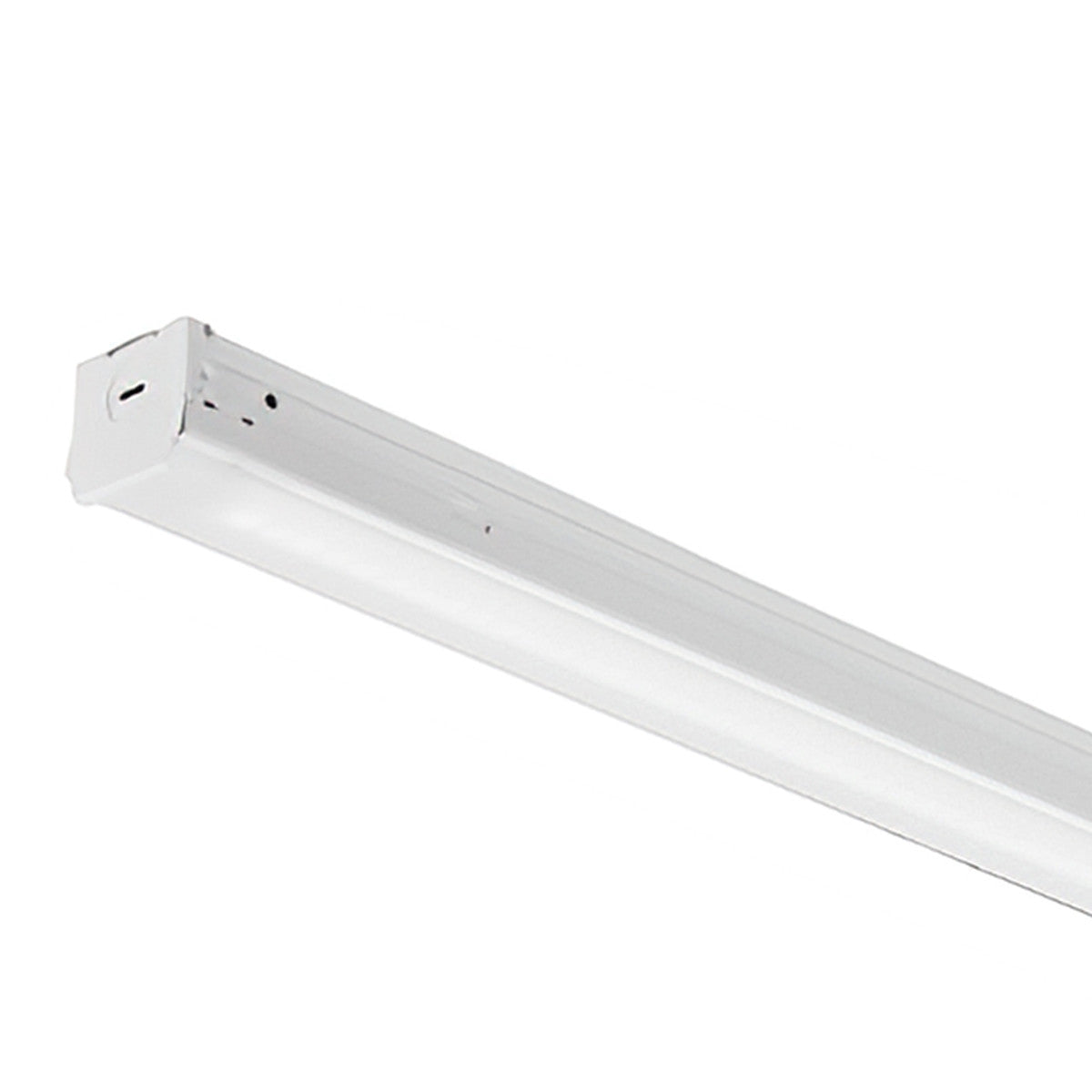

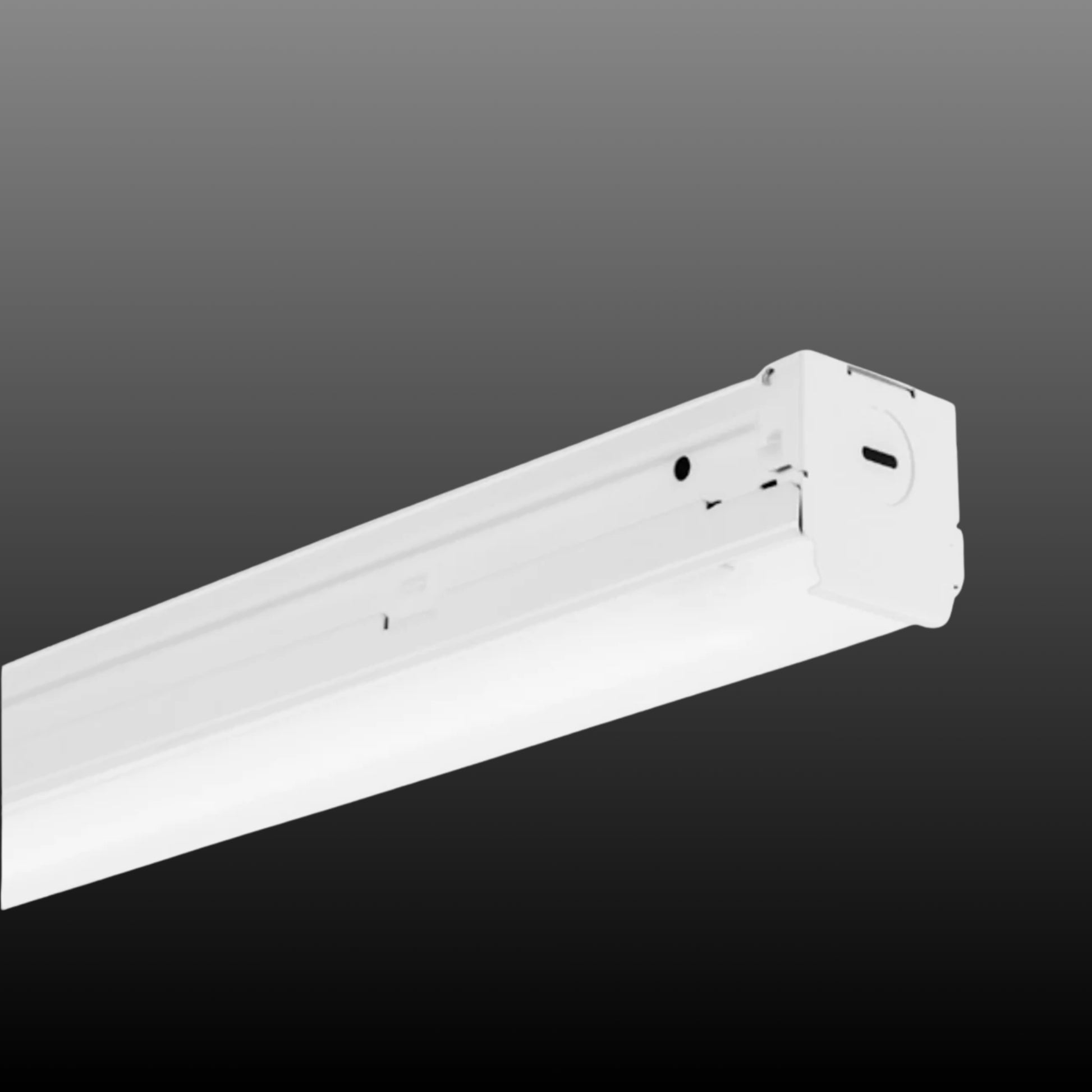

The Lithonia Lighting TZL1N-L96 is a compact, low-profile 8ft tandem LED strip light for commercial, retail, manufacturing, warehouse, cove, and display applications. This family offers nominal 6,000 lm and 10,000 lm packages, operating at 48W and 68W, respectively. Color-temperature choices across the offered configurations span 3000K, 3500K, 4000K, and 5000K, with nominal 80 CRI. MVOLT 120–277V input and standard 0–10V dimming support adjustable light levels. CSA certified to US and Canadian safety standards for damp locations, the fixture combines a frosted diffuse lens, white steel channel, and included aligner for continuous-row mounting. Lumen package and color temperature are fixed by the selected configuration.
Key Features
- Fixed Wattage Options: 48W with the nominal 6,000 lm package or 68W with the nominal 10,000 lm package.
- Comparable Light Sources: The 48W package is comparable to three 32W T8 lamps, two 54W T5HO lamps, or 100W HID; the 68W package is comparable to four 32W T8 lamps, two 54W T5HO lamps, or 100W HID.
- Delivered Light Output: Up to 9,019 lm among the offered lensed configurations; actual output varies with lumen package and color temperature.
- Color Rendering: Nominal 80 CRI.
- Fixed Color Options: 3000K, 3500K, 4000K, and 5000K across the offered family, with availability determined by the selected lumen package.
- Frosted Diffuse Lens: Snap-on/snap-off lens eliminates pixels, improves uniformity, and minimizes glare.
- Dimming: Standard 0–10V dimming.
- Electrical Input: MVOLT 120–277V electronic LED driver.
- Location Suitability: For use in damp locations.
- Ambient Range: −40°F (−40°C) to 86°F (30°C).
- Safety Certification: CSA certified to US and Canadian safety standards.
- Lumen Maintenance: L70 greater than 60,000 hours.
- Warranty: 5-year limited warranty.
- Continuous Rows: Included three-point aligner locks in place for continuous-row mounting.
- Tandem Construction: Two-section fixture format, with L96 identifying the 96-inch configuration.
Performance & Light Output
The nominal 6,000 lm and 10,000 lm packages identify ordering configurations rather than delivered fixture lumens. The FST lensed design has color-temperature-dependent output.
At 48W, the offered nominal 6,000 lm configurations deliver 6,561 lm at 3000K, 6,708 lm at 3500K, or 7,063 lm at 5000K.
At 68W, the offered nominal 10,000 lm configuration delivers 9,019 lm at 4000K.
Performance values apply to 80 CRI lensed configurations at 77°F (25°C) ambient, with wattage specified at 120V/277V. Lumen maintenance is L70 >60,000 hours. Actual performance may differ with the installation environment and application.
Electrical
The electronic LED driver uses MVOLT 120–277V input. The fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations; applications requiring higher protection levels need additional surge protection. Standard dimming is 0–10V.
Construction
Housing: Compact, low-profile channel and cover formed from code-gauge cold-rolled steel. The channel cover is tool-less.
Lens & Optics: FST snap-on/snap-off frosted diffuse lens eliminates pixels, improves uniformity, and minimizes glare.
Finish: WH high-gloss baked white enamel. Five-stage iron phosphate pretreatment after fabrication supports paint adhesion and rust resistance.
Environmental Suitability: Damp-location use from −40°F (−40°C) to 86°F (30°C). Certain airborne contaminants can diminish acrylic and polycarbonate integrity.

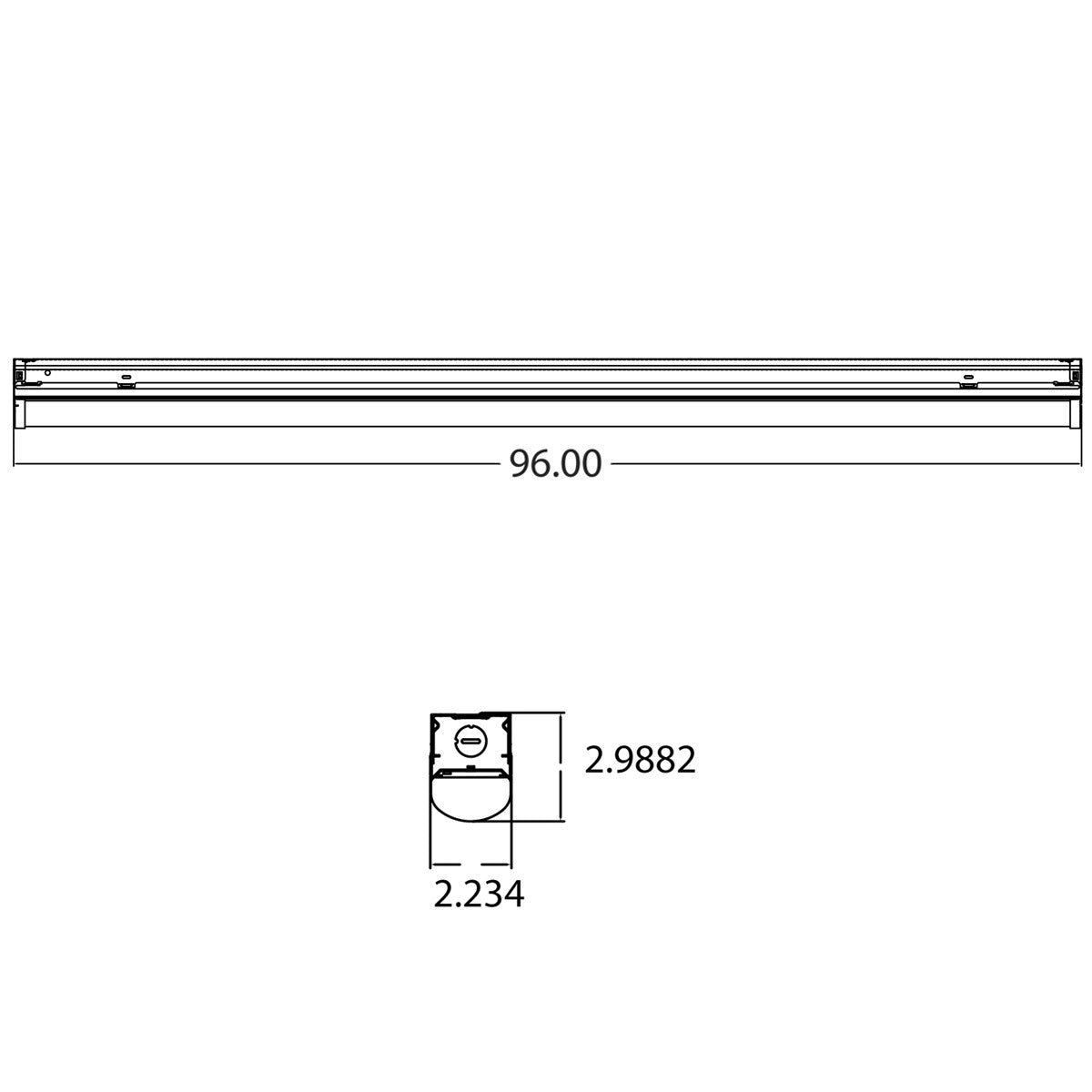

Length & Weight: L96 length is 96 inches; approximate weight is 24 lb.
Installation & Mounting
Standard Hardware: An included three-point row aligner locks in place for continuous-row mounting.
Mounting Options: Surface, pendant, or stem mounting with appropriate mounting options. The tool-less channel cover provides installation access. TZL1N tandem fixtures ship as two L46 or L48 fixtures; L96 identifies the 96-inch configuration.
Accessories Sold Separately:
- Hanger chain: HC36 M12, sold separately; 36-inch hanger chain, one pair.
- Aircraft cable suspension: ZACVH M100, sold separately; adjustable 10ft aircraft cable with Y hanger, one pair.
- T-grid hanger: ZSPRG J2, sold separately; tong and T-grid hanger for 15/16-inch T-grid. Order quantities in multiples of two.
- Angle bracket: ZLANGBKT, sold separately; Luma-tilt bracket for shelf or ledge mounting only, supplied as a pair.
- Wire guard: WGZ48, sold separately; white 48-inch guard, with two required for L96 tandem fixtures. Not available with ASR or SMR reflector options.
- Symmetric reflector: ZLR L96 SYM WH, sold separately; 96-inch symmetric reflector in white.
- Uplight reflector: ZLR L96 SYM UPL WH, sold separately; 96-inch symmetric reflector with uplight in white.
Certifications & Rebates
- CSA: Certified to US and Canadian safety standards for use in damp locations.
Typical Applications
- Retail Lighting: Frosted diffuse lens improves uniformity and minimizes glare.
- Manufacturing Areas: Code-gauge cold-rolled steel channel and cover provide the fixture structure.

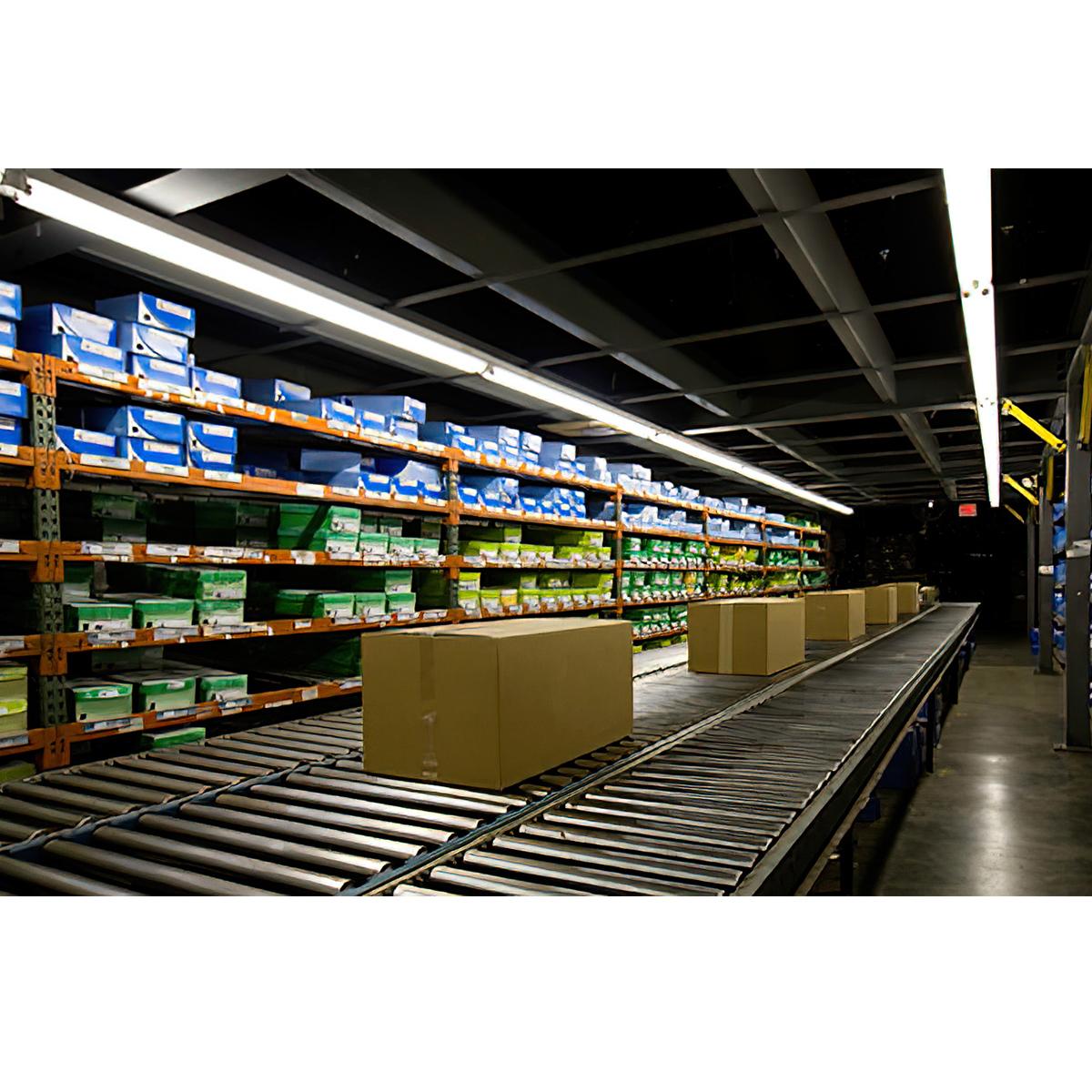

- Warehouses: Included aligners support continuous-row fixture layouts.
- Commercial Retrofits: The 96-inch tandem format offers manufacturer-listed comparable T8, T5HO, and HID light sources.
- Display Lighting: Fixed color-temperature choices across the family allow light appearance to be specified when ordering.
What's Included
- One Lithonia Lighting white TZL1N-L96 tandem LED striplight in the selected configuration: TZL1N-L96-6000LM-FST-MVOLT-30K-80CRI-WH, TZL1N-L96-6000LM-FST-MVOLT-35K-80CRI-WH, TZL1N-L96-6000LM-FST-MVOLT-50K-80CRI-WH, or TZL1N-L96-10000LM-FST-MVOLT-40K-80CRI-WH. Tandem configuration ships as two fixture sections.
- Continuous-row aligner.
- Standard FST frosted diffuse lens.
