Pass & Seymour WS Dimmer — Tri-Color & Slide Control

The Pass & Seymour WSCL453PTC dimmer switch, available in a tri-color finish, offers a sleek slide control for smooth dimming of lighting loads. It supports up to 450W for LED/CFL and 700W for incandescent bulbs, making it suitable for various residential and commercial applications. This dimmer can be configured for single-pole or 3-way operation, providing installation flexibility.

Key Features

• Voltage: Operates at 120VAC, 60 Hz for standard residential and commercial applications.
• Wattage Rating: Supports 450W for LED/CFL and 700W for incandescent loads.
• Pole Configuration: Compatible with single-pole and 3-way setups.
• Switch Style: Slide control for dimming with a push switch for ON/OFF functionality.
• Neutral Wire: Does not require a neutral wire, simplifying installation.
• Connection: Features screw-pressure-plate back wire terminals for secure connections.
• Dimensions: Measures 1.75 in width, 4.25 in height, and 1.25 in depth.
• Certifications: cULus and RoHS compliant for safety and environmental standards.
• Special Feature: Constant memory function retains settings after power outages.
• Finish Options: Available in Ivory, Light Almond, and White.

Construction & Interface

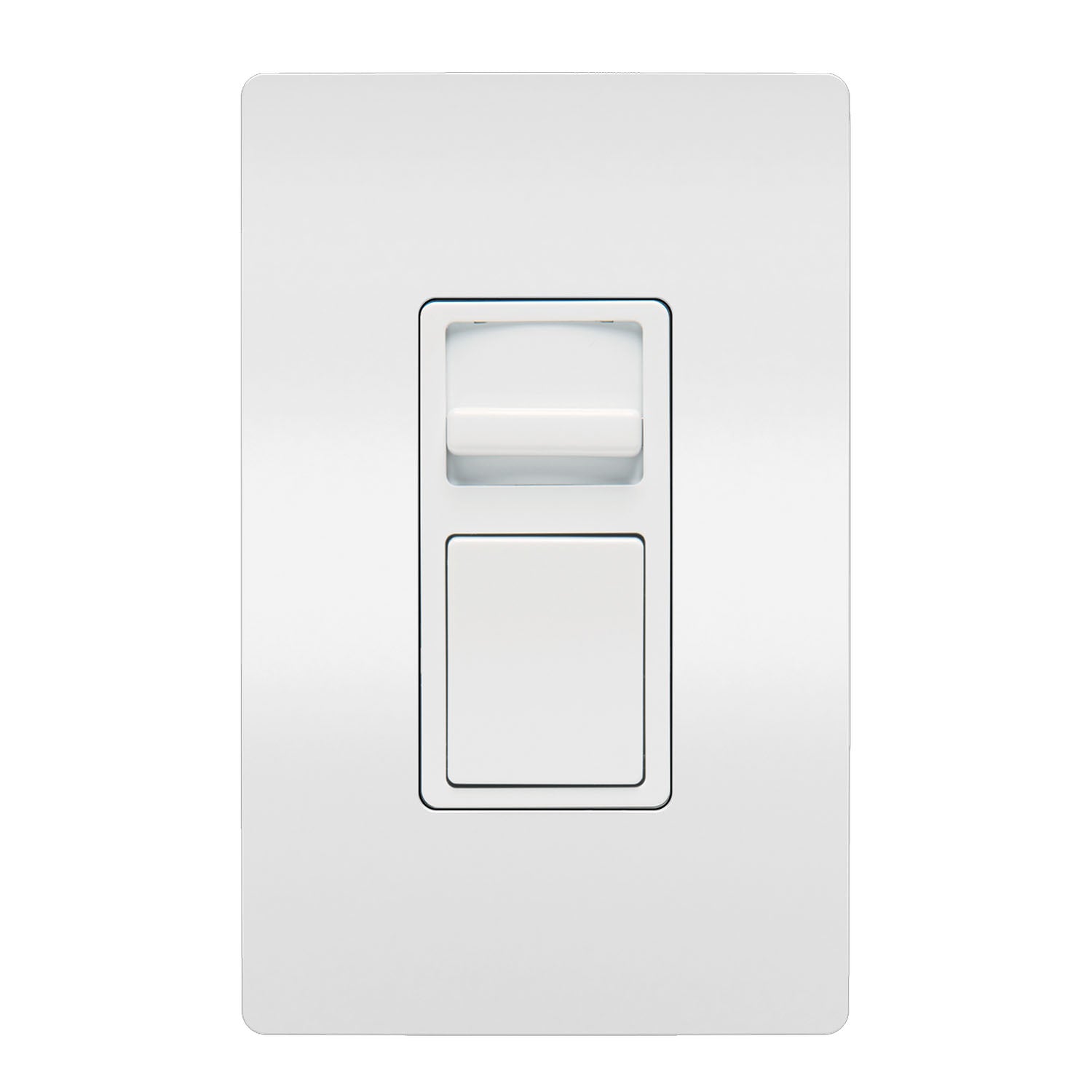

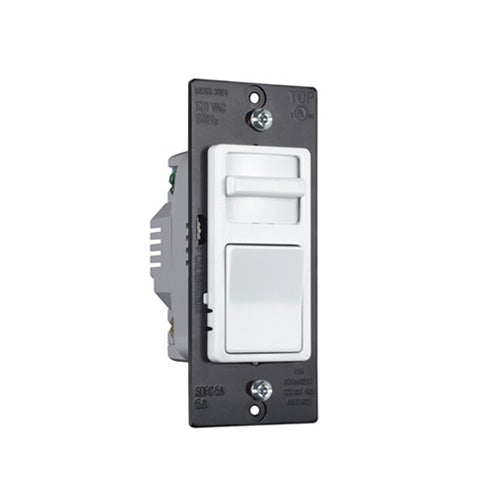

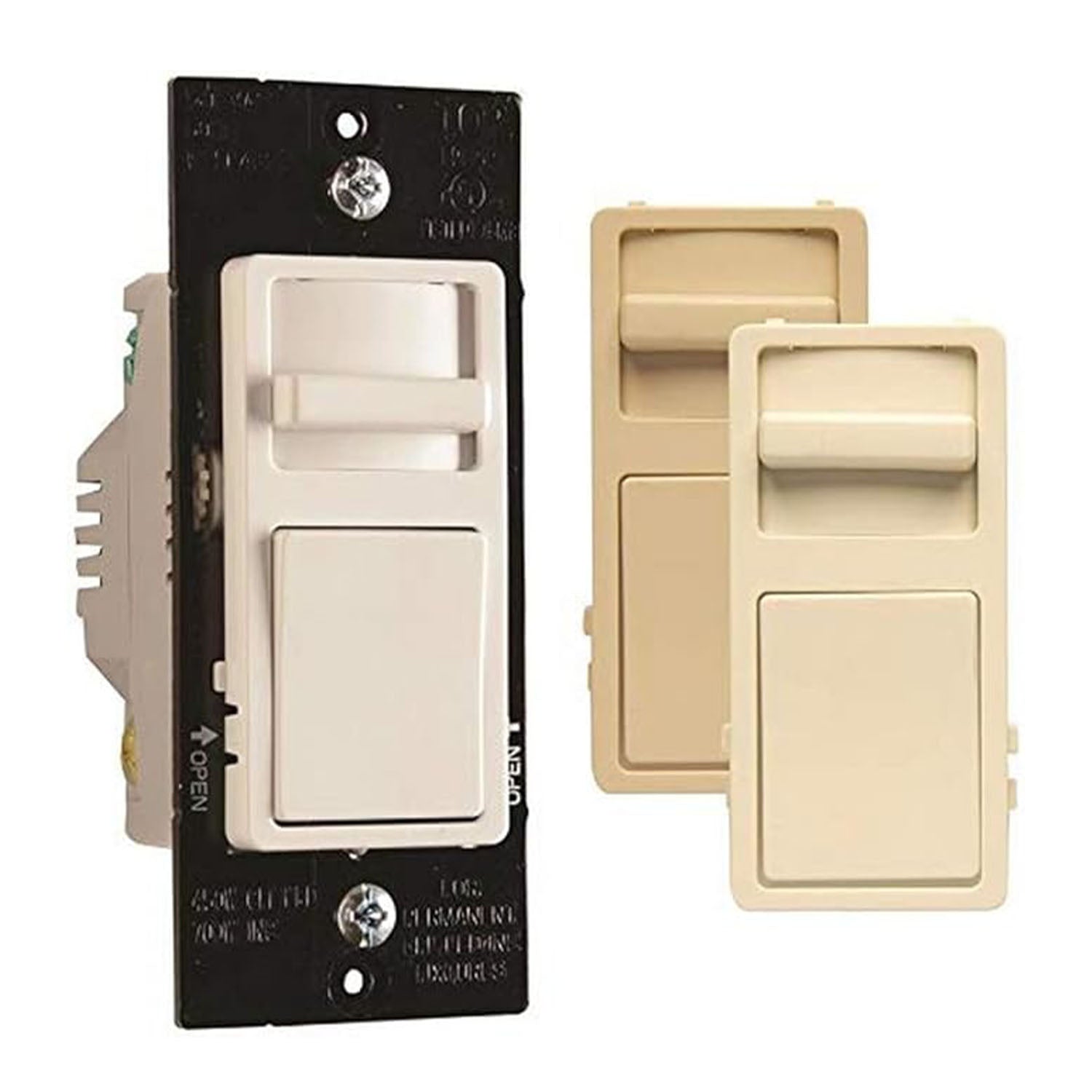

The dimmer features a sculpted ergonomic design with a slide control for dimming and a push switch for ON/OFF operation. It is available in tri-color options: Ivory, Light Almond, and White. Please note that the wallplate is sold separately.

Dimming & Load Performance

This dimmer is designed for precise control of lighting levels, supporting both LED/CFL and incandescent loads. It includes a constant memory feature that returns lights to the previous level after a power failure.

Wiring & Installation

The WSCL453PTC does not require a neutral wire, simplifying installation. It supports both single-pole and 3-way configurations and uses screw-pressure-plate back wire terminals for secure connections.
