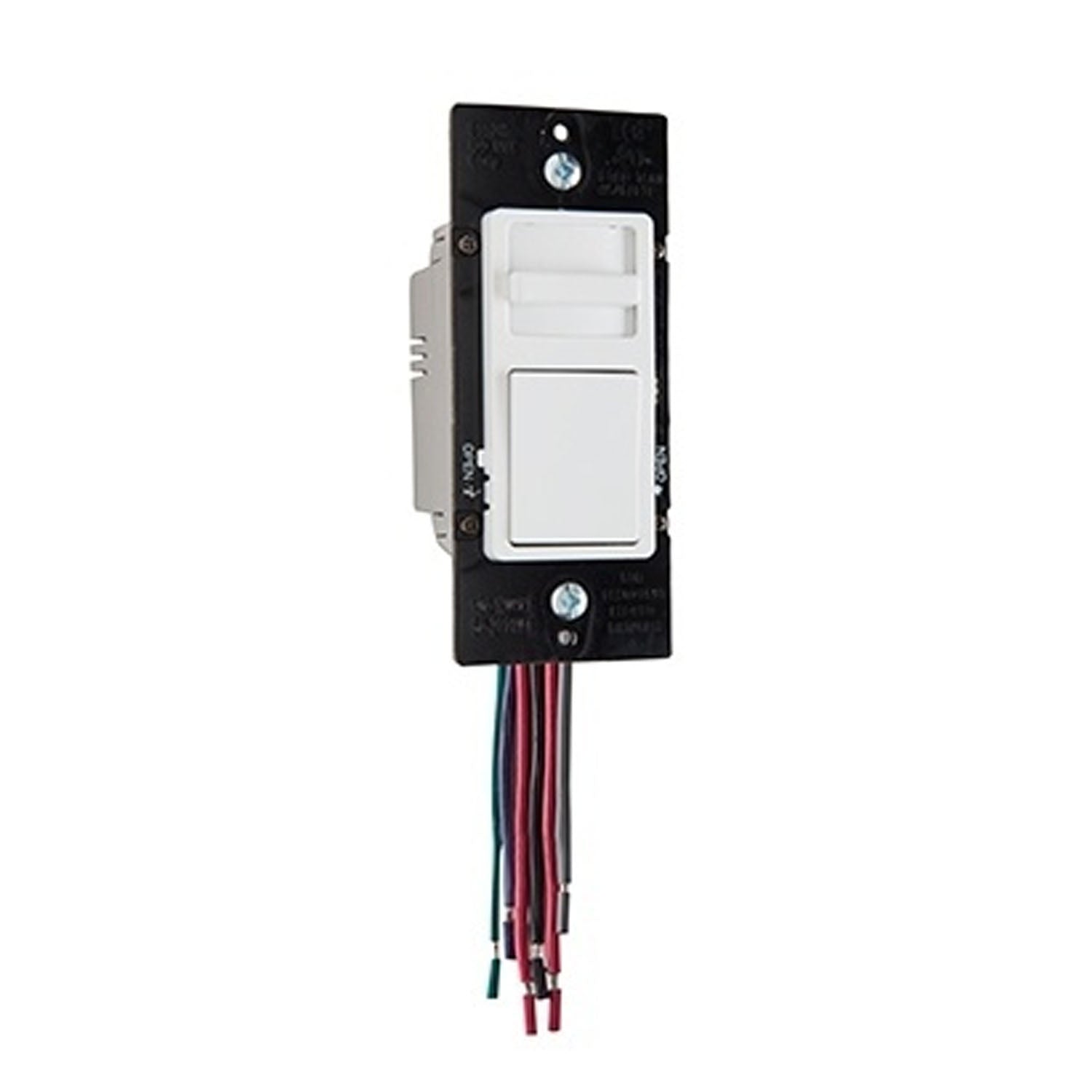

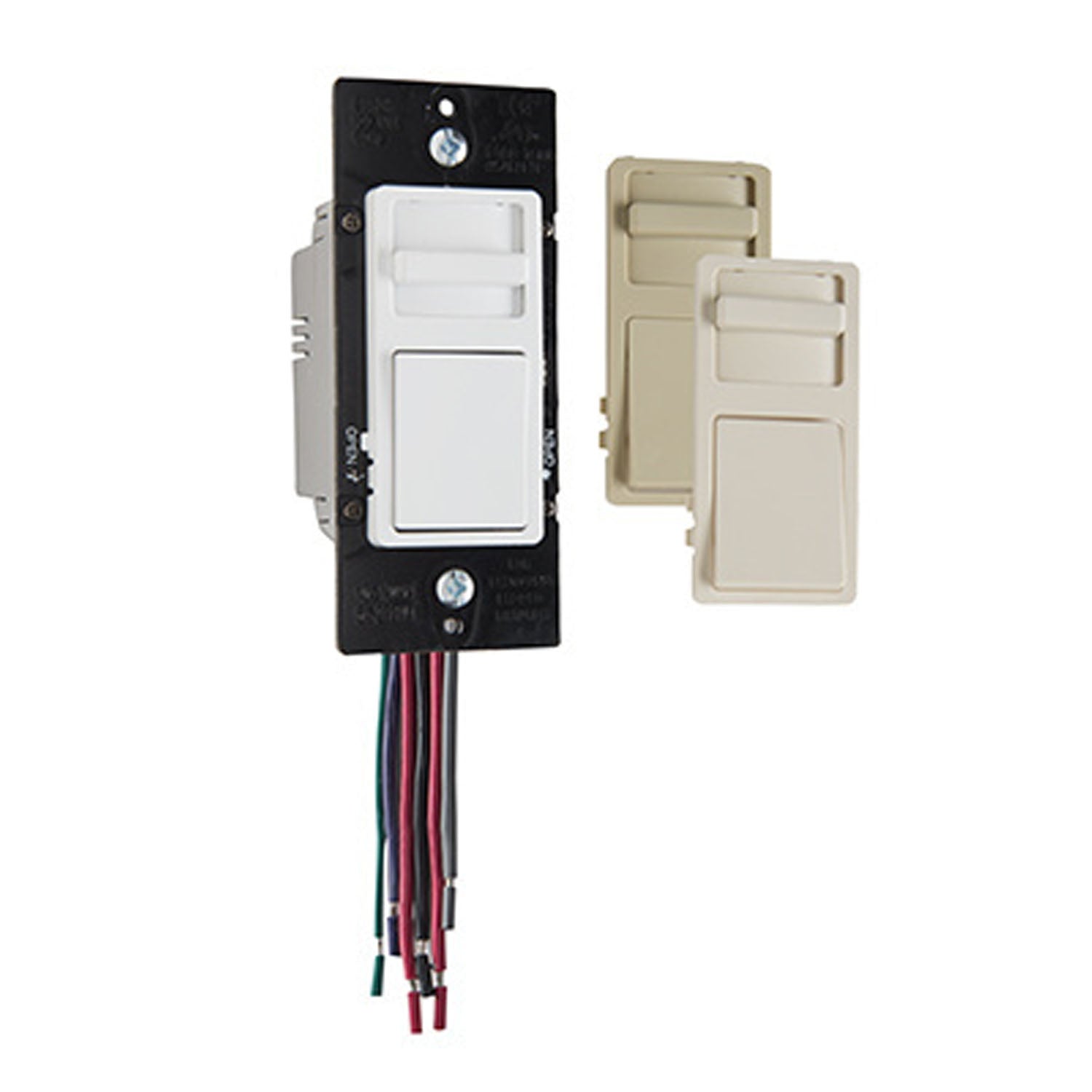

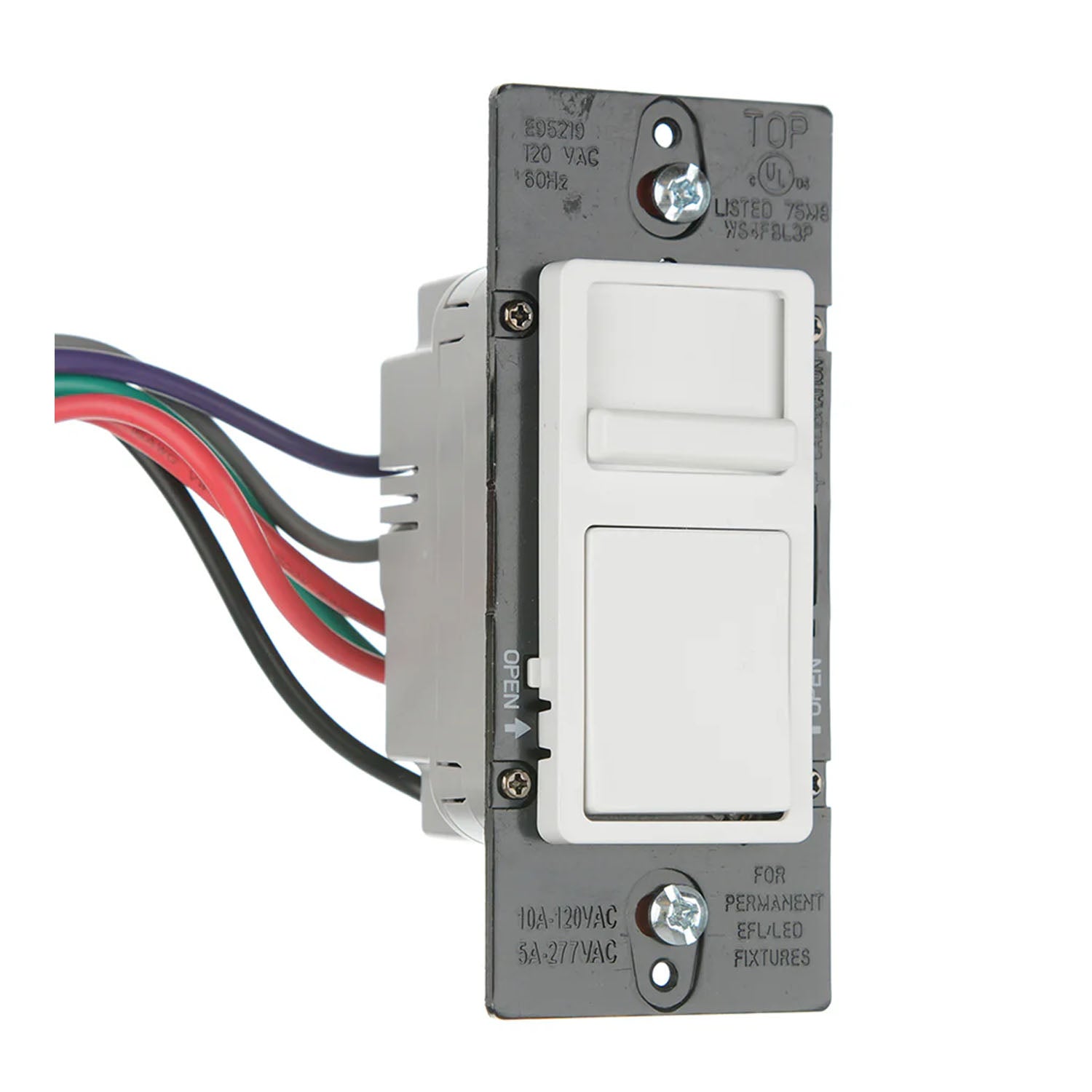

Pass & Seymour Wide Slide Dimmer — Ivory/Light Almond/White & 0-10V Control

The Pass & Seymour WS4FBL3PTC is a versatile dimmer switch available in ivory, light almond, and white finishes. It features a slide switch style and supports single-pole and 3-way configurations. Designed for 0-10V fluorescent and LED dimming, it operates at 120V 10A and 277V 5A.

Key Features

• Voltage Compatibility: Operates on 120V and 277V systems, supporting both residential and commercial applications.
• Load Compatibility: Designed for 0-10V fluorescent and LED dimming drivers/ballasts, handling 10A at 120V and 5A at 277V.
• Switch Configuration: Supports single-pole and 3-way configurations for versatile installation options.
• Control Style: Features a wide slide control for easy dimming operation and a separate ON/OFF decorator switch.
• LED Indicator: Green LED glows when OFF for easy location in the dark.
• Built-in Power Pack: Includes a built-in power pack for enhanced functionality.
• Connection Type: Utilizes wire leads for secure connections.
• Certifications: cULus and RoHS compliant for safety and environmental standards.
• Warranty: Comes with a limited lifetime warranty for peace of mind.
• Dimensions: Measures 1.75 in. wide, 4.25 in. high, and 1.25 in. deep.

Construction & Interface

The dimmer features a sleek Pass & Seymour Decorator style, matching other decorator devices. It includes a green LED locator light for easy identification in the dark. The wallplate is sold separately.

Dimming & Load Performance

This dimmer provides precise control over 0-10V fluorescent and LED lighting systems, ensuring smooth dimming performance. It is suitable for both residential and commercial environments.

Wiring & Installation

The WS4FBL3PTC requires a neutral wire for operation. It supports both single-pole and 3-way installations and connects via wire leads, ensuring a secure and reliable setup.
