Description

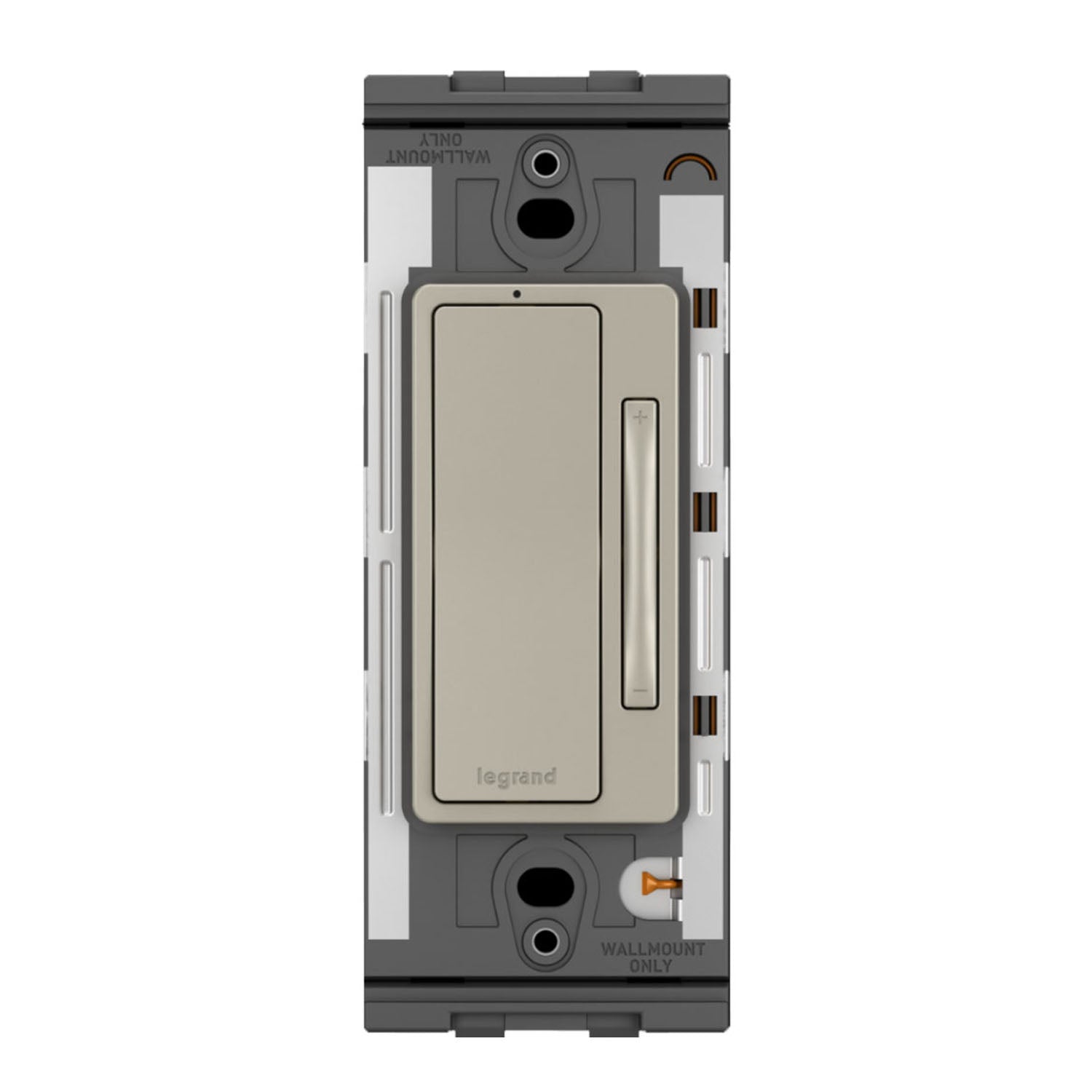

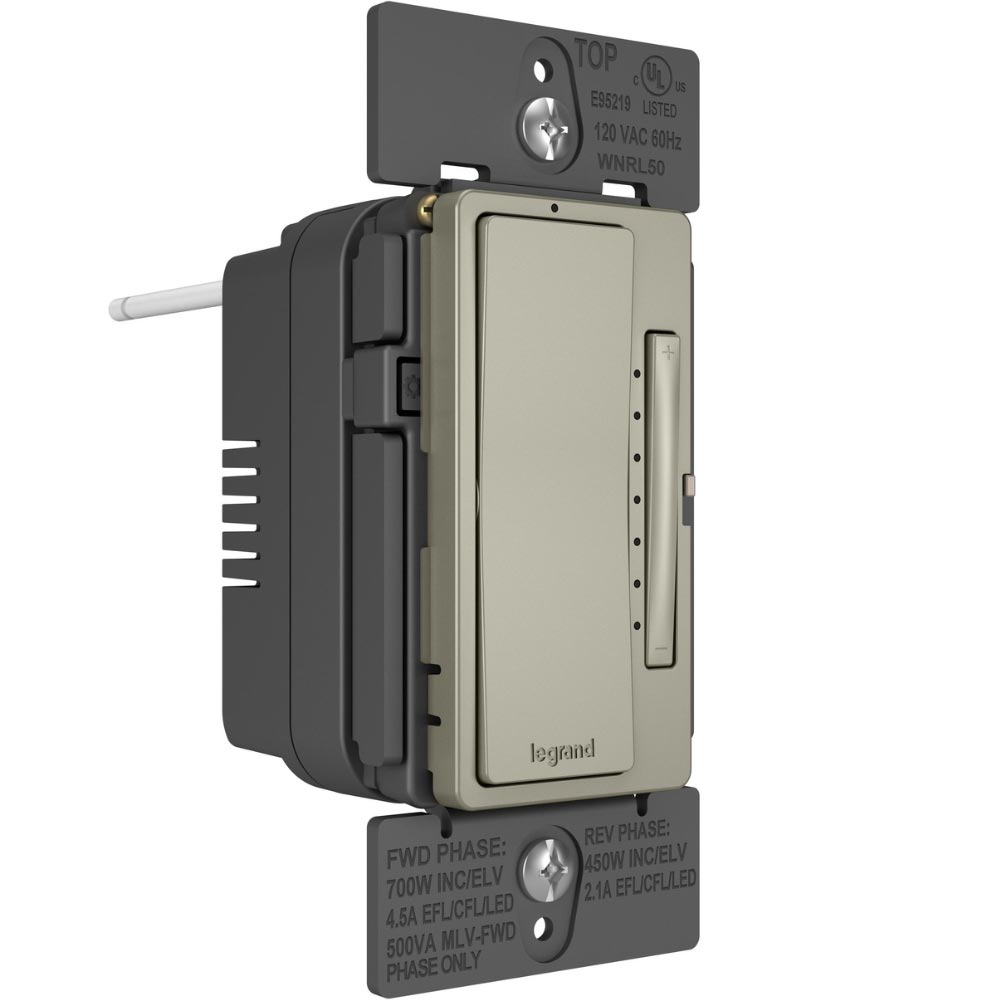

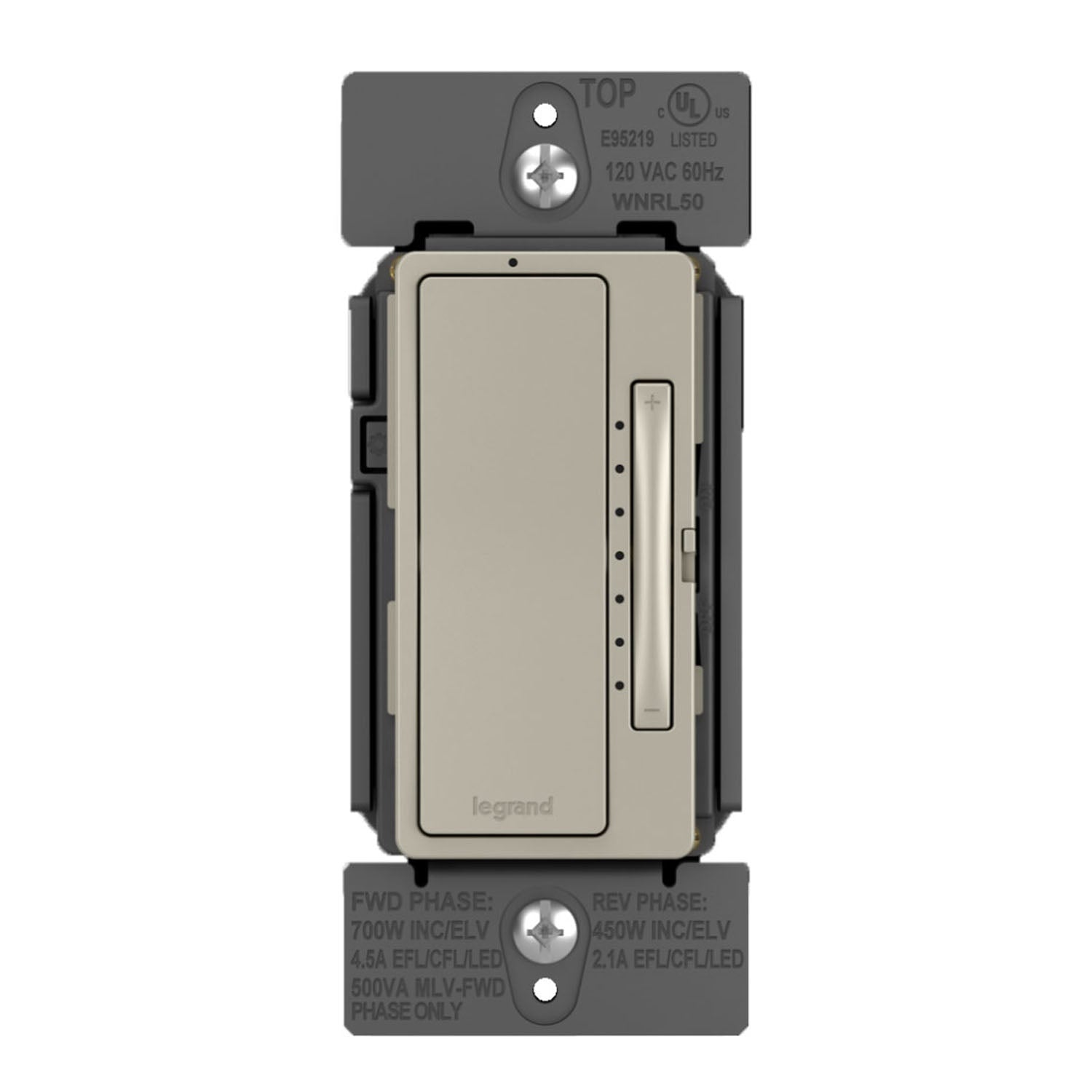

Legrand radiant Smart Tru-Universal Dimmer - Nickel

The WNRL50NI with Netatmo operates at 120V AC, 60Hz with neutral required. Finish: Nickel. Supports selectable forward- or reverse-phase dimming and wireless additional control locations.

Key Features

  • LED/CFL/EFL: 450W/3.8A forward-phase; 250W/2.1A reverse-phase.
  • Incandescent/Halogen/ELV: 700W forward-phase or 450W reverse-phase before derating.
  • MLV: Rated 500VA in forward-phase.

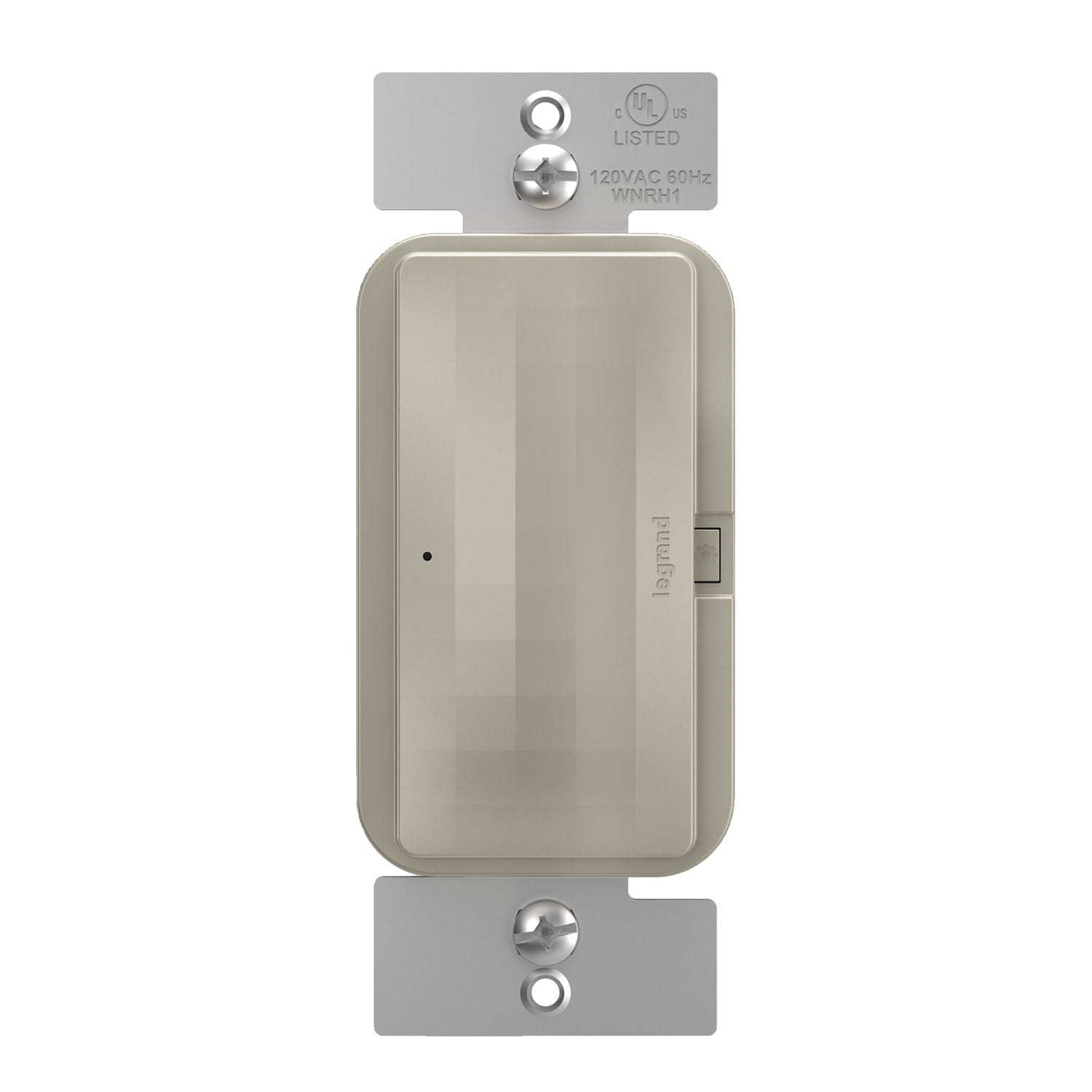

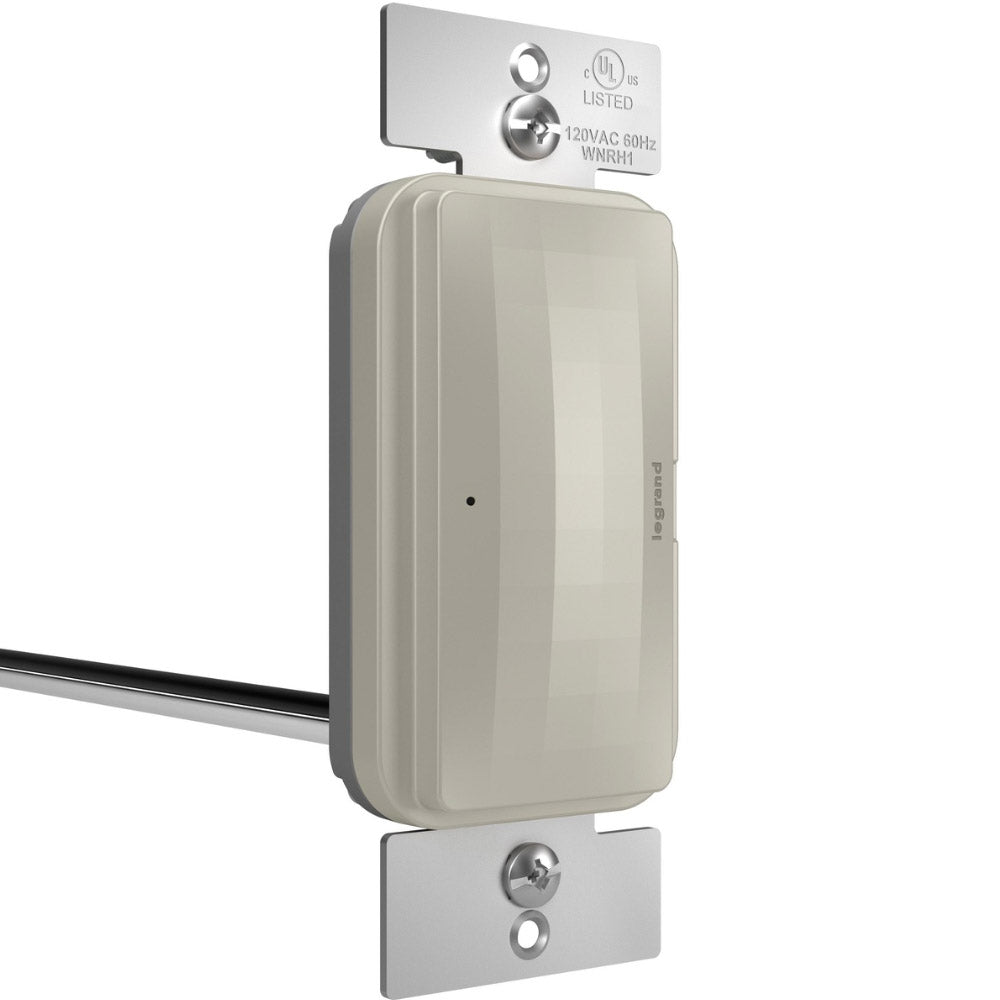

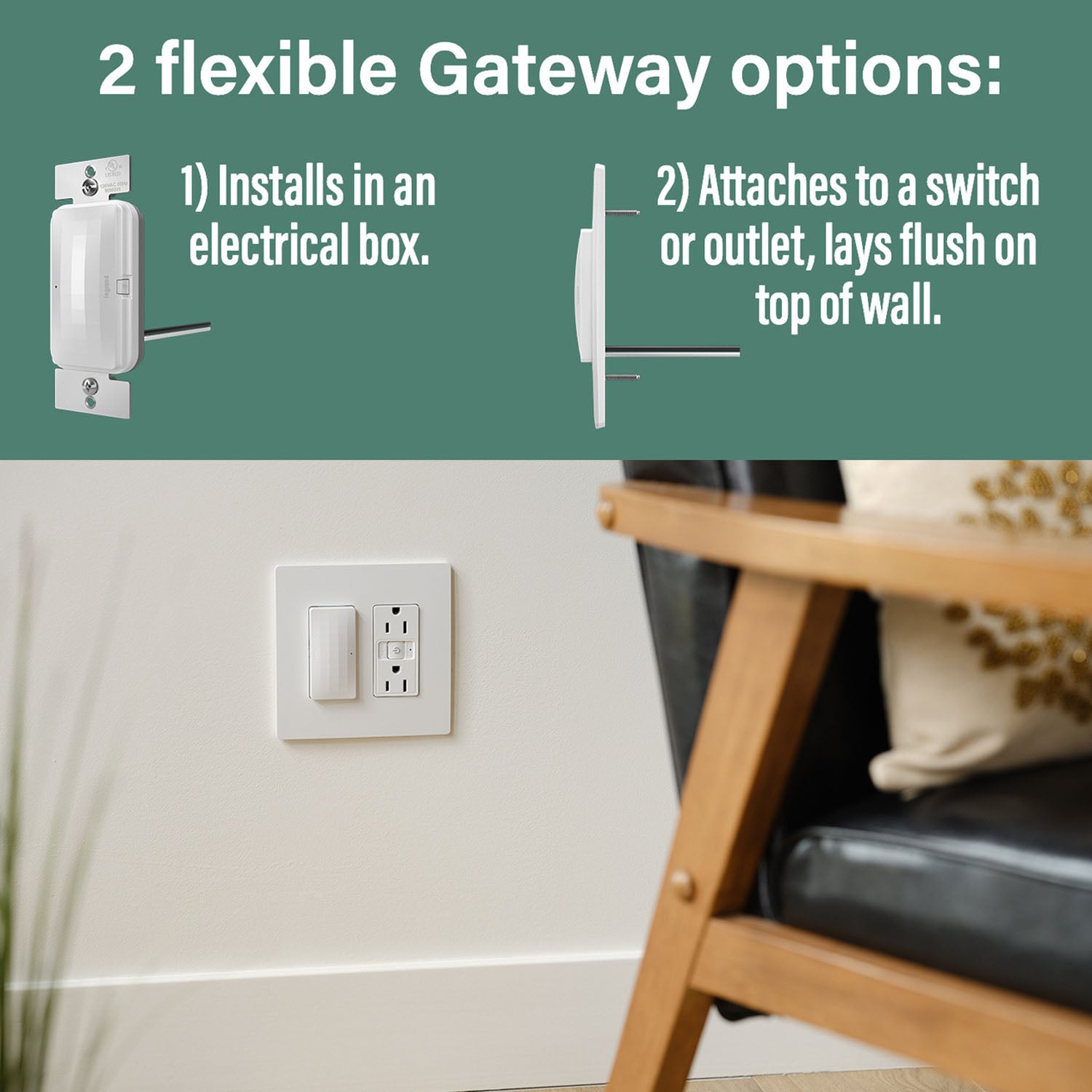

  • Gateway: A radiant Smart Gateway with Netatmo is required.
  • App: Home + Control supports schedules, scenes, groups, and energy monitoring.

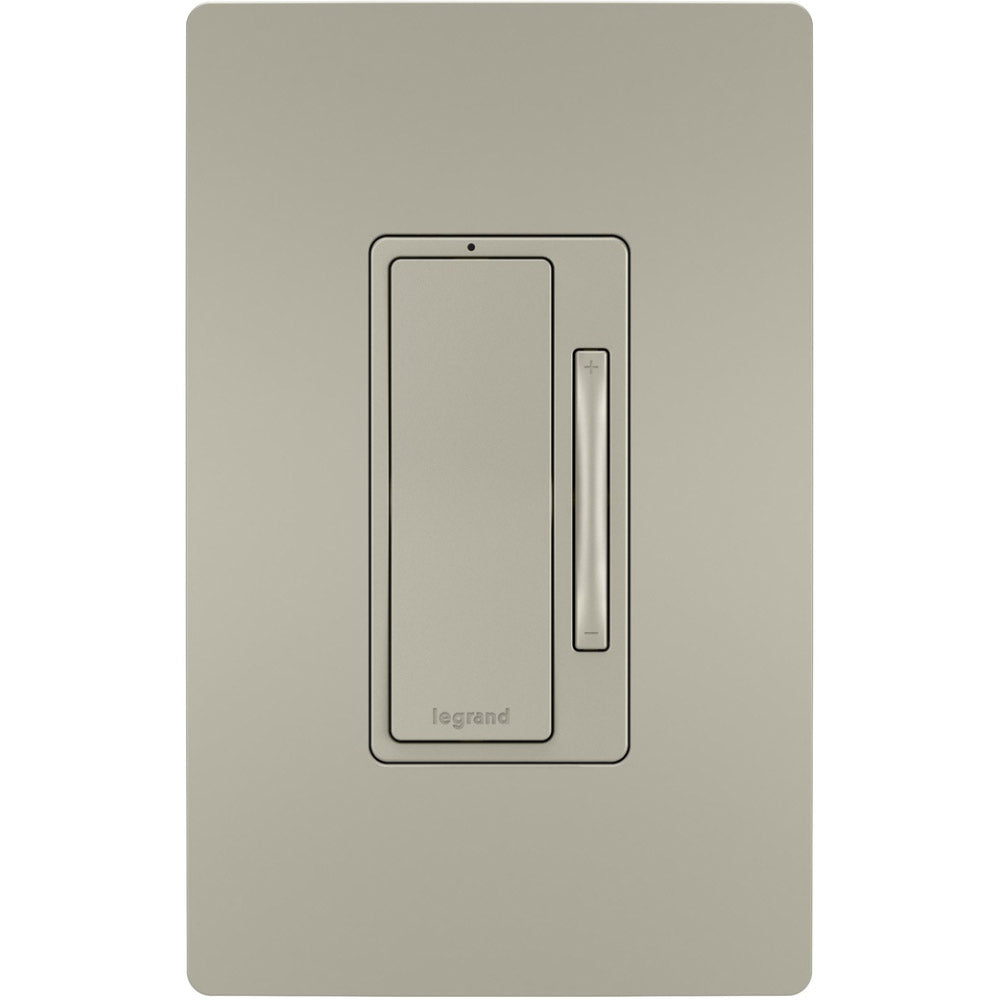

  • Multi-Location: Pair a compatible radiant Wireless Smart Dimmer with Netatmo.

Construction & Interface

Indoor paddle control features a locator/status light and flying leads. A screwless wallplate is included.

Dimming & Load Performance

Match phase selection to the compatible load; 0–10V is excluded. Forward-phase incandescent/halogen/ELV capacity is 600W per device in two-gang installations; three-gang or larger uses 600W outer and 500W center units. Reverse-phase applications require no derating.

Wiring & Installation

Connect hot, neutral, load, and ground per the manufacturer’s diagram. Complete gateway and dimmer setup in Home + Control. Use a compatible wireless dimmer for additional control; do not assume conventional 3-way wiring.

Specifications

Dimensions

Length/Depth
1.53 in
Width/Diameter
1.73 in
Height
4.19 in
Weight
0.25 lb

Style & Materials

Finish
Matte Nickel

Characteristics & Features

Function Type
3-Way, Multi-Location, Single Pole
Neutral Required
Yes

Electrical Information

Voltage
120V
Wattage Rating
700.0W

Item Details

MPN
WNRL50NI
Brand
Legrand
Family
Radiant Smart
UPC
785007290103

Warranty & Certifications

Product Warranty
1 Year Warranty

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is a neutral wire required?

Yes, a neutral wire is required. The dimmer uses flying leads and operates at 120V AC, 60Hz.

What are the phase-specific load ratings?

LED/CFL/EFL loads are rated 450W/3.8A forward-phase or 250W/2.1A reverse-phase. Incandescent/halogen/ELV loads are rated 700W forward-phase or 450W reverse-phase before derating. MLV is rated 500VA in forward-phase. Use only compatible dimmable loads; 0–10V is excluded.

Does it require a gateway?

Yes, a radiant Smart Gateway with Netatmo is required. Use the Home + Control app for setup, schedules, scenes, groups, and energy monitoring.

How can I add a second control location?

Pair a compatible radiant Wireless Smart Dimmer with Netatmo for wireless 3-way control. Follow the manufacturer’s installation and pairing instructions for the selected devices.

What derating is required when ganging?

Forward-phase incandescent/halogen/ELV capacity is 600W per device in a two-gang installation. In three-gang or larger installations, outer units are rated 600W and center units 500W. Reverse-phase applications require no derating.
