Legrand WNRL50LA Radiant Smart Tru-Universal Dimmer with Netatmo, 700W, Single Pole/3-Way/Multi-Location, Light Almond
Available in stock (30)
About this item
About this item
- Neutral Requirement: A neutral connection is required for 120V AC, 60Hz operation.
- Phase Selection: Tru-Universal dimming provides selectable forward- or reverse-phase control for compatible loads, excluding 0–10V.
- Load Ratings: LED/CFL/EFL capacity is 450W/3.8A forward-phase or 250W/2.1A reverse-phase; incandescent/halogen/ELV capacity is 700W forward-phase or 450W reverse-phase before derating.

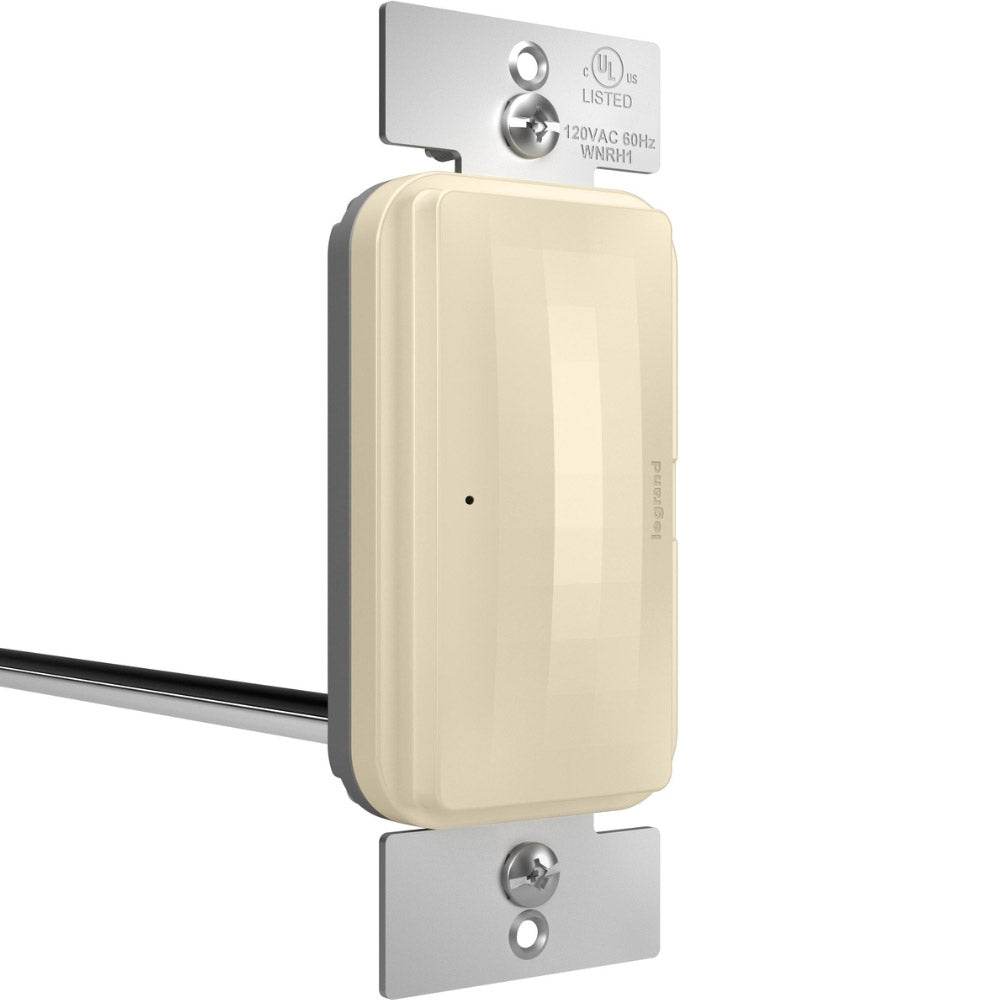

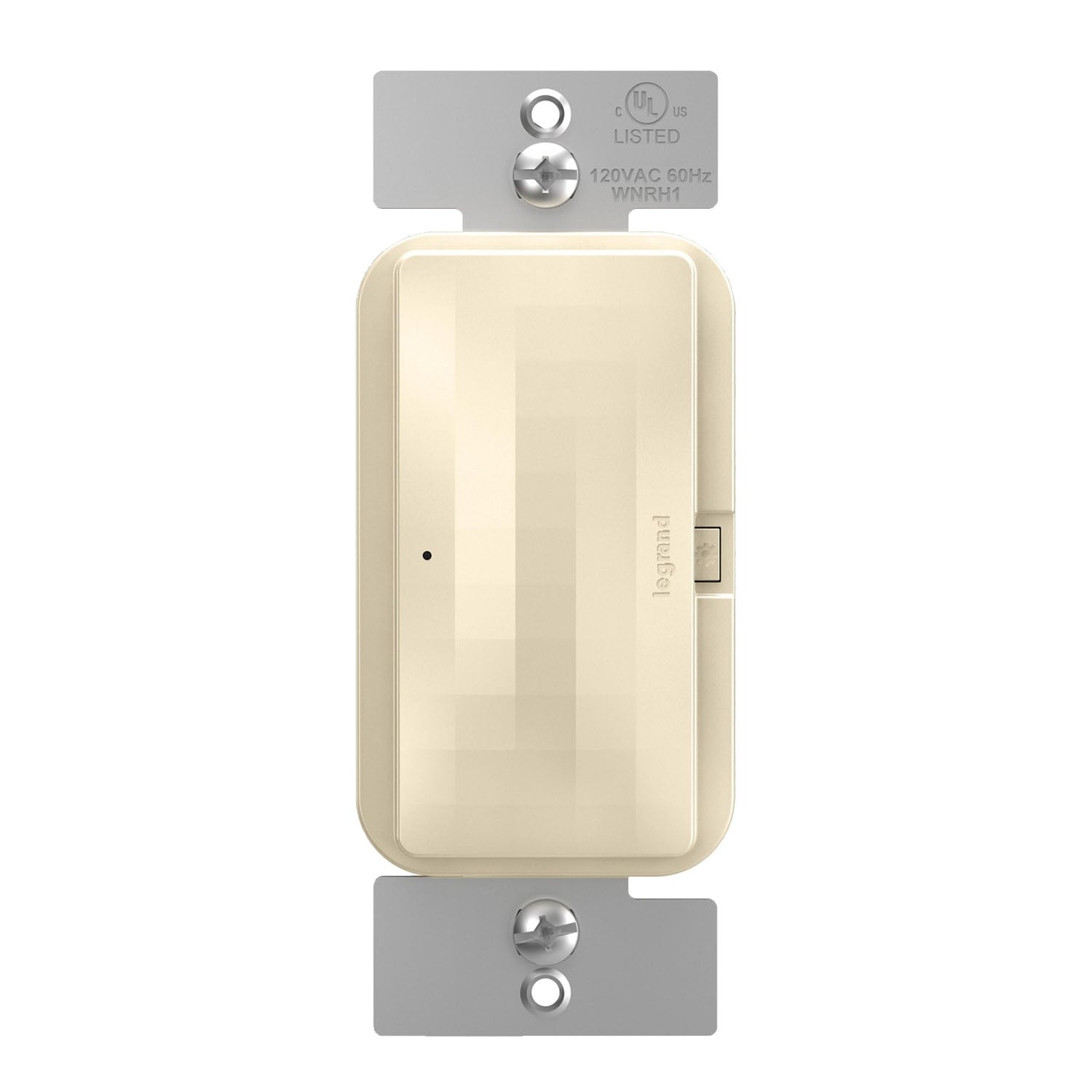

- Smart Prerequisite: A radiant Smart Gateway with Netatmo is required for the system, with Home + Control app setup, schedules, scenes, and energy monitoring.
- Additional Locations: Pair a compatible radiant Wireless Smart Dimmer with Netatmo for wireless 3-way control.
Description
Description

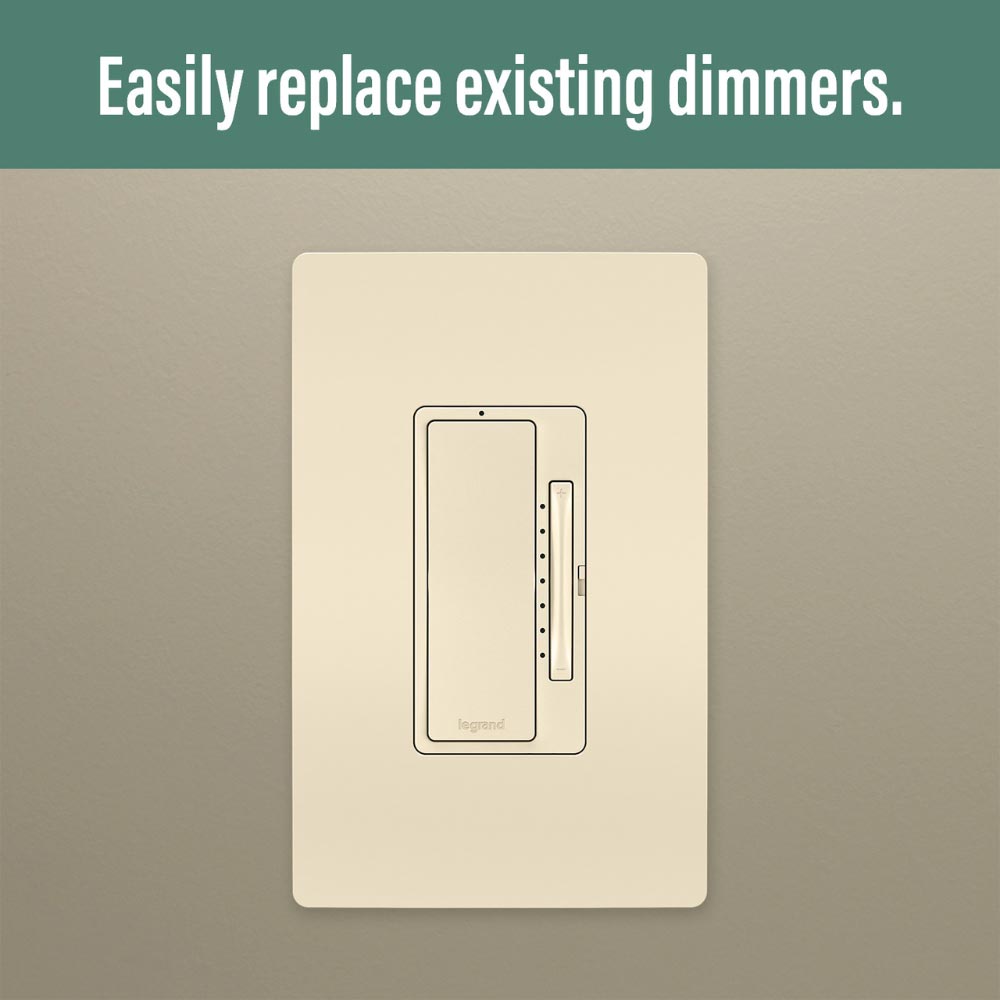

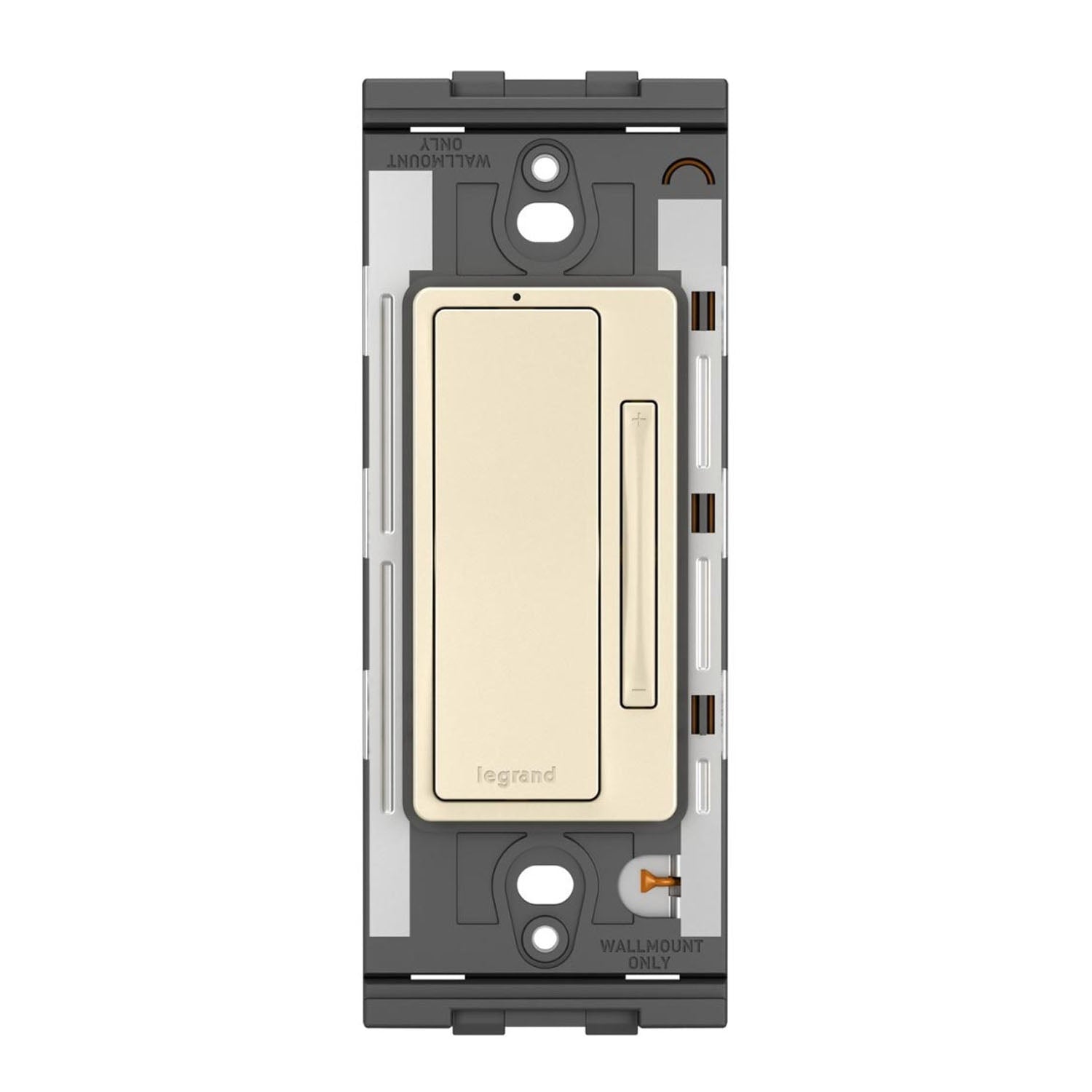

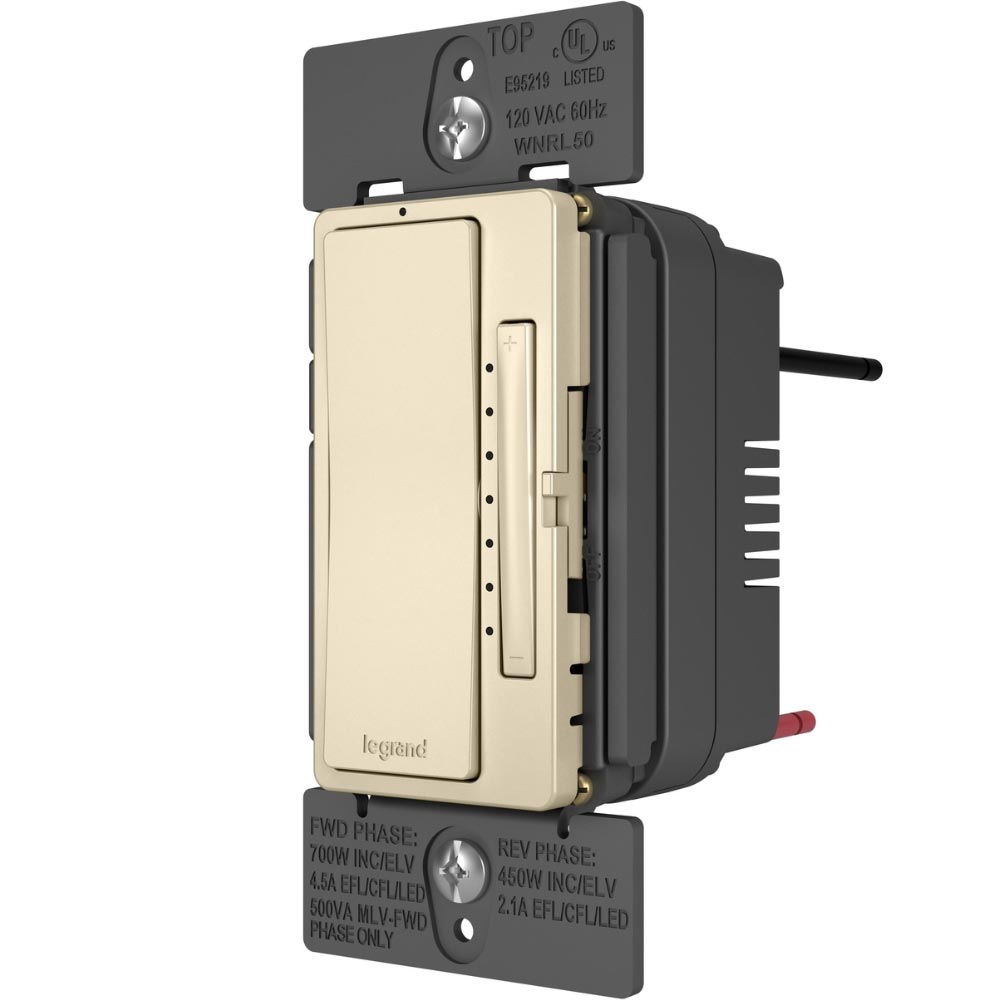

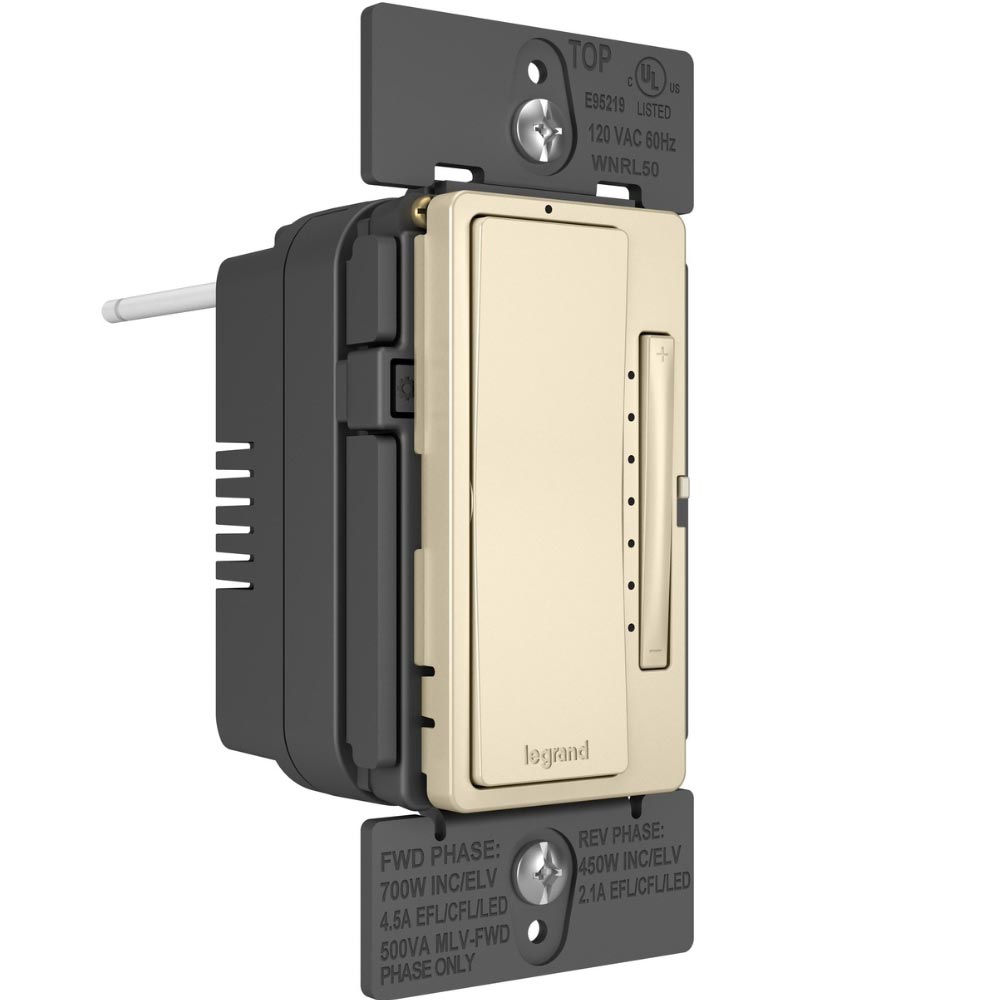

Legrand radiant Smart Tru-Universal Dimmer - Light Almond
The WNRL50LA with Netatmo operates at 120V AC, 60Hz with neutral required. Finish: Light Almond. Supports selectable forward- or reverse-phase dimming and wireless additional control locations.
Key Features
- LED/CFL/EFL: 450W/3.8A forward-phase; 250W/2.1A reverse-phase.
- Incandescent/Halogen/ELV: 700W forward-phase or 450W reverse-phase before derating.
- MLV: Rated 500VA in forward-phase.
- Gateway: A radiant Smart Gateway with Netatmo is required.
- App: Home + Control supports schedules, scenes, groups, and energy monitoring.
- Multi-Location: Pair a compatible radiant Wireless Smart Dimmer with Netatmo.
Construction & Interface

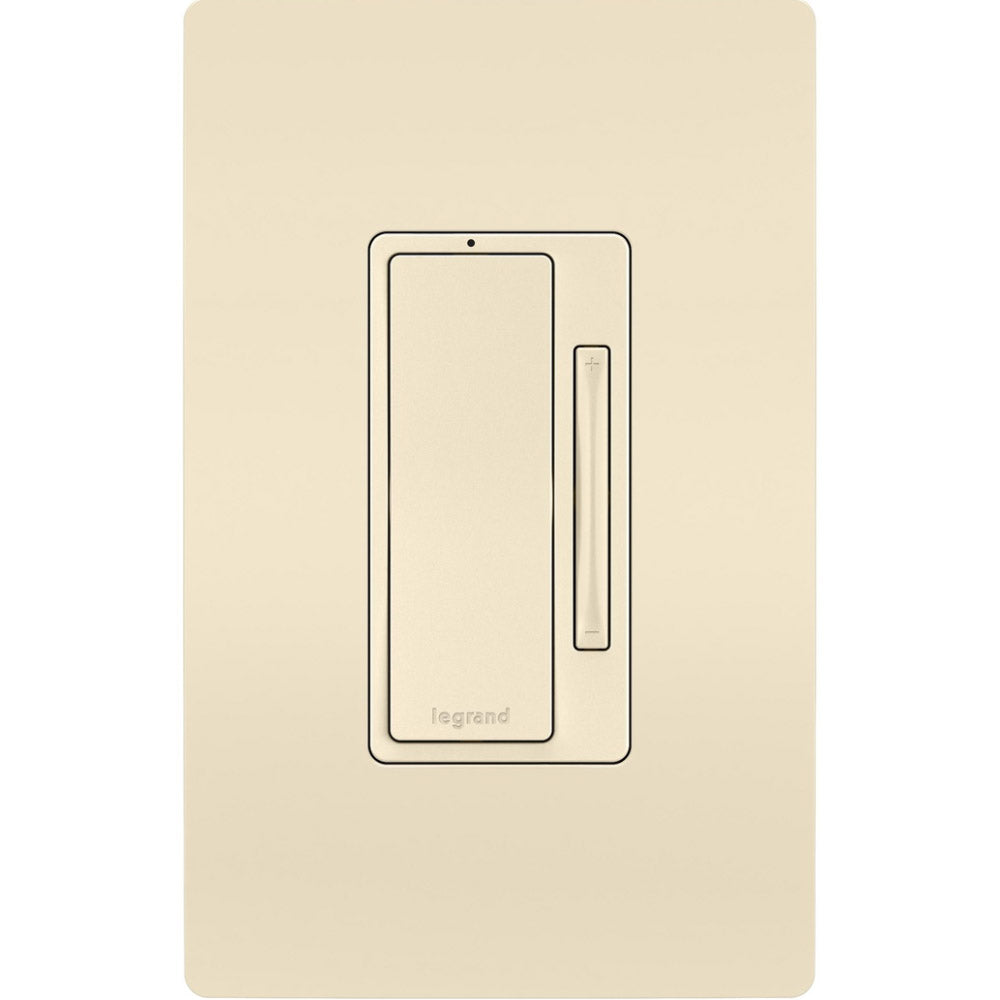

Indoor paddle control features a locator/status light and flying leads. A screwless wallplate is included.
Dimming & Load Performance
Match phase selection to the compatible load; 0–10V is excluded. Forward-phase incandescent/halogen/ELV capacity is 600W per device in two-gang installations; three-gang or larger uses 600W outer and 500W center units. Reverse-phase applications require no derating.
Wiring & Installation
Connect hot, neutral, load, and ground per the manufacturer’s diagram. Complete gateway and dimmer setup in Home + Control. Use a compatible wireless dimmer for additional control; do not assume conventional 3-way wiring.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is a neutral wire required?
Is a neutral wire required?
Yes, a neutral wire is required. The dimmer uses flying leads and operates at 120V AC, 60Hz.
What are the phase-specific load ratings?
What are the phase-specific load ratings?
LED/CFL/EFL loads are rated 450W/3.8A forward-phase or 250W/2.1A reverse-phase. Incandescent/halogen/ELV loads are rated 700W forward-phase or 450W reverse-phase before derating. MLV is rated 500VA in forward-phase. Use only compatible dimmable loads; 0–10V is excluded.
Does it require a gateway?
Does it require a gateway?
Yes, a radiant Smart Gateway with Netatmo is required. Use the Home + Control app for setup, schedules, scenes, groups, and energy monitoring.
How can I add a second control location?
How can I add a second control location?
Pair a compatible radiant Wireless Smart Dimmer with Netatmo for wireless 3-way control. Follow the manufacturer’s installation and pairing instructions for the selected devices.
What derating is required when ganging?
What derating is required when ganging?
Forward-phase incandescent/halogen/ELV capacity is 600W per device in a two-gang installation. In three-gang or larger installations, outer units are rated 600W and center units 500W. Reverse-phase applications require no derating.
