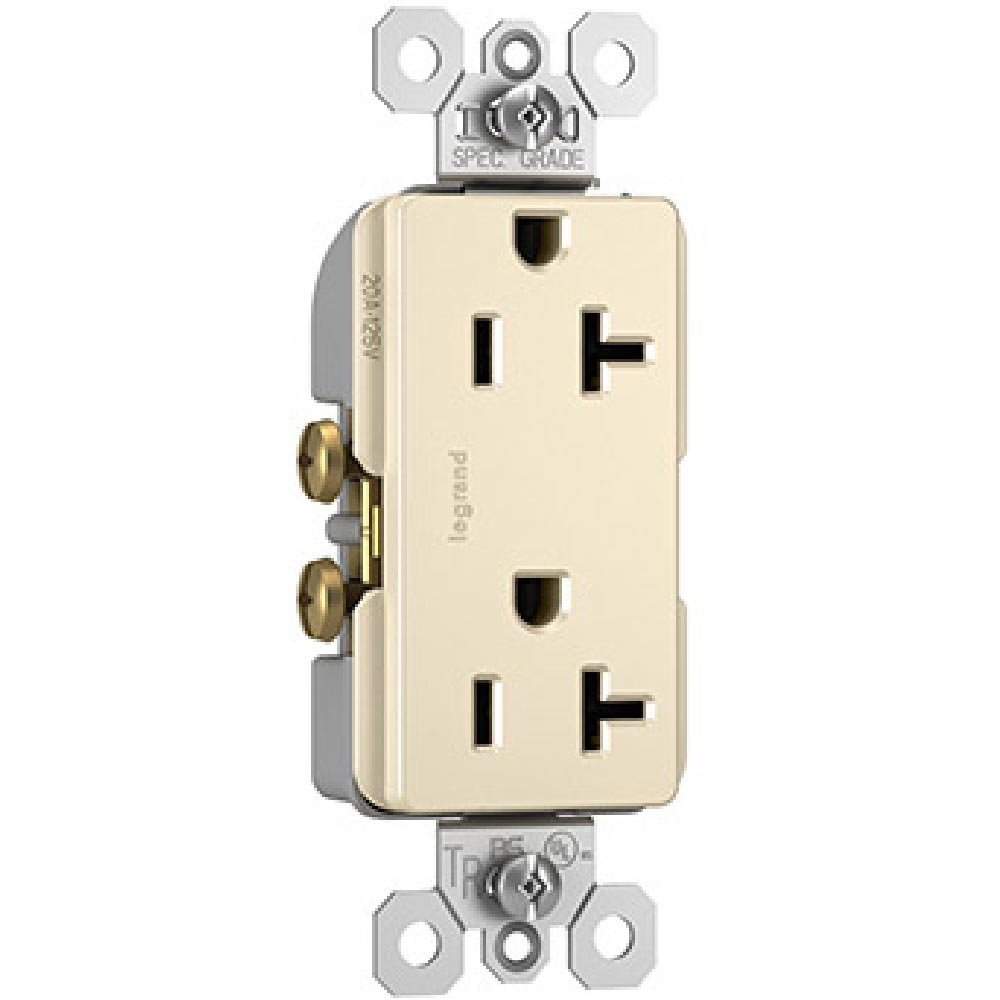

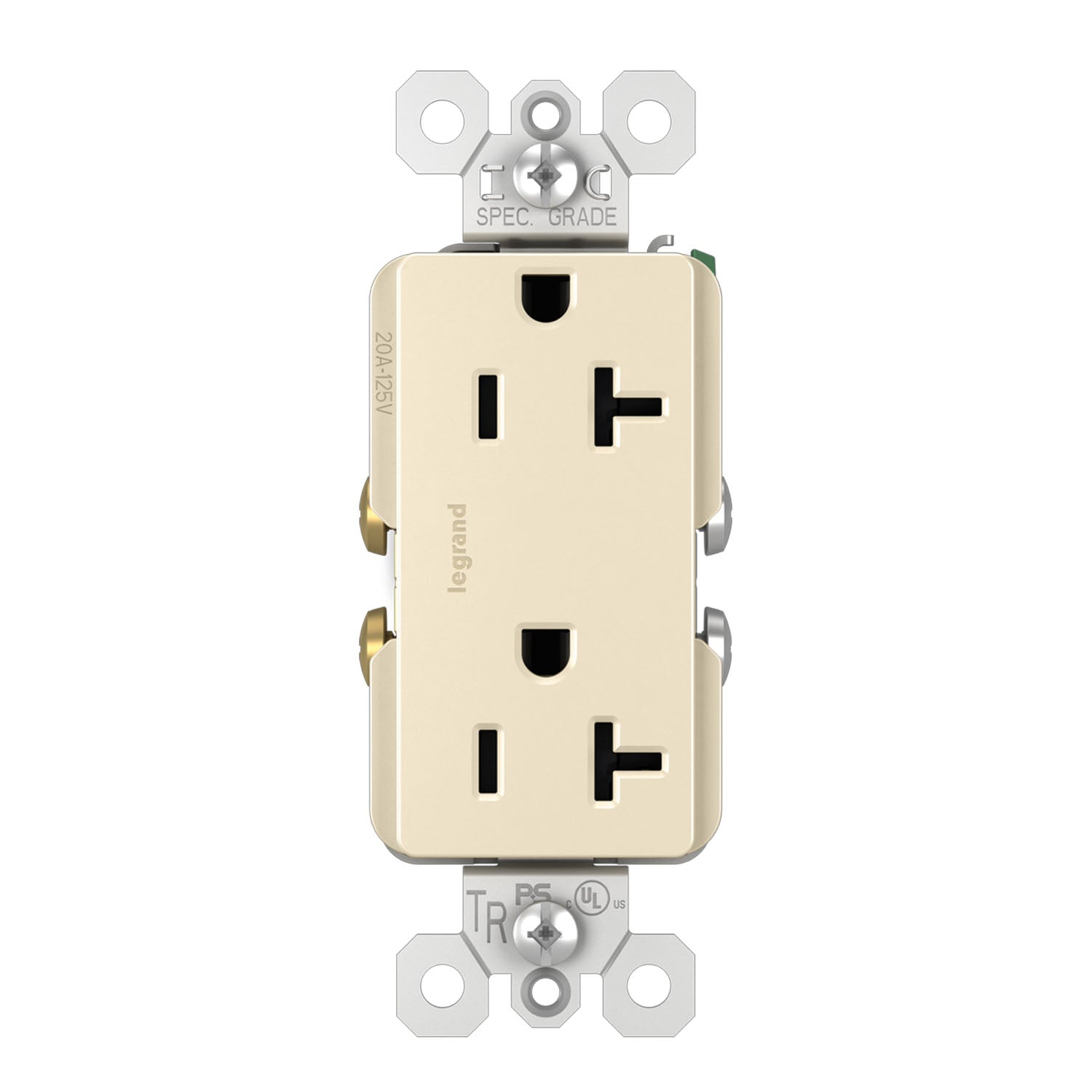

Legrand radiant Duplex Outlet — Light Almond & Tamper-Resistant

The Legrand TR26352RLA is a 20A Tamper-Resistant Duplex Outlet in a sleek Light Almond finish. This outlet is designed for 125V applications and features a NEMA 5-20R configuration. It is ideal for commercial settings and larger appliances, providing enhanced safety with its tamper-resistant design.

Key Features

• Voltage: Operates at 125V, suitable for standard residential and commercial applications.
• Amperage: Supports 20A, accommodating high-power devices.
• NEMA Configuration: NEMA 5-20R, compatible with a wide range of plugs.
• Tamper-Resistant: Yes, includes a patented shutter system for safety.
• Grade: Spec-Grade, engineered for commercial installations.
• Dimensions: Measures 1.37 in. width, 3.28 in. height, and 0.93 in. depth.
• Certifications: cULus Listed, ensuring compliance with safety standards.
• Construction: High-impact resistant thermoplastic for long-lasting use.
• Finish: Light Almond, designed to match modern hardware and lighting trends.
• Wallplate: Sold separately, compatible with screwless radiant Collection wall plates.

Construction & Interface

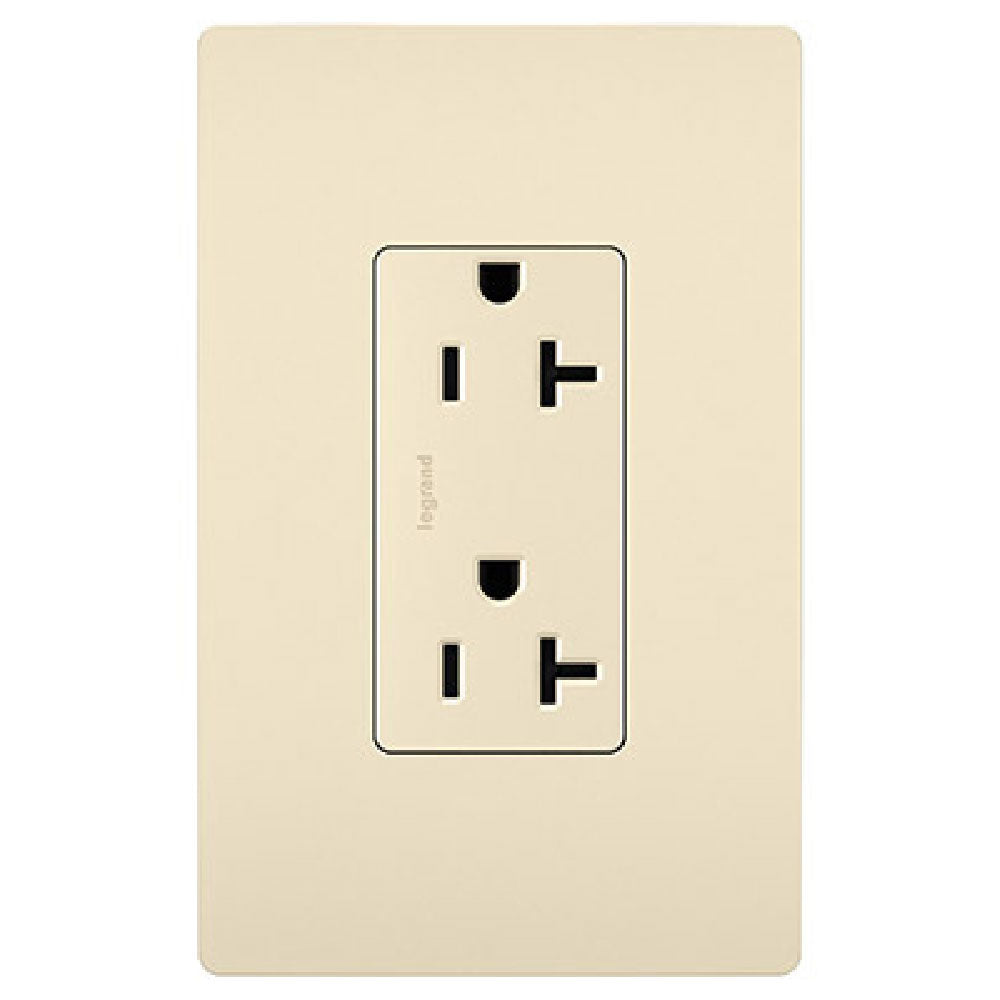

This outlet features a decorator style interface with a high-impact resistant thermoplastic construction. The Light Almond finish complements modern decor. Please note, the wallplate is sold separately.

Safety & Ground Fault Protection

The outlet includes a patented tamper-resistant shutter system, providing safety by preventing the insertion of foreign objects. This feature is crucial for environments with children.

Wiring & Installation

Designed for box mounting, this outlet supports back and side wiring methods. It accepts wire gauges from #14 to #10 AWG, ensuring a secure and reliable connection.
