Legrand TR26352RGCC6 radiant 20A Tamper-Resistant Duplex Outlet, Graphite
Available in stock (60)
About this item
About this item
- Amperage: Rated for 20A, suitable for larger appliances and commercial settings.
- NEMA Configuration: Features a NEMA 5-20R configuration for compatibility with standard plugs.
- Tamper-Resistant: Equipped with patented shutter system to prevent foreign object insertion.
- Construction: Made from high-impact resistant thermoplastic for durability.
- Wallplate: Compatible with screwless radiant wall plates, sold separately.
We process payments securely and do not store credit card information.
Description
Description

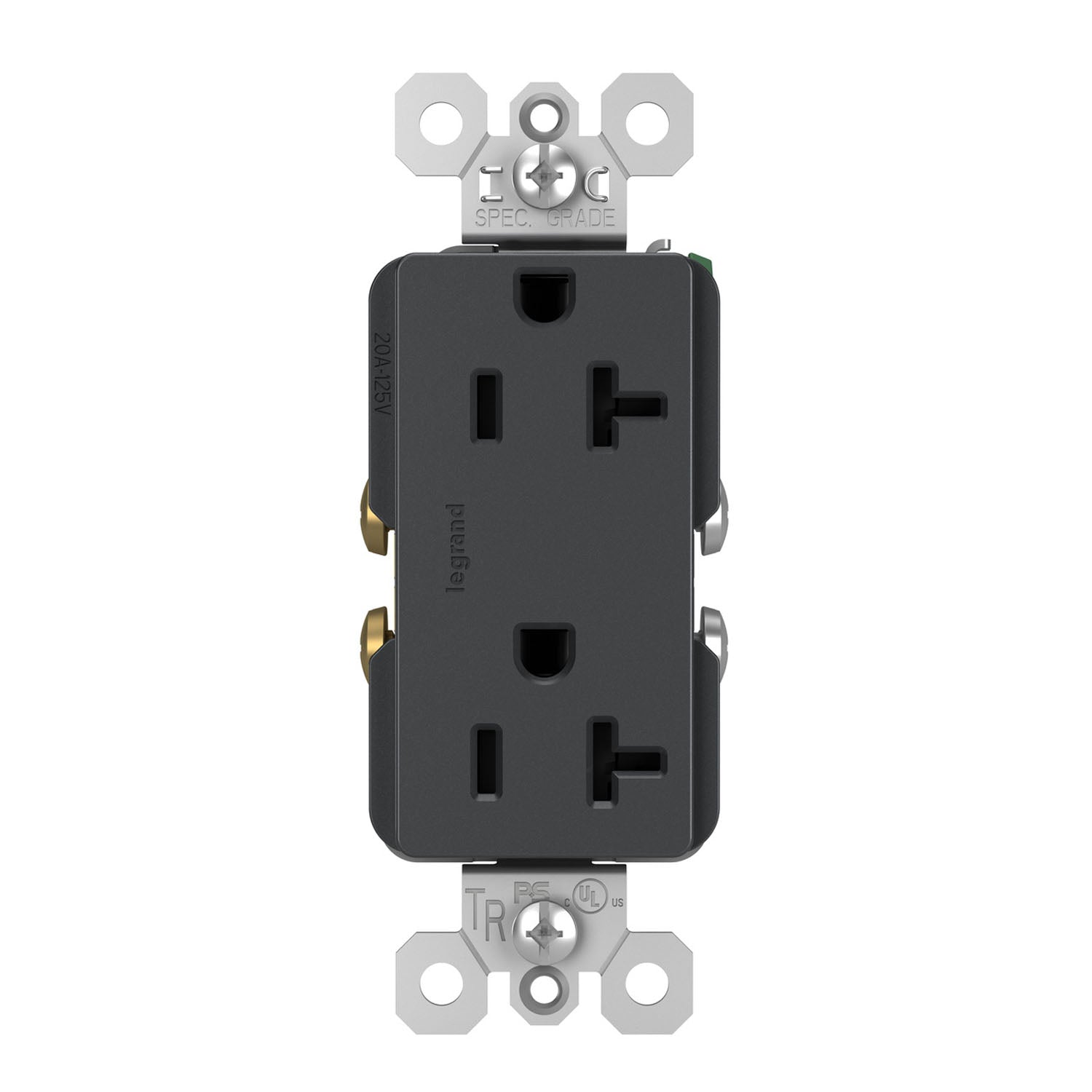

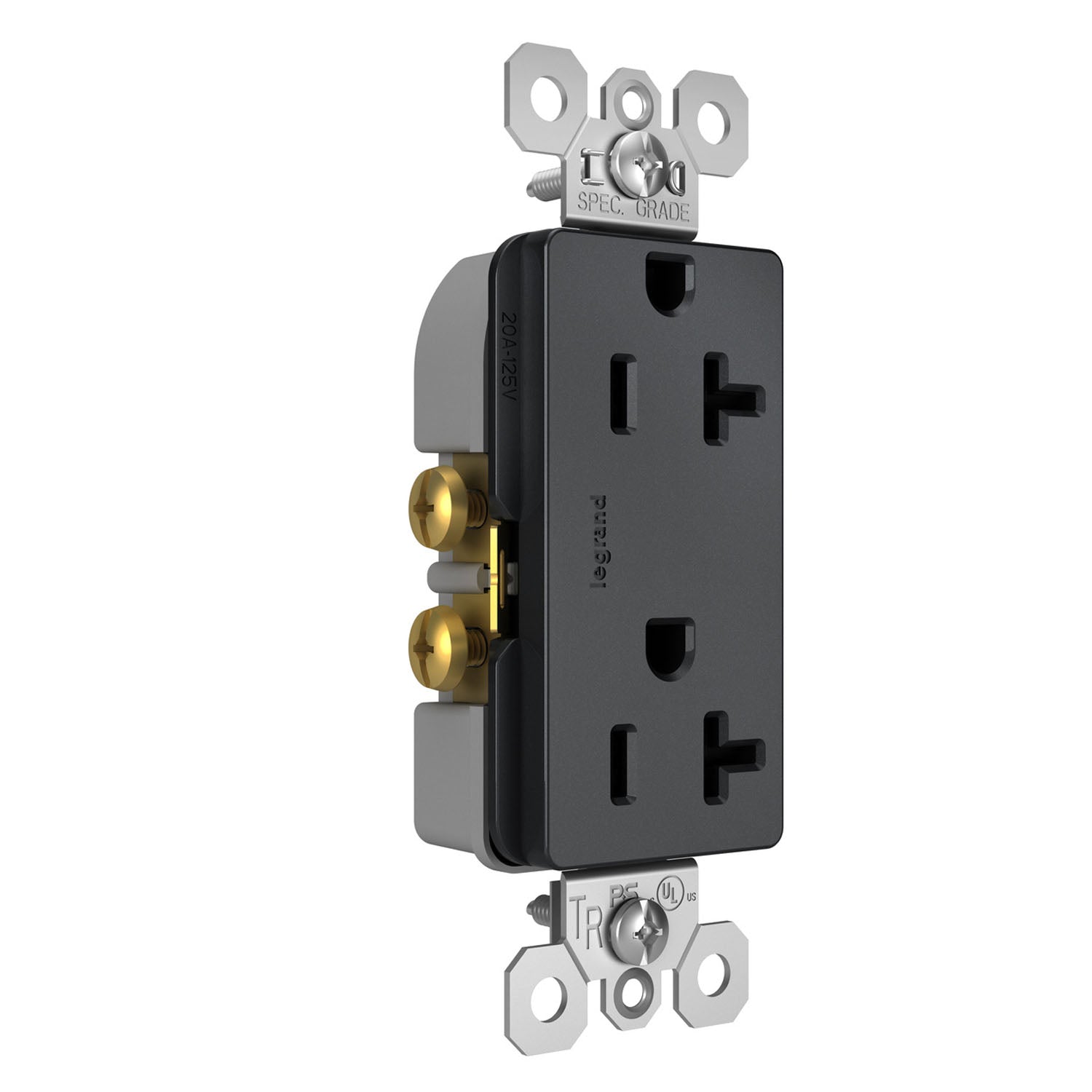

Legrand radiant Duplex Outlet — Graphite & Tamper-Resistant
The Legrand TR26352RGCC6 is a 20A Tamper-Resistant Duplex Outlet in a sleek Graphite finish. It features a NEMA 5-20R configuration and operates at 125V. This outlet is designed for commercial use, offering enhanced safety with its tamper-resistant design.
Key Features
- Amperage: 20A rating supports larger appliances and commercial applications.
- Voltage: Operates at 125V for standard electrical systems.
- NEMA Configuration: NEMA 5-20R for compatibility with various plugs.
- Tamper-Resistant: Yes, includes patented shutter system for safety.
- Construction: High-impact resistant thermoplastic for durability.
- Grade: Spec-Grade for commercial installations.
- Dimensions: 1.37 in width, 3.28 in height, 0.93 in depth.
- Certifications: cULus Listed for safety compliance.
- Wallplate: Designed for use with screwless radiant wall plates, sold separately.
- Finish: Graphite for a modern aesthetic.
Construction & Interface

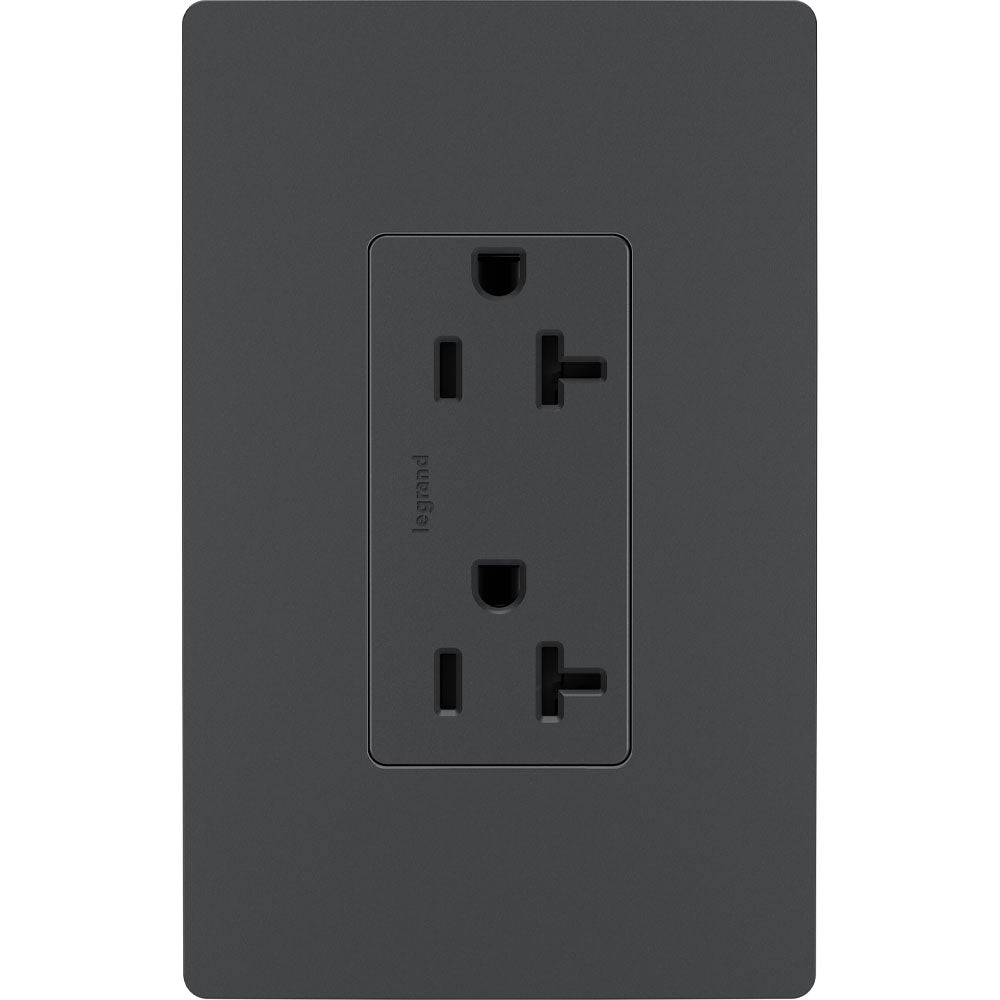

This duplex outlet features a decorator style with a high-impact resistant thermoplastic construction in a graphite finish. The wallplate is sold separately, allowing for customization with screwless options from the radiant Collection.
Safety & Ground Fault Protection
The outlet includes a patented tamper-resistant shutter system, ensuring safety by preventing the insertion of foreign objects. This makes it ideal for environments where child safety is a concern.
Wiring & Installation

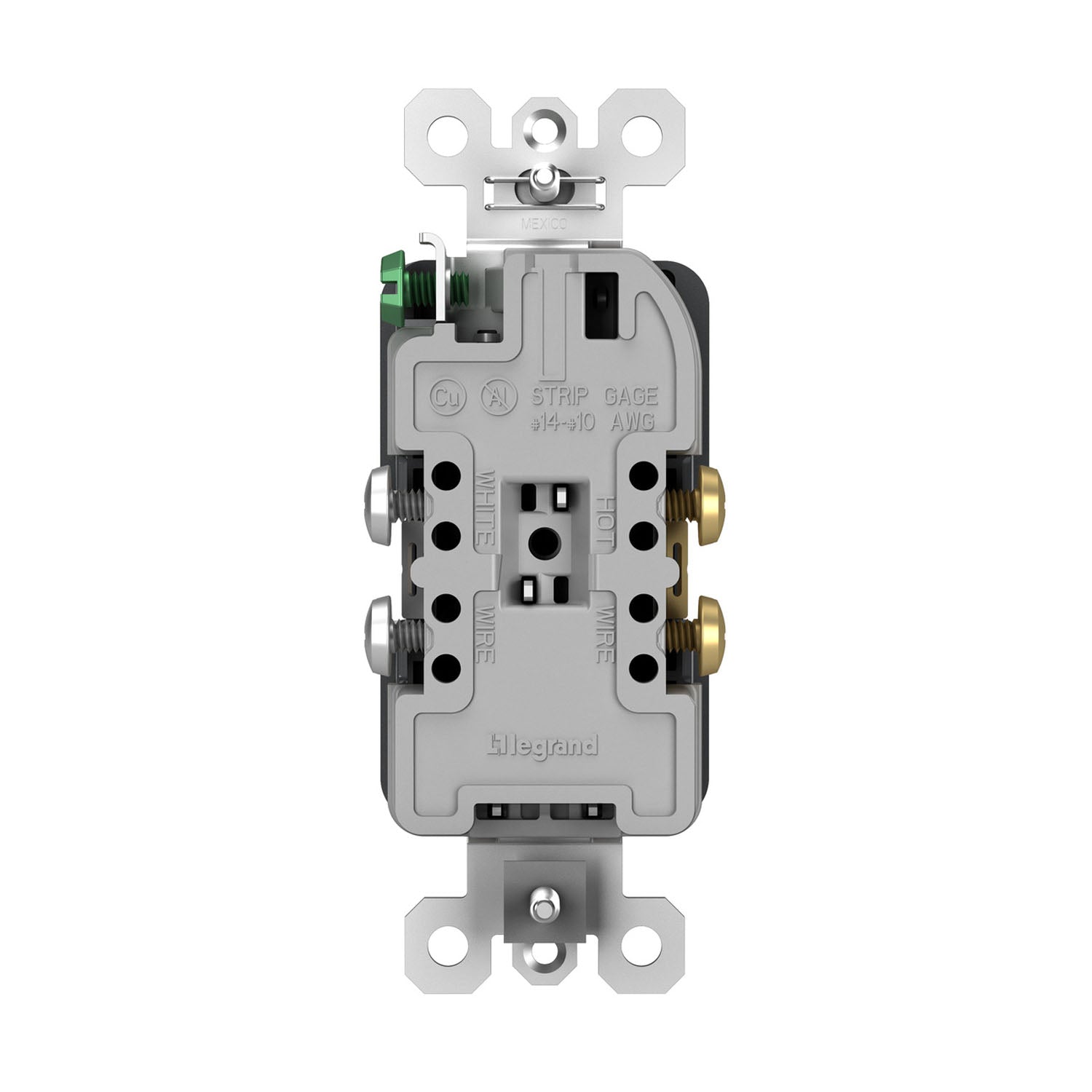

Designed for easy installation, this outlet supports back and side wiring methods, accommodating wire gauges from #14 to #10 AWG. It features a sturdy mounting strap for secure attachment.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the Legrand TR26352RGCC6 outlet tamper-resistant?
Is the Legrand TR26352RGCC6 outlet tamper-resistant?
What is the NEMA configuration of this outlet?
What is the NEMA configuration of this outlet?
Does the Legrand TR26352RGCC6 come with a wallplate?
Does the Legrand TR26352RGCC6 come with a wallplate?
What is the amperage rating of this outlet?
What is the amperage rating of this outlet?
What wiring methods are supported by this outlet?
What wiring methods are supported by this outlet?
