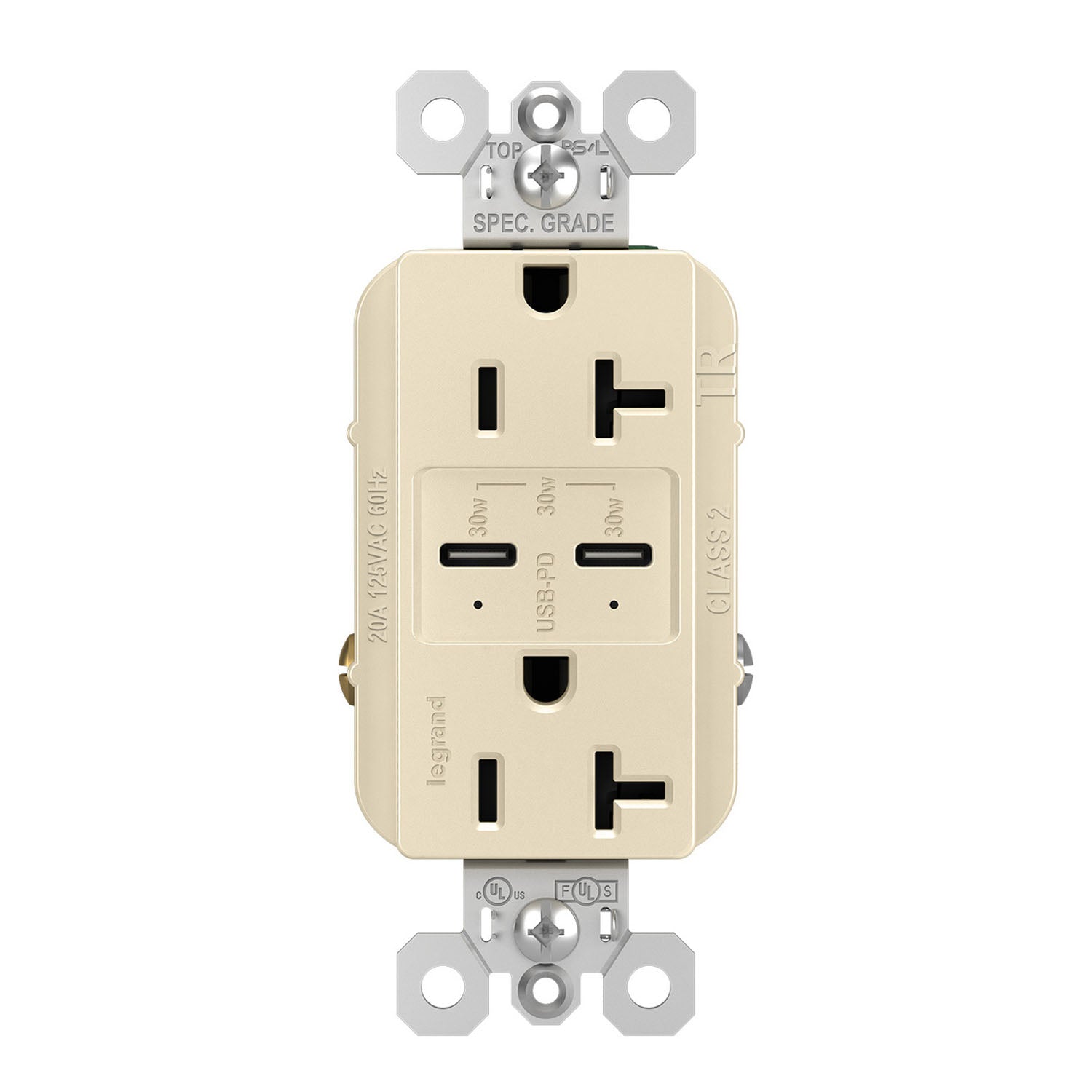

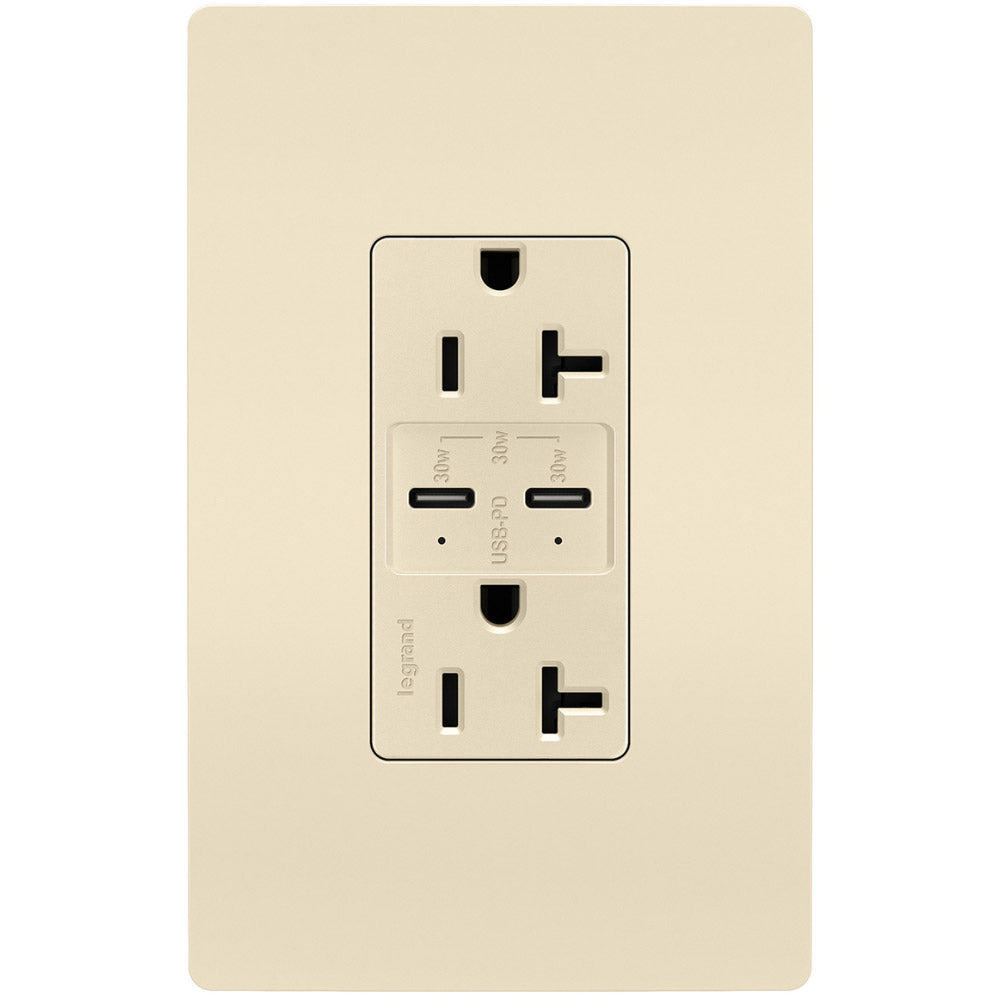

Legrand radiant USB Type C/C Duplex Outlet — Light Almond & Tamper-Resistant

The Legrand TR20USBPDLA is a 20A USB Type C/C Duplex Outlet in a sleek Light Almond finish. This outlet features dual USB Type-C ports with 6A output and 30W Power Delivery, ensuring ultra-fast charging for your devices. It is designed with a tamper-resistant shutter system for enhanced safety.

Key Features

• Amperage: 20A rating for robust electrical performance.
• Voltage: Operates at 125V for standard residential and commercial use.
• NEMA Configuration: NEMA 5-20R, ensuring compatibility with a wide range of devices.
• Tamper-Resistant: Yes, features patented shutter system for safety.
• USB Type-C Ports: Two ports with 6A output for fast charging.
• Power Delivery: 30W output for efficient charging of modern devices.
• Indicator Light: LED indicator shows charging status with yellow and green lights.
• Construction: Matte finish for a modern aesthetic.
• Dimensions: 1.69 in width, 1.42 in depth, 2.63 in height.
• Certifications: RoHS Conformant for environmental safety.

Construction & Interface

This outlet features a decorator-style interface with a matte Light Almond finish. It is constructed with high-quality materials for durability. Please note that the wallplate is sold separately.

Power & USB Charging

Equipped with dual USB Type-C ports, this outlet provides 6A output and 30W Power Delivery, allowing for ultra-fast charging of compatible devices. The tamper-resistant design ensures safety by preventing the insertion of foreign objects.

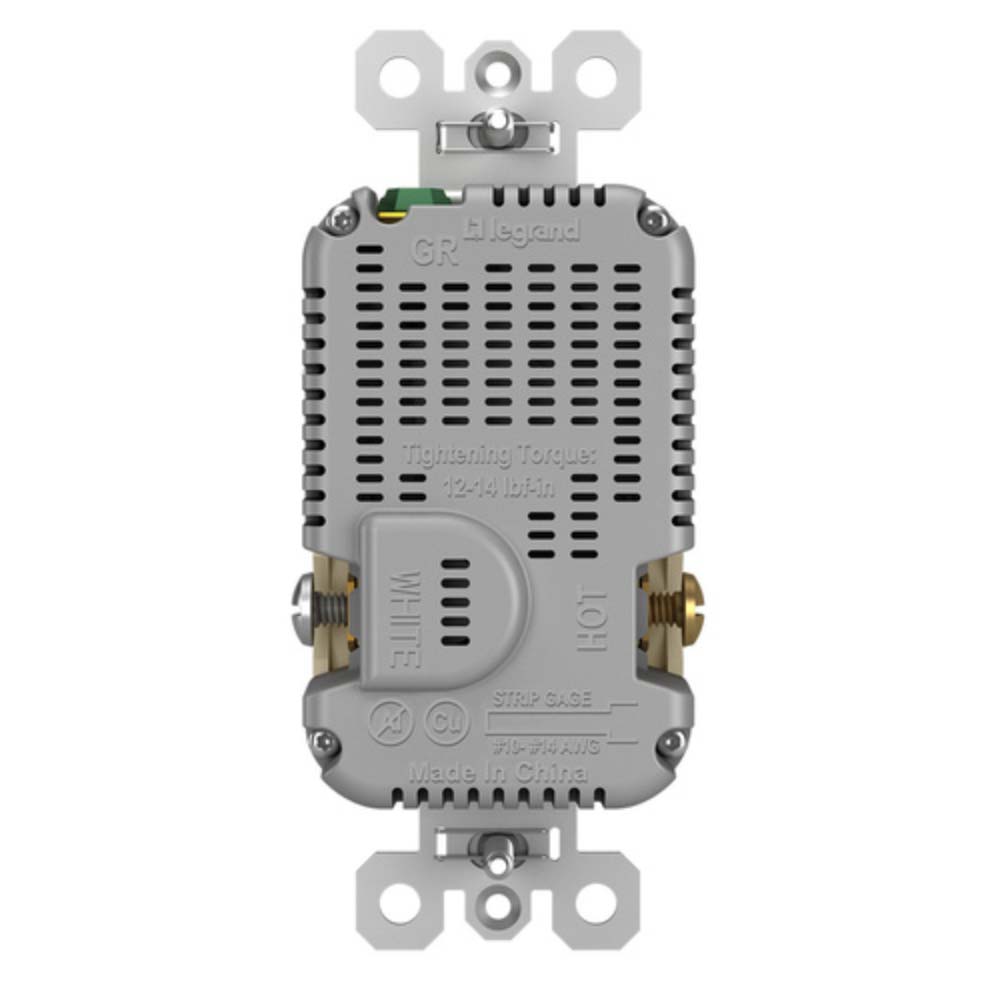

Wiring & Installation

Designed for easy installation, this outlet features side-wire terminal screws and a scalloped cover design. It supports back and side wiring with #14 to #10 AWG wire, and includes a grounding screw for secure installation.
