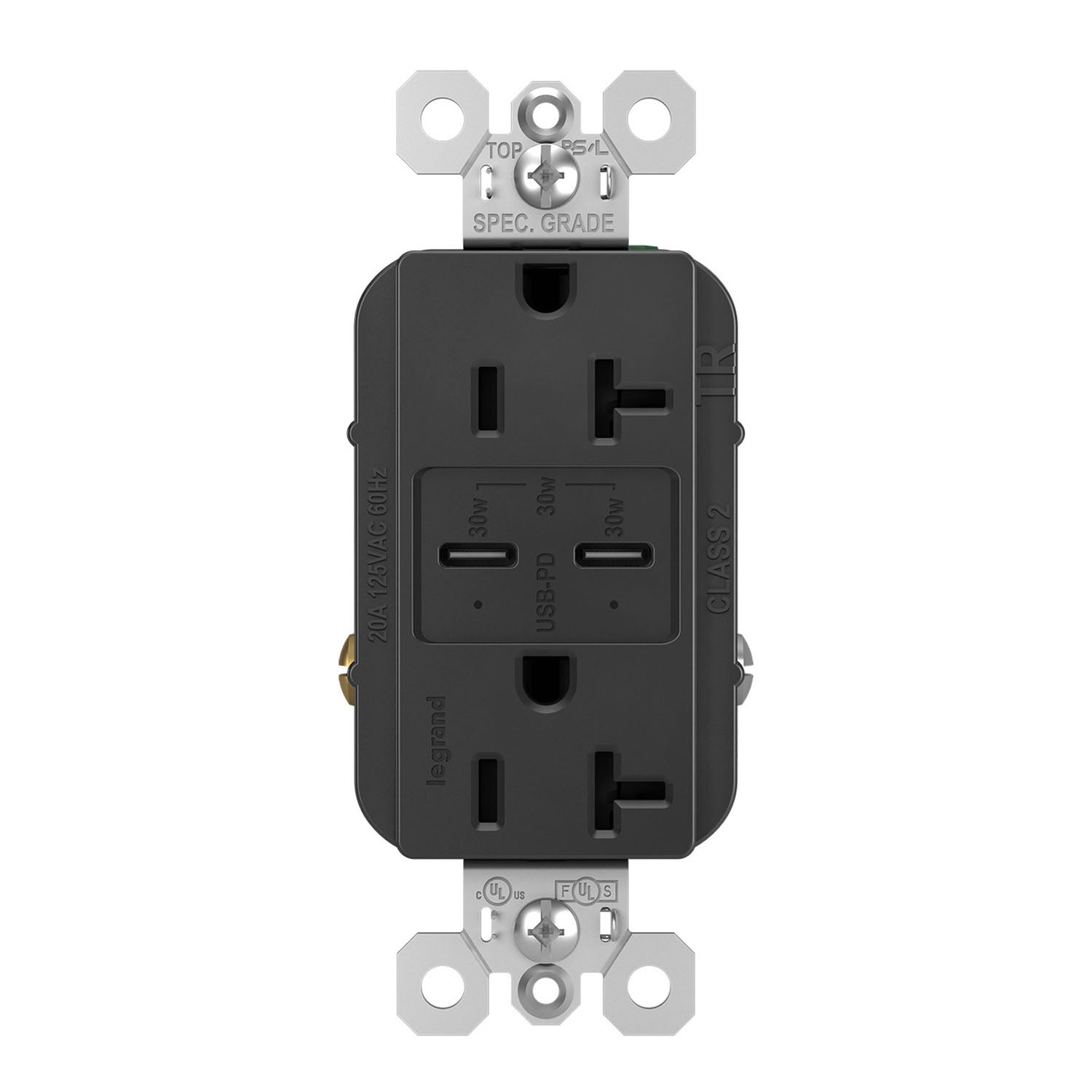

Legrand radiant USB Type C/C Duplex Outlet — Black & Tamper-Resistant

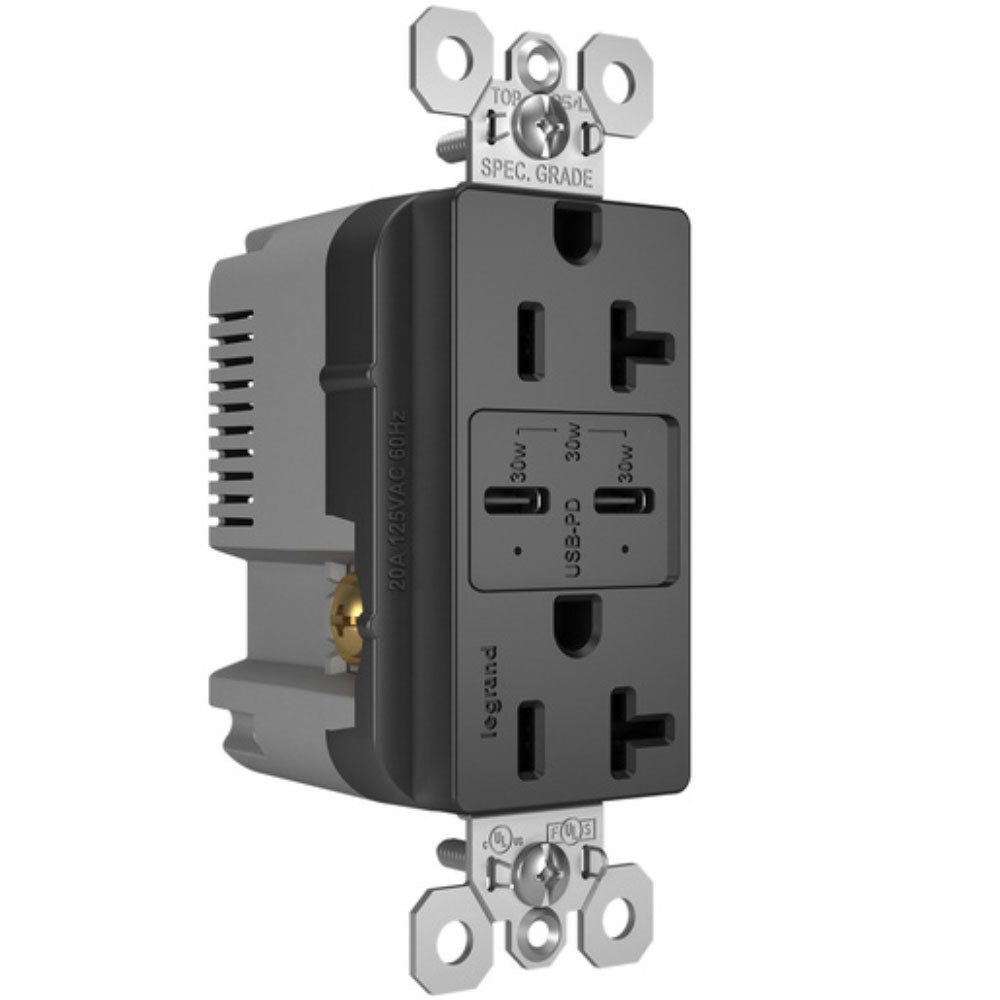

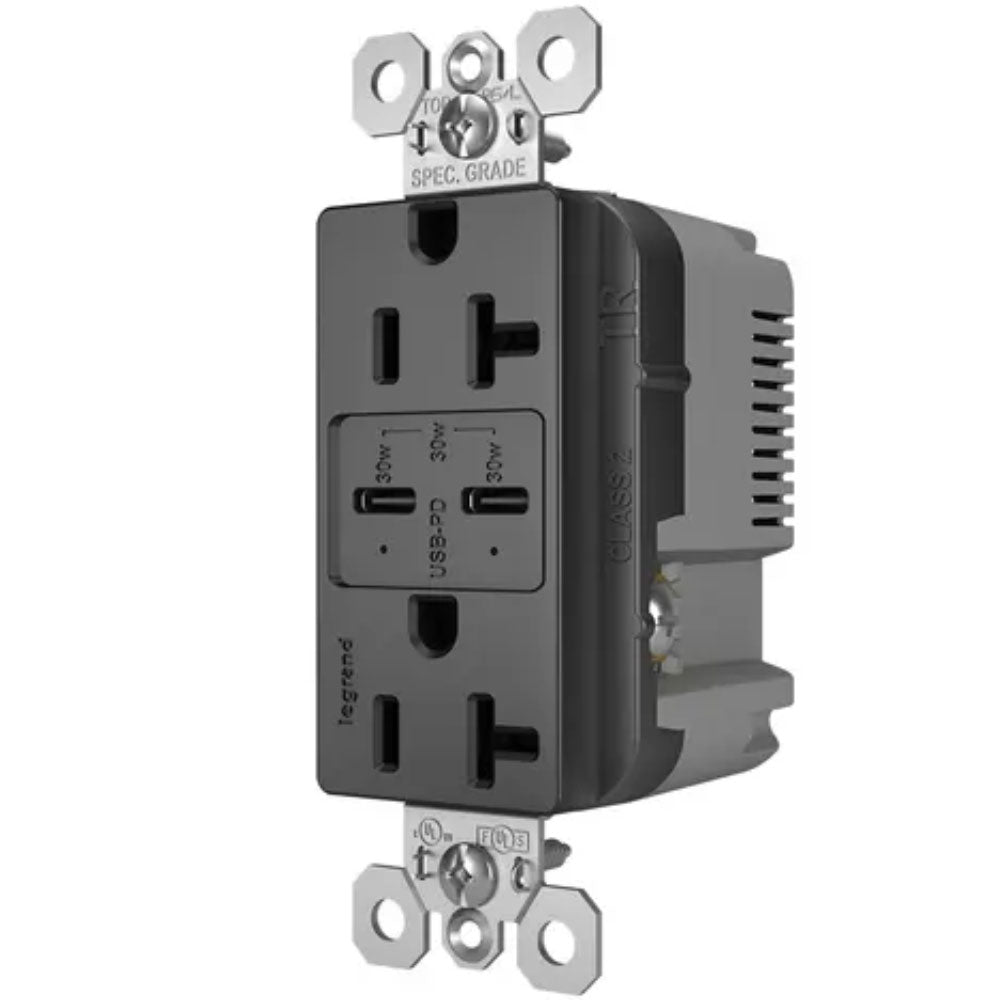

The Legrand TR20USBPDBK is a 20A USB Type C/C Duplex Outlet in a sleek black finish. This outlet combines a traditional receptacle with advanced charging capabilities, featuring dual USB Type-C ports that deliver 30W of Power Delivery for ultra-fast charging. It is tamper-resistant with a patented shutter system to enhance safety.

Key Features

• Voltage: Operates at 125V for standard electrical systems.
• Amperage: Supports 20A current for robust power needs.
• NEMA Configuration: NEMA 5-20R for compatibility with standard plugs.
• Tamper-Resistant: Safety shutters prevent accidental insertion of foreign objects.
• USB Type-C Ports: Equipped with two USB Type-C ports for modern device compatibility.
• Power Delivery: Provides 30W output for fast charging of devices.

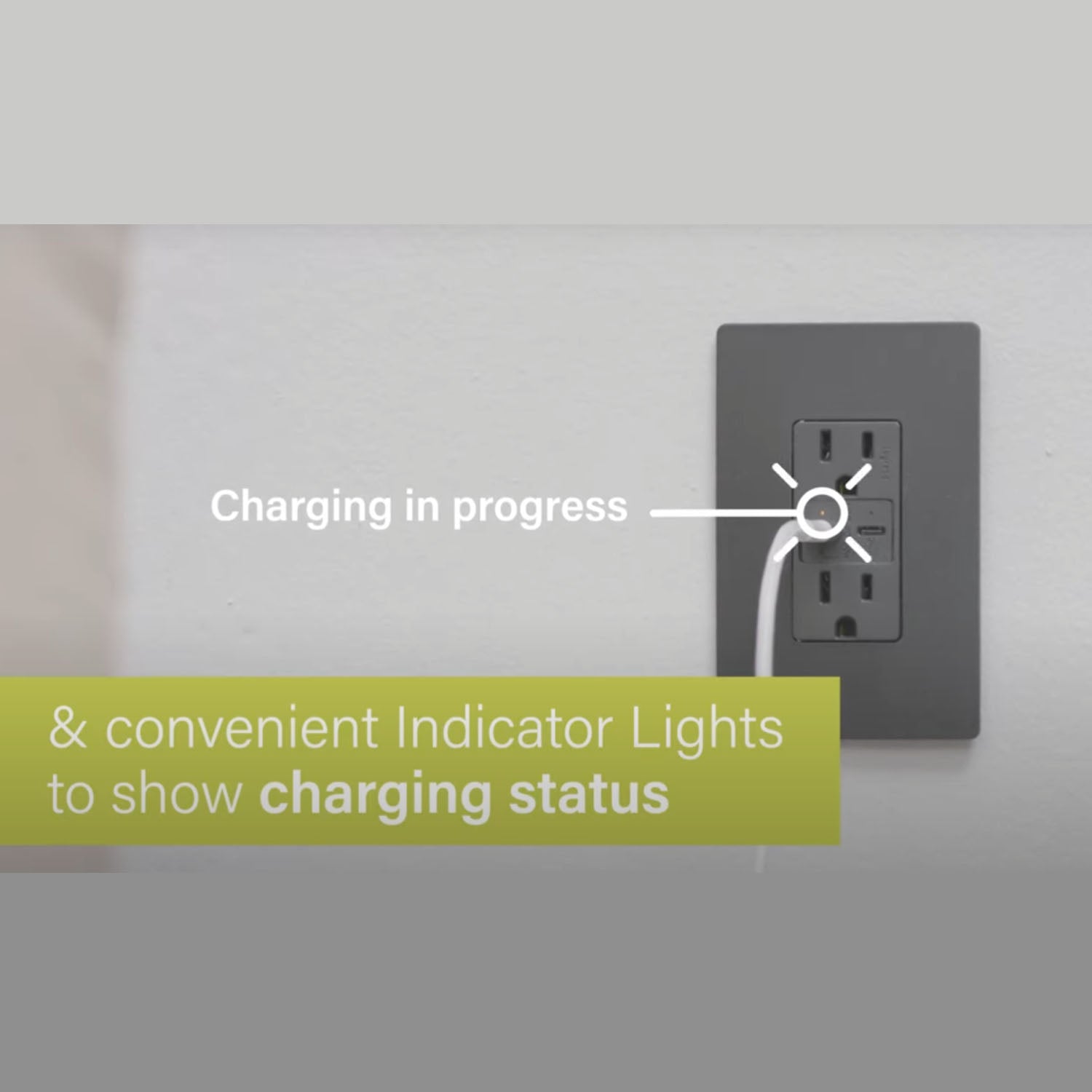

• Indicator Light: LED indicator shows charging status with yellow and green lights.
• Overcurrent Protection: Built-in safety features to prevent device damage.
• Dimensions: Measures 1.69 in. width, 1.42 in. depth, and 2.63 in. height.
• Certifications: RoHS conformant for environmental compliance.

Construction & Interface

This outlet features a decorator-style interface with a matte black finish, designed to complement modern interiors. It is constructed with durable materials for long-lasting performance. Please note that the wallplate is sold separately.

Power & USB Charging

The outlet's dual USB Type-C ports provide a combined 6A output, ensuring fast and efficient charging for multiple devices. The Power Delivery feature supports up to 30W, making it ideal for charging the latest smartphones and tablets quickly.

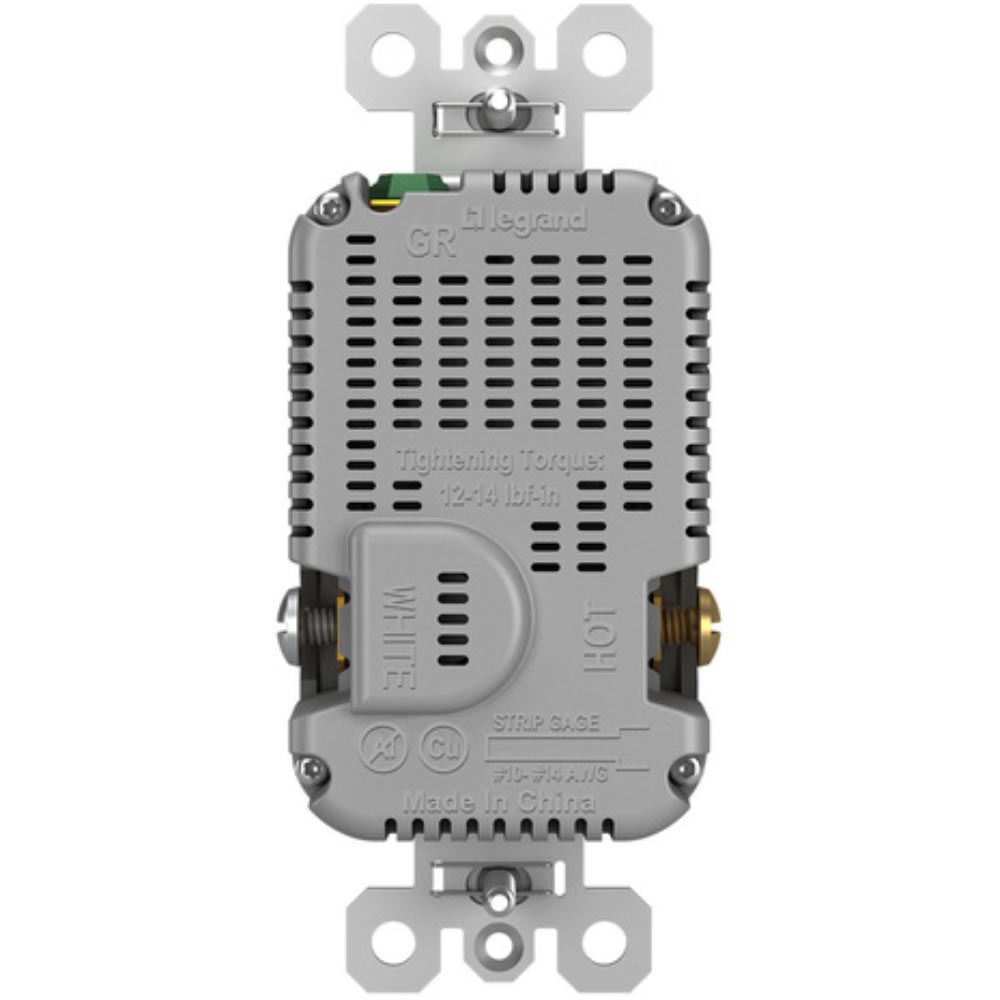

Wiring & Installation

Designed for ease of installation, this outlet includes side-wire terminal screws and a scalloped cover design for quick setup. It supports wiring with #14 to #10 AWG conductors and includes a grounding screw for secure connections.
