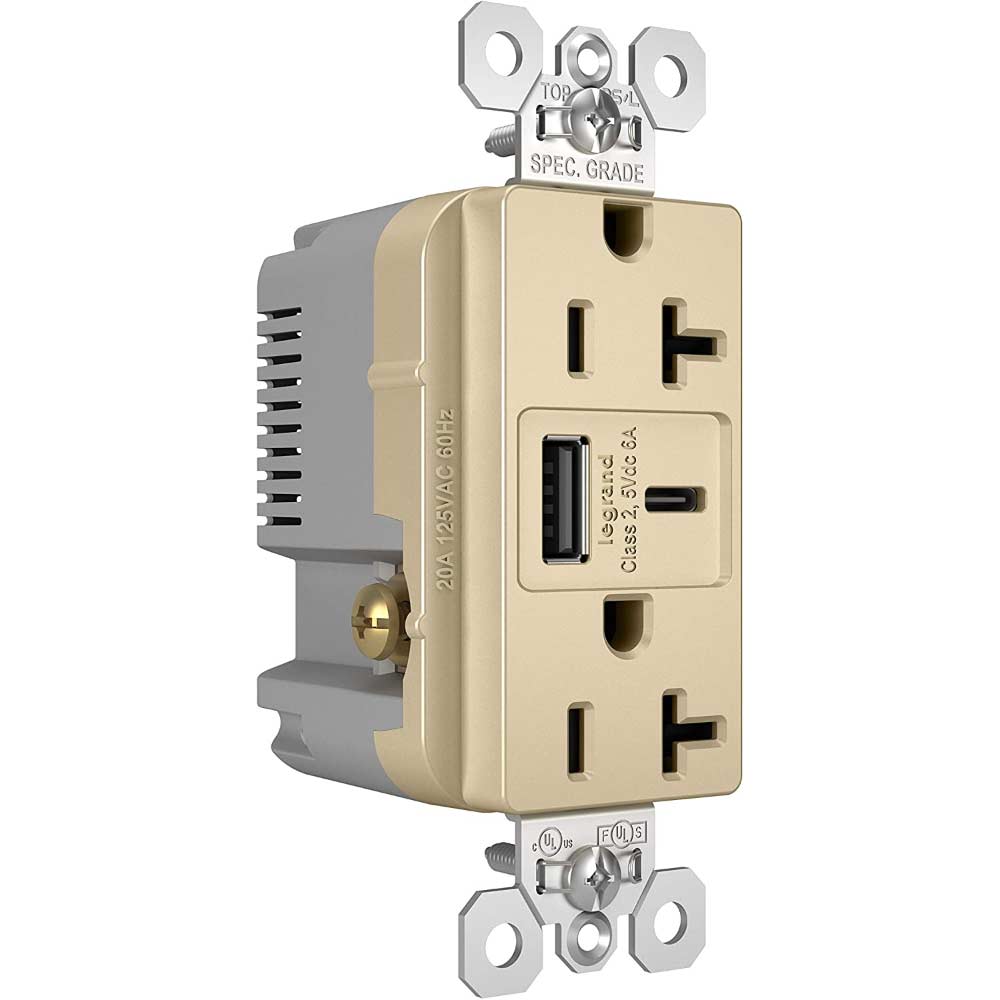

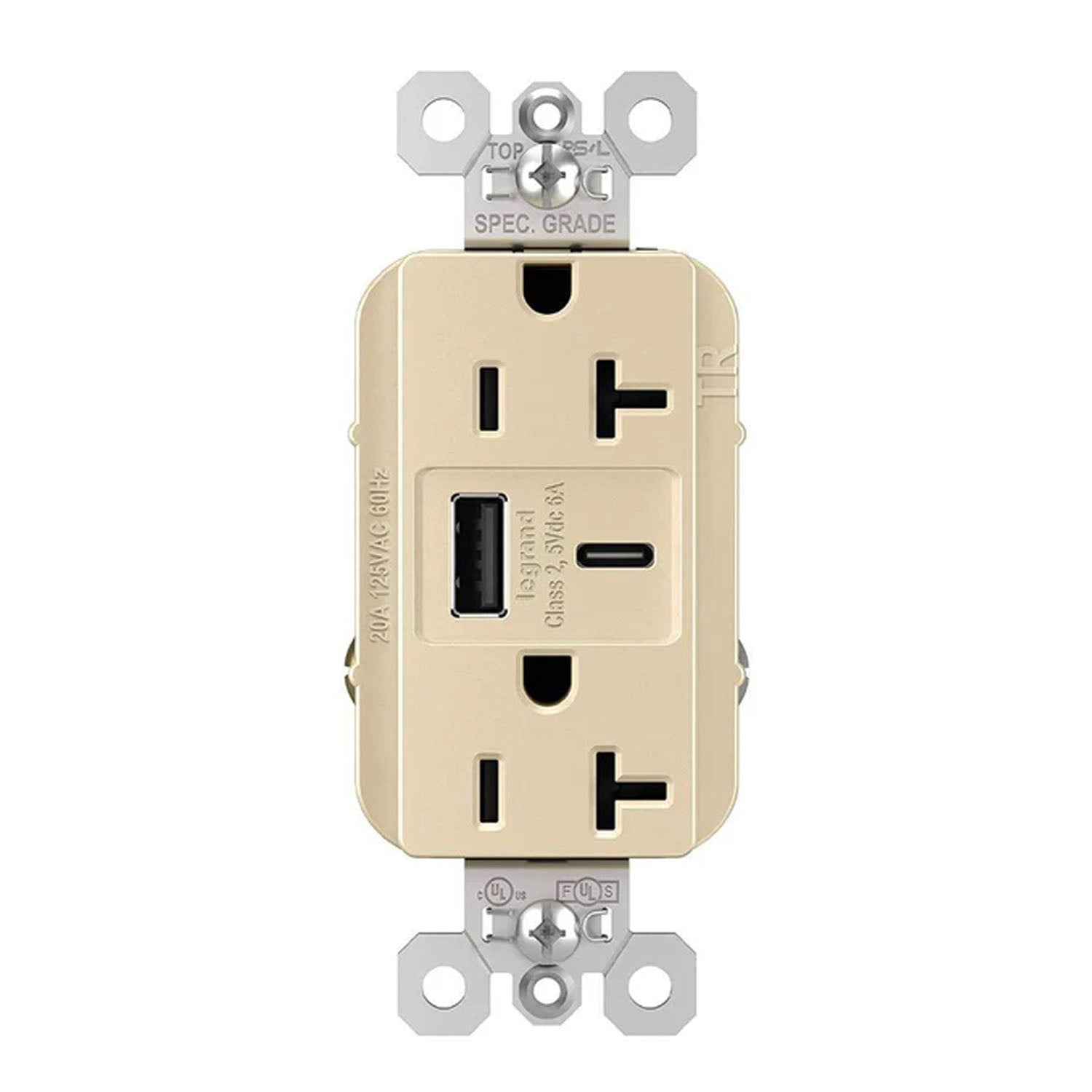

Pass & Seymour Duplex Receptacle — Ivory & USB Charging

The Pass & Seymour TR20USBAC6I is an ivory 20A Tamper-Resistant Duplex Receptacle with integrated USB A/C fast charging ports. This outlet supports 20A at 125V and features a NEMA 5-20R configuration, making it suitable for both residential and commercial applications. The tamper-resistant design ensures safety by preventing the insertion of foreign objects.

Key Features

• Voltage: Operates at 125V for standard electrical systems.
• Amperage: Rated for 20A to handle high-power devices.
• NEMA Configuration: NEMA 5-20R for compatibility with a wide range of plugs.
• Tamper-Resistant: Yes, includes safety shutters to prevent accidental insertion.
• USB Ports: Two ports, Type A and C, for versatile charging options.
• USB Power Output: Delivers 30W total power for fast charging.
• Material: High-impact resistant nylon face for durability.
• Grade: Suitable for commercial and residential use.

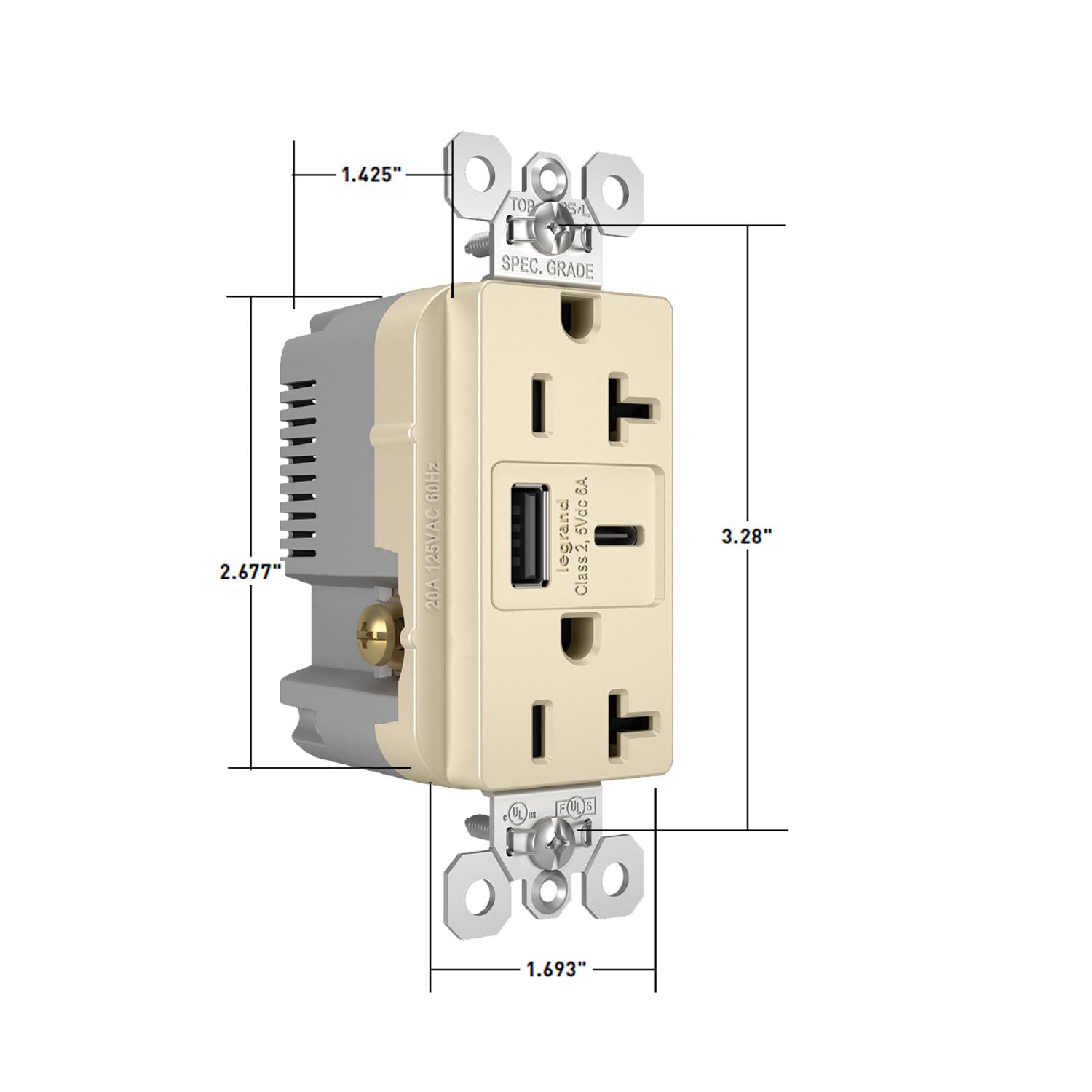

• Dimensions: 1.693 in. width, 1.425 in. depth, 2.677 in. height.
• Warranty: 1-year limited warranty for peace of mind.

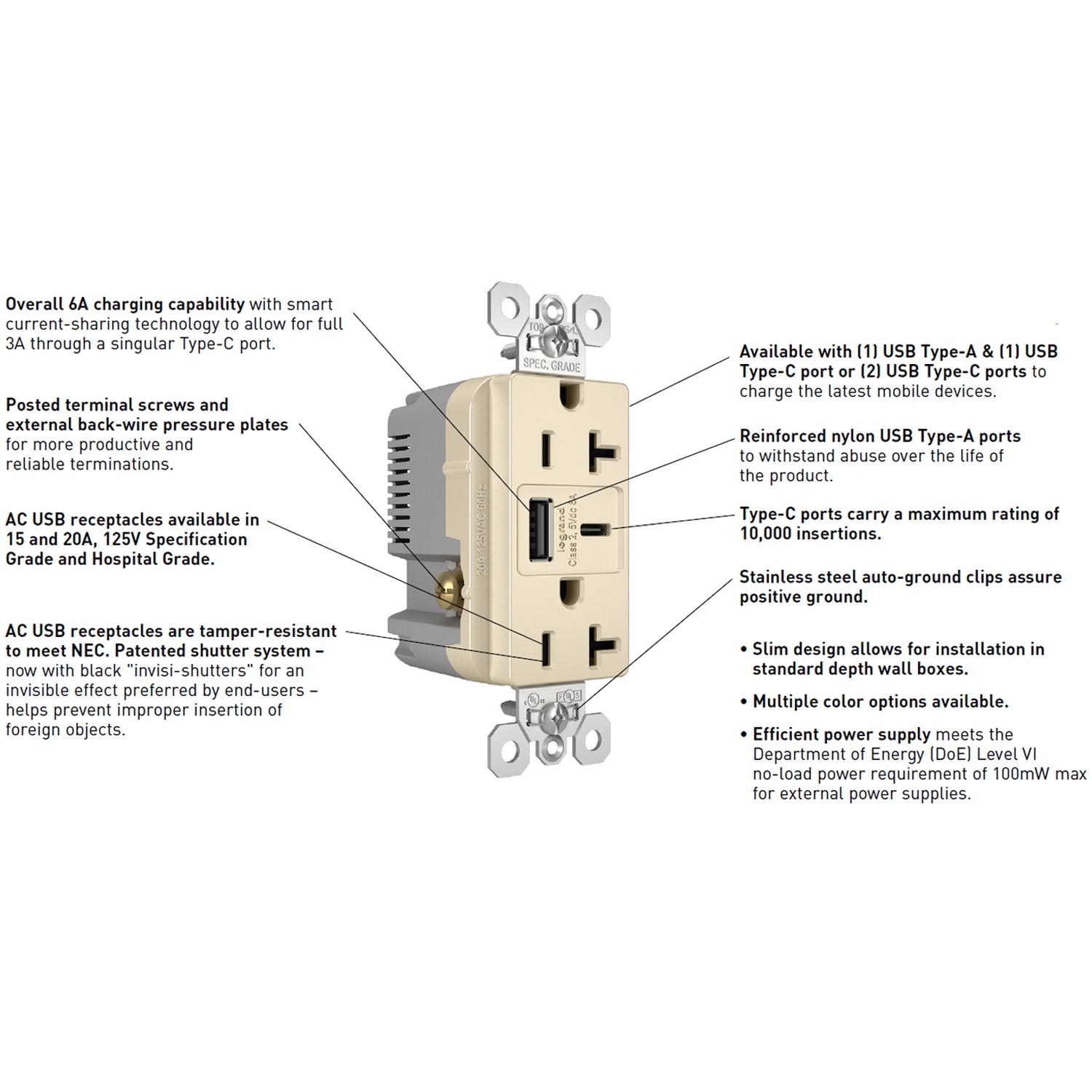

Construction & Interface

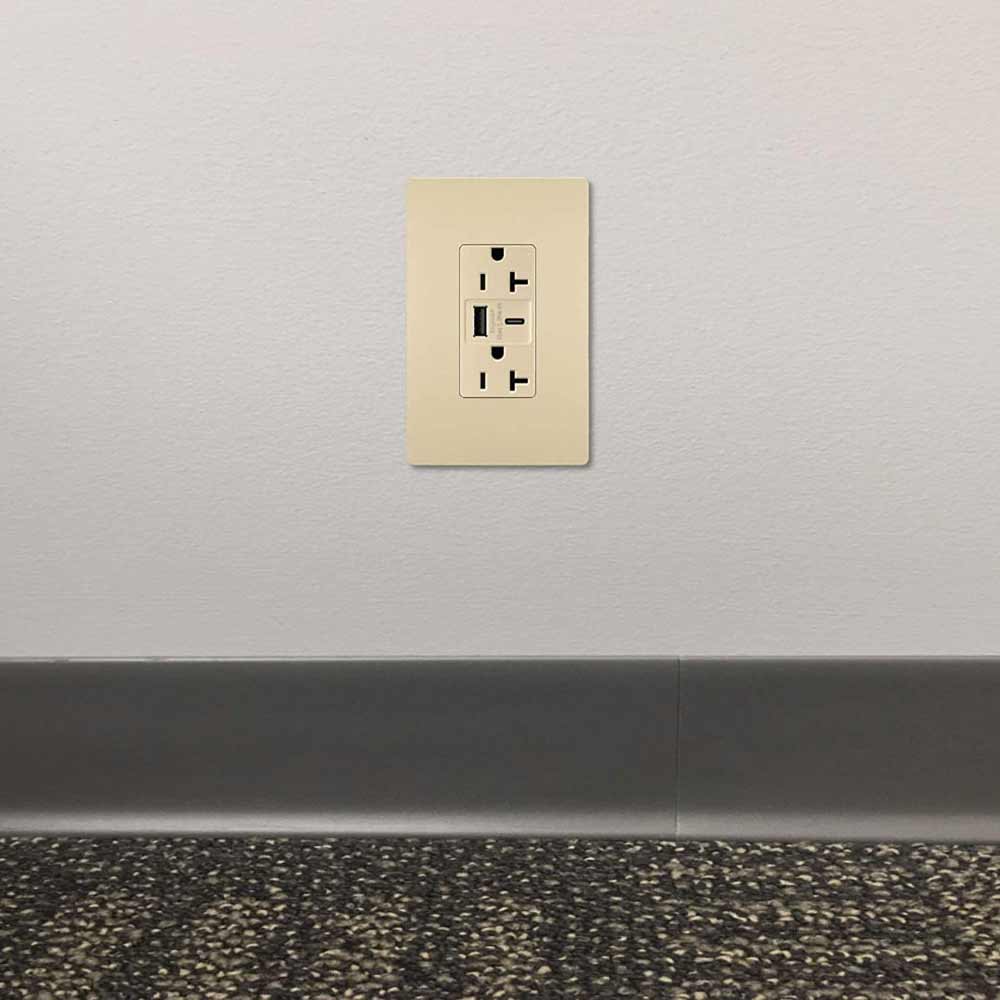

This duplex receptacle features a decorator style with a high-impact resistant nylon face for enhanced durability. The matte ivory finish complements modern interiors. Note that the wallplate is sold separately.

Power & USB Charging

The outlet includes two USB ports, Type A and C, providing a total of 30W power output for fast charging of multiple devices. The tamper-resistant design ensures safety by preventing accidental insertion of foreign objects.

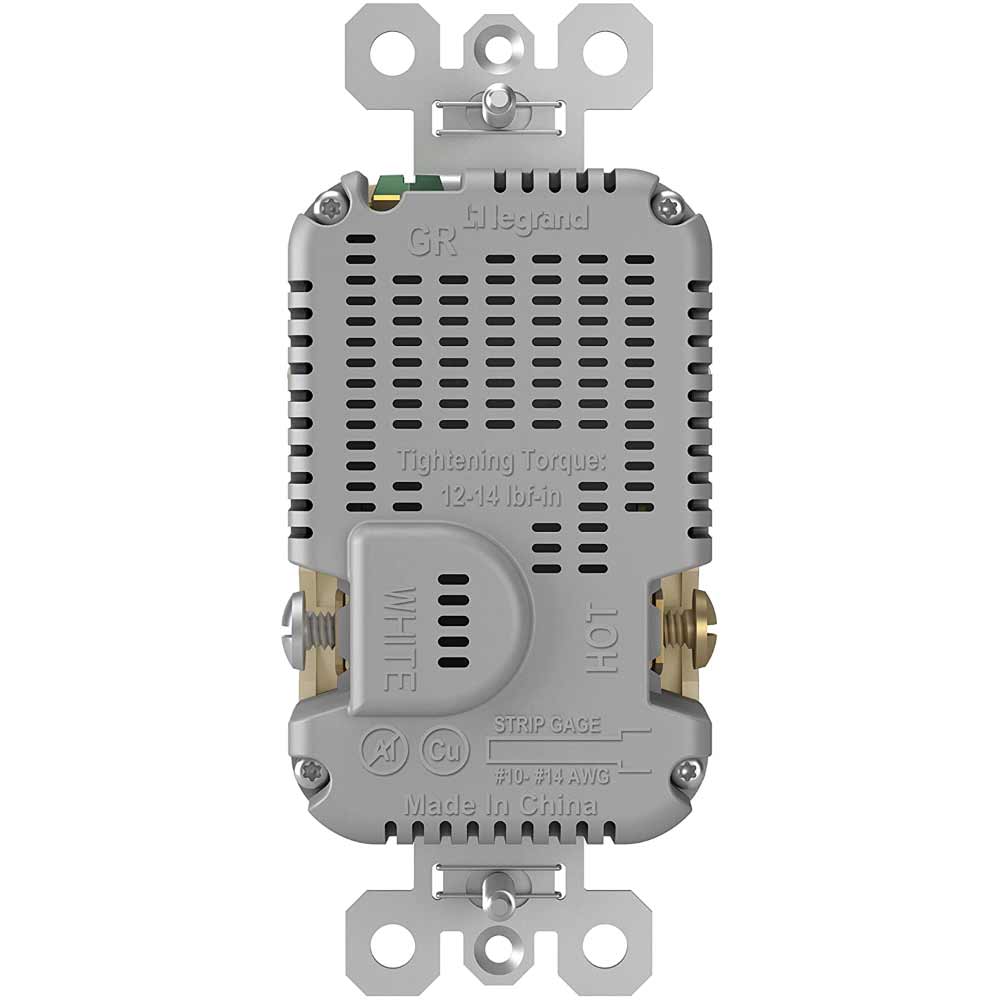

Wiring & Installation

Designed for easy installation, this receptacle supports back and side wiring. It accepts wire gauges from #14 to #10 AWG and includes a grounding screw for secure connections.
