Pass & Seymour Duplex Outlet — Graphite & USB Charging

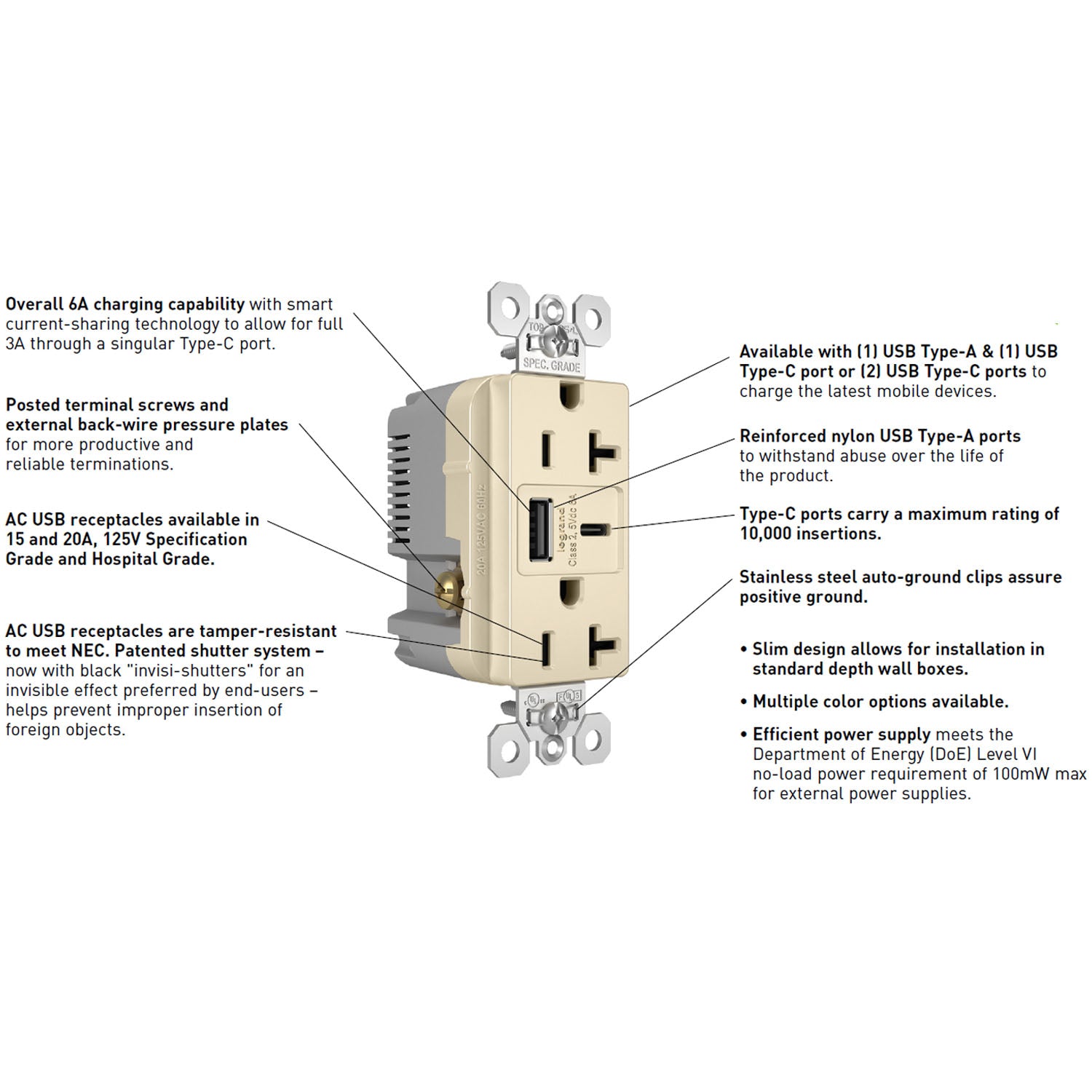

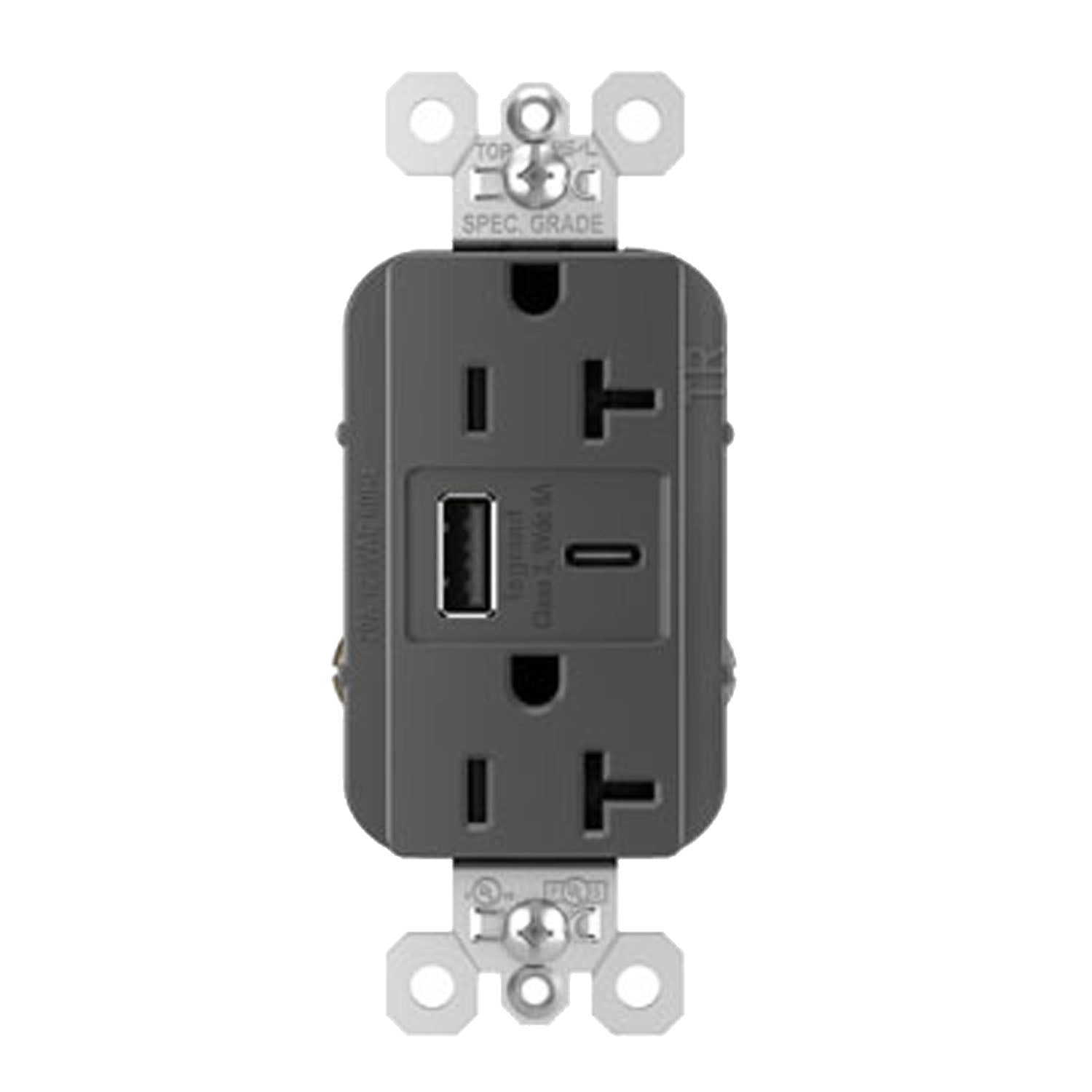

The Pass & Seymour TR20USBAC6G is a 20A Tamper-Resistant Duplex Outlet featuring dual USB A/C ports for fast charging. This graphite-finished outlet is designed for 125V applications and conforms to the NEMA 5-20R configuration, ensuring compatibility with standard 20A plugs. The tamper-resistant design enhances safety by preventing accidental insertion of foreign objects.

Key Features

• Voltage: Supports 125V electrical systems for residential and commercial use.
• Amperage: 20A rating for handling high-power devices.
• NEMA Configuration: NEMA 5-20R ensures compatibility with 20A plugs.
• Tamper-Resistant: Built-in safety shutters prevent accidental contact with live parts.
• USB Ports: Includes two USB A/C ports with a total output of 6A for fast charging.
• USB Power Output: Delivers up to 30W of power for efficient device charging.

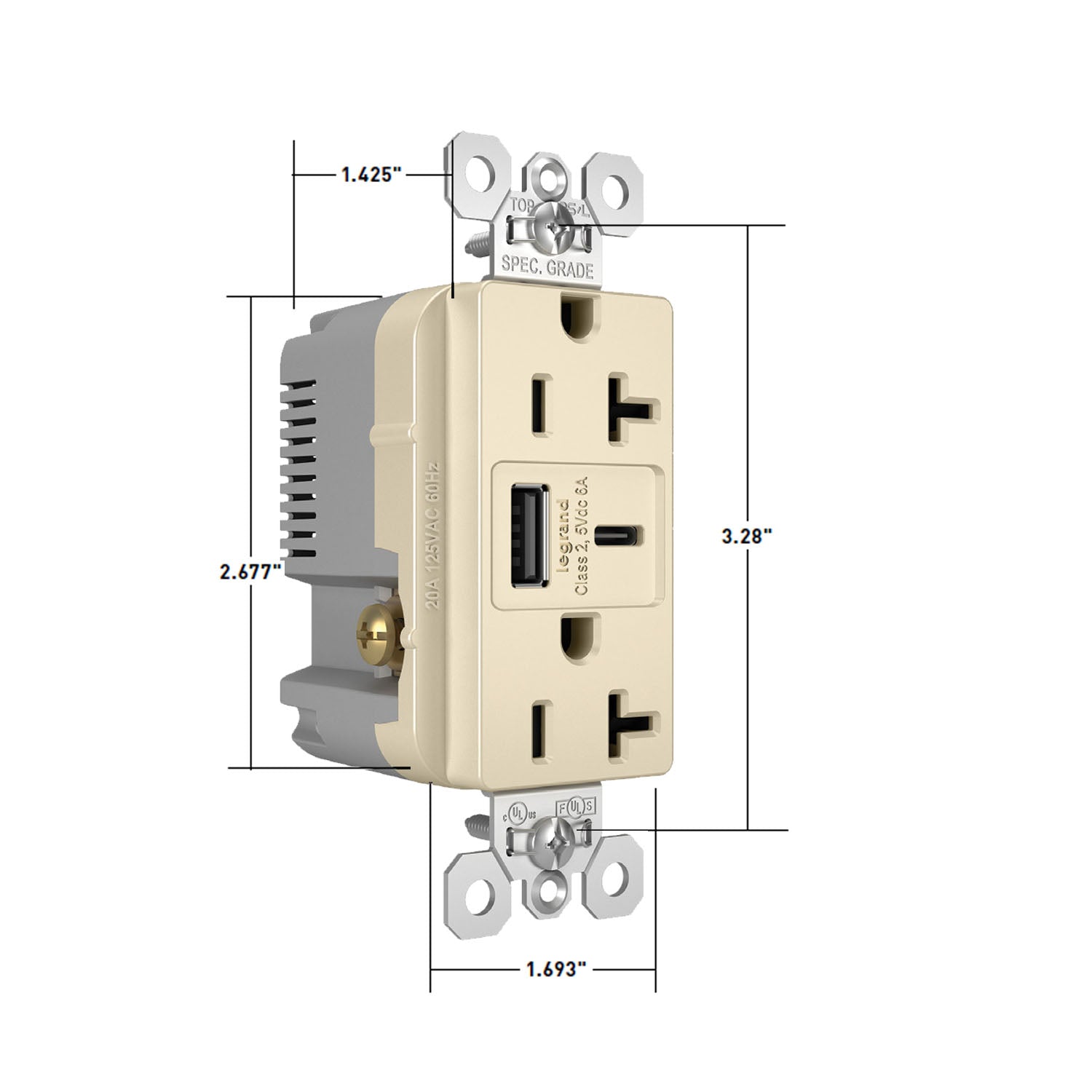

• Dimensions: Measures 1.693 in. width, 1.425 in. depth, and 2.677 in. height.
• Finish: Graphite finish complements modern interiors.
• Warranty: Backed by a 1-year warranty for peace of mind.
• Country of Origin: Manufactured in China.

Construction & Interface

This duplex outlet features a decorator-style interface with a graphite finish, enhancing both functionality and aesthetics. The outlet is constructed from durable materials to withstand daily use. Please note that the wallplate is sold separately.

Power & USB Charging

Equipped with dual USB A/C ports, this outlet provides a total of 6A charging capacity, delivering up to 30W of power. The tamper-resistant design ensures safety by preventing accidental insertion of foreign objects.

Wiring & Installation

The TR20USBAC6G supports back and side wiring methods, accommodating wire gauges from #14 to #10 AWG. It includes a grounding screw for secure installation and a robust mounting strap for stability.
