Wattstopper Astronomic Timer Switch — White & 24-Hour Programmable

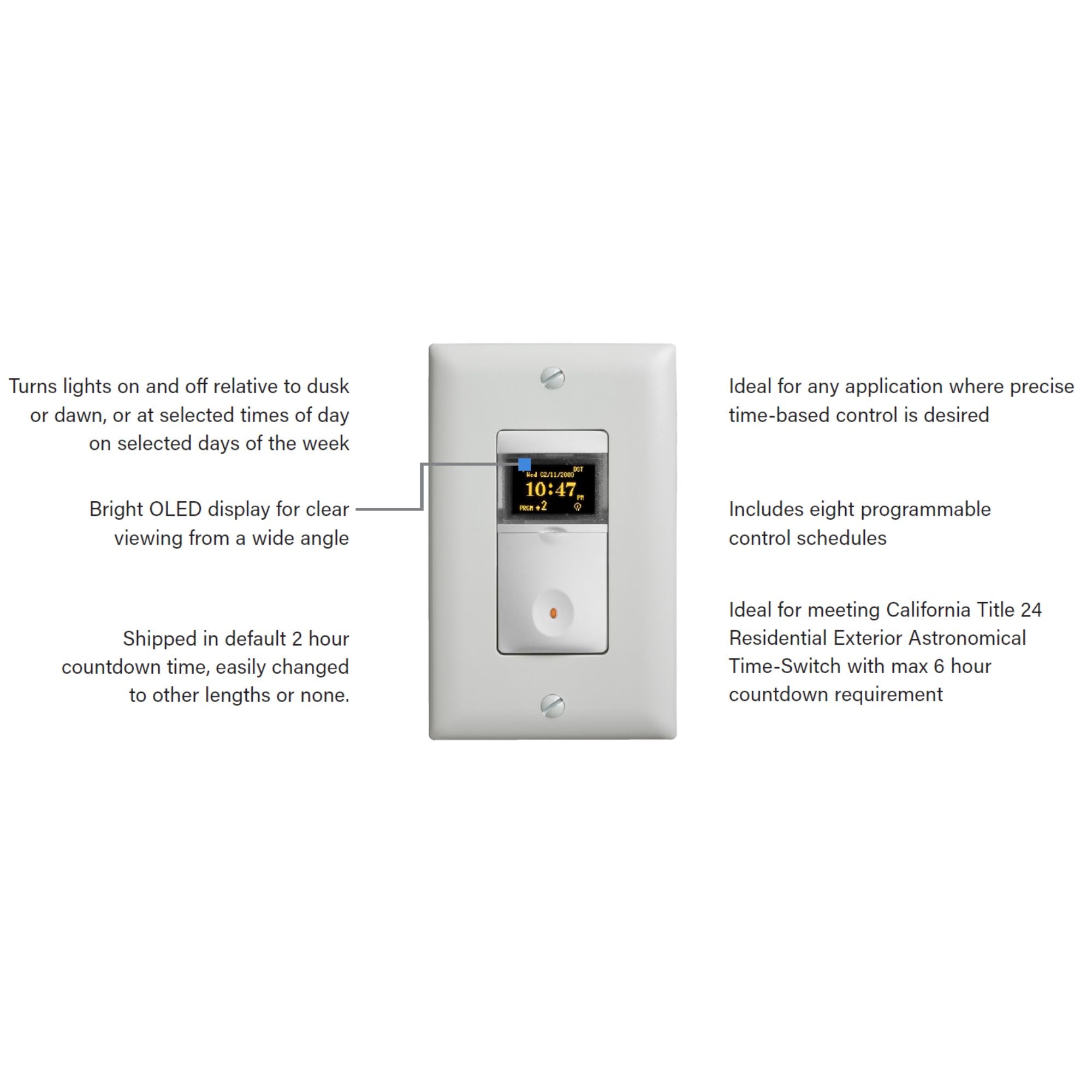

The Wattstopper RT200W is a white astronomic timer switch designed for precise time-based control of lighting or other loads. This single-pole switch supports up to 1200W and requires a neutral wire for operation. It features a 24-hour programmable timing range, making it ideal for energy savings and security applications.

Key Features

• Voltage Rating: Operates at 120-277V for versatile application.
• Load Capacity: Handles up to 1200W, suitable for various lighting systems.
• Pole Configuration: Single-pole design for straightforward installation.
• Timer Type: Astronomic timer with dusk/dawn settings for precise control.
• Neutral Wire: Required for proper operation.

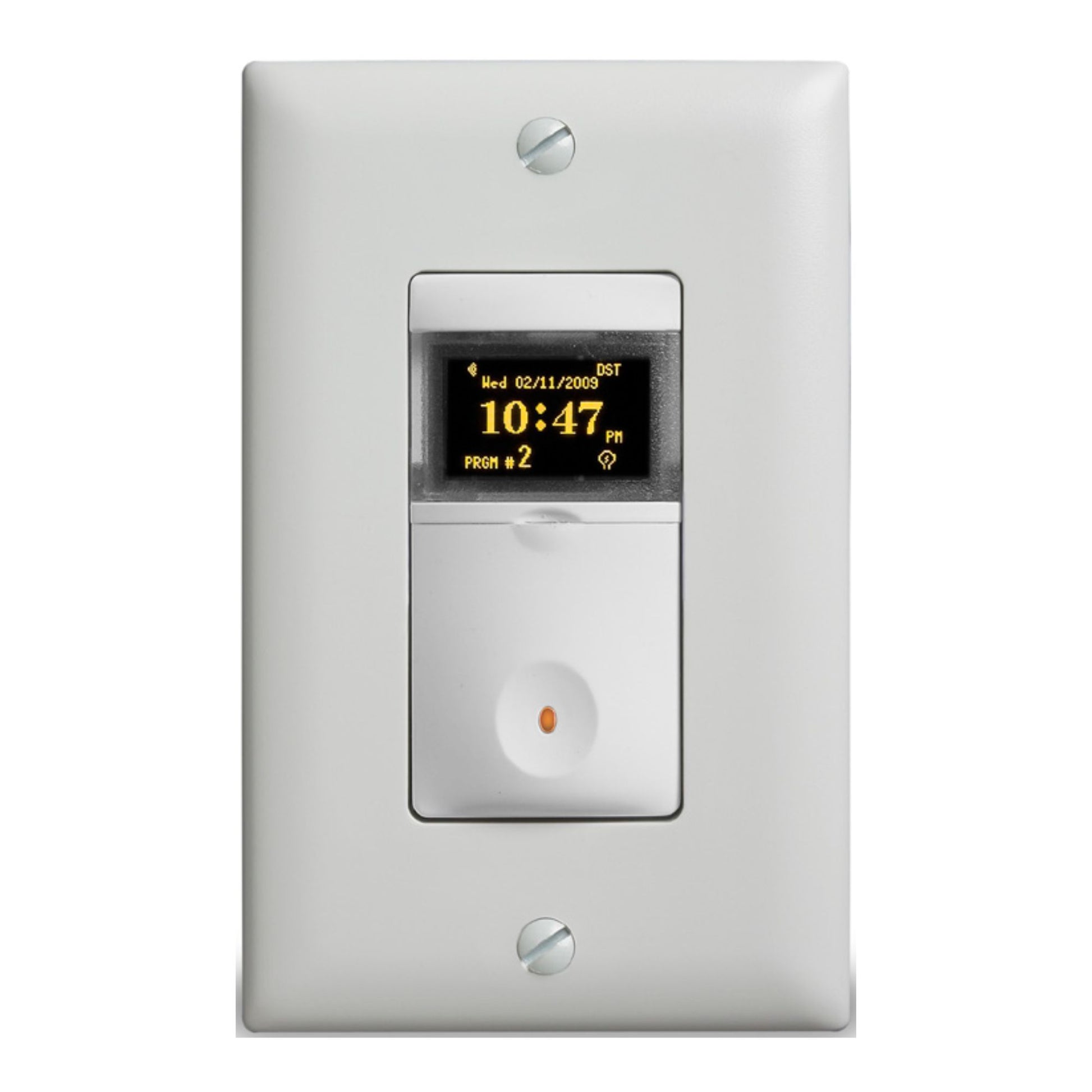

• Display: Features a bright OLED display for easy readability.
• Programmable Schedules: Offers eight programmable control schedules.
• Countdown Timer: Default 2-hour countdown, adjustable to other lengths.
• Compliance: Meets California Title 24 requirements for residential exterior lighting.
• Dimensions: Measures 1.8 in width, 4.1 in height, and 1.8 in depth.
• Certifications: RoHS Compliant and DesignLights Consortium Qualified.

Construction & Interface

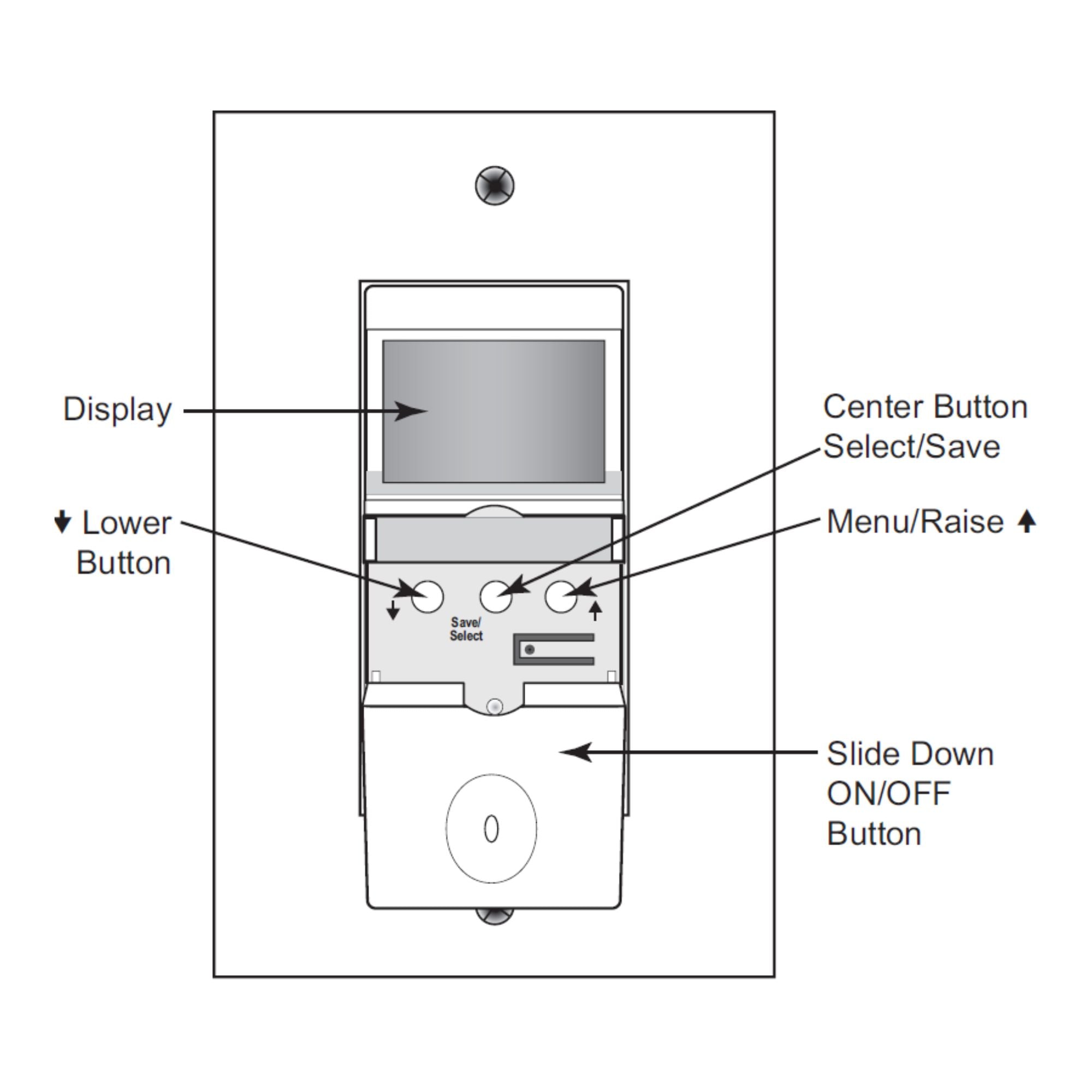

The RT200W features a push switch style with a single button interface. It is designed for indoor use with a white finish. The bright OLED display ensures clear visibility from various angles. Note that the wallplate is sold separately.

Sensor, Smart & Timer Capabilities

This astronomic timer switch allows for precise control of lighting based on dusk or dawn settings. It includes eight programmable schedules and a default 2-hour countdown timer, adjustable to meet specific needs.

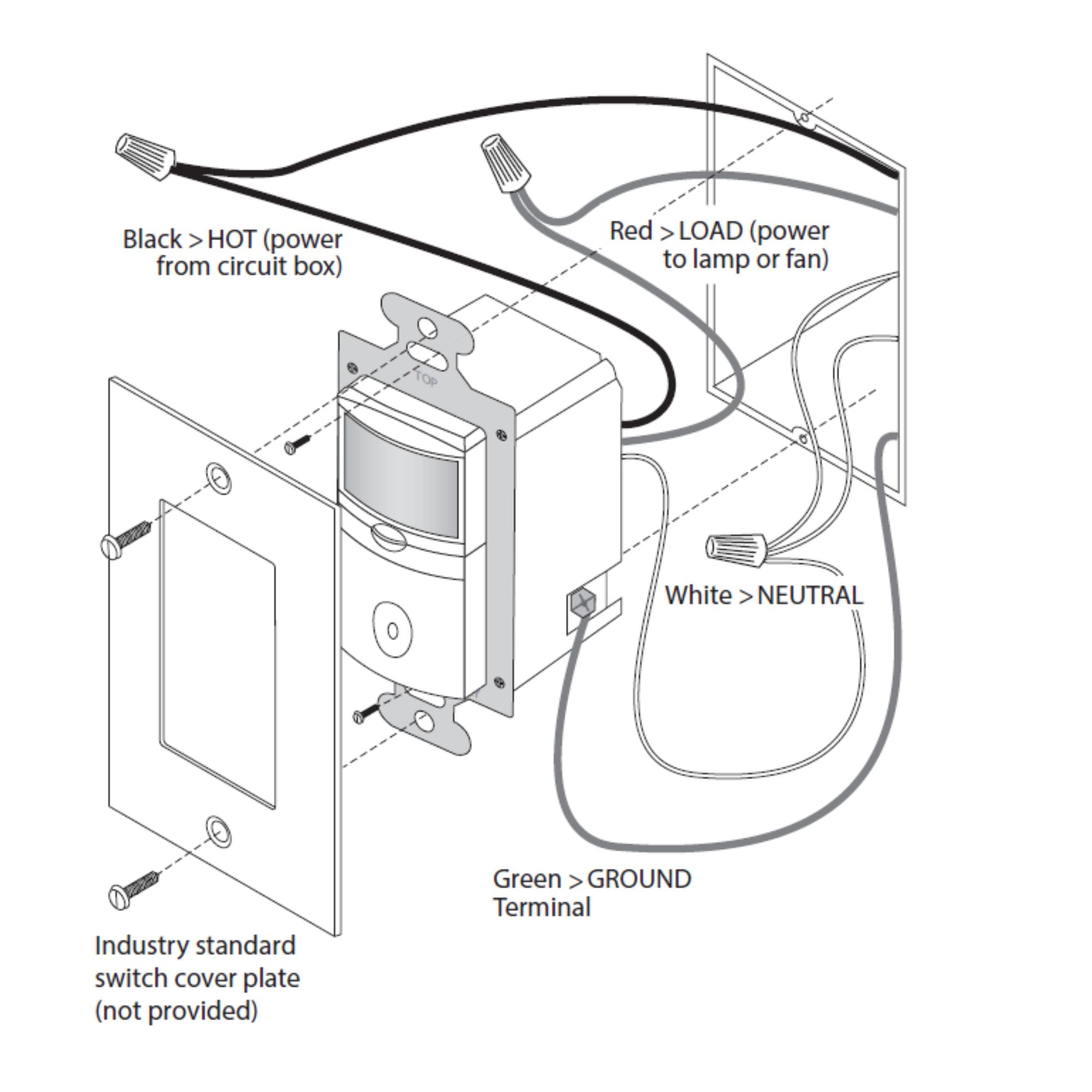

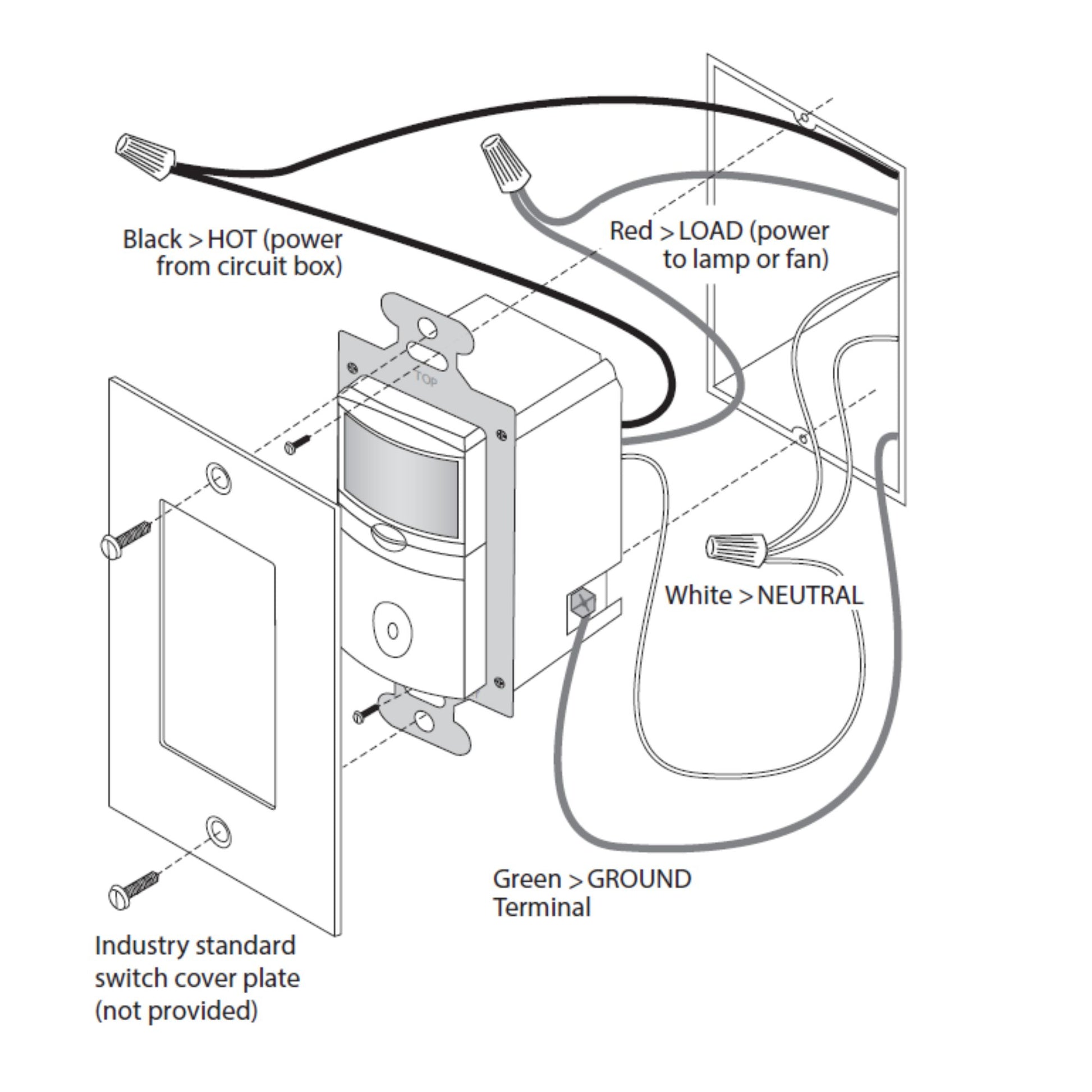

Wiring & Installation

The RT200W requires a neutral wire for installation and is designed for single-pole configurations. It connects via wired terminals, ensuring a secure and reliable setup.
