Legrand Radiant Dimmer LV — Graphite & Precise Dimming

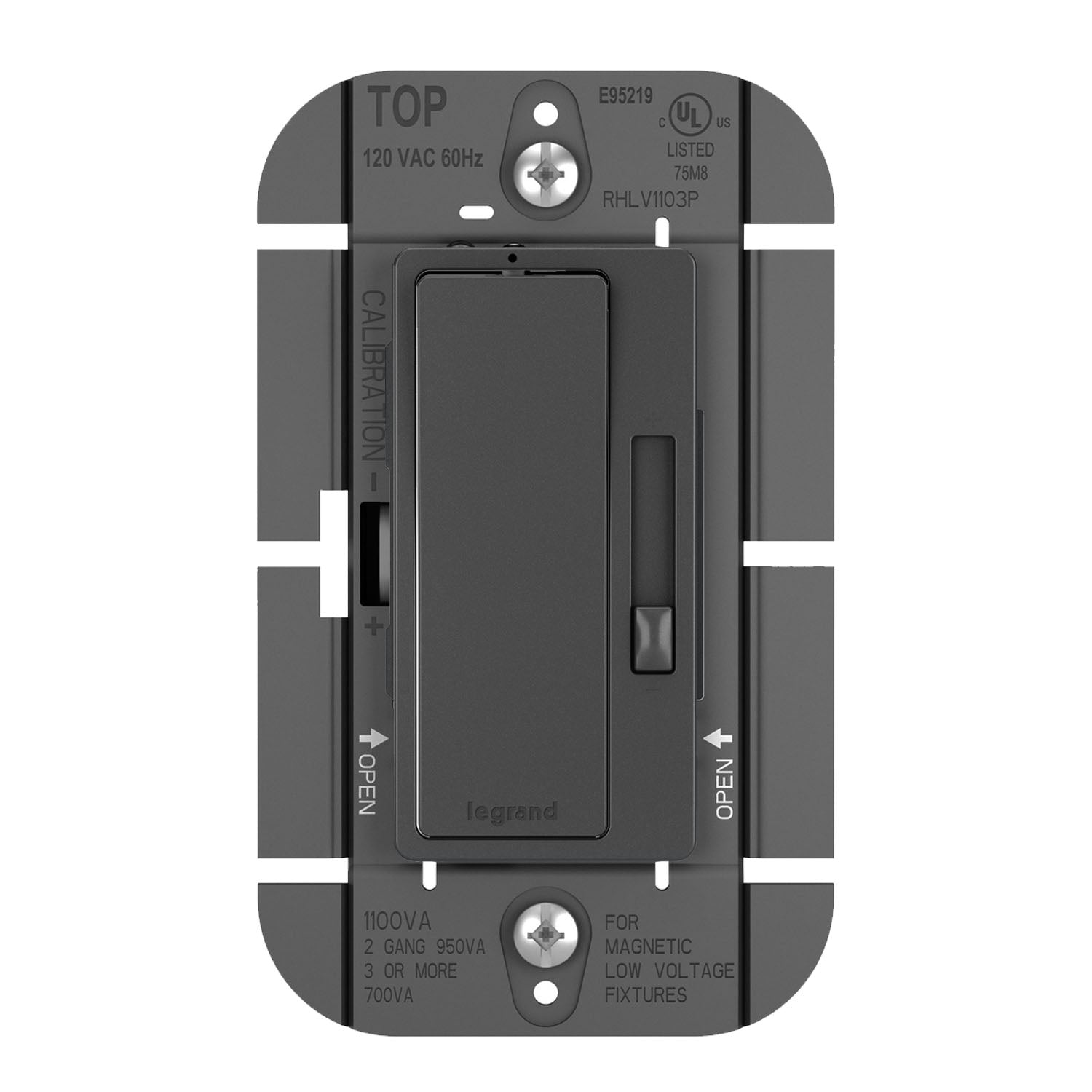

The Legrand RHLV1103PGPCCV6 Radiant Dimmer LV in Graphite finish is a versatile dimmer switch designed for residential use. This dimmer supports 1100W magnetic low-voltage loads and operates at 120V. It is compatible with both single-pole and 3-way configurations, offering flexibility in installation.

Key Features

• Voltage: Operates at 120V, suitable for residential applications.
• Load Compatibility: Supports up to 1100W magnetic low-voltage loads.
• Pole Configuration: Usable in single-pole and 3-way applications for versatile control.
• Switch Style: Features a low-profile paddle switch with a separate slider for precise dimming.
• Construction: Made from high-impact resistant thermoplastic for durability.
• Locator Light: Includes a locator light that illuminates when the switch is off.
• Constant Memory: Retains light settings after power outages.
• Finish Options: Available in Ivory, Light Almond, and White to match any decor.
• Certifications: CSA Listed, cULus, UL Listed for safety and performance.
• Warranty: Covered by a limited lifetime warranty for peace of mind.

Construction & Interface

This dimmer features a low-profile paddle switch with an ergonomic slider for smooth operation. It is constructed from high-impact resistant thermoplastic. The wallplate is sold separately.

Dimming & Load Performance

The dimmer provides precise control over magnetic low-voltage lighting, enhancing energy efficiency and bulb life. It includes a constant memory feature to restore previous settings after power interruptions.

Wiring & Installation

The Legrand RHLV1103PGPCCV6 does not require a neutral wire, simplifying installation. It supports single-pole and 3-way configurations and uses screw terminals for secure connections.
