Legrand RH703PTUW - radiant Tru-Universal Dimmer, 450W LED, Paddle with Slider, Single-Pole/3-Way, White
Legrand RH703PTUW - radiant Tru-Universal Dimmer, 450W LED, Paddle with Slider, Single-Pole/3-Way, White
Available in stock (48)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Tru-Universal Compatibility: Works with virtually any 120V dimmable bulb or fixture - LED, CFL, halogen, incandescent, ELV, MLV
- Auto-Calibration Technology: Self-calibrates to your fixture's lighting type for flicker-free performance and optimal dimming range
- Dual Control Design: Paddle switch with separate slider for precise light level adjustment
- Locator Light: Soft glow when switch is off makes it easy to find in the dark
- No Derating Required: Full wattage capacity maintained in multi-gang installations
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

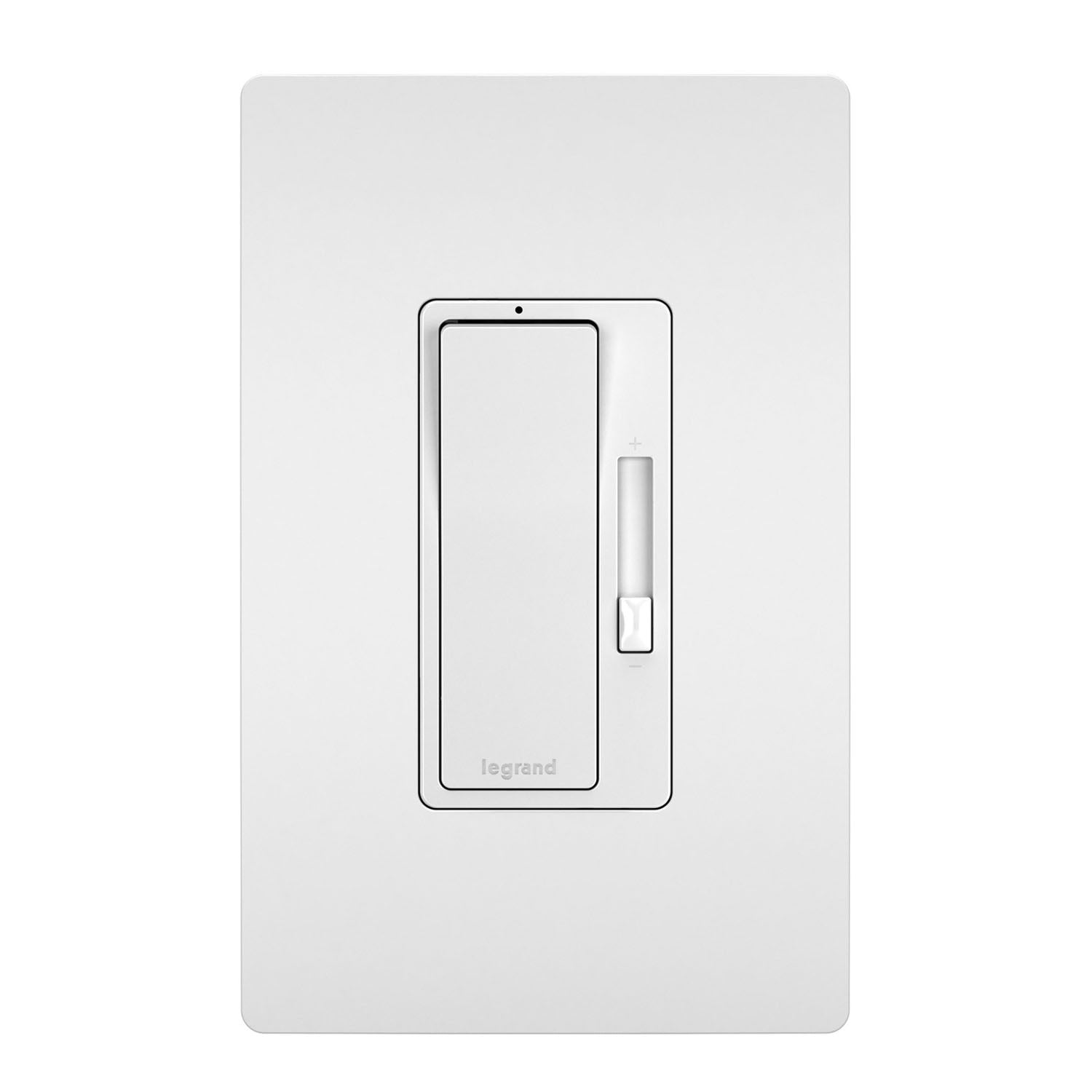

Legrand RH703PTUW radiant® Tru-Universal Dimmer Switch
The RH703PTUW is a Legrand radiant® Tru-Universal dimmer switch in White designed for worry-free compatibility with virtually any dimmable bulb type. Simplify your lighting upgrades with up to 450W LED, 700W ELV, and 500VA MLV capacity. The intelligent paddle-and-slider design features auto-calibration technology that eliminates flicker and optimizes performance—ideal for homes with mixed bulb types, retrofit projects, and modern LED installations.
Legrand RH703PTUW Features
- Tru-Universal Compatibility: Works with virtually any 120V dimmable bulb or fixture on typical residential (and light commercial) wiring. Usable in both single-pole and 3-way applications

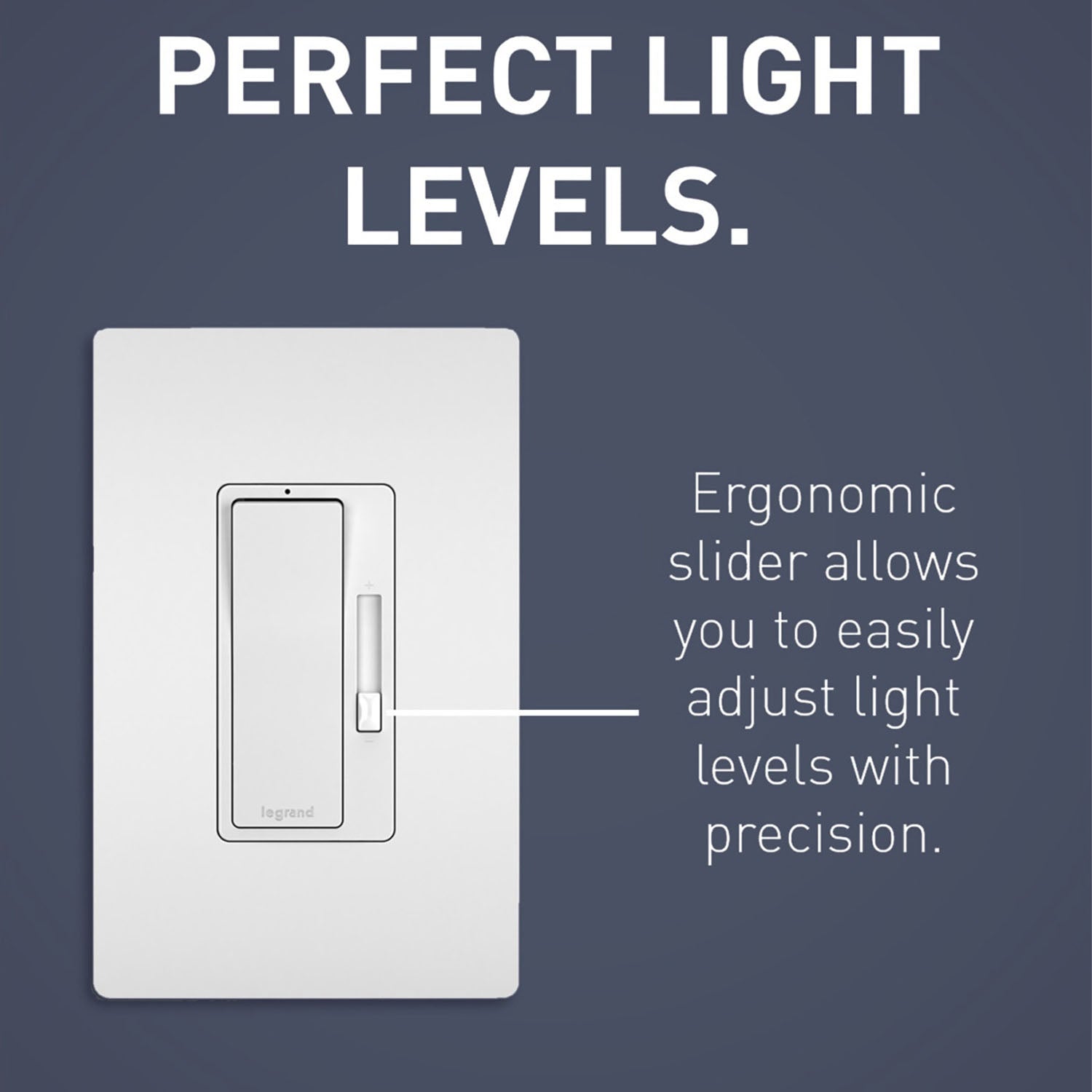

- Low-Profile Paddle Switch: Offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision
- Constant Memory: Returns lights to their previous level when turning back on after a power outage
- Durable Construction: Features durable, high-impact resistant thermoplastic construction
- Auto-Calibration: Self-calibrates when you select your fixture's lighting type, automatically setting the appropriate minimum voltage to eliminate flicker and poor performance
- Locator Light: Illuminates when switch is off, emitting a soft glow to help you find it in the dark
- No Derating Required: In multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications
- Color Change Kits Available: More color options available to fit any style, including finishes to match current hardware and lighting trends

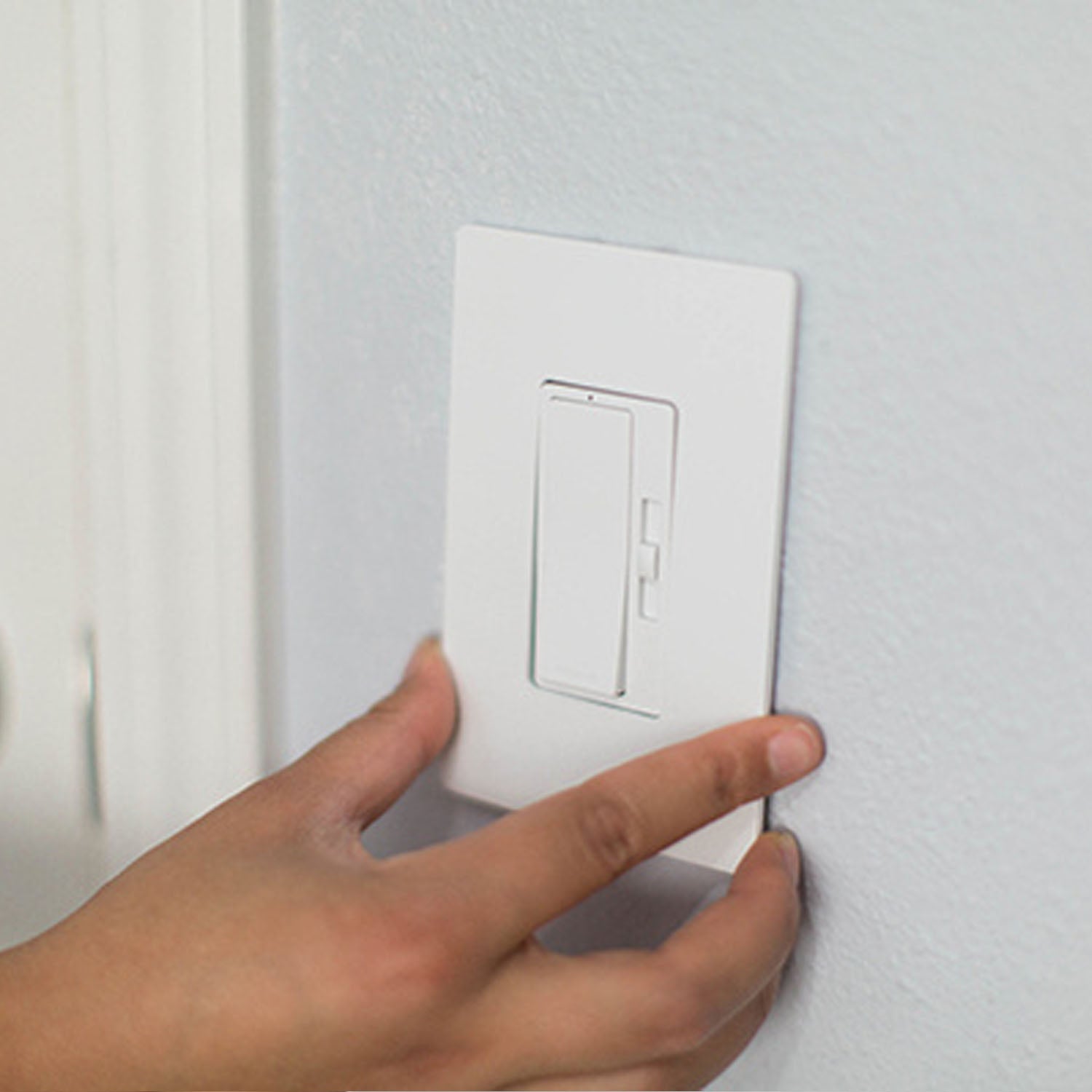

- Screwless Wall Plate Compatibility: Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection
Legrand RH703PTUW Specifications
- Model Number: RH703PTUW
- UPC: 785007053296
- Product Line: Pass & Seymour radiant®
- Color/Finish: White, Matte
- Switch Type: Paddle, Slider

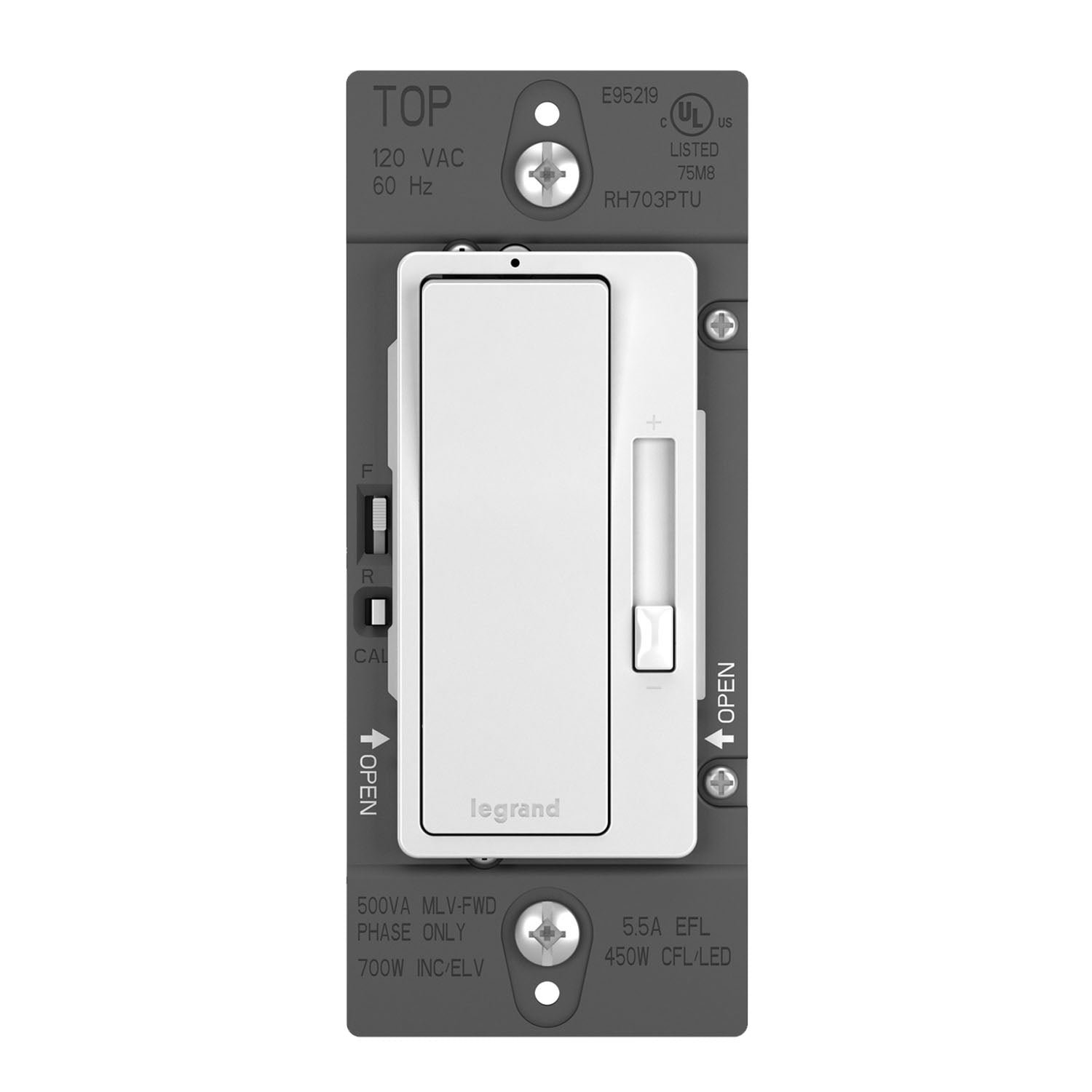

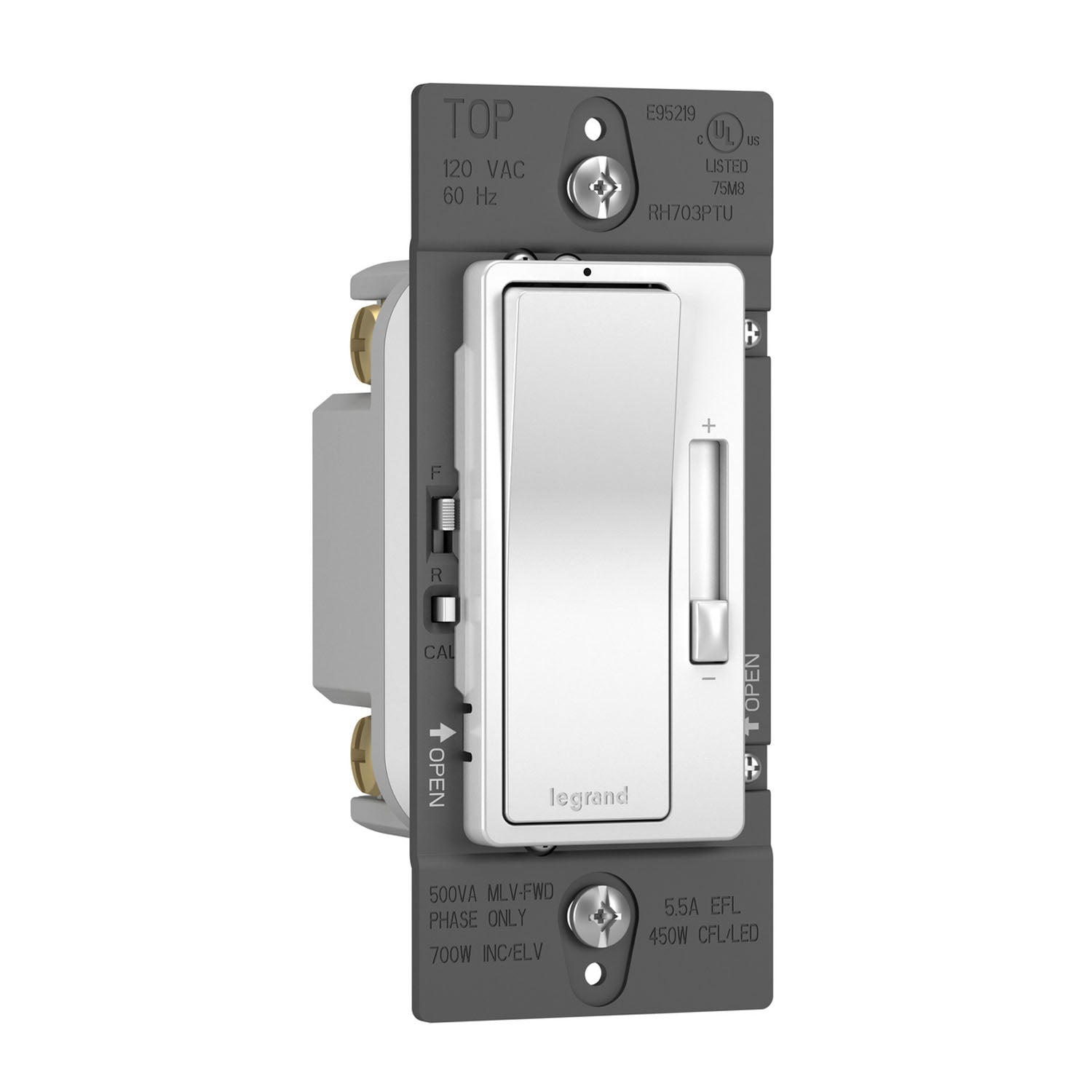

- Load Rating: 120V 4.5A 450W (CFL), 120V 4.5A 450W (LED), 120V 5.5A (EFL), 120V 500VA (MLV), 120V 700W (ELV), 120V 700W (Halogen), 120V 700W (Incandescent)
- Dimming Compatibility: Forward or Reverse Selectable Phase
- Frequency Rating: 60 Hz
- Number of Poles: Single Pole 3-Way
- Wire Size: #14 - #10 AWG
- Requires Neutral Wire: Yes
- Indoor/Outdoor: Indoor
- Mounting Type: Wall Box
- Wire Connection Type: Screw Terminals
- Voltage: 120 VAC
- Load Type: CFL, Fluorescent, Halogen, Incandescent, LED
- Environmental Conditions: Humidity: Less than 95% non condensing
- Maximum Humidity: 95% (relative humidity, non-condensing)
- Material: Steel, Thermoplastic
- Country of Origin: China
- Application Sector: Commercial, Hospitality, Light Commercial, Multi-Dwelling Unit, Residential
- Number of Switches: 1
- Standard: CSA Listed, cULus, UL Listed
- Warranty Type: Limited Lifetime Warranty
- Type: Dimmer
- Dimensions: 1.75 in (W) × 1.25 in (D) × 4.25 in (H)
- cULus Listed: Yes
- Features: Auto-Calibration (Trim), High-End Trim (Dim Range), Locator Light, Low-End Trim (Dim Range)
Legrand Dimmer Switch Applications
- Residential Lighting Control: Perfect for living rooms, bedrooms, dining rooms, and hallways where precise dimming enhances ambiance
- Kitchen & Bath: Ideal for task lighting control in kitchens and bathrooms with any dimmable fixture type
- Light Commercial Spaces: Suitable for hospitality, multi-dwelling units, and commercial applications
- Universal Retrofit Projects: Eliminate uncertainty when replacing existing dimmers - works with virtually any dimmable bulb or fixture
- Mixed Lighting Installations: Perfect when you have different bulb types throughout your home and want consistent dimmer operation
Installation Guidance

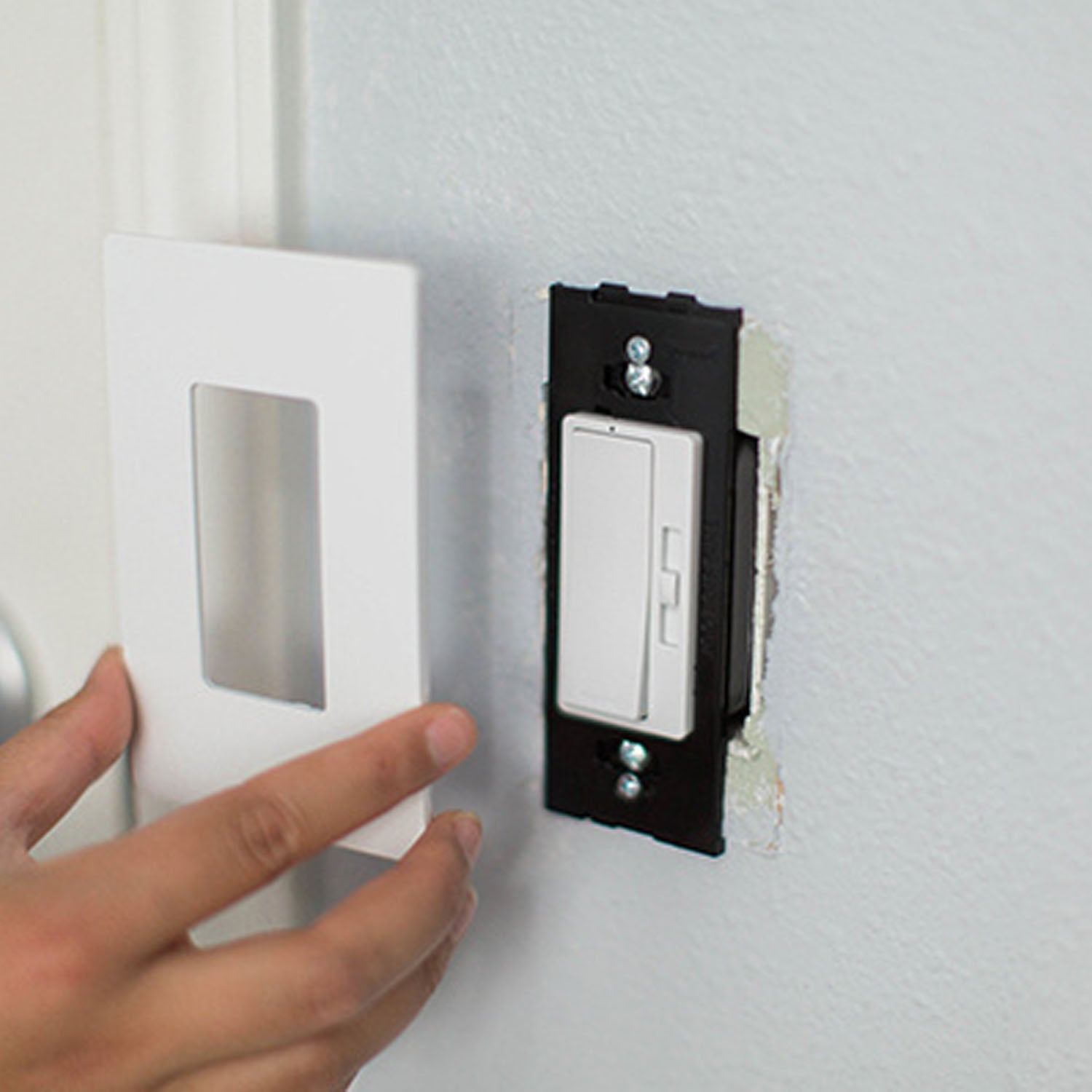

The RH703PTUW installs in standard wall boxes and works with both single-pole and 3-way applications. Wire size compatibility: #14 - #10 AWG. Screw terminal connections. Requires neutral wire. The auto-calibration feature allows you to select your fixture's lighting type, automatically setting the appropriate minimum voltage to eliminate flicker and optimize performance. For multi-gang installations, no derating is required.
Why Choose Legrand radiant®?
Legrand is a global specialist in electrical and digital building infrastructures, trusted by professionals and homeowners worldwide. The radiant® Collection delivers sophisticated design with clean lines and smooth control, elevating any space with premium quality and timeless style. The Tru-Universal technology eliminates the guesswork of dimmer compatibility, ensuring flicker-free performance with virtually any dimmable bulb. Backed by a Limited Lifetime Warranty and cULus listing for safety and reliability.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
Can I use any dimmer switch with LED bulbs?
Can I use any dimmer switch with LED bulbs?
No. You must use a dedicated LED dimmer switch. Older dimmers designed for incandescent bulbs have high minimum load requirements that LEDs cannot meet, often resulting in flickering or "ghosting."
What is a TRIAC dimmer?
What is a TRIAC dimmer?
A Triac dimmer (or forward-phase dimmer) is the standard residential control. It works by "chopping" the front part of the AC sine wave to reduce power. Most dimmer switches for LED lights are advanced versions of TRIAC technology.
Why do I need an MLV dimmer?
Why do I need an MLV dimmer?
You need an MLV dimmer if your lighting fixture uses a magnetic transformer. Using a standard LED dimmer on a magnetic load can cause the transformer to overheat and eventually fail.
What is the difference between a slide and touch dimmer?
What is the difference between a slide and touch dimmer?
A slide dimmer uses a physical moving part to set the light level. A touch dimmer, like the Lutron Sunnata, uses a digital interface with no moving parts, offering a sleeker look and often a "soft" fade-on/fade-off effect.
Do I need a neutral wire for a dimmer switch?
Do I need a neutral wire for a dimmer switch?
Many modern smart dimmer models require a neutral wire (white) to power their internal electronics. However, many standard mechanical dimmers do not. Always check the wiring in your wall box before purchasing.
