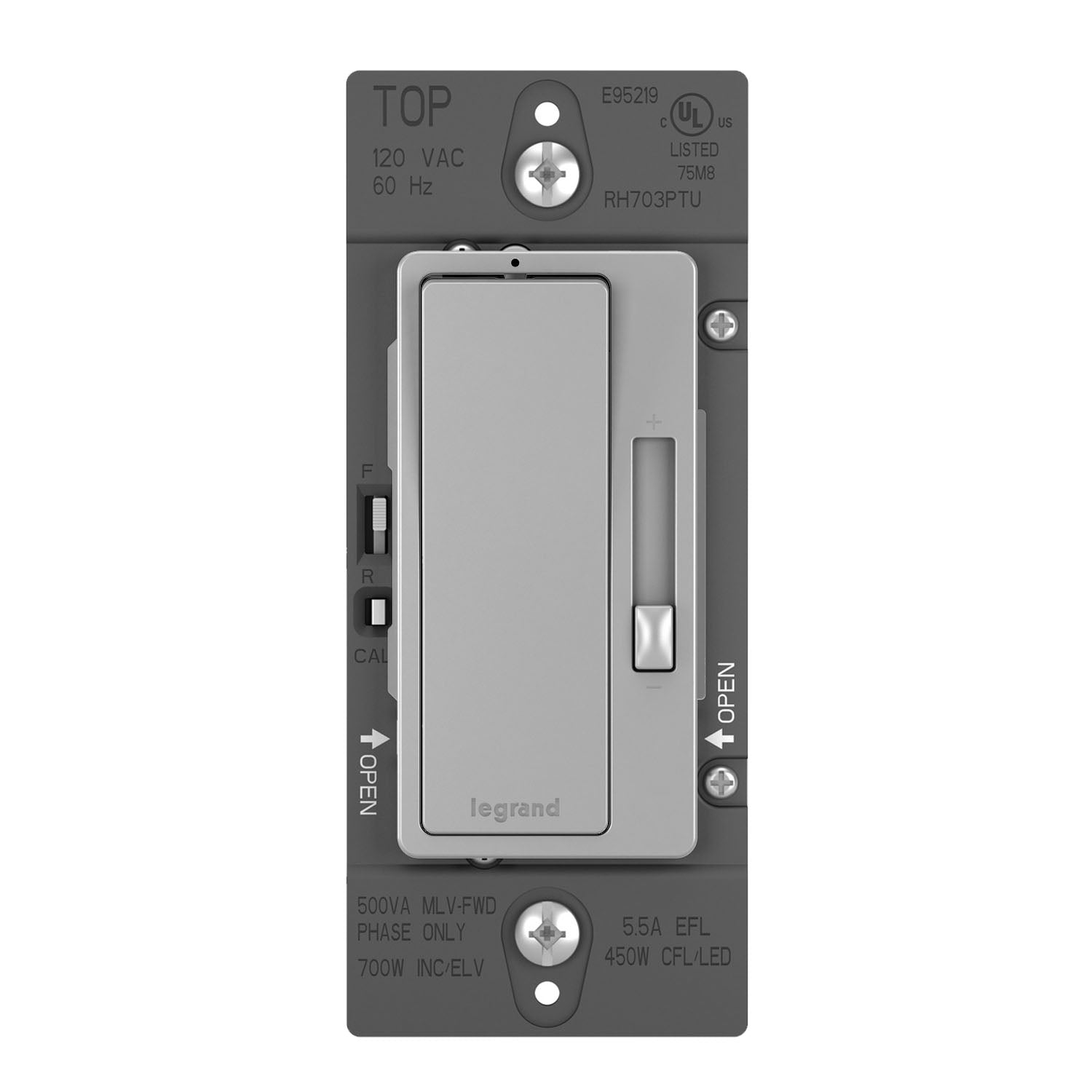

Legrand Radiant Tru-Universal Dimmer — Gray & Tru-Universal Dimming

The Legrand RH703PTUGRY is a versatile dimmer switch in gray, supports up to 700W and is compatible with a wide range of bulb types including CFL, Fluorescent, Halogen, HID, Incandescent, LED, Universal, and Xenon. It operates at 120V and can be used in both single-pole and 3-way configurations.

Key Features

• Voltage: Operates at 120VAC 60 Hz, suitable for residential and light commercial use.
• Load Compatibility: Supports CFL, Fluorescent, Halogen, HID, Incandescent, LED, Universal, and Xenon bulbs up to 700W.
• Switch Configuration: Usable in both single-pole and 3-way applications for versatile installation.
• Tru-Universal Dimming: Self-calibrates to eliminate flicker and poor performance with any 120V dimmable bulb.
• Construction: Made from durable, high-impact resistant thermoplastic for long-lasting use.
• Locator Light: Illuminates when the switch is off, providing a soft glow for easy location in the dark.
• Constant Memory: Returns lights to their previous level after a power outage.
• Multi-Gang Installation: No derating required, maintaining full capacity in multi-gang setups.
• Dimensions: Measures 1.75 in. width, 4.25 in. height, and 1.25 in. depth.
• Certifications: CSA Listed, cULus, UL Listed for safety and performance.

Construction & Interface

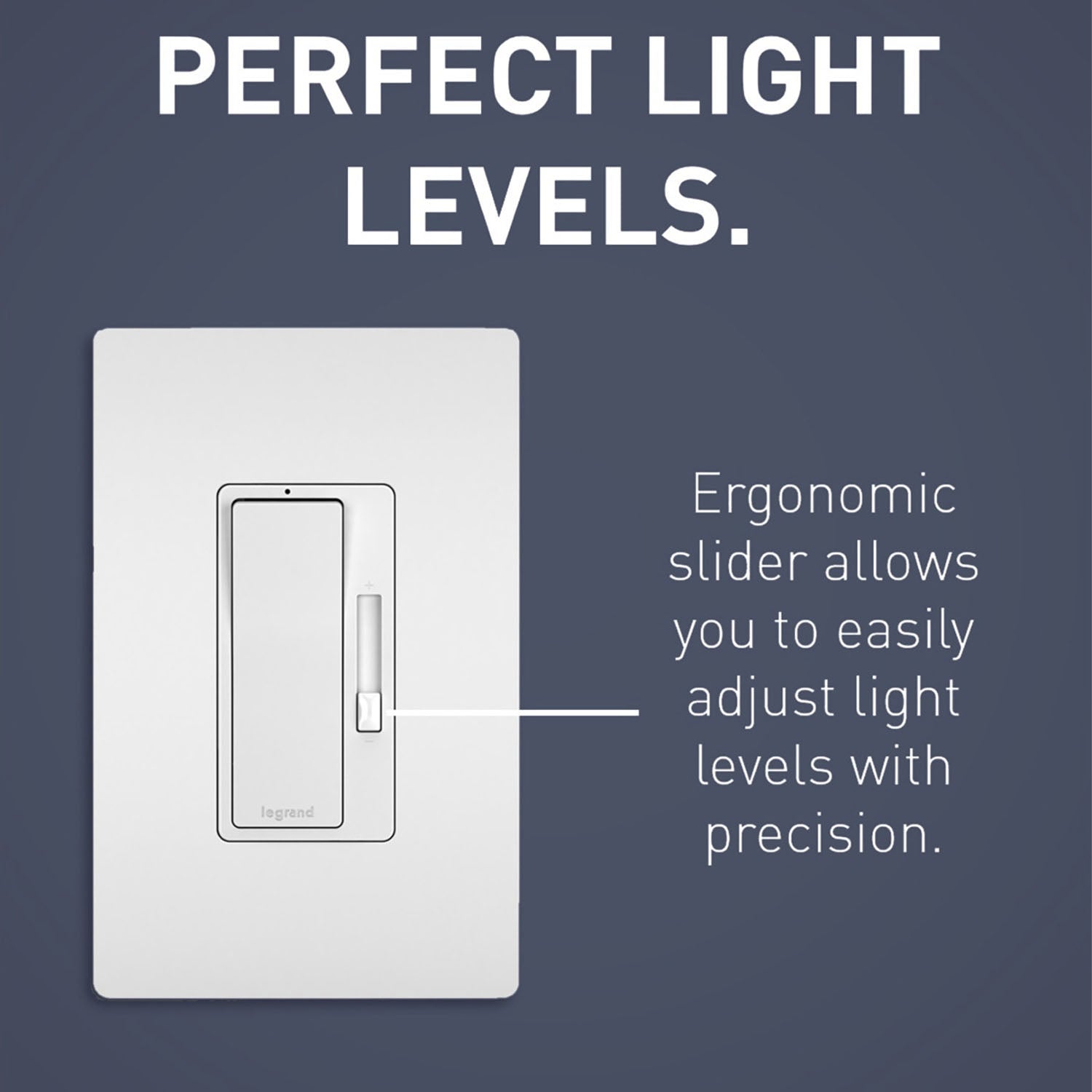

The dimmer features a low-profile paddle switch for smooth On/Off control and an ergonomic slider for precise light level adjustments. It is constructed from high-impact resistant thermoplastic and is designed for use with screwless wall plates from the radiant Collection, which are sold separately.

Dimming & Load Performance

The Tru-Universal dimming technology ensures compatibility with virtually any 120V dimmable bulb, automatically calibrating to the correct minimum voltage to prevent flicker. The dimmer's constant memory feature ensures lights return to their previous setting after a power outage.

Wiring & Installation

This dimmer does not require a neutral wire, simplifying installation. It supports both single-pole and 3-way configurations and connects via screw terminals for secure wiring.
