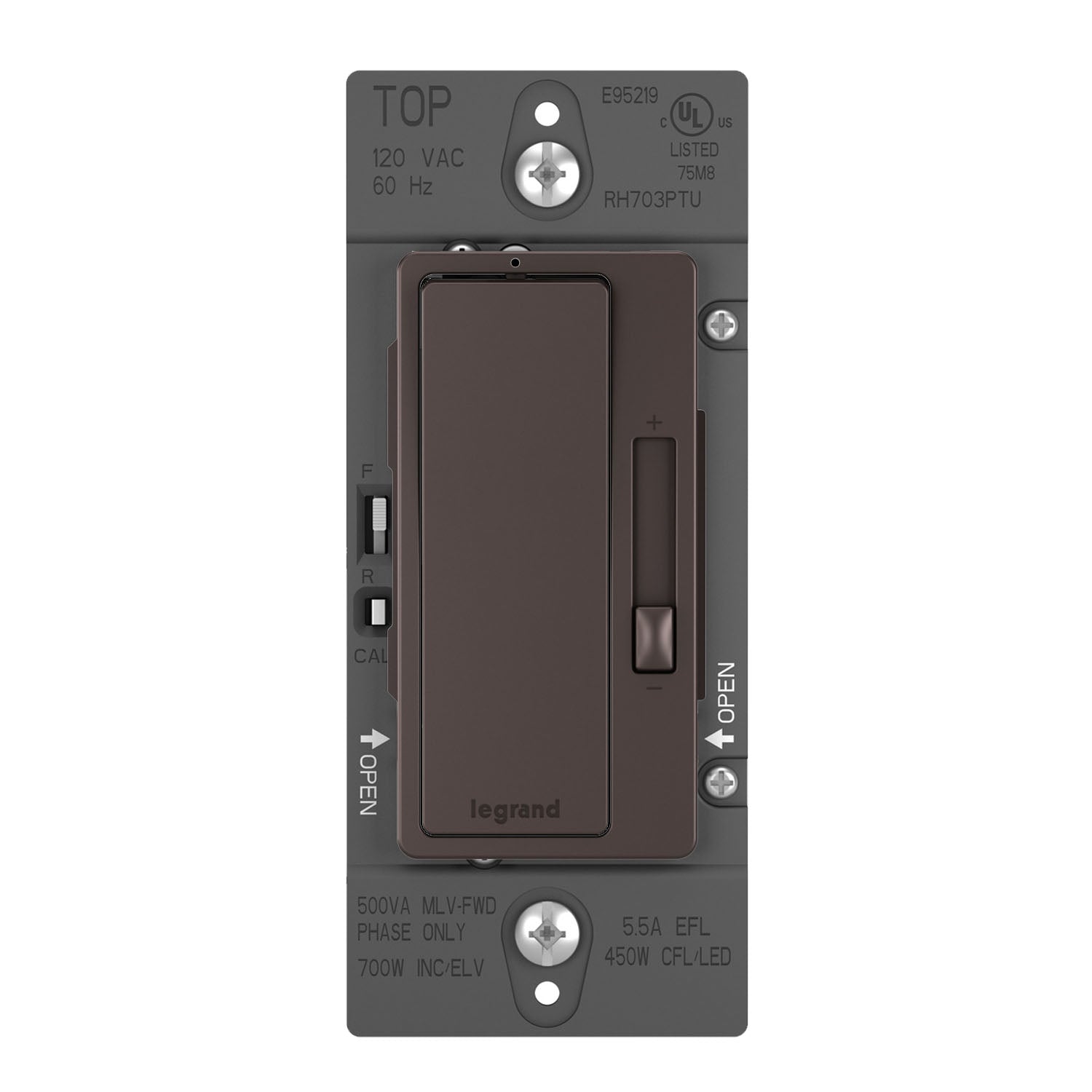

Legrand Radiant Tru-Universal Dimmer — Dark Bronze & Tru-Universal Dimming

The Legrand RH703PTUDB is a versatile dimmer switch available in dark bronze finish. This Tru-Universal Dimmer supports up to 700W and is compatible with a wide range of 120V dimmable bulbs, including CFL, Fluorescent, Halogen, HID, Incandescent, LED, Universal, and Xenon. It can be used in both single-pole and 3-way configurations, providing flexibility for various lighting setups.

Key Features

• Voltage: Operates at 120VAC, 60 Hz, suitable for residential and light commercial applications.
• Load Rating: Supports up to 700W with various bulb types, ensuring broad compatibility.
• Pole Configuration: Usable in single-pole and 3-way applications for flexible installation.
• Self-Calibration: Automatically adjusts to the fixture's lighting type to eliminate flicker.
• Locator Light: Soft glow when off to help locate the switch in the dark.
• Constant Memory: Remembers the last light level setting after power outages.
• Multi-Gang Installation: No derating required, maintaining full wattage capacity.
• Construction: High-impact resistant thermoplastic for durability.
• Wallplate: Compatible with screwless wallplates from the radiant Collection, sold separately.
• Certifications: CSA Listed, cULus, UL Listed for safety and performance.

Construction & Interface

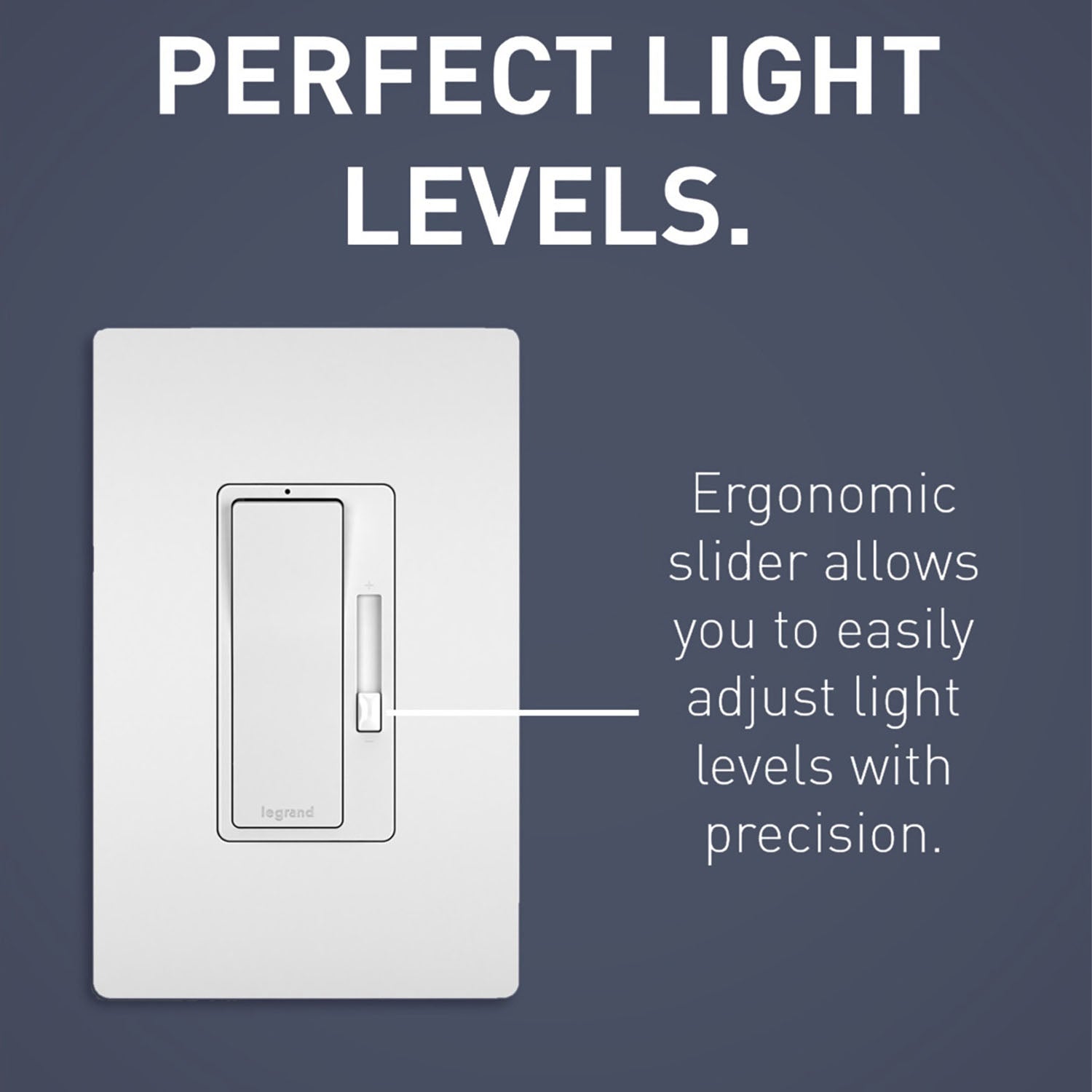

The dimmer features a low-profile paddle switch for smooth on/off control and an ergonomic slider for precise light level adjustments. It is constructed from durable thermoplastic and is available in multiple finishes to complement any decor. Note that the screwless wallplate is sold separately.

Dimming & Load Performance

This dimmer utilizes Tru-Universal Dimming technology, which self-calibrates to the connected bulb type, ensuring optimal performance without flicker. It supports a wide range of dimmable bulb types, providing flexibility in lighting design.

Wiring & Installation

The RH703PTUDB requires connection via screw terminals and supports both single-pole and 3-way configurations. It is designed for box mounting and does not require a neutral wire, simplifying installation.
