Legrand Radiant Dimmer LED — Brown & Tru-Universal Dimming

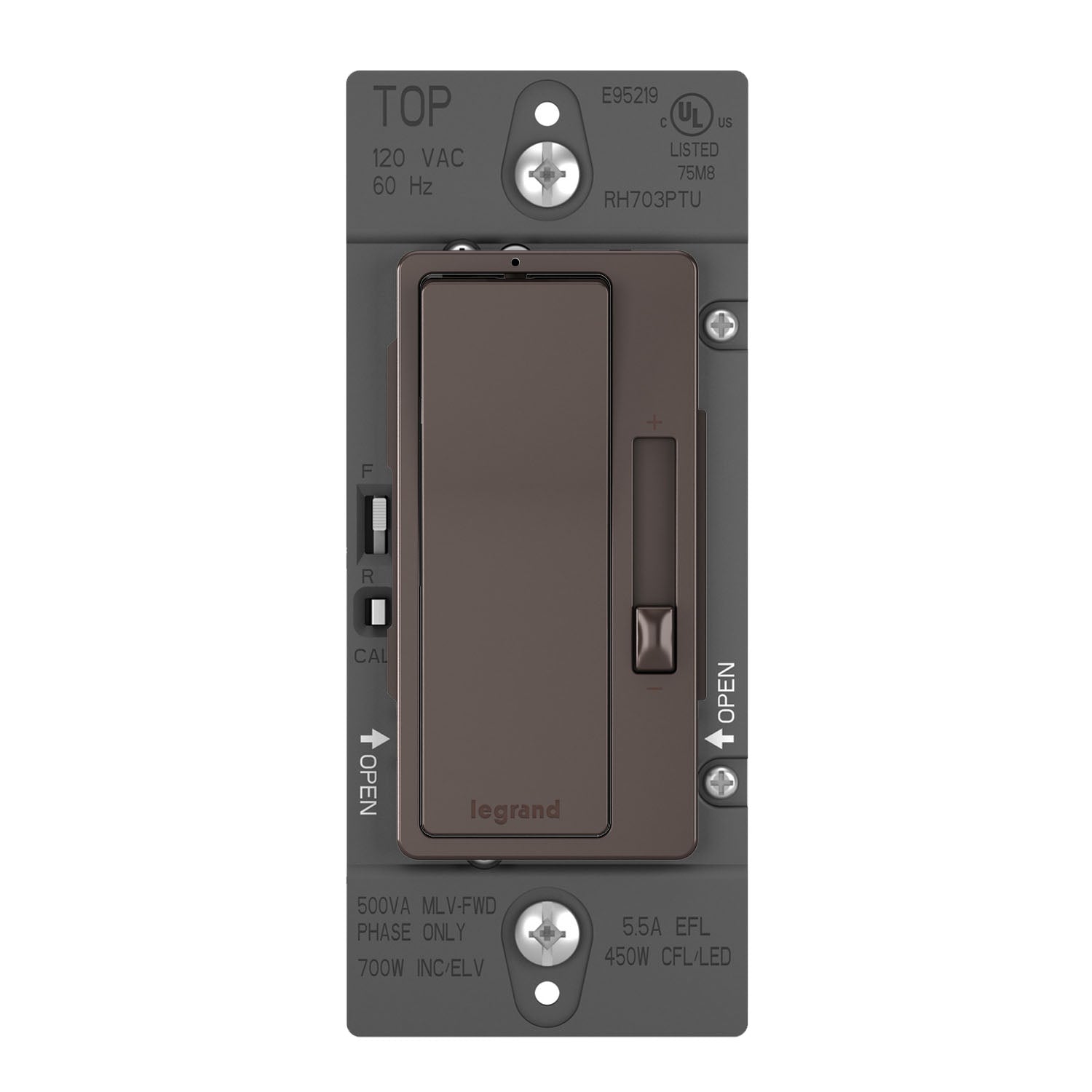

The Legrand RH703PTU is a versatile dimmer switch in brown, supports up to 700W and is compatible with a wide range of 120V dimmable bulbs including CFL, LED, and incandescent. It can be configured for single-pole or 3-way applications, providing flexible installation options.

Key Features

• Voltage: Operates at 120VAC 60 Hz for standard residential use.
• Load Compatibility: Supports CFL, LED, incandescent, halogen, and more, up to 700W.
• Pole Configuration: Suitable for single-pole and 3-way setups.
• Neutral Wire: No neutral wire required for installation.
• Dimming Type: Tru-Universal dimming eliminates flicker by self-calibrating to bulb type.
• Multi-Gang: No derating required in multi-gang installations.
• Dimensions: Measures 1.75 in. width, 4.25 in. height, and 1.25 in. depth.
• Certifications: CSA Listed, cULus, UL Listed for safety and performance.
• Locator Light: Integrated locator light for easy identification in the dark.
• Memory Feature: Retains previous light level settings after power outages.

Construction & Interface

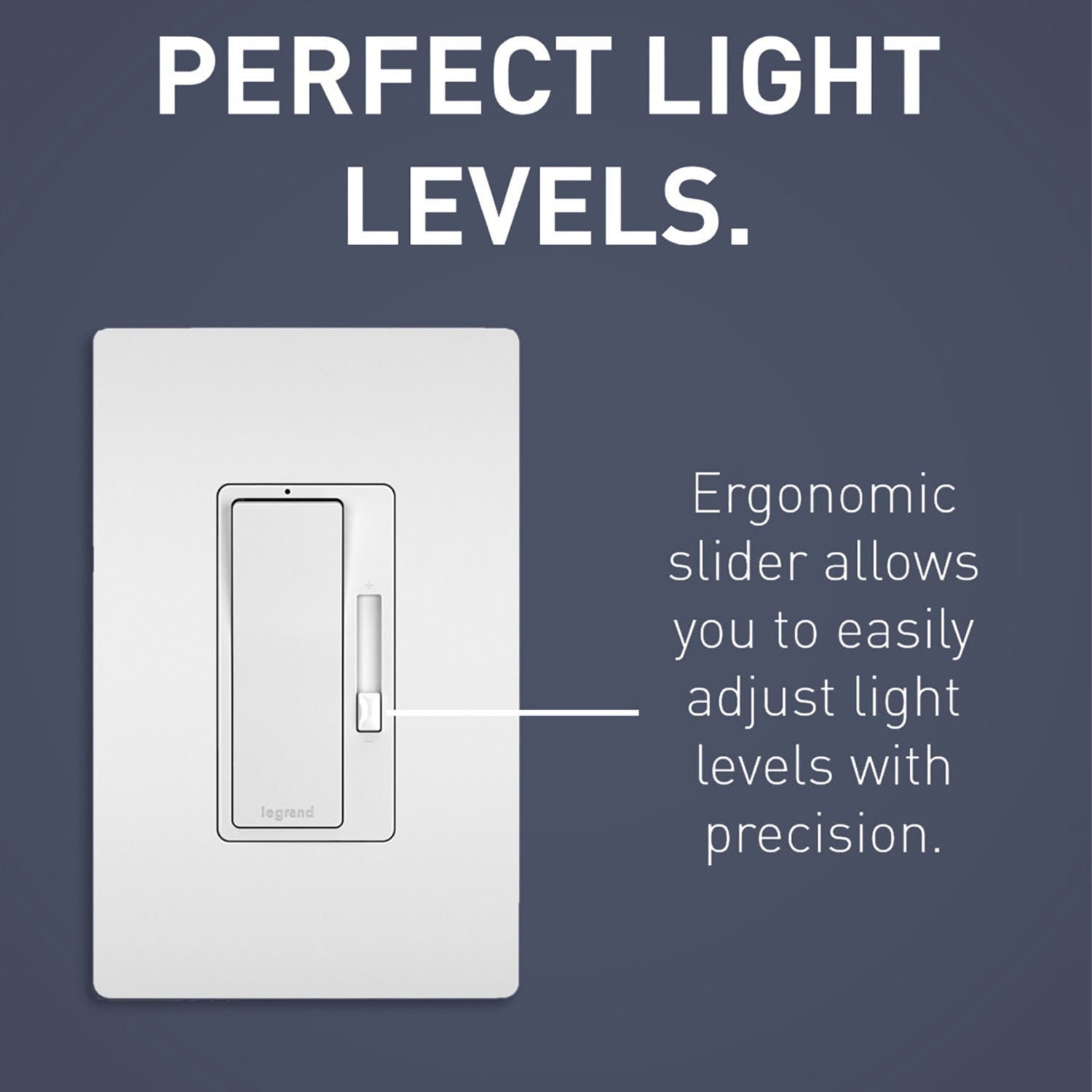

The dimmer features a low-profile paddle switch with an ergonomic slider for precise light level adjustments. It is constructed from durable, high-impact resistant thermoplastic. The wallplate is sold separately and is designed for use with screwless radiant wall plates.

Dimming & Load Performance

The Tru-Universal dimming technology ensures compatibility with virtually any 120V dimmable bulb, automatically calibrating to eliminate flicker and poor performance. The dimmer's constant memory feature returns lights to their previous level after power interruptions.

Wiring & Installation

This dimmer does not require a neutral wire, simplifying installation. It supports both single-pole and 3-way configurations and uses screw terminals for secure connections. Designed for box mounting.
