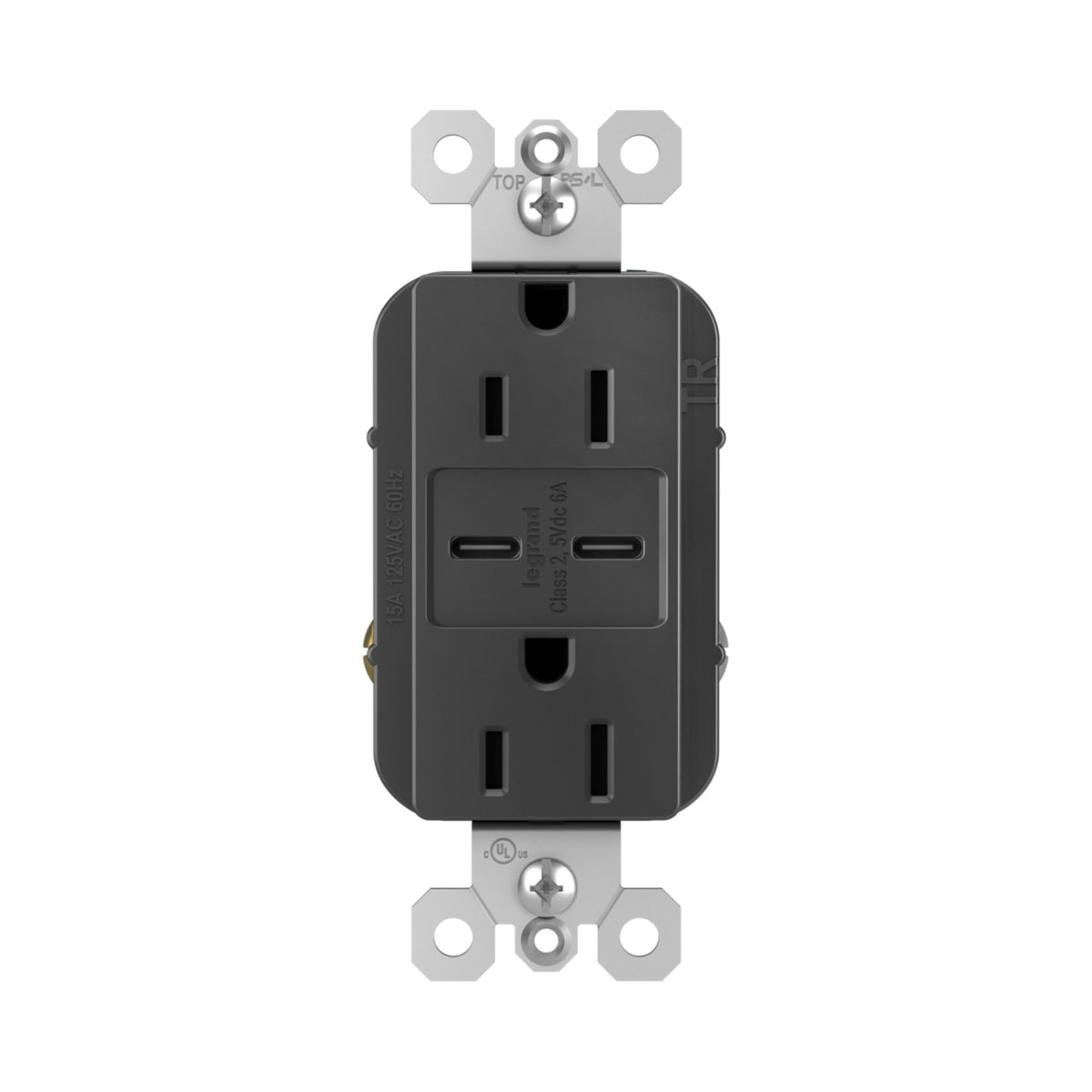

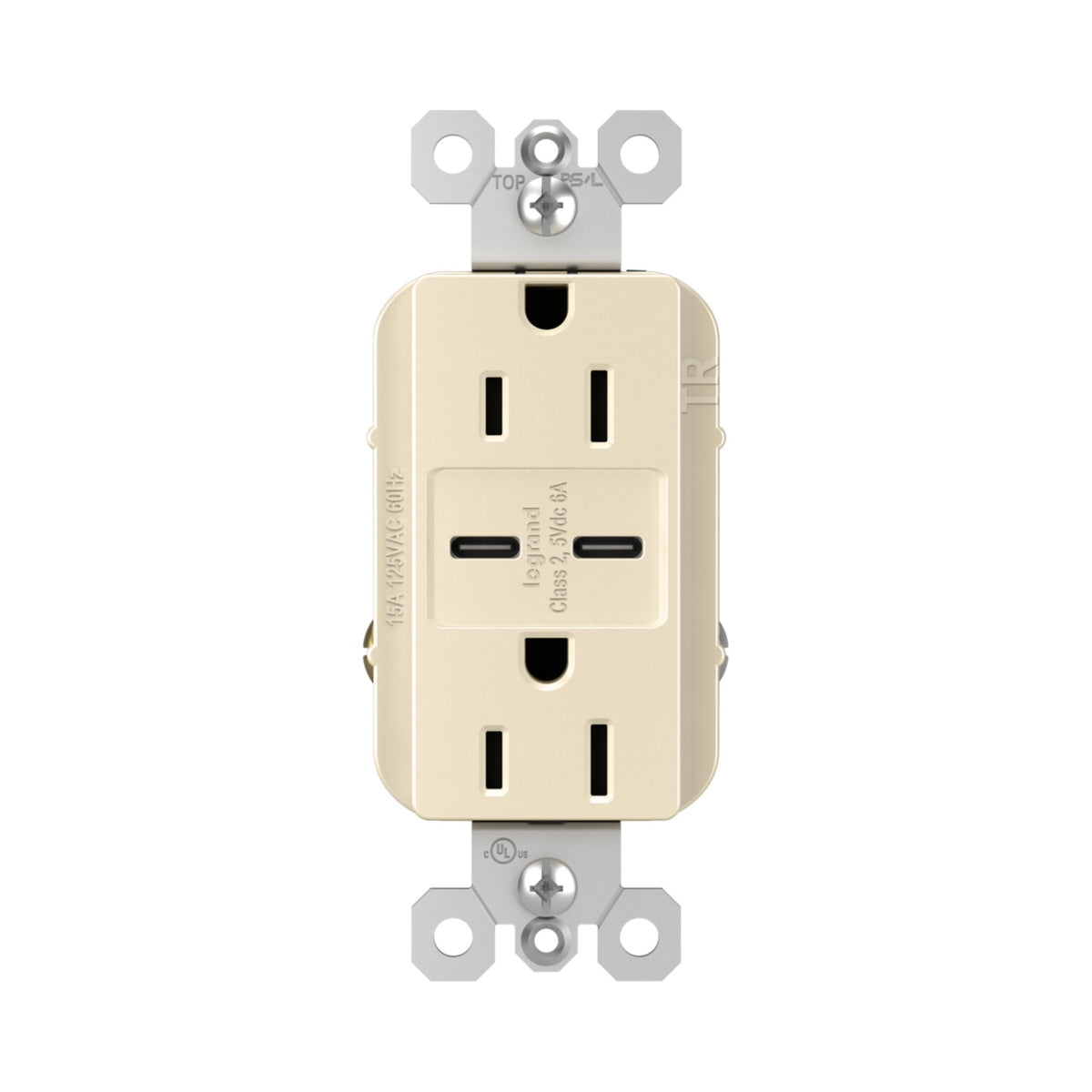

Legrand radiant USB-C Duplex Receptacle, Multiple Finishes & 15W Charging

This 15A Tamper-Resistant duplex receptacle combines two AC receptacles with two USB-C ports. Choose White, Light Almond, Ivory, Black or Graphite with a published 15W USB charging rating.

Key Features

• Amperage: Each finish has a 15A receptacle rating.
• USB Ports: Two Type-C connections charge compatible devices.
• USB Output: Published rating is 15W; per-port allocation is unspecified.
• Tamper-Resistant: Patented invisi-shutters help prevent improper object insertion.
• Location: Intended for indoor use.
• Dimensions: 1.693 in. wide x 4.18 in. high x 1.72 in. deep.
• Finishes: Four satin colors and metallic Graphite coordinate with interiors.
• Mounting: Designed for box mounting.

Construction & Interface

White, Light Almond, Ivory and Black have satin finishes; Graphite has a metallic finish. The duplex interface uses radiant screwless wallplates. Wallplate sold separately.

Power & USB Charging

USB-C ports charge compatible devices without plug-in adapters, leaving AC receptacles available for other connections. Charging speed depends on connected equipment.

Wiring & Installation

Back and side connections use screw terminals with internal pressure plates for #14–#10 AWG solid or stranded copper and copper-clad aluminum conductors. Consult model-specific instructions for grounding and mounting details.
