Description
Description

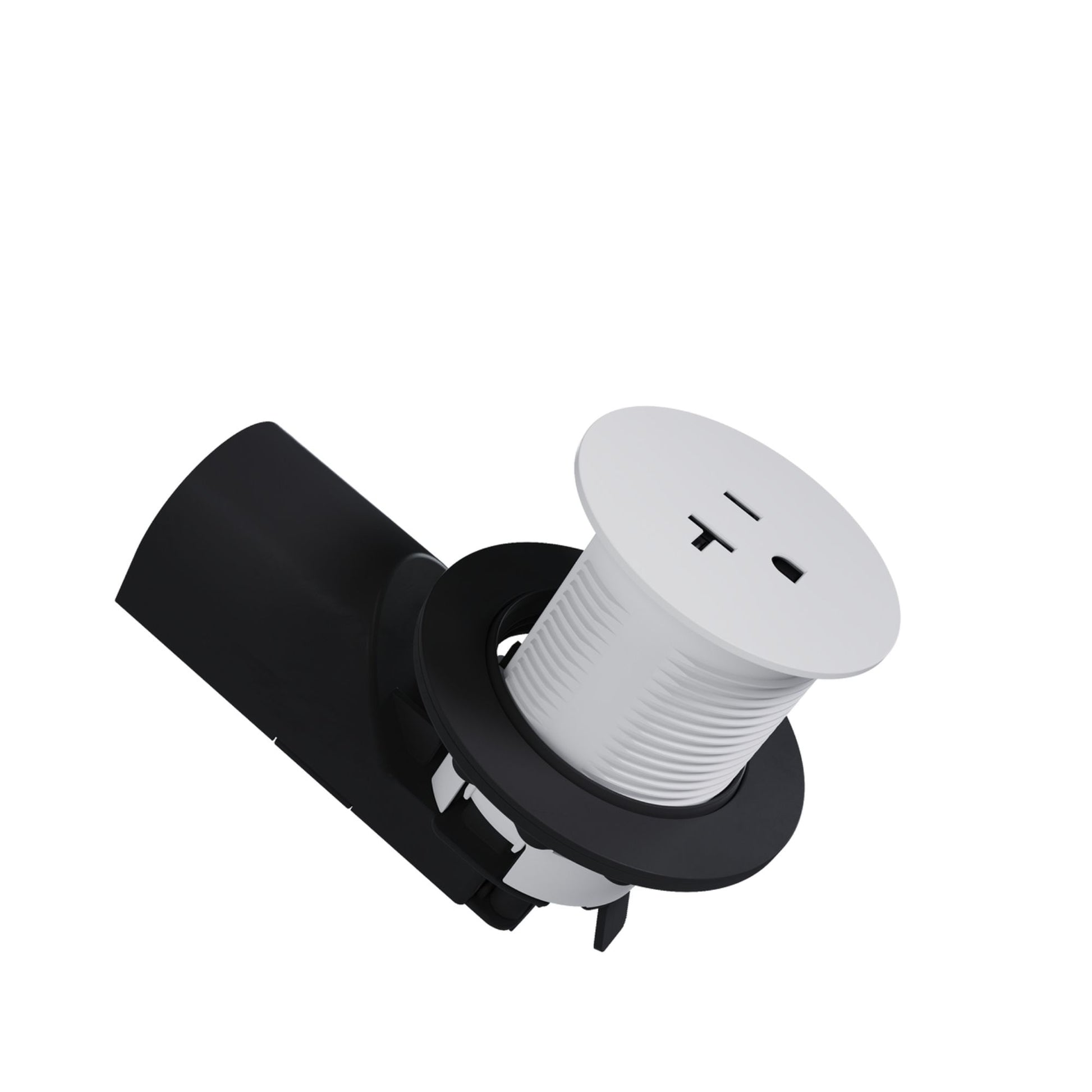

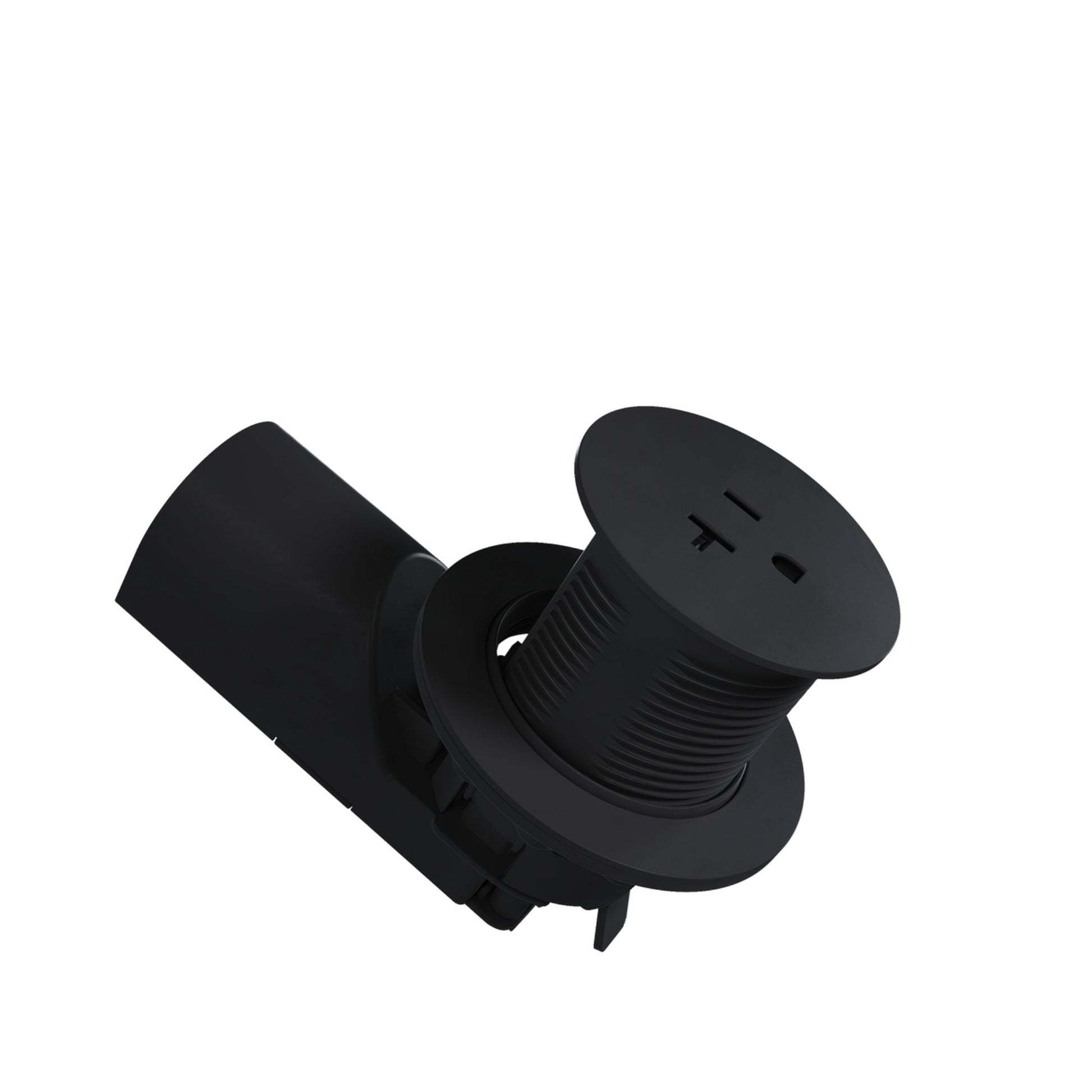

Legrand Pass & Seymour CP498TR Kitchen Countertop Outlet Series
The Legrand Pass & Seymour CP498TR Kitchen Countertop Outlet Series are code-compliant, UL 498-certified power solutions designed for kitchen islands, peninsulas, and bars in both residential and hospitality applications. Experience superior reliability and performance with outlets engineered for easy installation in tight spaces. Available in two configurations—15A (CP498TR15) for standard applications and 20A (CP498TR20) for heavy-duty use—featuring quick-connect termination tail that can be wired above the counter and a hand-turn nut that requires no tools, plus tamper-resistant automatic shutters for enhanced child safety, the smallest profile in the industry (40% less space than competitors), and surface-mount design that makes everyday cleaning easy—ideal for office lobbies, waiting rooms, cafeterias, restaurants/bars, lecture halls, transportation hubs, guest rooms, and modern kitchen installations requiring convenient, code-compliant power access with premium aesthetics.
CP498TR Series Features
- Two Amperage Ratings Available: 15A (CP498TR15) for standard applications or 20A (CP498TR20) for heavy-duty use
- Quick-Connect Installation: Termination tail wired above counter with hand-turn nut requiring no tools under the counter
- Tamper-Resistant Automatic Shutters: Prevents children from inserting objects with invisible twist-shutter design
- Smallest Profile in Industry: 40% less space on and under counter compared to competitive products
- Surface-Mount Design: Easy to clean and blends seamlessly with or without optional lid
- Corrosion-Resistant: Built to withstand heavy wear and tear with corrosion/chemical resistance
- GFCI Protection Required: Must be installed downstream or connected to a GFCI breaker for code compliance
- NEC 2023 Code Compliant: Meets NEC 2023 406.5(E) requirements for kitchen countertop applications
- UL 498 Rated: Withstands 2000V dielectric testing and ensures reliability and performance
- Locking Collar with Gasket: External gasket assembly provides seal and secures to counter
- Optional Cast Metal Lids: Available in Matte Black, Matte White, Stainless Steel, and Champagne Bronze finishes
- Available in Two Colors: Matte White and Matte Black outlet finishes
- cULus Listed: Meets safety standards for commercial and residential applications
- 1-Year Limited Warranty: Backed by Legrand quality assurance
Kitchen Countertop Outlet Applications
- Kitchen islands and peninsulas
- Bar countertops and serving areas
- Office lobbies and reception areas
- Cafeterias and break rooms
- Restaurants and bars
- Hotel guest rooms and common areas
- Multi-dwelling units and residential applications
- Commercial kitchens and food service areas
Installation & Operation
The Legrand CP498TR Series installs easily into countertops with a 2-inch diameter hole (without lid) or 2.25-inch diameter hole (with lid). The quick-connecting termination tail can be wired above the counter, and the hand-turn nut requires no tools under the counter. Required installation downstream or connected to a GFCI breaker for code compliance and safety. The locking collar with external gasket assembly provides a seal and secures the outlet to the counter. The surface-mount design blends seamlessly with countertop surfaces and makes everyday cleaning easy. The tamper-resistant automatic shutters prevent children from inserting objects. The outlets accept #14 to #10 AWG wire with screw terminal connection (back only). The CP498TR15 series provides 15A capacity for standard applications, while the CP498TR20 series provides 20A capacity for demanding kitchen appliances and commercial equipment. The compact design takes up nearly 40% less space compared to competitive products.
Compatible Products
- Optional Lids: CP498LMW (Matte White), CP498LBK (Matte Black), CP498LSS (Stainless Steel), CP498LCB (Champagne Bronze) - sold separately
- Wire Size: #14 to #10 AWG
- Hole Requirements: 2-inch diameter (without lid) or 2.25-inch diameter (with lid)
- Available Models: CP498TR15W, CP498TR15BK (15A) and CP498TR20W, CP498TR20BK (20A)
- Note: ½-inch cable connector not included; GFCI breaker required
Why Choose Legrand Pass & Seymour Kitchen Countertop Outlets
Legrand is a global leader in electrical and digital building infrastructures with over 150 years of innovation. The CP498TR Kitchen Countertop Outlet Series is engineered for demanding kitchen island, peninsula, and bar applications where code compliance, reliability, and aesthetics are essential. Available in two amperage ratings—15A for standard applications and 20A for heavy-duty use—these outlets provide flexibility for various installation requirements. The quick-connect design with hand-turn nut makes installation easy without tools under the counter. Tamper-resistant automatic shutters provide child safety, while the surface-mount design makes cleaning effortless. With the smallest profile in the industry (40% less space), corrosion/chemical resistance, UL 498 rating with 2000V dielectric testing, and NEC 2023 compliance, the CP498TR Series delivers professional-grade performance. The optional lids in four cast metal finishes allow customization to match kitchen aesthetics while maintaining code-compliant, UL 498-certified performance.
