Pass & Seymour Commercial Spec-Grade Duplex Outlet — White & Side Wire

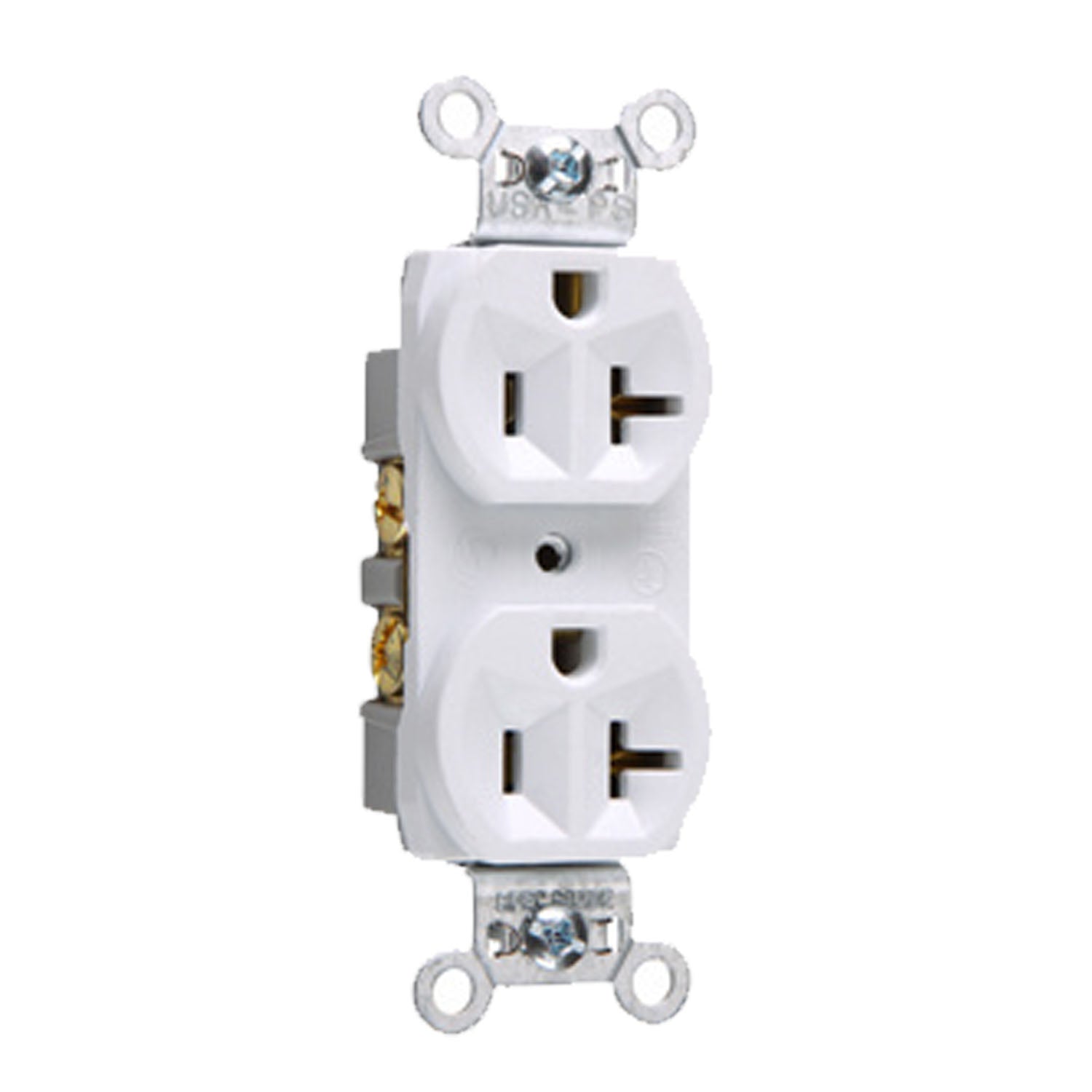

The Pass & Seymour CR20W is a 20A Commercial Spec-Grade Duplex Outlet in a white finish. This outlet is designed for 125V applications and features a side wire connection for easy installation. The outlet is constructed with an impact-resistant nylon face and a thermoplastic back body, ensuring durability and longevity in commercial environments.

Key Features

• Voltage: Designed for 125V applications, suitable for commercial use.
• Amperage: Supports up to 20A, ideal for heavy-duty electrical needs.
• NEMA Configuration: Standard duplex outlet for common plug types.
• Tamper-Resistant: No, this model does not include tamper-resistant features.
• Weather-Resistant: No, intended for indoor use only.
• Grade: Commercial spec-grade for high-performance environments.

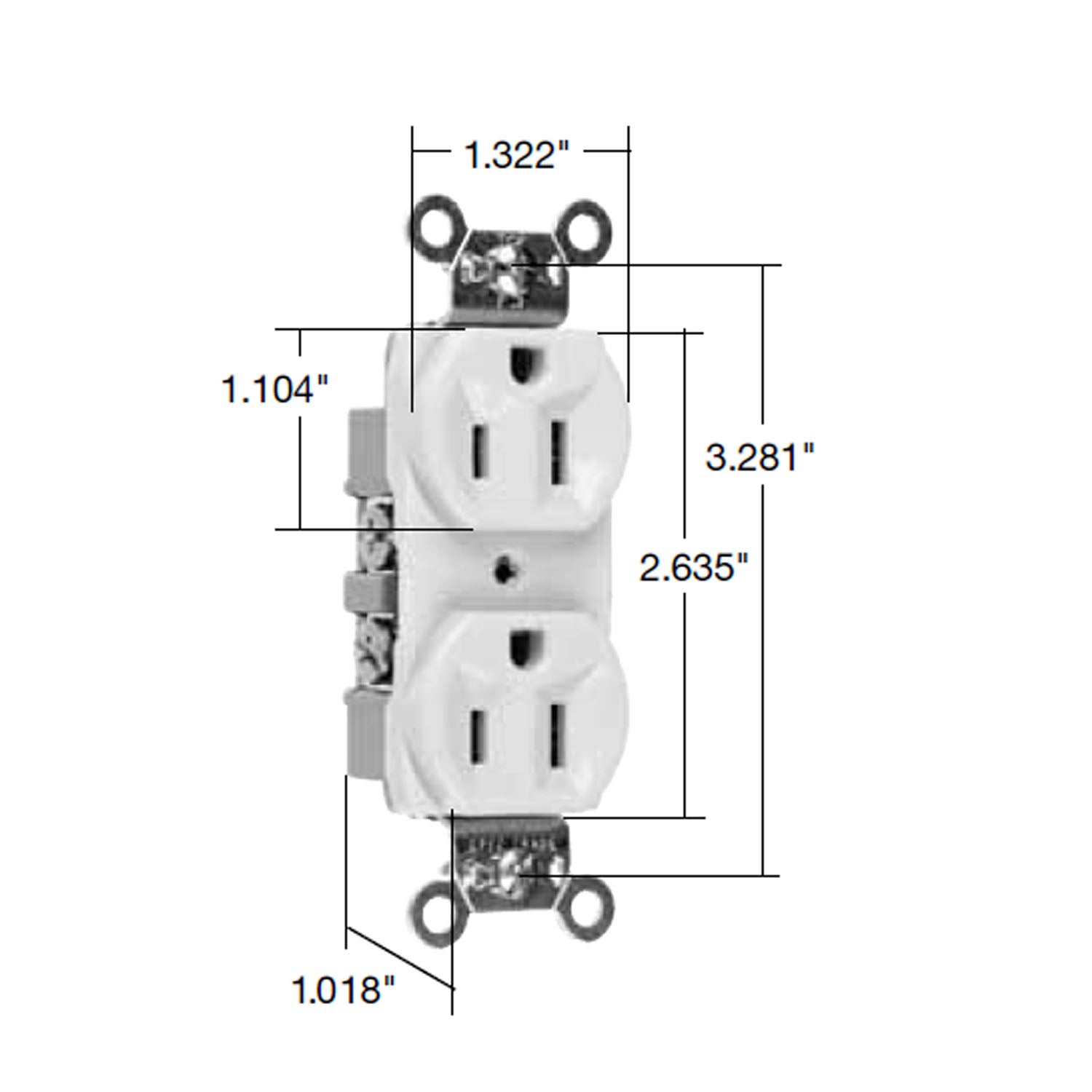

• Dimensions: Measures 1.32 in. width, 2.64 in. height, and 0.78 in. depth.
• Certifications: UL 498 certified for safety and reliability.
• Corrosion Resistance: Features a plated steel strap for enhanced durability.
• Temperature Rise: Maximum 30°C rise at full-rated current after overload testing.
• Operating Temperature: Functions between -40°C and +50°C.

Construction & Interface

This outlet features a standard duplex interface with a matte white finish. It is built with an impact-resistant nylon face and a thermoplastic back body. Please note that the wallplate is sold separately.

Power & Electrical Performance

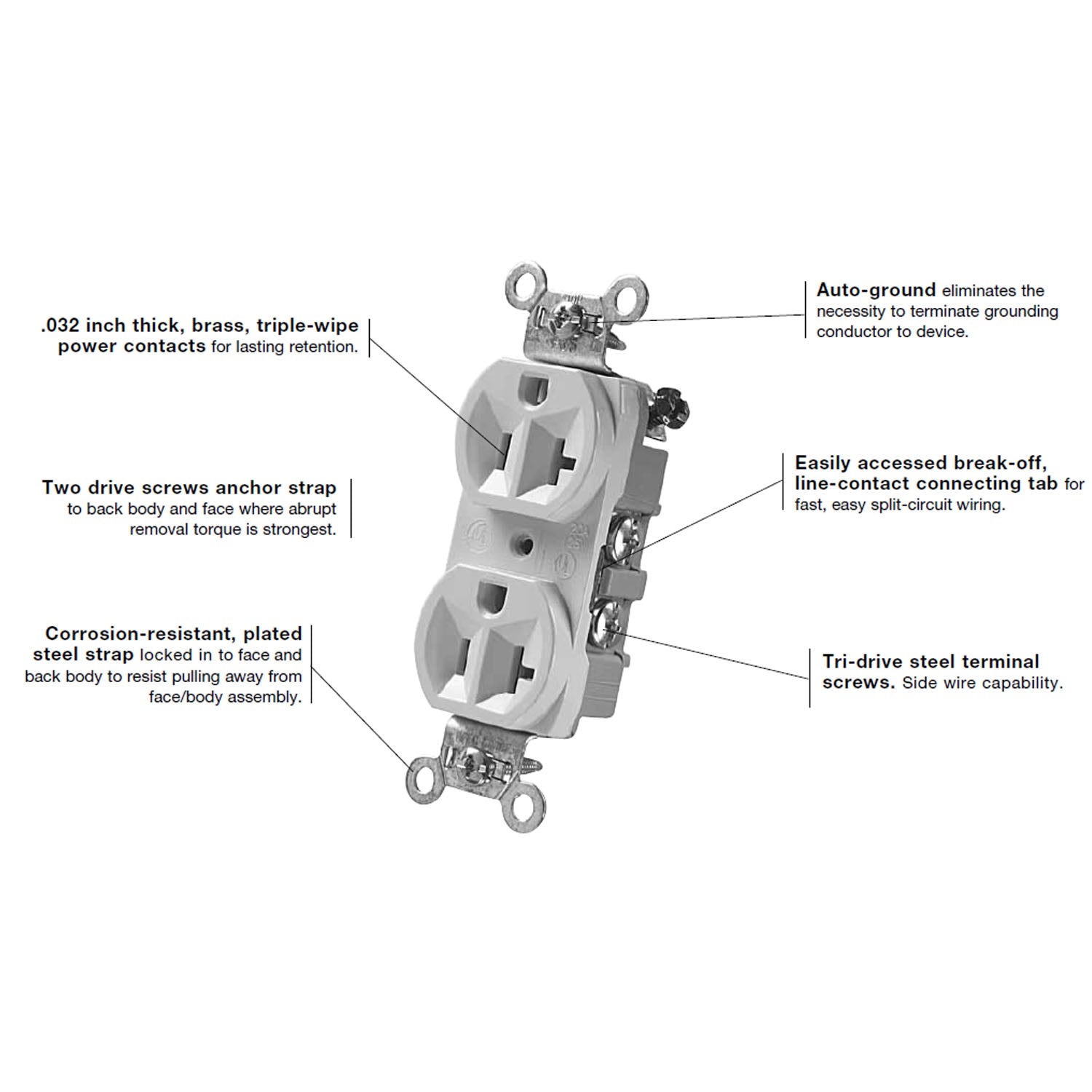

The outlet is designed for optimal electrical performance with a 20A rating and 125V capacity. It includes an auto-ground clip for secure grounding and triple-wipe power contacts for lasting retention.

Wiring & Installation

The CR20W supports side wire connections and accepts #14 to #10 AWG solid or stranded copper wires. It features isolated terminal compartments for positive conductor containment and a corrosion-resistant plated steel strap for secure mounting.
