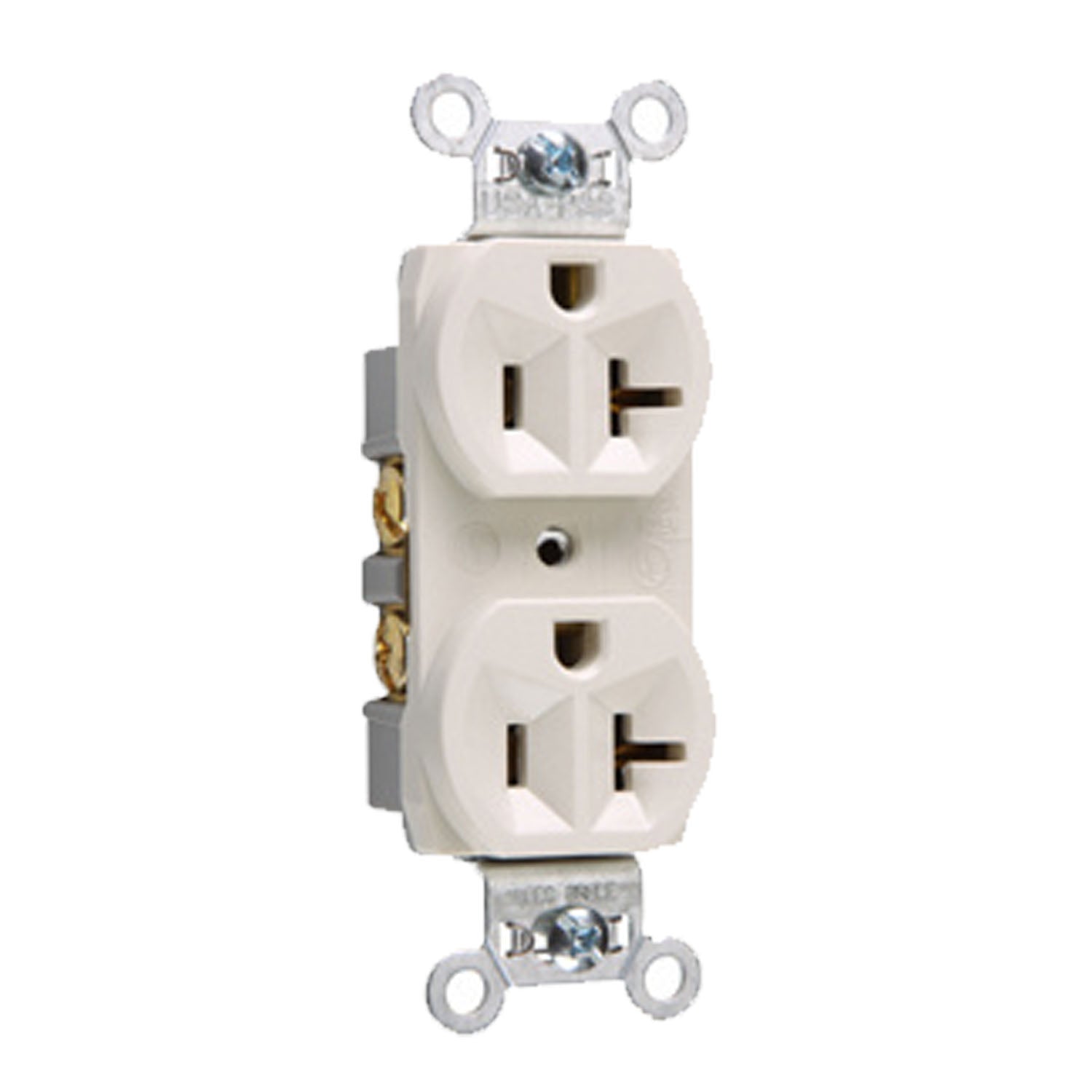

Pass & Seymour Commercial Spec-Grade Duplex Receptacle — Light Almond & Side Wire

The Pass & Seymour CR20LA is a 20A 125V Commercial Spec-Grade Duplex Receptacle in a light almond finish. This outlet is designed for commercial use, featuring a side wire configuration that accepts #14 to #10 AWG wire. It is constructed with an impact-resistant nylon face and thermoplastic back body for enhanced durability.

Key Features

• Voltage Rating: Operates at 125V for standard electrical systems.
• Amperage: 20A capacity supports high-demand commercial environments.
• NEMA Configuration: Standard duplex design for compatibility with various plugs.
• Tamper-Resistant: No, this model does not include tamper-resistant features.
• Weather-Resistant: No, intended for indoor use only.
• Grade: Commercial spec-grade for robust performance.

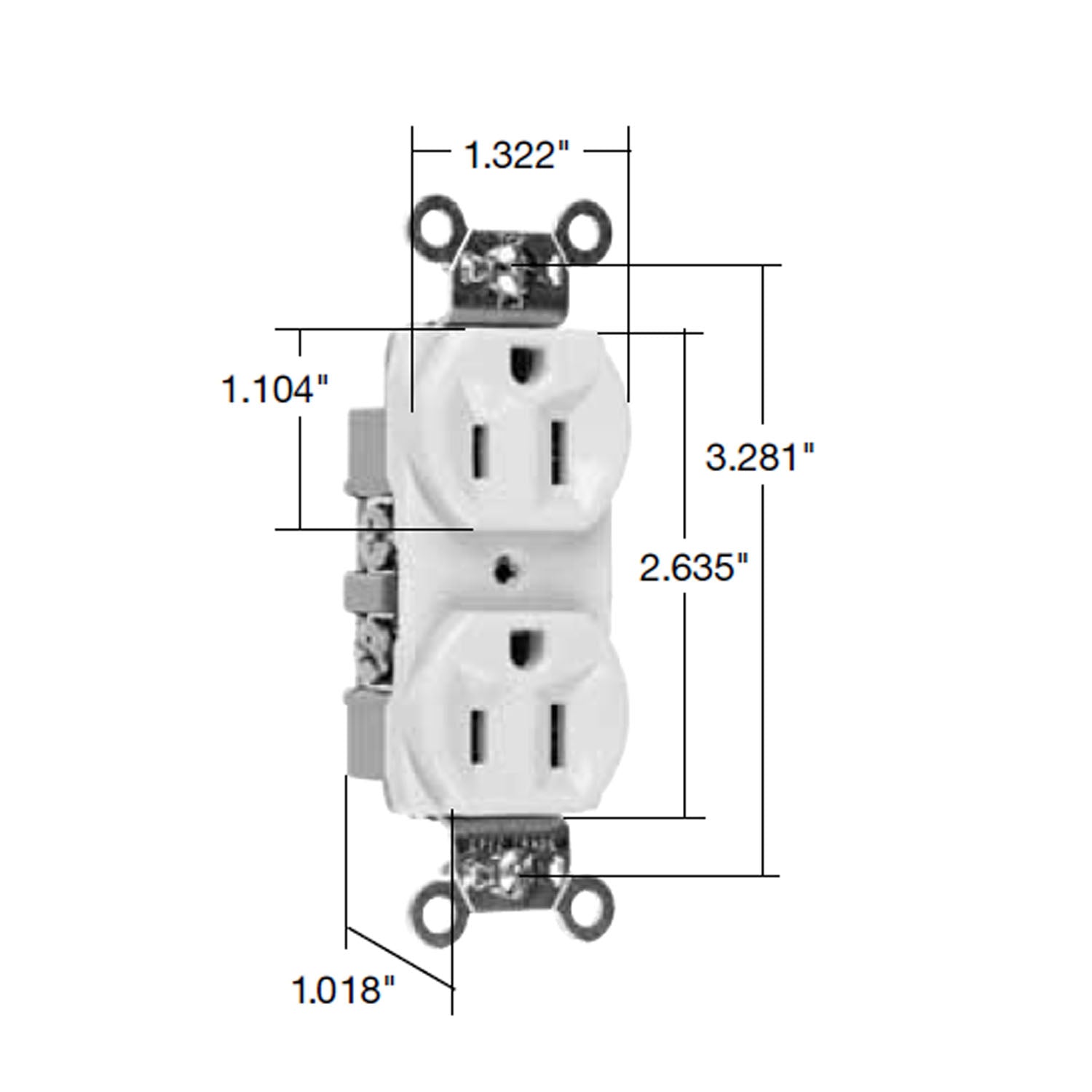

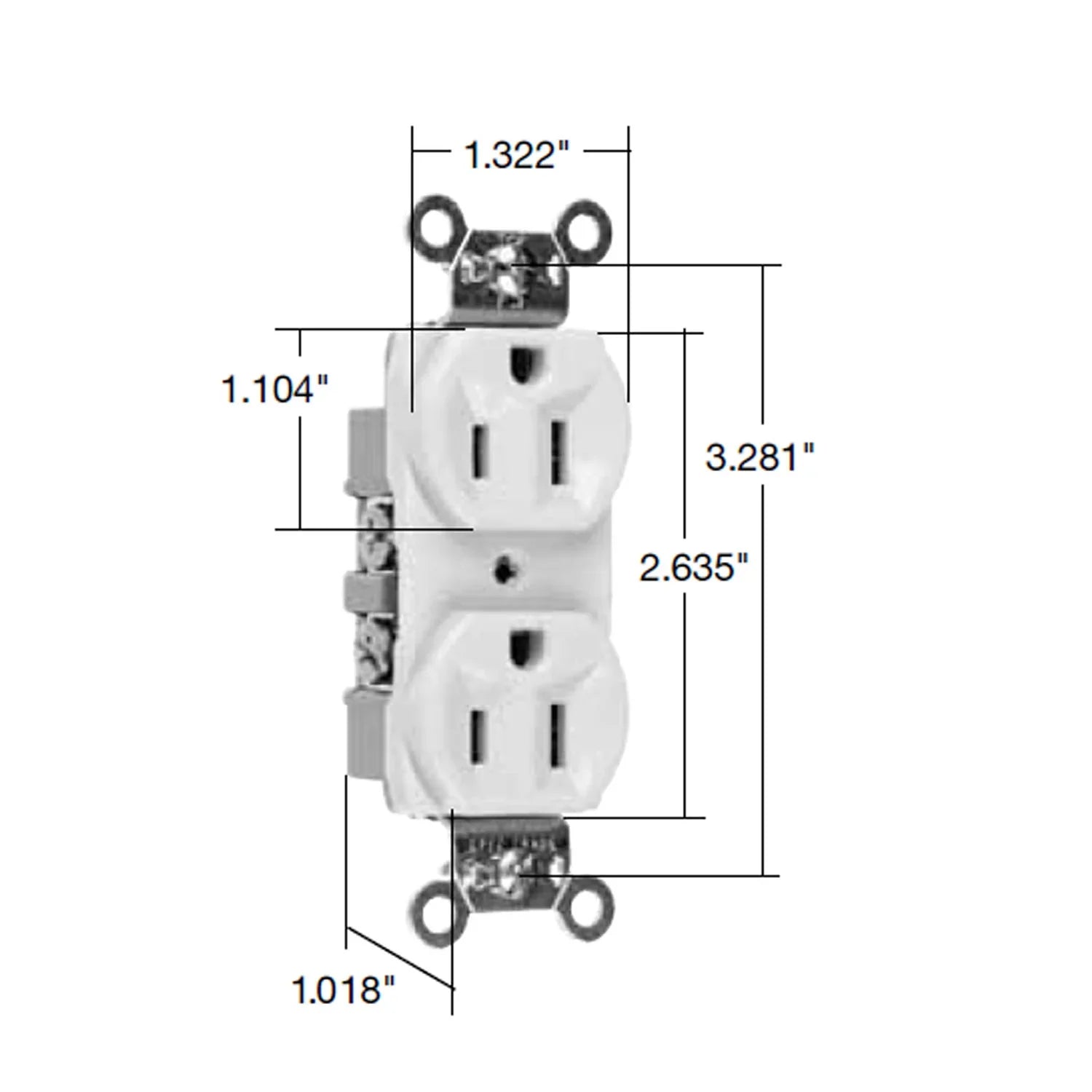

• Dimensions: Measures 1.32 in. width, 2.64 in. height, and 0.78 in. depth.
• Certifications: UL 498 listed for safety and performance.
• Material: Corrosion-resistant, plated steel strap for secure installation.
• Temperature Rise: Maximum 30°C temperature rise at full-rated current.
• Operating Temperature: Suitable for -40°C to +50°C environments.

Construction & Interface

This duplex receptacle features a standard design with an impact-resistant nylon face and thermoplastic back body. The wallplate is sold separately, allowing for customization with various styles from the TradeMaster or radiant collections.

Power & Electrical Performance

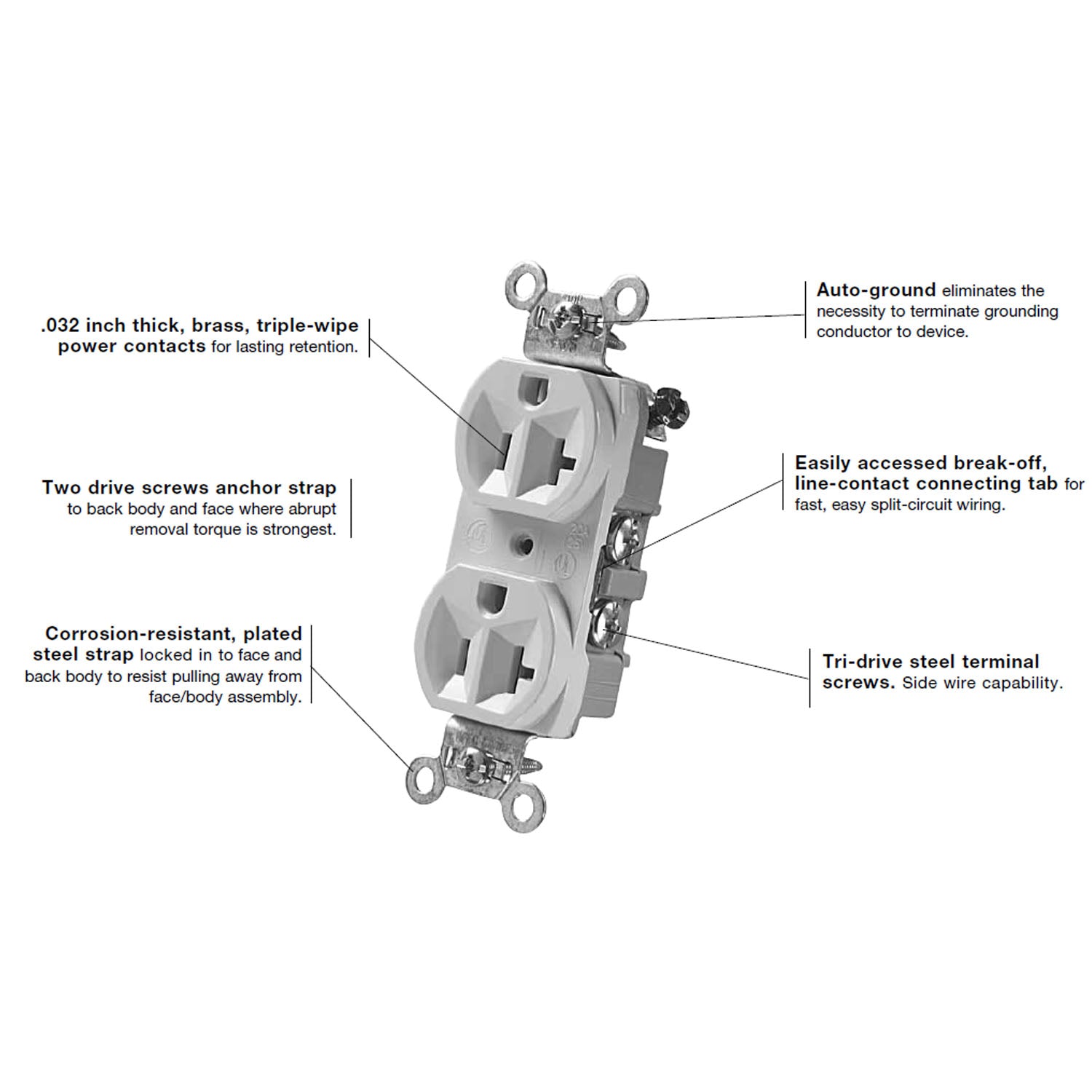

Designed for commercial applications, this outlet provides reliable power with a 20A capacity. The auto-ground clip ensures a positive ground connection, while the side wire terminals facilitate easy installation.

Wiring & Installation

The CR20LA supports side wiring and accepts #14 to #10 AWG solid or stranded copper or copper-clad wire. It features isolated terminal compartments for positive conductor containment and a plated steel strap for secure mounting.
