Pass & Seymour Commercial Spec-Grade Duplex Receptacle — Ivory & Side Wire

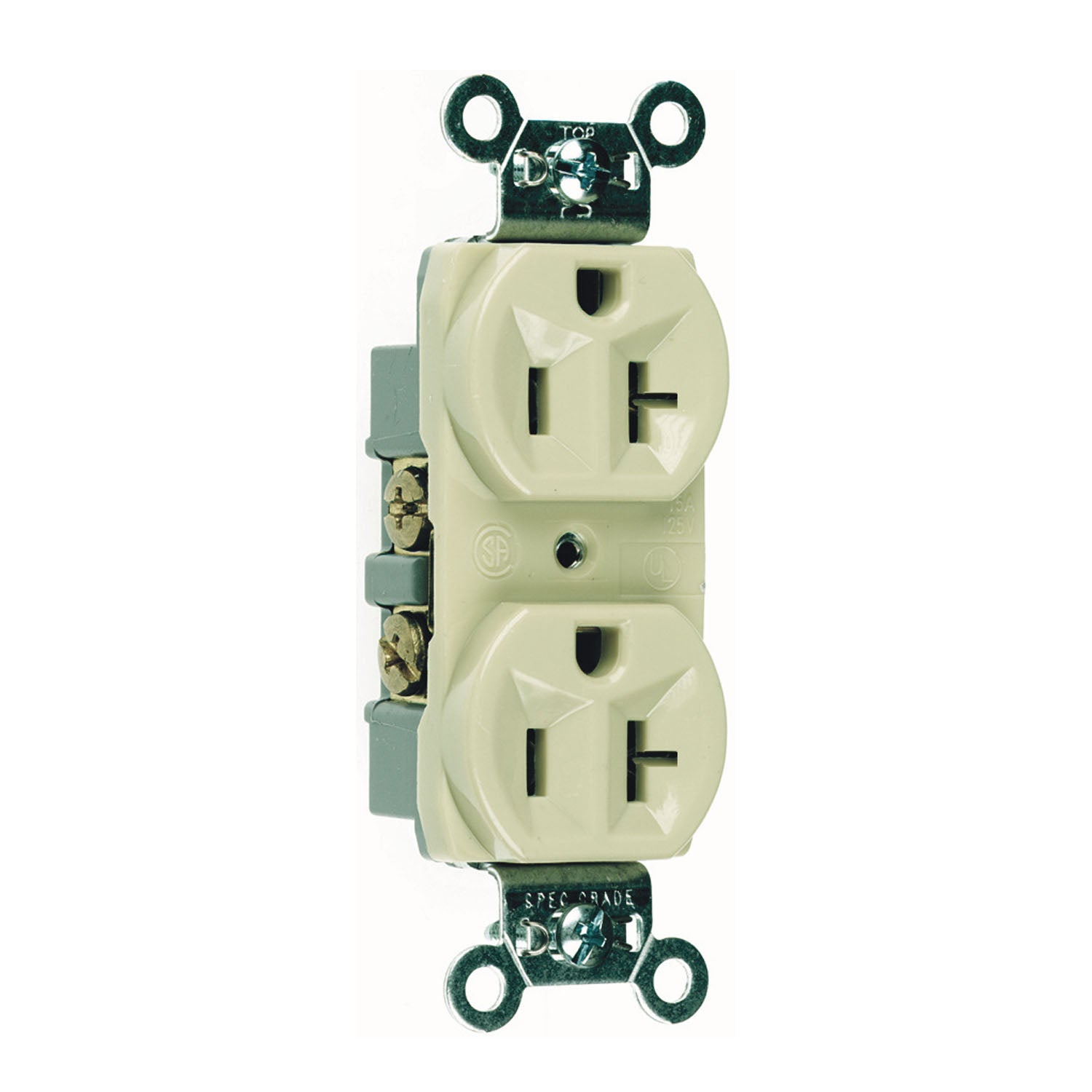

The Pass & Seymour CR20I is a 20A commercial spec-grade duplex receptacle in an ivory finish. This outlet is designed for 125V applications and features a side wire configuration. It is constructed with a corrosion-resistant, plated steel strap and impact-resistant nylon face, ensuring durability and reliability in commercial settings.

Key Features

• Voltage: Designed for 125V applications, suitable for commercial use.
• Amperage: Supports up to 20A, ideal for high-demand environments.
• NEMA Configuration: Standard duplex outlet for compatibility with various devices.
• Tamper-Resistant: No, this model does not feature tamper-resistant shutters.
• Weather-Resistant: No, intended for indoor use only.
• Grade: Commercial spec-grade for enhanced performance and longevity.

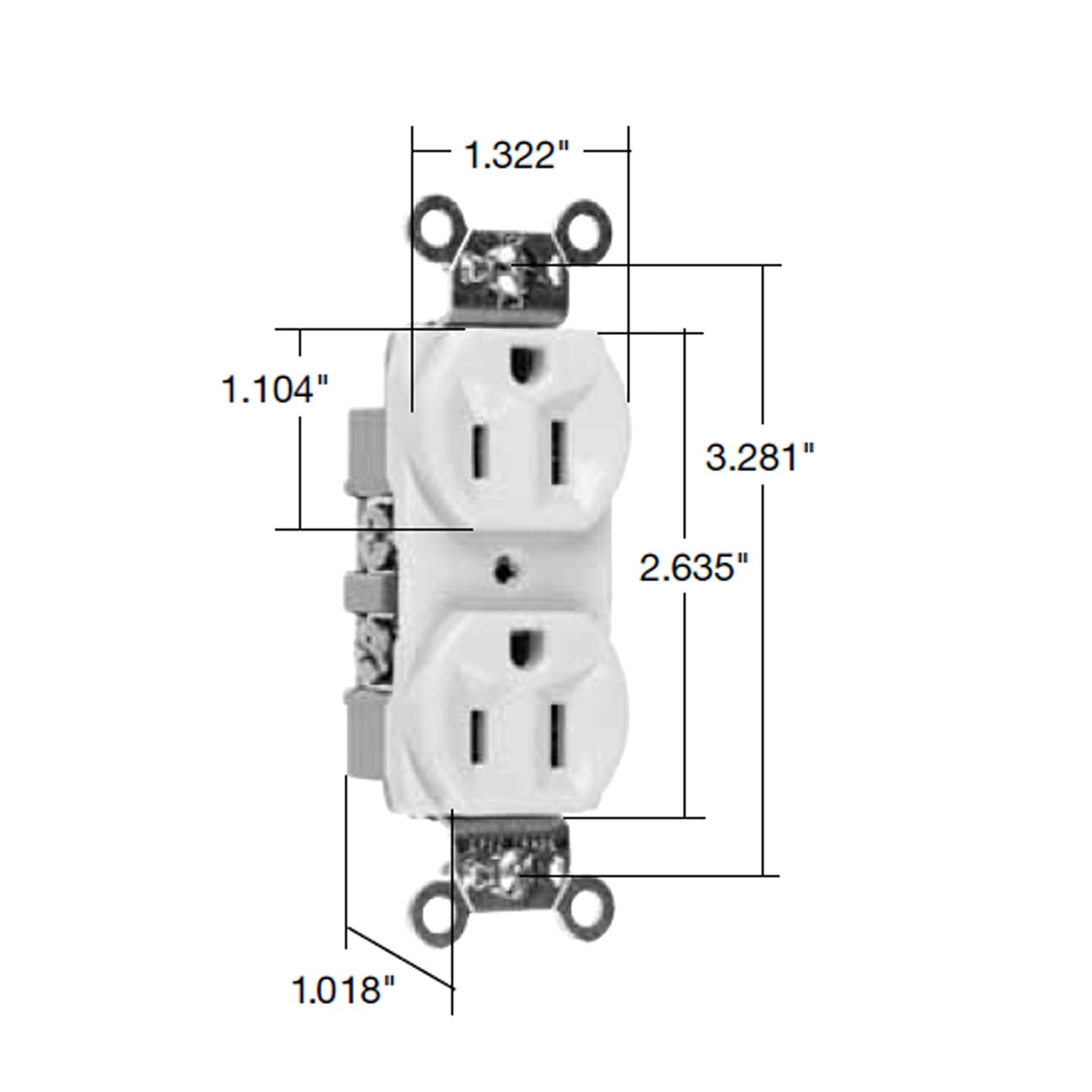

• Dimensions: Measures 1.32 in. width, 2.64 in. height, and 0.78 in. depth.
• Certifications: UL 498 listed for safety and performance.
• Temperature Range: Operates between -40°C to +50°C, ensuring reliability in various conditions.
• Auto-Ground Clip: Ensures positive grounding for safety.
• Break-Off Tabs: Allows for easy split-circuit wiring.

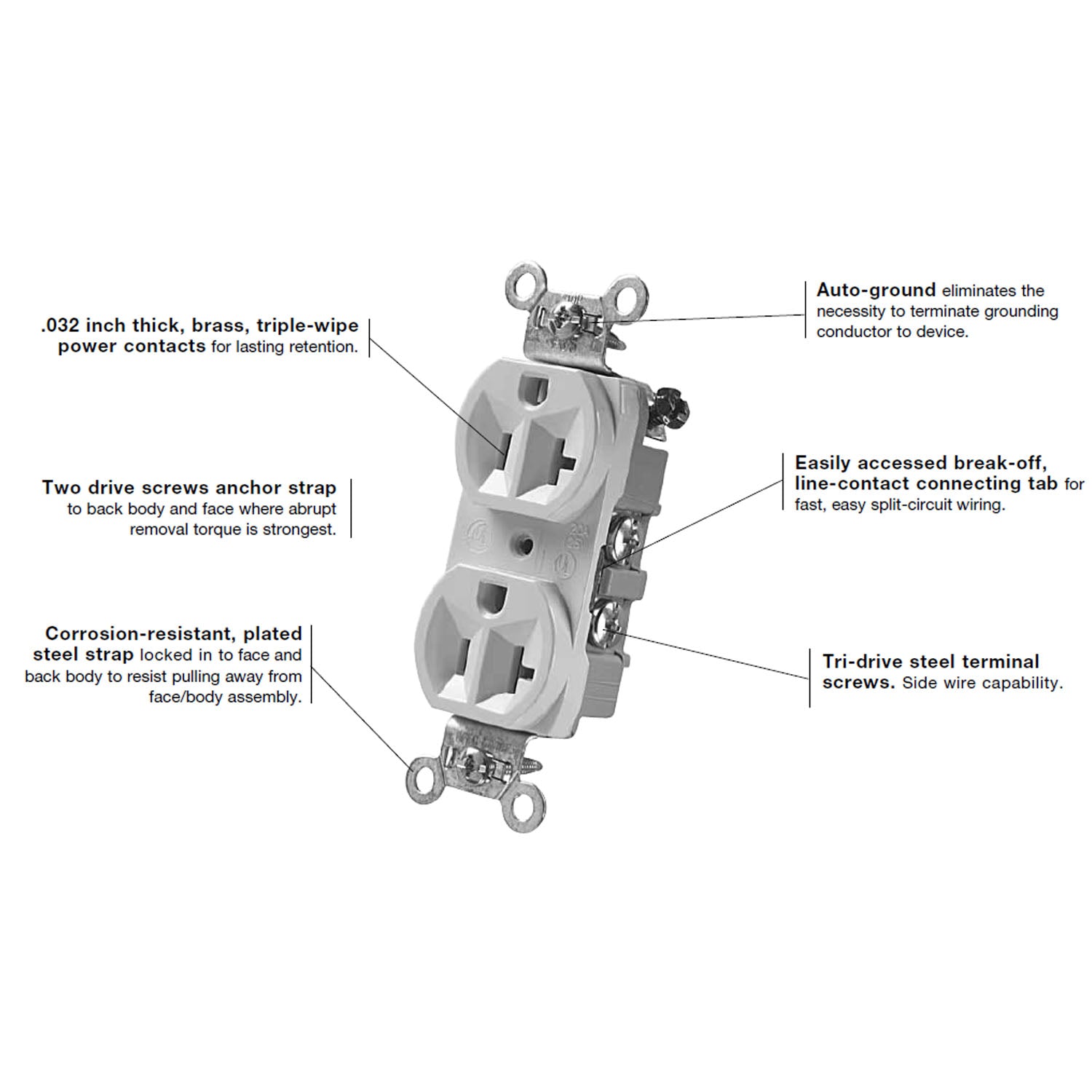

Construction & Interface

This duplex receptacle features a standard design with an impact-resistant nylon face and a thermoplastic back body. The wallplate is sold separately, allowing for customization with various styles and finishes.

Power & Electrical Performance

The CR20I offers reliable electrical performance with its corrosion-resistant construction and triple-wipe power contacts. It supports a maximum temperature rise of 30°C at full-rated current, ensuring safe operation under load.

Wiring & Installation

Designed for side wiring, this receptacle accepts #14 to #10 AWG solid or stranded copper or copper-clad wire. It features an auto-ground clip for secure grounding and a robust mounting strap for stable installation.
