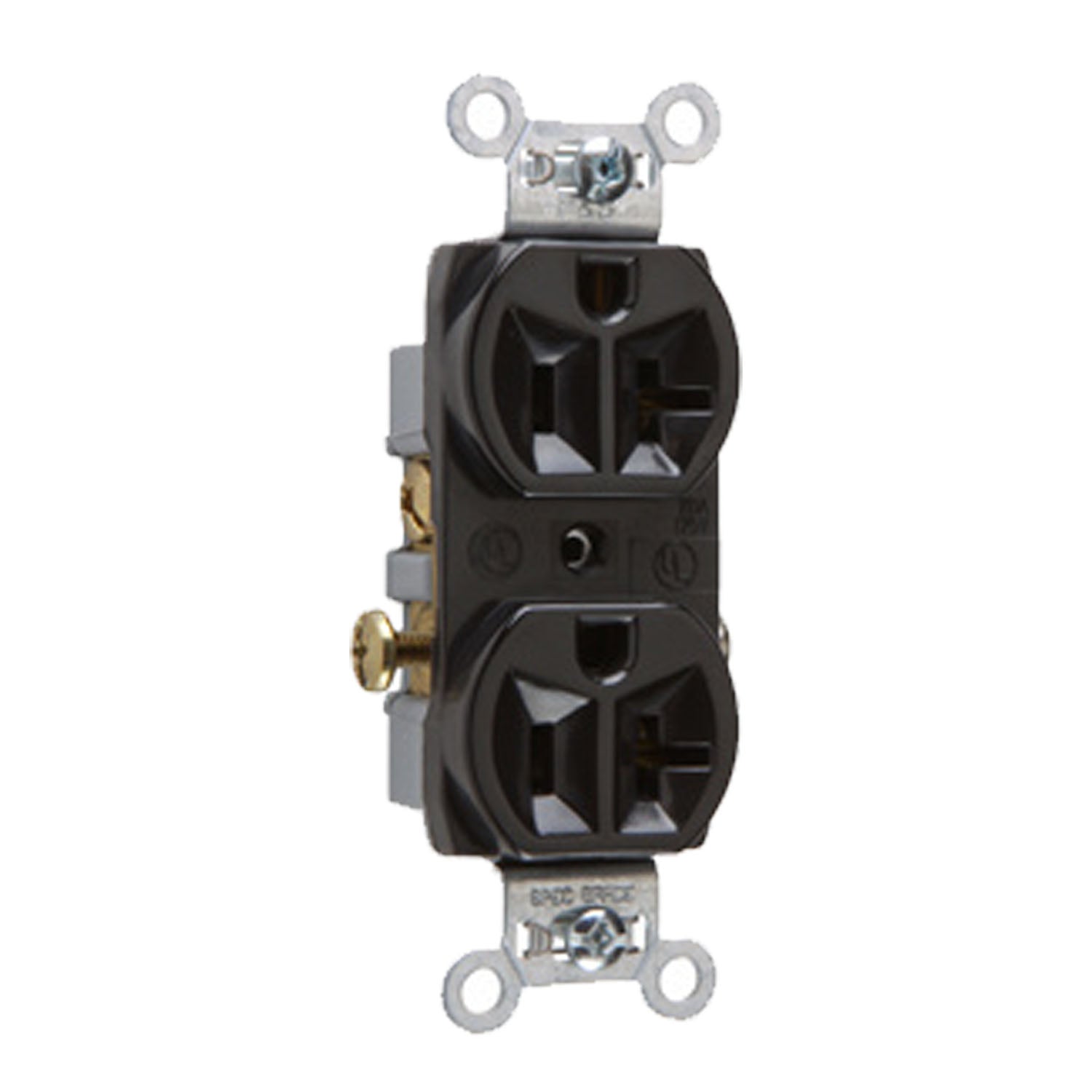

Pass & Seymour CR20BK 20A Commercial Spec-Grade Duplex Outlet, Black
Available in stock (80)
About this item
About this item
- Amperage: Rated for 20A, suitable for high-demand commercial applications.
- NEMA Configuration: Standard duplex outlet for versatile use.
- Construction: Impact-resistant nylon face and thermoplastic back body ensure durability.
- Wiring: Side wire design accepts #14 to #10 AWG solid or stranded copper wire.
- Grounding: Auto-ground clip assures positive ground connection.
We process payments securely and do not store credit card information.
Description
Description
Pass & Seymour Commercial Spec-Grade Duplex Outlet — Black & Durable Design
The Pass & Seymour CR20BK is a 20A commercial spec-grade duplex outlet in a sleek black finish. This outlet is designed for 125V applications and features a robust construction with an impact-resistant nylon face and thermoplastic back body. It is equipped with a side wire configuration, making it ideal for commercial settings.
Key Features
- Voltage: Operates at 125V for standard electrical systems.
- Amperage: Supports up to 20A, suitable for commercial-grade use.
- NEMA Configuration: Standard duplex outlet for general-purpose applications.
- Tamper-Resistant: No, standard outlet design.
- Weather-Resistant: No, designed for indoor use only.
- Grade: Commercial spec-grade for high durability and performance.

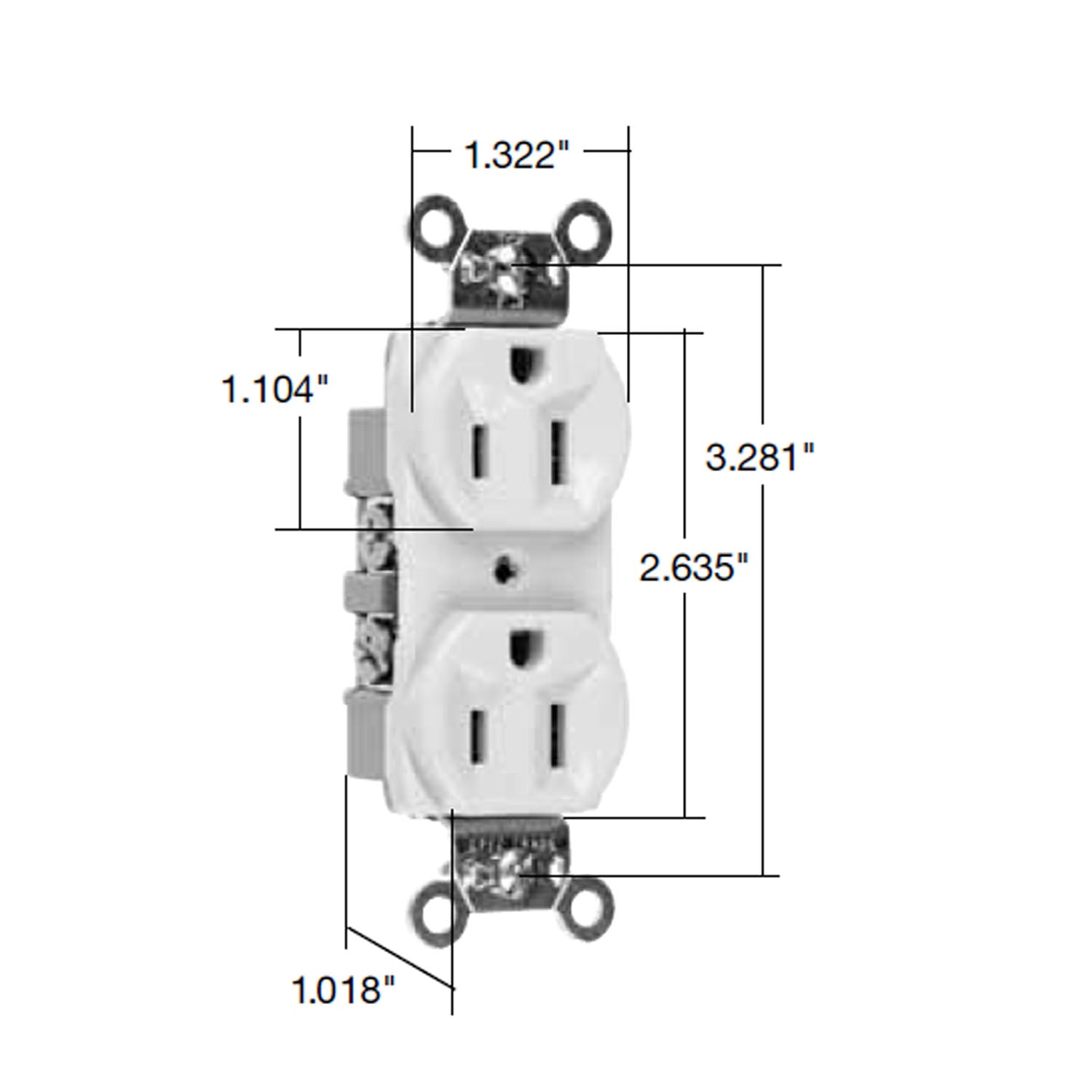

- Dimensions: Measures 1.32 in. width, 2.64 in. height, and 0.78 in. depth.
- Certifications: UL 498 and cULus listed for safety and reliability.
- Corrosion Resistance: Features a plated steel strap for enhanced durability.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current.
- Operating Temperature: Ranges from -40°C to +50°C for versatile environments.

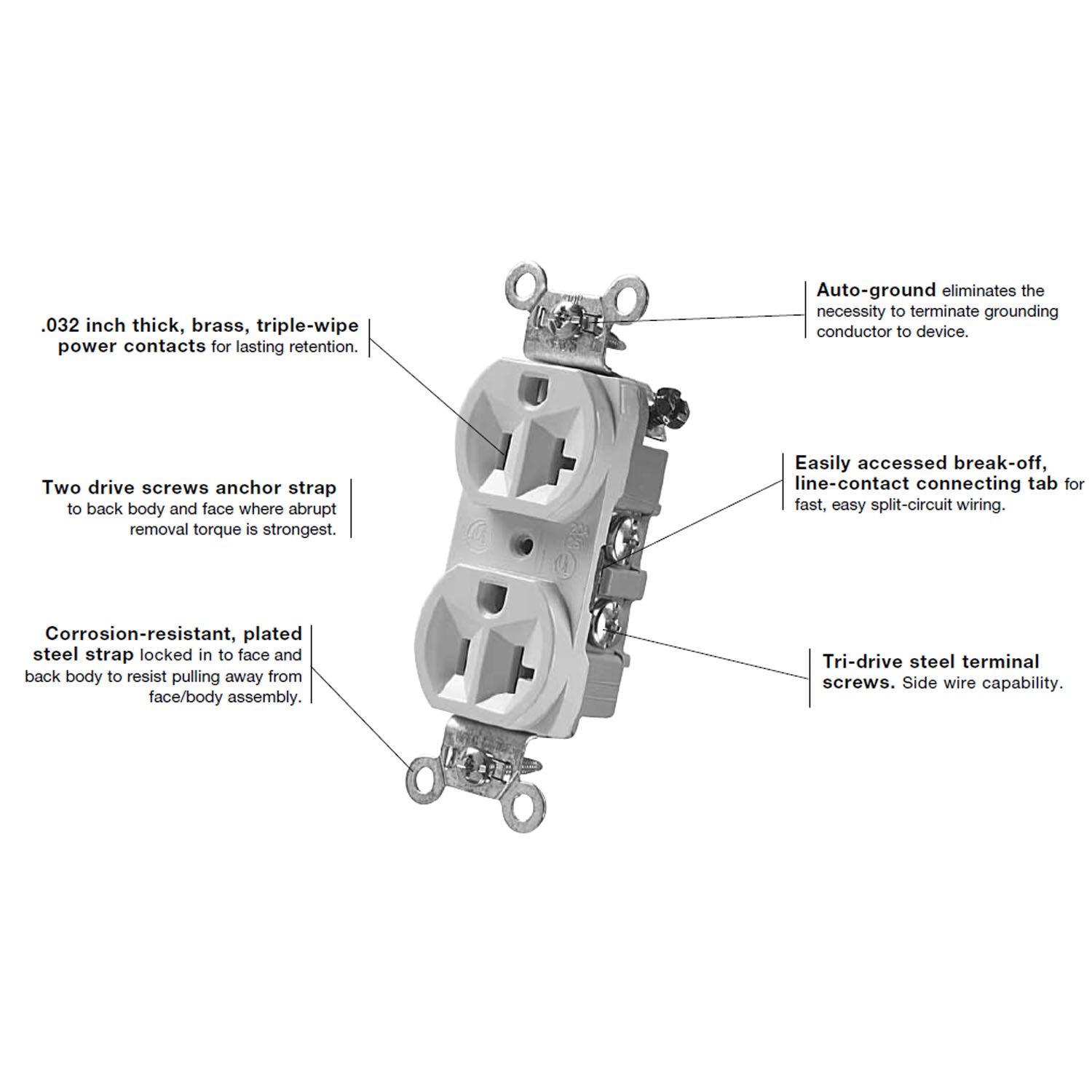

Construction & Interface
This outlet features a standard duplex interface with a matte black finish. The impact-resistant nylon face and thermoplastic back body provide durability. Please note that the wallplate is sold separately.
Power & Electrical Performance
Designed for commercial applications, this outlet supports 20A and 125V, ensuring reliable power delivery. The auto-ground clip ensures a secure ground connection, while the side wire design facilitates easy installation.
Wiring & Installation
The CR20BK supports side wiring and accepts #14 to #10 AWG solid or stranded copper wire. It features an auto-ground clip for secure grounding and a corrosion-resistant plated steel strap for enhanced durability.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the Pass & Seymour CR20BK outlet tamper-resistant?
Is the Pass & Seymour CR20BK outlet tamper-resistant?
What is the NEMA configuration for the CR20BK outlet?
What is the NEMA configuration for the CR20BK outlet?
Does the CR20BK outlet include a wallplate?
Does the CR20BK outlet include a wallplate?
What wire sizes are compatible with the CR20BK outlet?
What wire sizes are compatible with the CR20BK outlet?
Is the CR20BK outlet suitable for outdoor use?
Is the CR20BK outlet suitable for outdoor use?
