Pass & Seymour Commercial Spec-Grade Duplex Outlet — White & Durable Construction

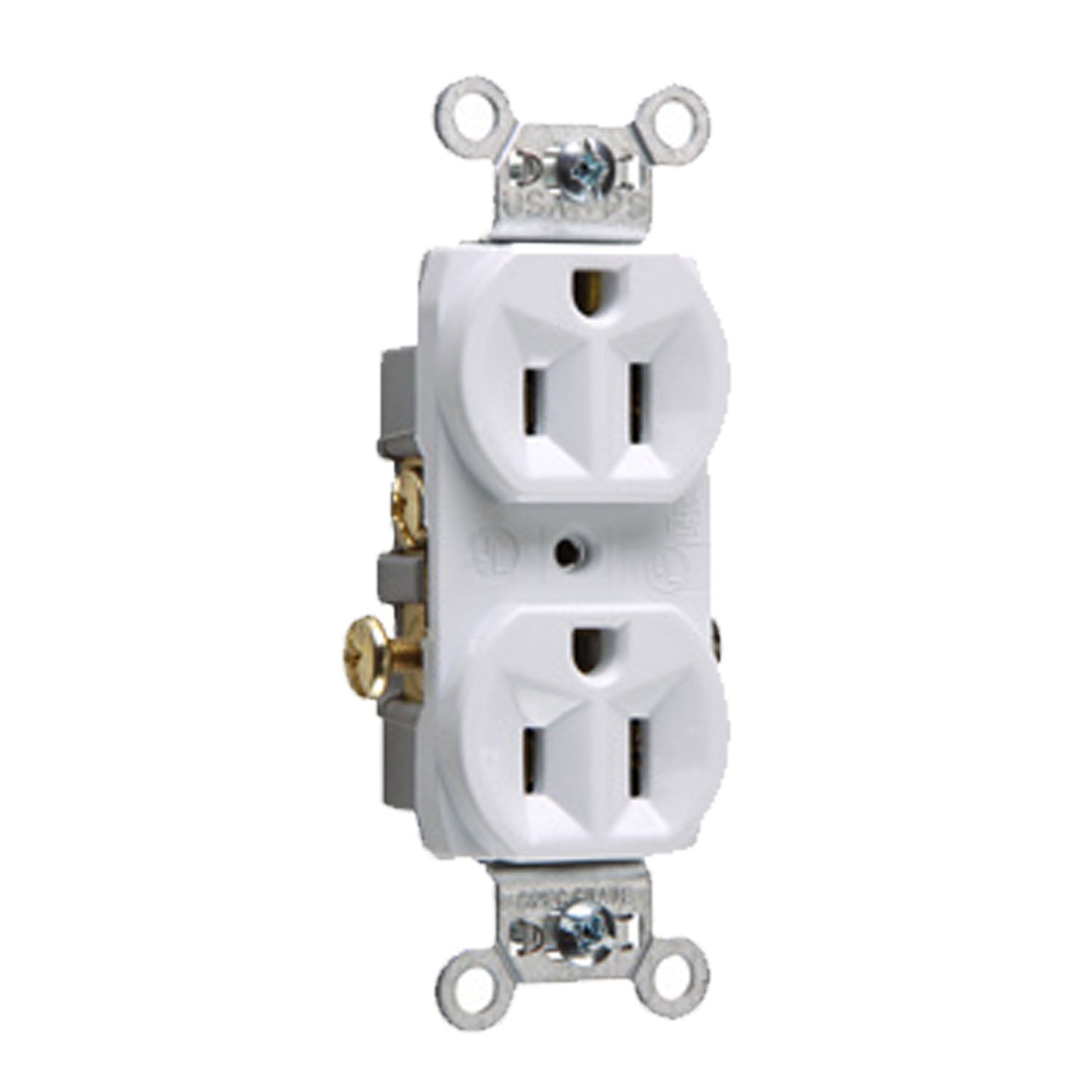

The Pass & Seymour CR15W is a 15A 125V Commercial Spec-Grade Duplex Receptacle in a white finish. This outlet is designed for commercial use, featuring a side wire configuration that accepts #14 to #10 AWG copper or copper-clad wire. It includes a corrosion-resistant, plated steel strap and impact-resistant nylon face for enhanced durability.

Key Features

• Voltage: Operates at 125V for standard electrical systems.
• Amperage: Supports 15A for commercial-grade applications.
• NEMA Configuration: Standard duplex outlet for versatile use.
• Tamper-Resistant: No, this model does not include tamper-resistant features.
• Weather-Resistant: No, designed for indoor use only.
• Grade: Commercial spec-grade for robust performance.

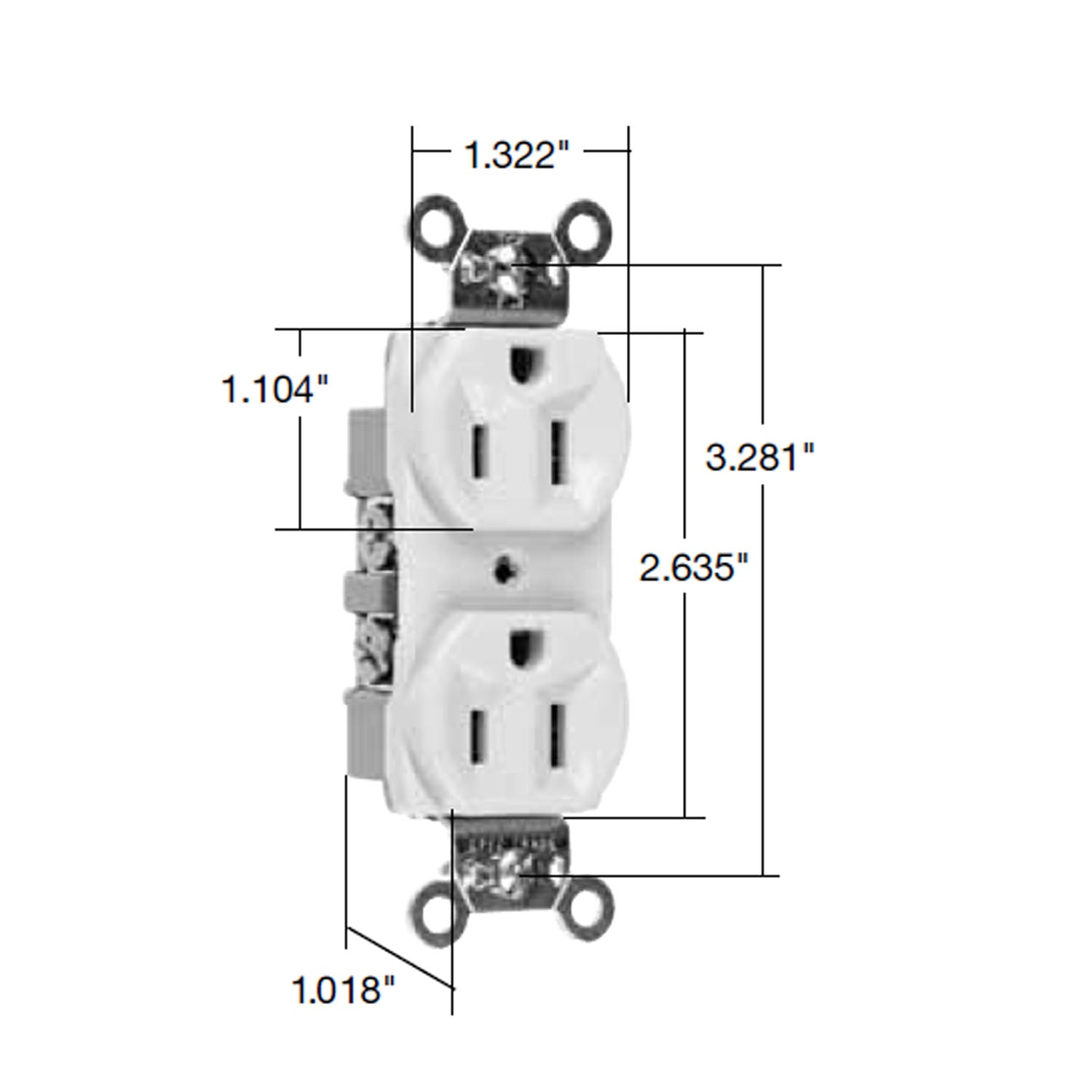

• Dimensions: Measures 1.32 in. width, 2.64 in. height, and 0.78 in. depth.
• Certifications: UL 498 listed for safety and performance.
• Material: Features an impact-resistant nylon face and thermoplastic back body.
• Temperature Rise: Maximum 30°C temperature rise at full-rated current.
• Operating Temperature: Maximum +50°C, minimum -40°C without impact.

Construction & Interface

This outlet features a standard duplex configuration with an impact-resistant nylon face and thermoplastic back body. The wallplate is sold separately, allowing for customization with compatible options from the TradeMaster or radiant series.

Power & Electrical Performance

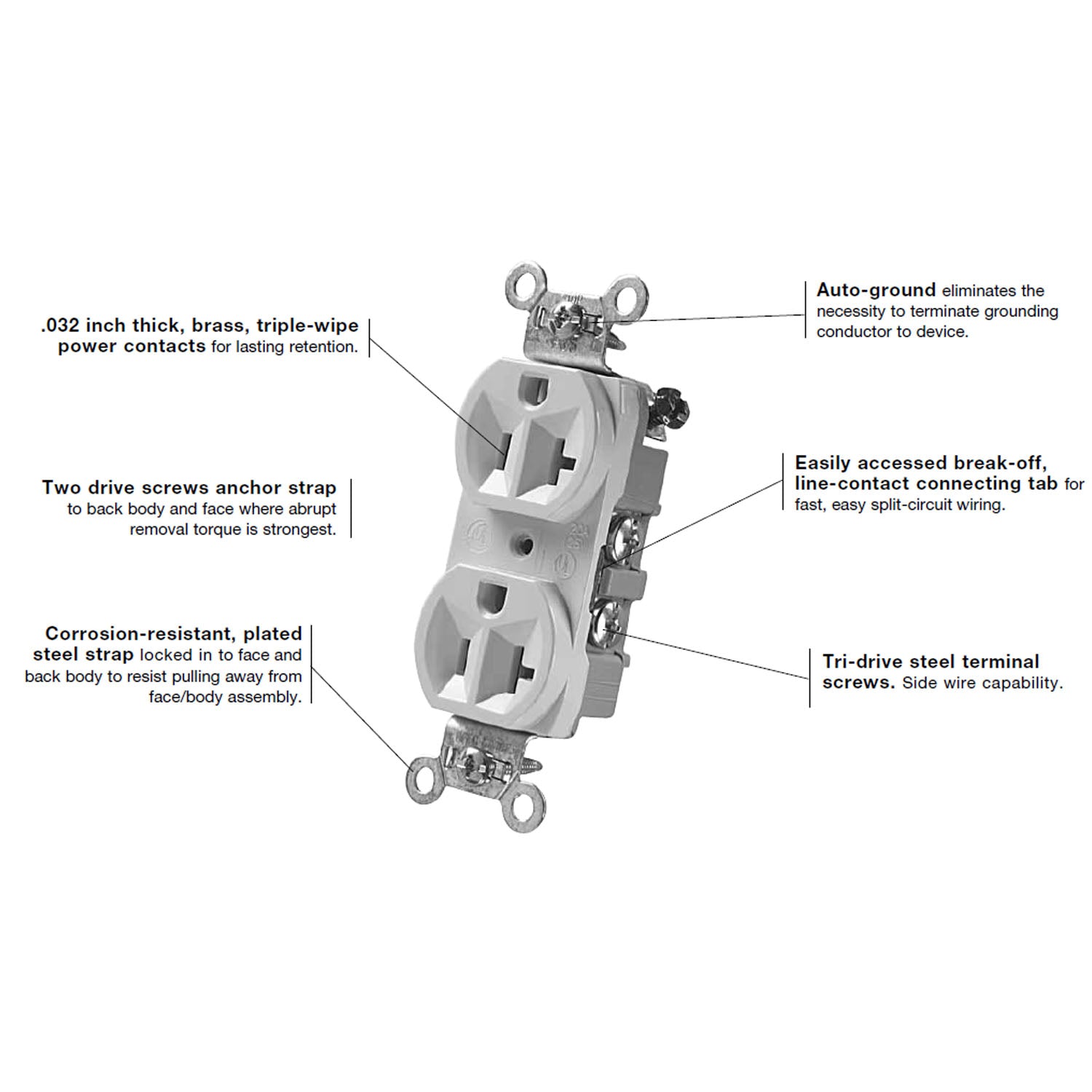

Designed for commercial environments, the CR15W offers reliable power delivery with a 15A rating. The corrosion-resistant, plated steel strap and triple-wipe power contacts ensure lasting retention and performance.

Wiring & Installation

The CR15W supports side wiring, accepting #14 to #10 AWG solid or stranded copper or copper-clad wire. It includes an auto-ground clip for positive grounding and features isolated terminal compartments for secure conductor containment.
