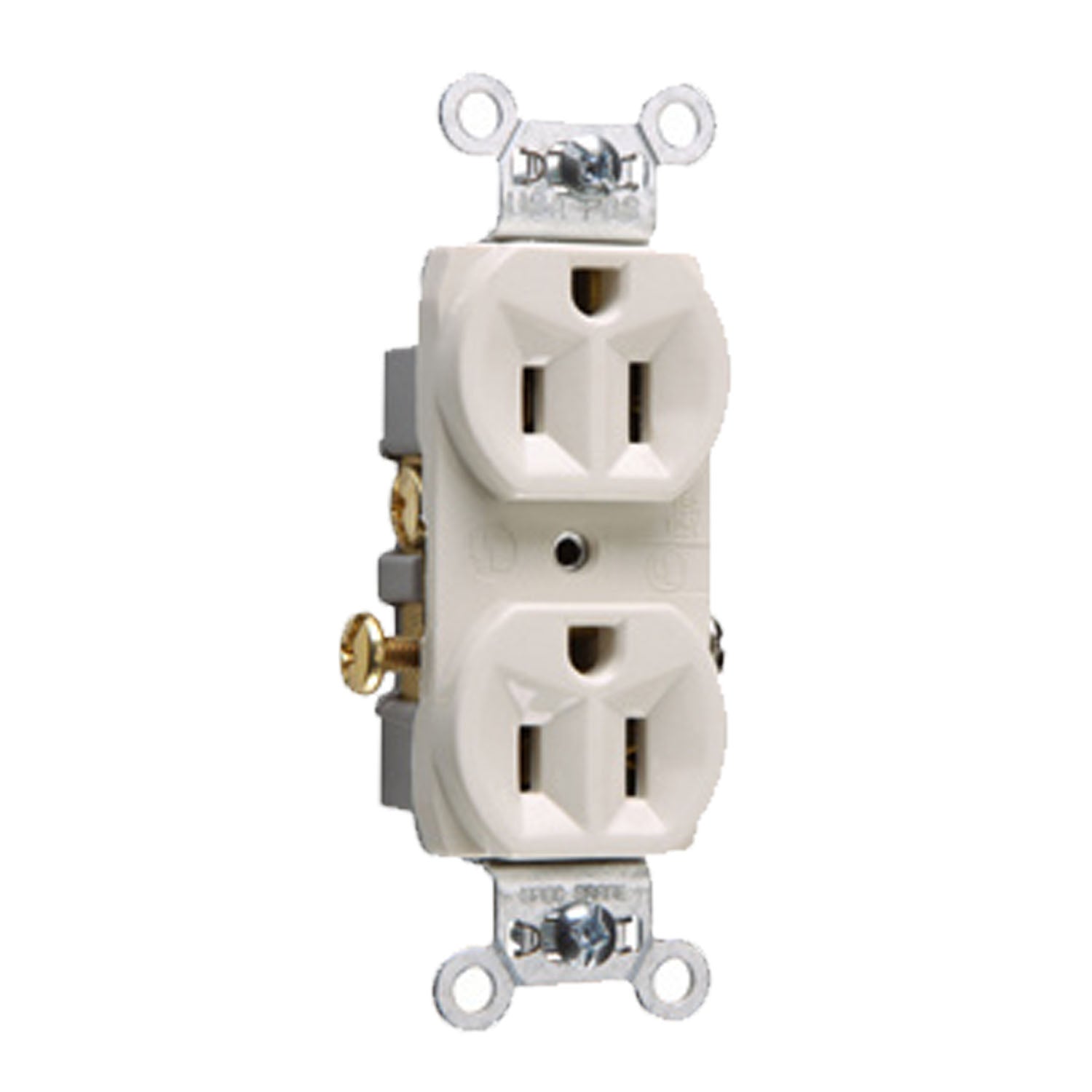

Pass & Seymour Commercial Spec-Grade Duplex Outlet — Light Almond & Side Wire

The Pass & Seymour CR15LA is a 15A Commercial Spec-Grade Duplex Outlet in a light almond finish. This outlet is designed for 125V applications and features a side wire connection method. It is built to withstand demanding commercial environments with its robust construction.

Key Features

• Voltage: Rated for 125V applications, suitable for commercial use.
• Amperage: Supports 15A current, ideal for various electrical devices.
• NEMA Configuration: Standard duplex design for compatibility with common plugs.
• Tamper-Resistant: No, not equipped with tamper-resistant features.
• Weather-Resistant: No, intended for indoor use only.
• Grade: Commercial spec-grade for high durability and performance.

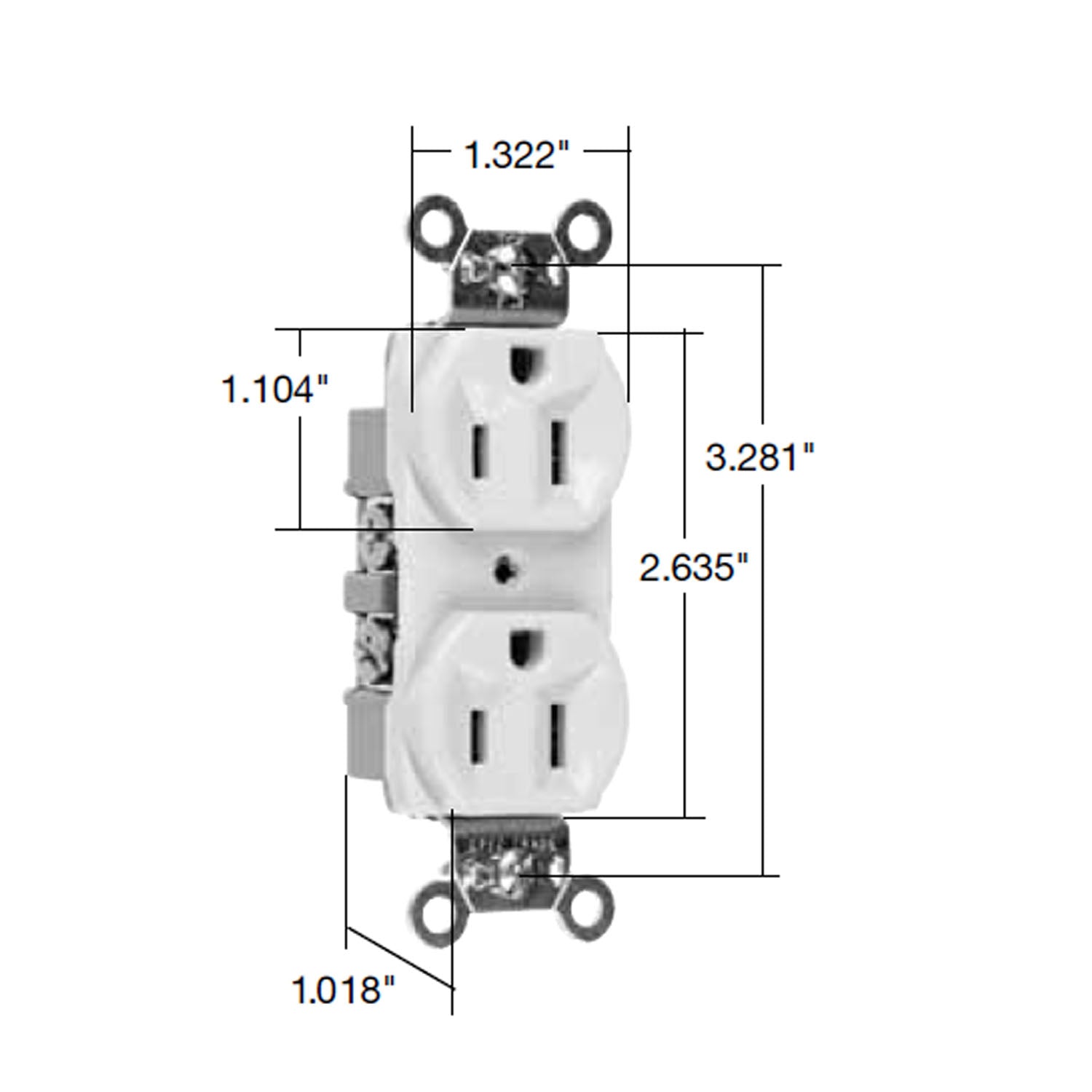

• Dimensions: Measures 1.32 in width, 2.64 in height, and 0.78 in depth.
• Certifications: UL498 and CSA C22.2 No. 42 listed for safety and reliability.

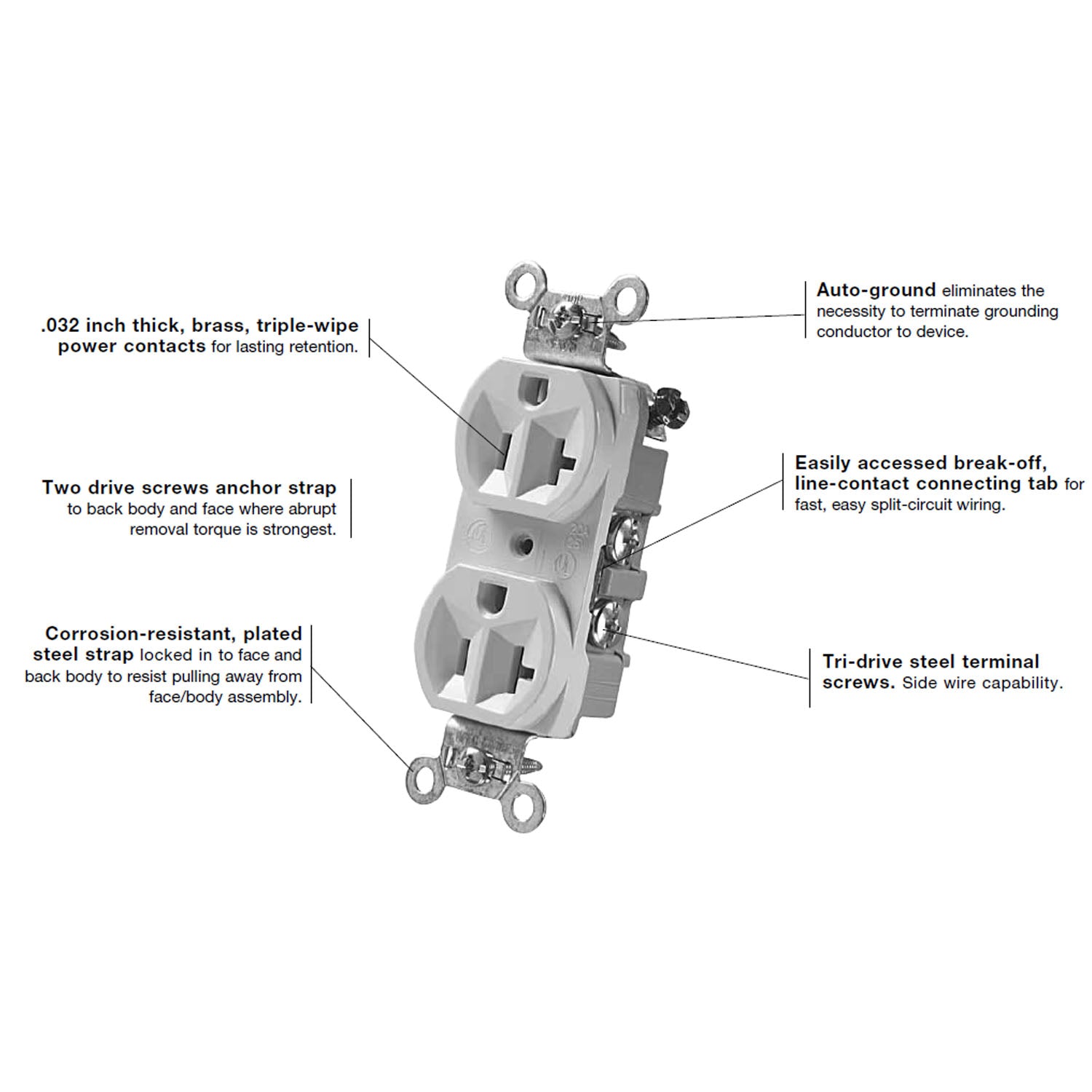

• Material: Features a corrosion-resistant, plated steel strap and brass, triple-wipe power contacts.
• Temperature Rise: Maximum 30°C temperature rise at full-rated current.
• Operating Temperature: Functional from -40°C to +50°C.
• Wire Size: Accepts #14 to #10 AWG solid or stranded copper or copper-clad wire.

Construction & Interface

This outlet features a standard duplex design with an impact-resistant nylon face and thermoplastic back body. The wallplate is sold separately, allowing for customization with various styles and materials.

Power & Electrical Performance

The CR15LA is engineered for commercial environments, offering reliable power delivery with its 15A rating and side wire connections. The outlet's robust construction ensures long-lasting performance.

Wiring & Installation

Installation is facilitated by side wire connections, accommodating #14 to #10 AWG wire. The outlet includes an auto-ground clip for secure grounding and features a corrosion-resistant strap for added durability.
