Pass & Seymour Commercial Spec-Grade Duplex Receptacle — Ivory & Durable Design

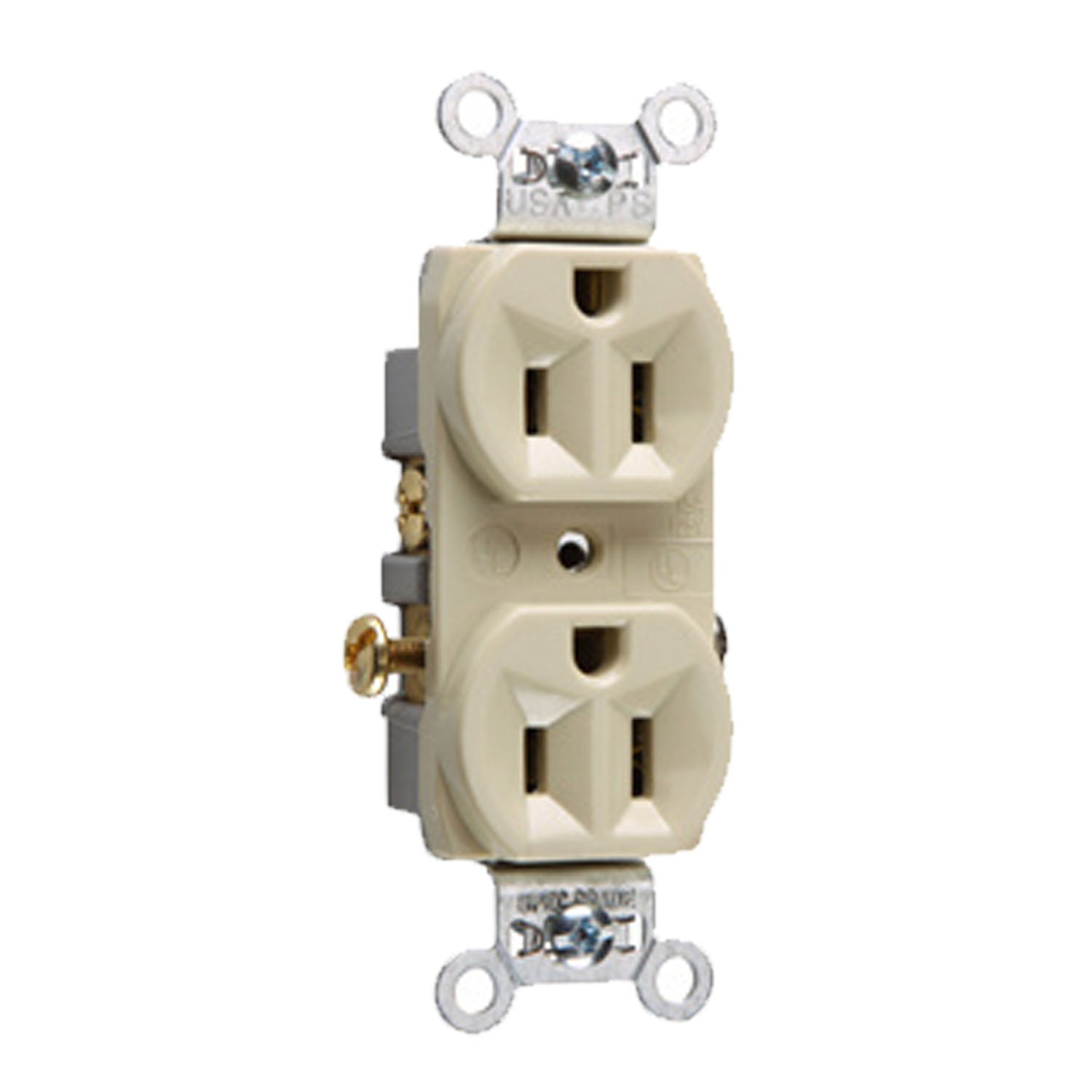

The Pass & Seymour CR15I is an ivory, 15A commercial spec-grade duplex receptacle designed for robust performance. It operates at 125V and features a side wire configuration. This outlet is constructed with an impact-resistant nylon face and a thermoplastic back body, ensuring long-lasting durability. The CR15I is ideal for commercial applications, offering reliable power distribution.

Key Features

• Voltage: Operates at 125V for standard electrical systems.
• Amperage: Supports 15A current for commercial-grade applications.
• NEMA Configuration: Standard duplex for compatibility with various plugs.
• Tamper-Resistant: No, not tamper-resistant.
• Weather-Resistant: No, designed for indoor use only.
• Grade: Commercial spec-grade for enhanced durability.

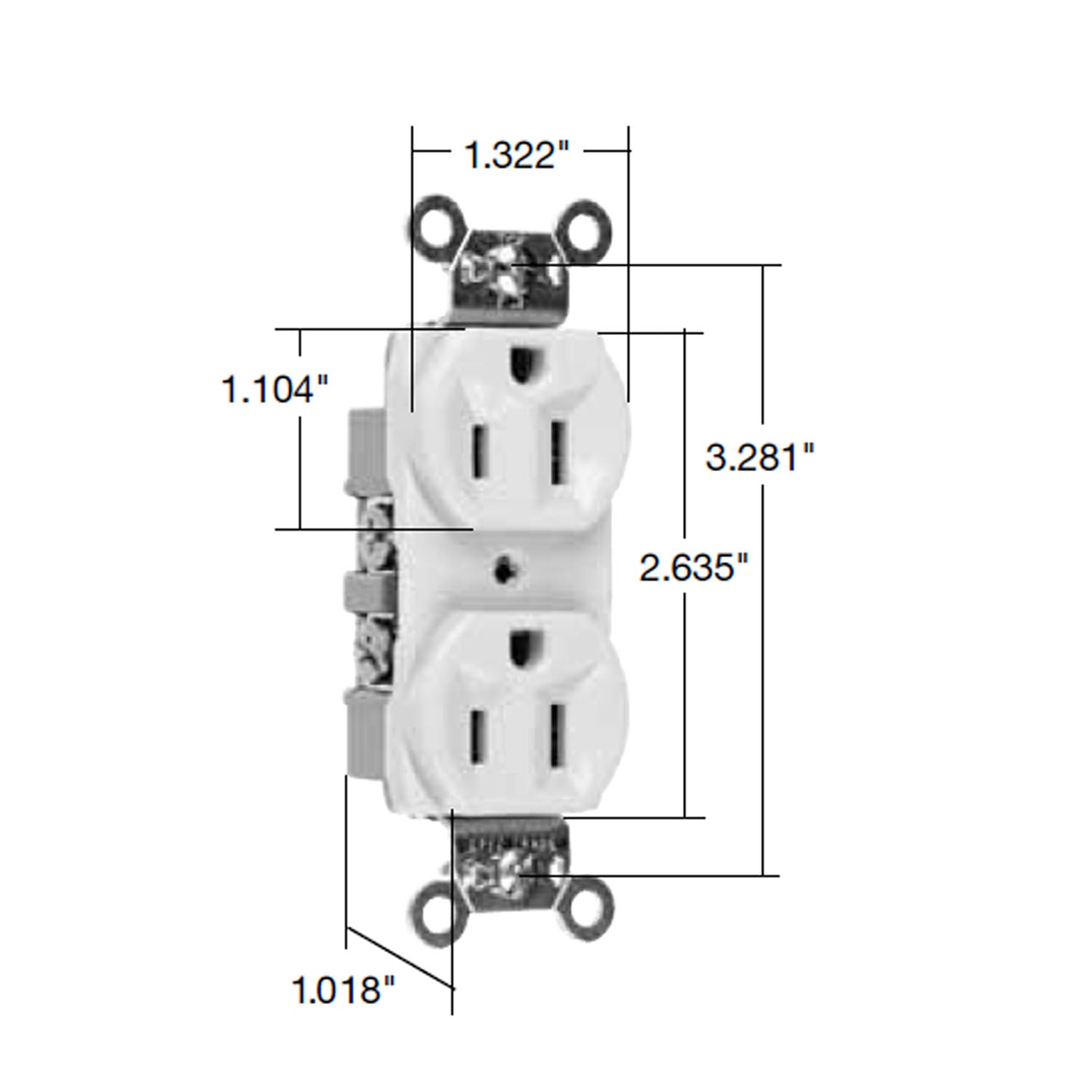

• Dimensions: Measures 1.32 in. width, 2.64 in. height, and 0.78 in. depth.
• Certifications: UL 498 listed for safety and reliability.
• Material: Corrosion-resistant, plated steel strap for secure installation.
• Temperature Rise: Maximum 30°C temperature rise at full-rated current.
• Operating Temperature: Maximum +50°C, minimum -40°C without impact.

Construction & Interface

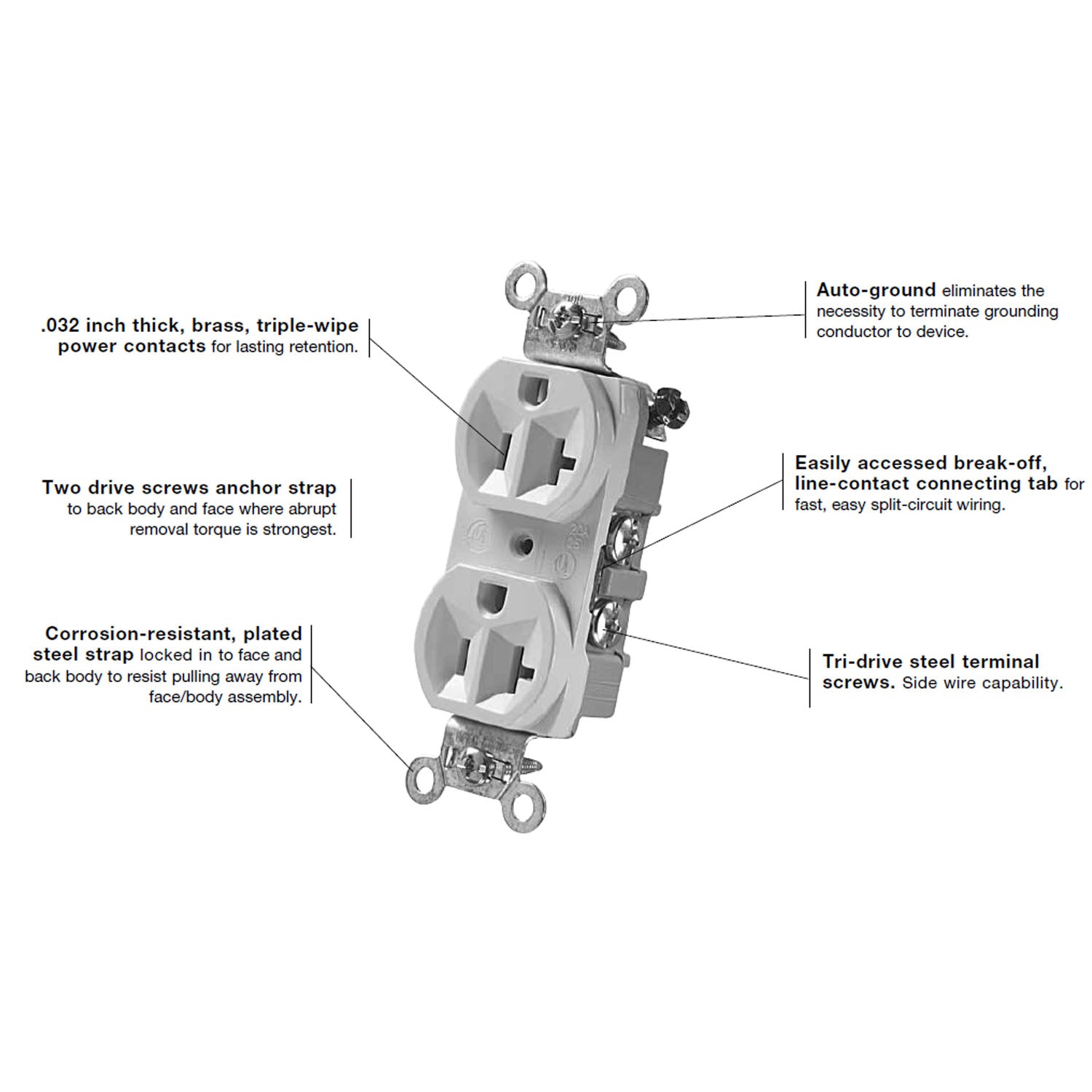

This duplex receptacle features a standard design with an impact-resistant nylon face and thermoplastic back body. The wallplate is sold separately, allowing for customization with various styles from Pass & Seymour's range.

Power & Electrical Performance

Designed for commercial environments, this outlet provides reliable power with its 15A rating and robust construction. The auto-ground clip ensures a secure ground connection, while the side wire design facilitates easy installation.

Wiring & Installation

The CR15I supports side wiring and accepts #14 to #10 AWG solid or stranded copper wire. It features an auto-ground clip for secure grounding and a corrosion-resistant steel strap for stable mounting.
