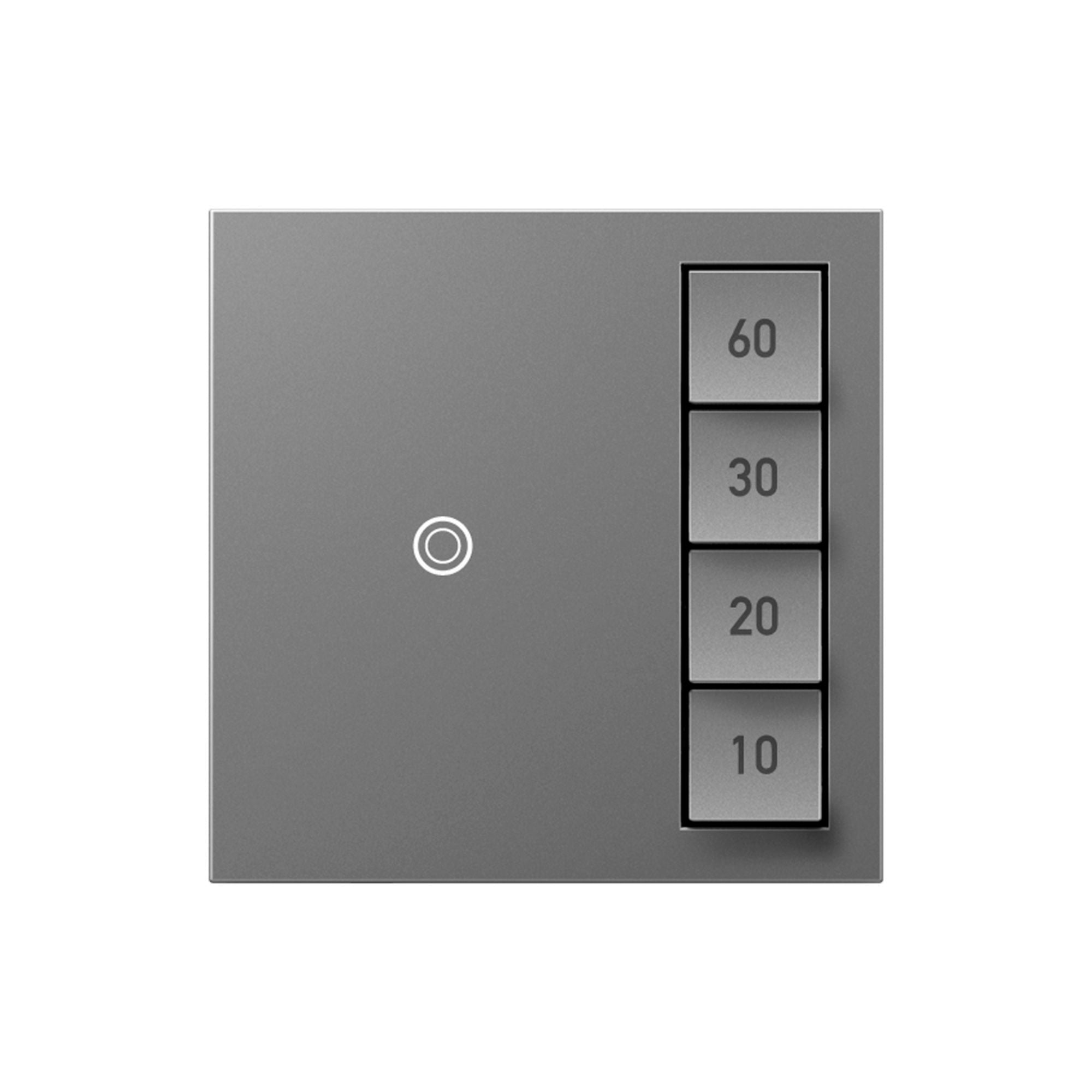

Legrand Adorne Timer Switch — Magnesium & Manual On/Timed Off

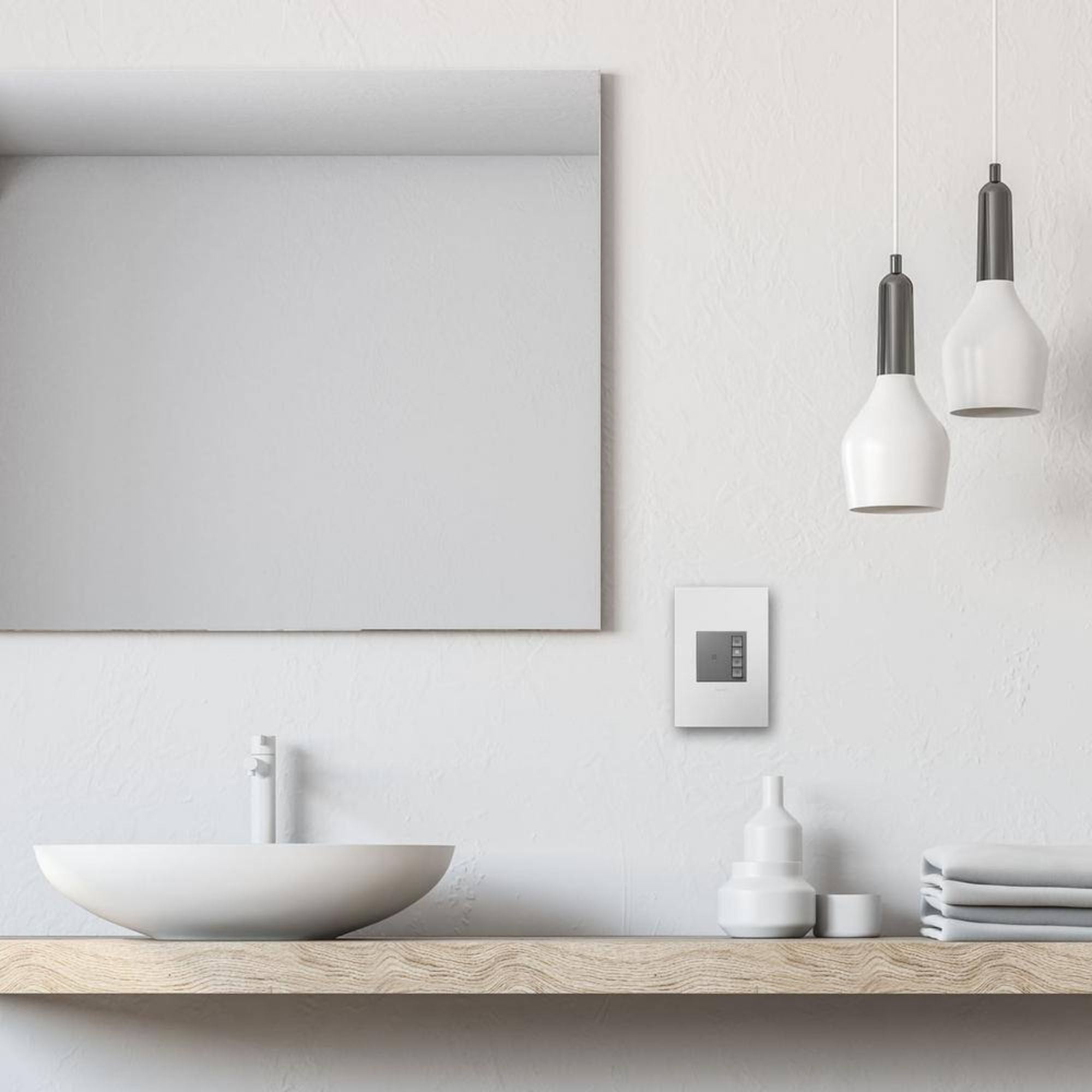

The Legrand ASTM2M2 Timer Switch in a magnesium finish is designed for manual on and timed off control, making it ideal for areas where lights are often left on, such as bathrooms or basements. This switch supports a 600W load and is compatible with 3-Way and Single Pole configurations, requiring a neutral wire for installation.

Key Features

• Voltage: Operates at 120V for residential and hospitality applications.
• Load Compatibility: Handles CFL, Fluorescent, Halogen, HID, Incandescent, LED, Universal, and Xenon loads up to 600W.
• Pole Configuration: Suitable for 3-Way and Single Pole installations.
• Timer Intervals: Offers time delay options of 10, 20, 30, or 60 minutes.

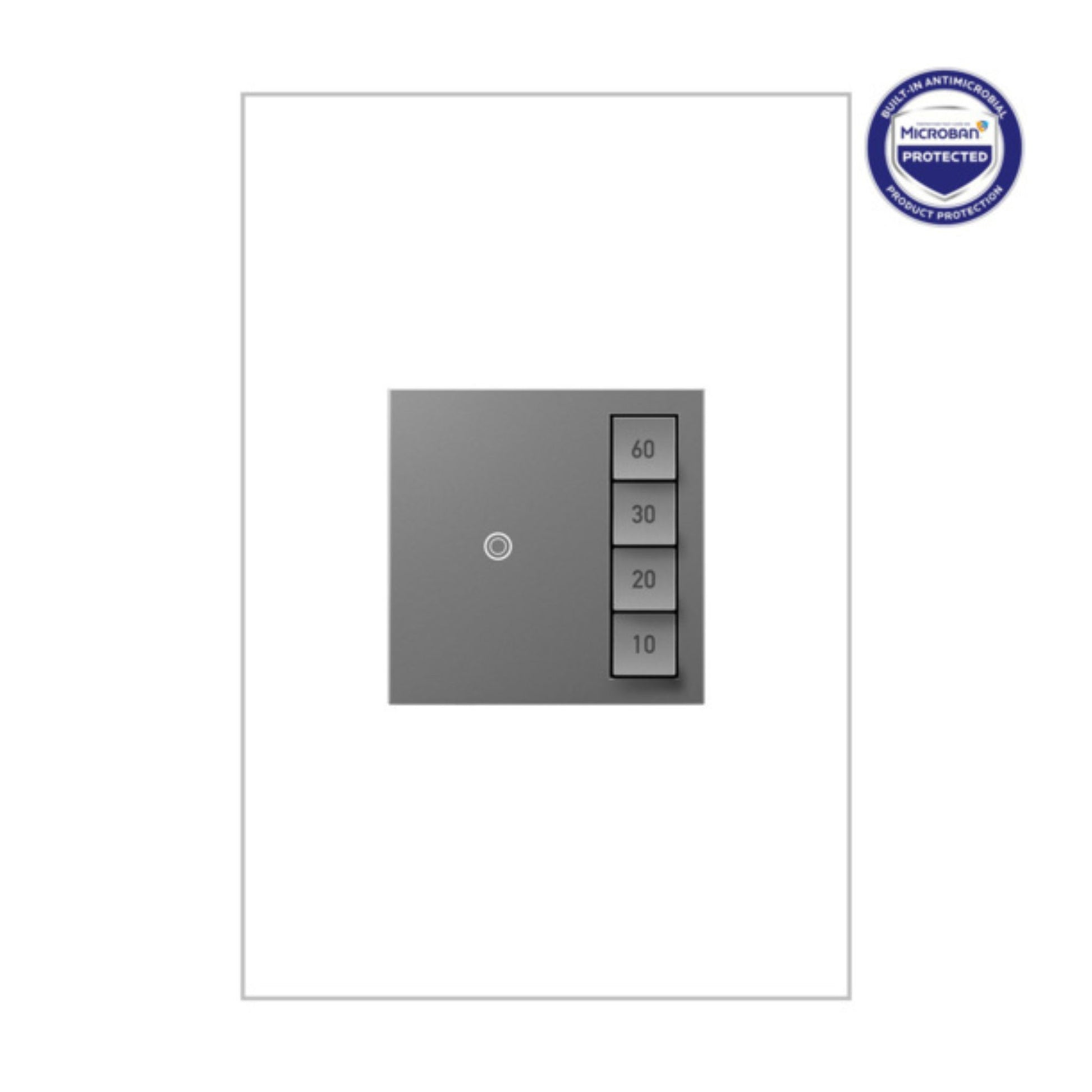

• Microban Protection: Features antimicrobial technology to reduce bacterial growth.
• Installation: Fits into existing electrical boxes with no new wiring required.
• Dimensions: Measures 1.77 in width, 2.66 in height, and 1.85 in depth.
• Certifications: cULus listed for safety and performance.
• Wallplate: Compatible with adorne screwless wall plates, sold separately.
• Finish: Available in a magnesium metallic finish.

Construction & Interface

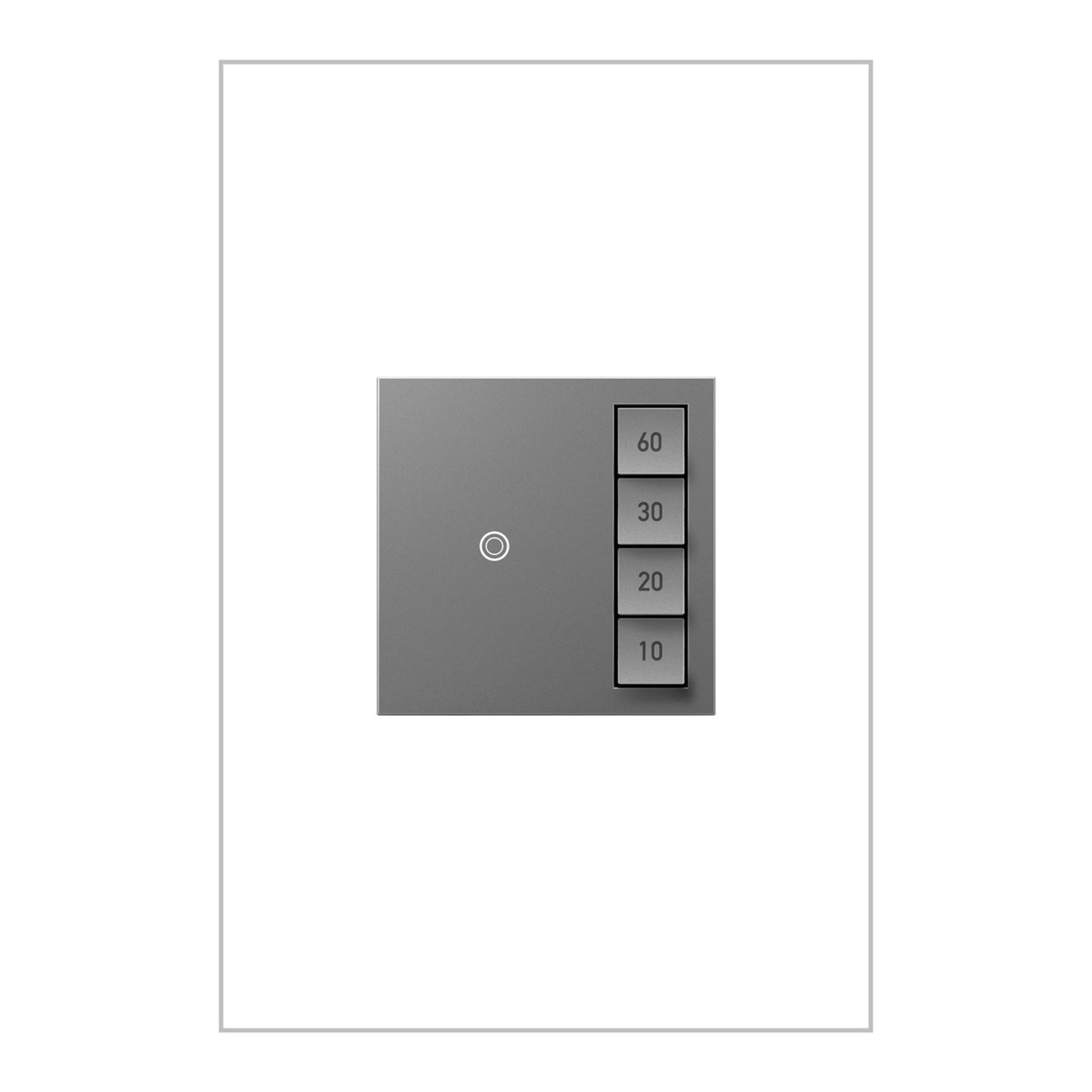

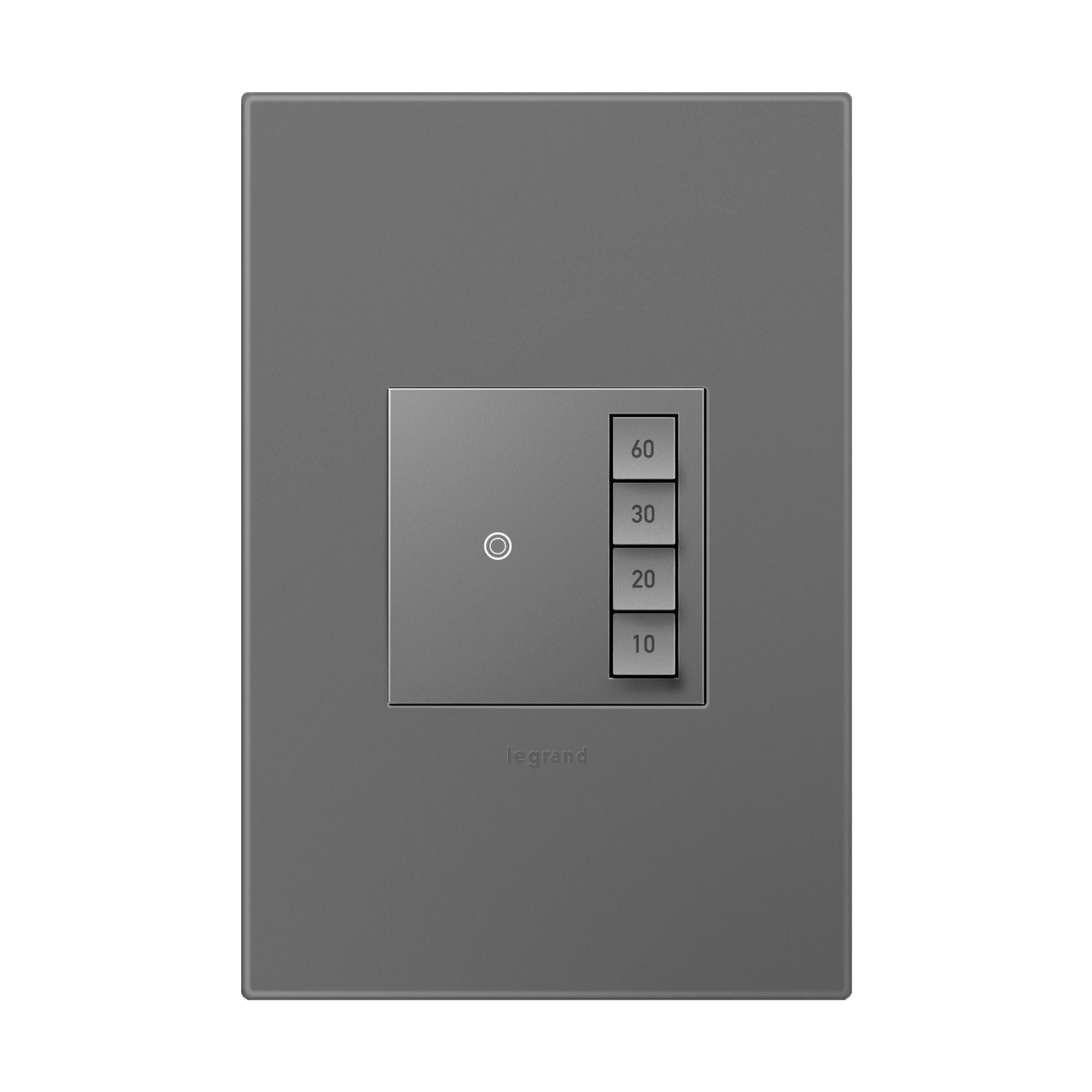

The timer switch features a rocker switch style with a magnesium metallic finish. It includes Microban antimicrobial protection for added hygiene. Note that the wallplate is sold separately.

Sensor, Smart & Timer Capabilities

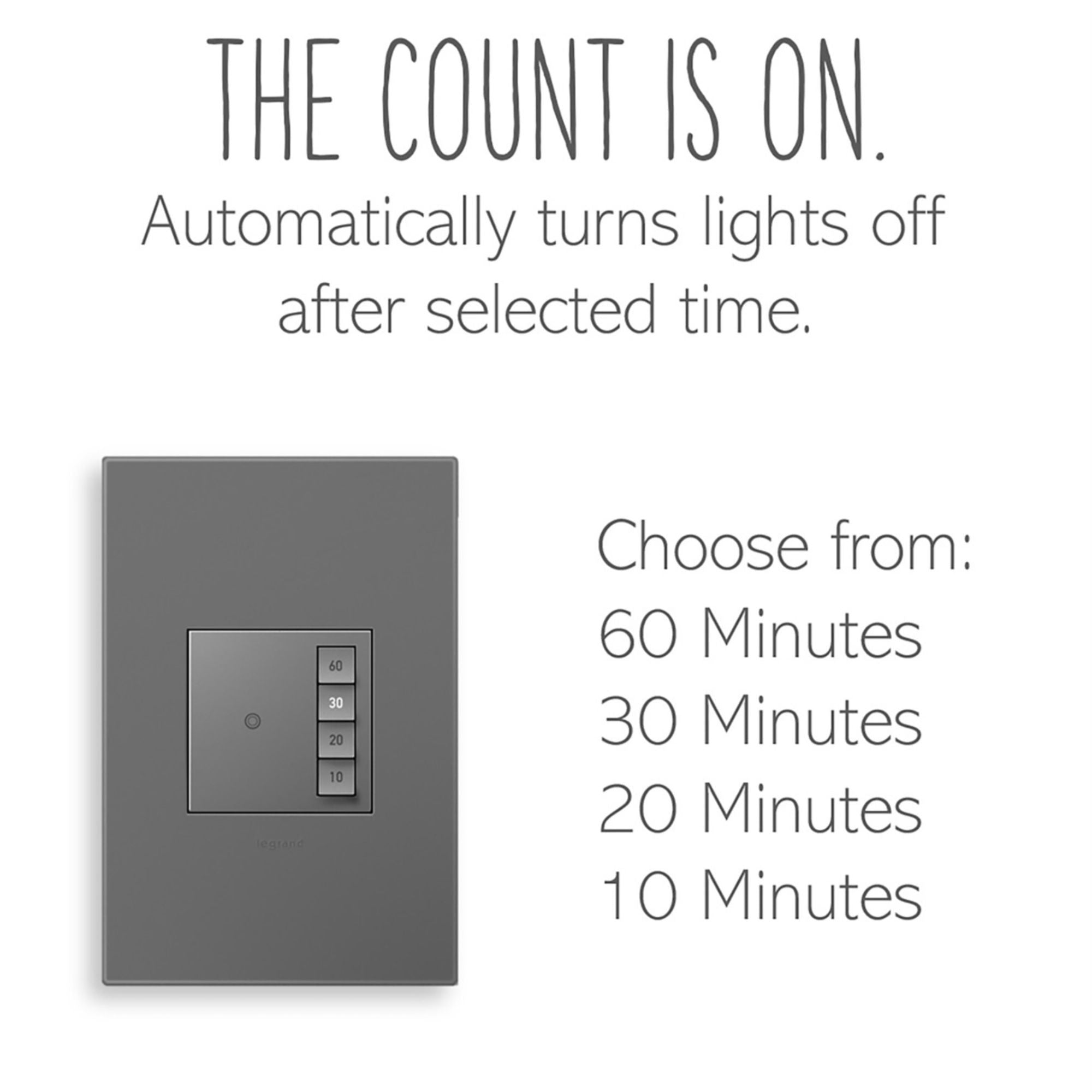

This timer switch utilizes SensaSwitch technology to automatically turn lights off after a preset time delay, with options ranging from 10 to 60 minutes. It is perfect for ensuring lights are not left on unnecessarily.

Wiring & Installation

The Legrand ASTM2M2 requires a neutral wire for installation and supports both 3-Way and Single Pole configurations. It connects via internal pressure plates and fits into existing electrical boxes without the need for new wiring.
