Legrand Adorne Timer Switch — Graphite & Manual On/Timed Off

The Legrand ASTM2G2 Timer Switch in Graphite offers a Manual On/Timed Off control, perfect for areas like bathrooms or basements where lights are often left on. This switch supports a 600W load across various types including CFL, Fluorescent, Halogen, HID, Incandescent, LED, Universal, and Xenon. It is designed for Single-Pole and 3-Way configurations, requiring a neutral wire for operation.

Key Features

• Voltage: Operates at 120V, suitable for residential and hospitality applications.
• Load Rating: Handles up to 600W, accommodating a wide range of lighting technologies.
• Pole Configuration: Supports Single-Pole and 3-Way setups for versatile use.

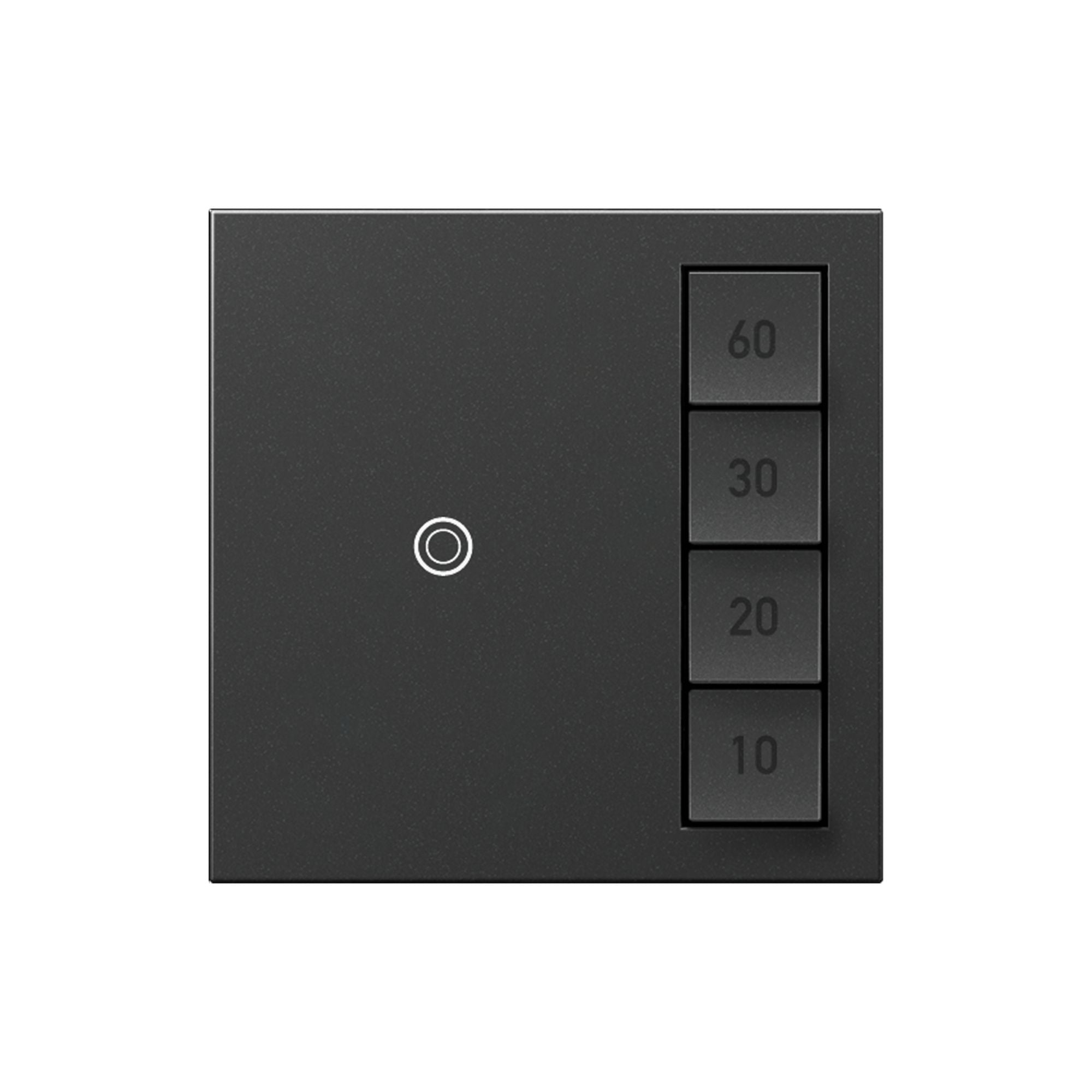

• Timer Options: Offers time delay settings of 10, 20, 30, or 60 minutes for automatic light shutoff.
• Neutral Wire: Requires a neutral wire for proper installation and function.
• Antimicrobial Feature: Incorporates Microban technology for continuous bacterial protection.
• Installation: Fits standard electrical boxes with internal pressure plate connections.
• Dimensions: Measures 1.77 in width, 2.66 in height, and 1.85 in depth.
• Finish: Graphite metallic finish for a modern aesthetic.
• Warranty: Covered by a limited lifetime warranty for peace of mind.

Construction & Interface

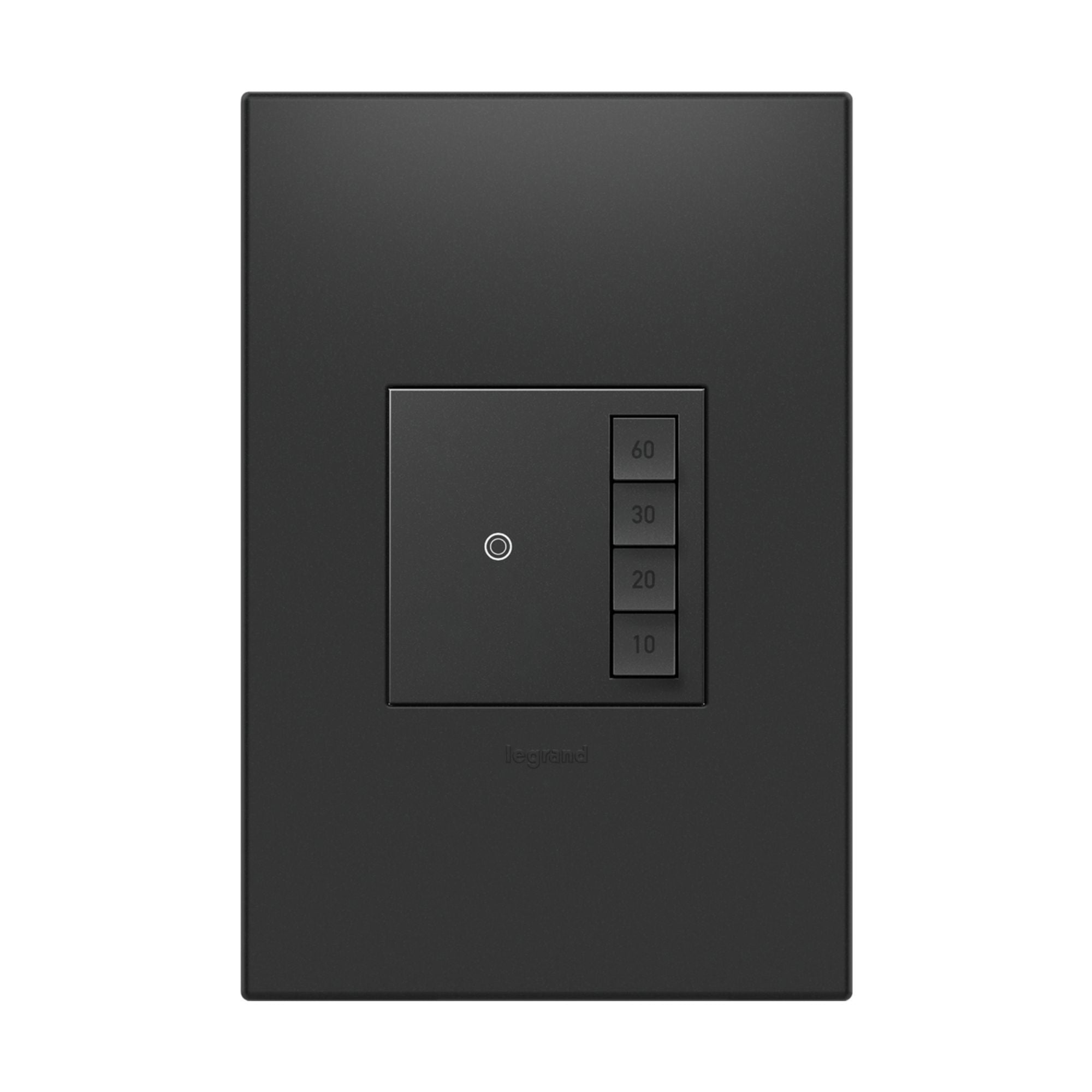

This timer switch features a sleek graphite metallic finish and a rocker switch style. It is designed for indoor use and must be paired with an adorne screwless wall plate, which is sold separately.

Sensor, Smart & Timer Capabilities

The ASTM2G2 utilizes SensaSwitch technology to automatically turn lights off after a preset time delay, offering options of 10, 20, 30, or 60 minutes. This feature is ideal for ensuring lights are not left on unnecessarily, enhancing energy efficiency.

Wiring & Installation

Installation requires a neutral wire and supports both Single-Pole and 3-Way configurations. The device connects via internal pressure plates, fitting into existing electrical boxes without the need for new wiring.
