Legrand adorne Duplex Outlet — Magnesium & GFCI Protection

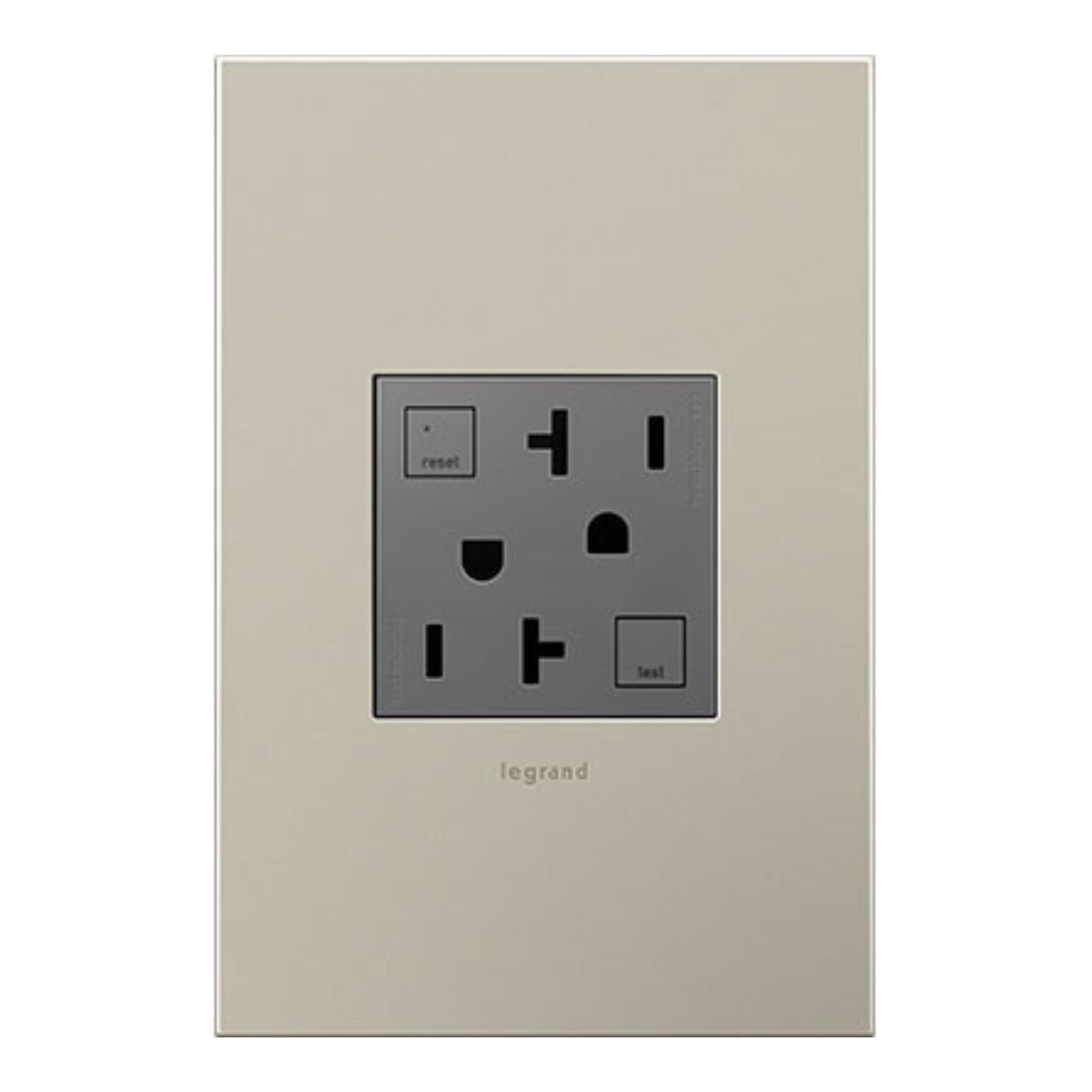

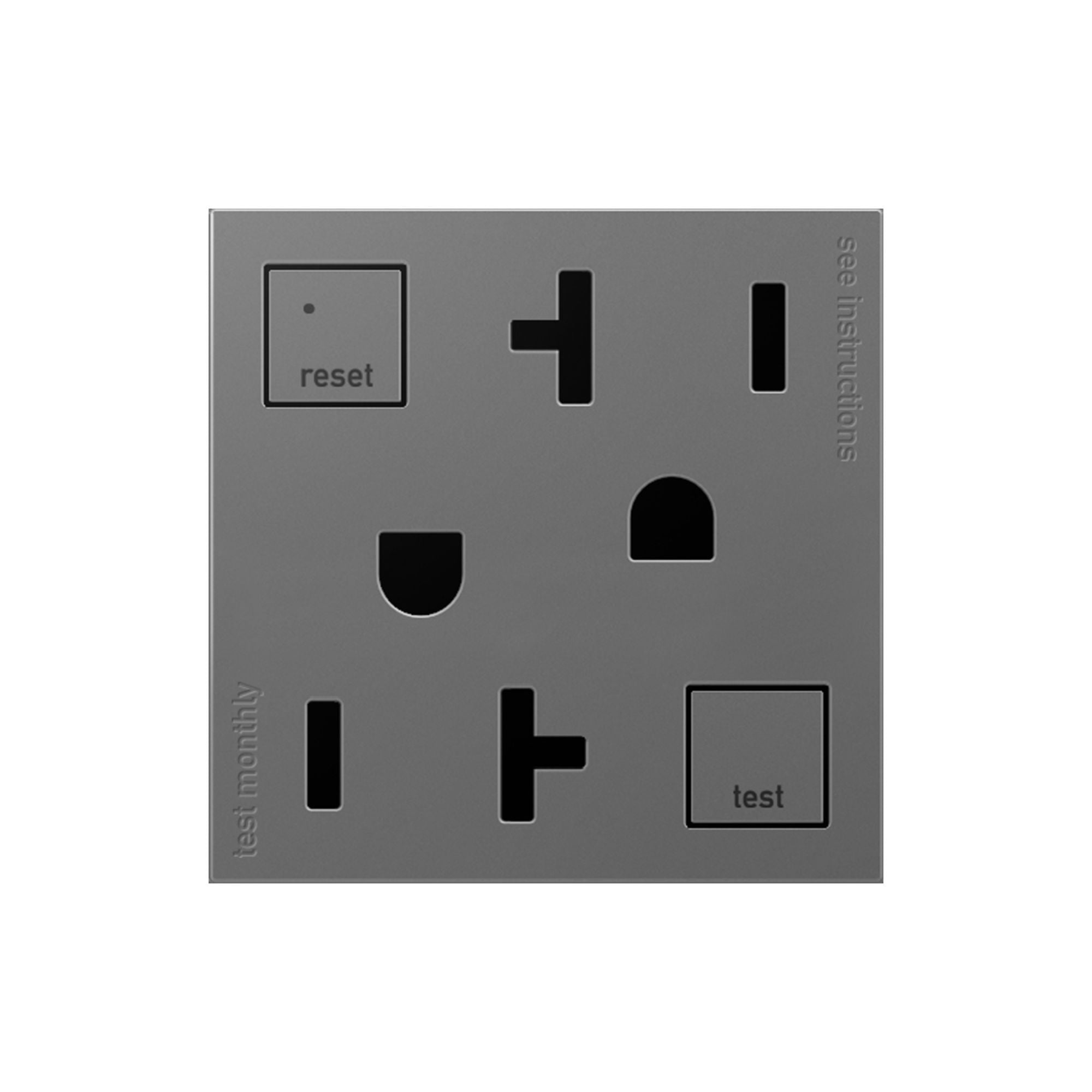

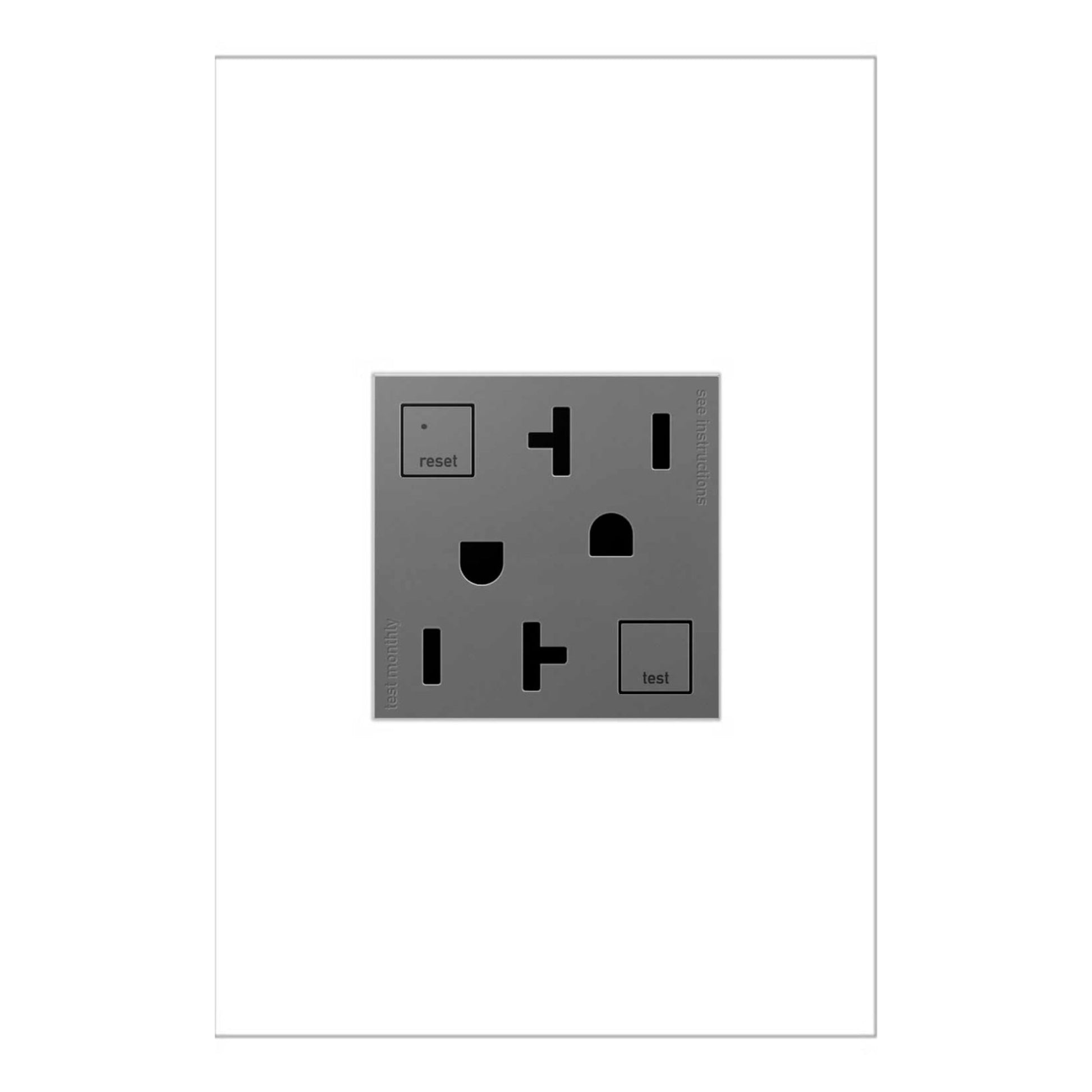

The Legrand AGFTR2202M4 is a magnesium-finished, 20A duplex outlet designed for residential use. This outlet features GFCI protection to prevent electrical shock and a tamper-resistant design for added safety. It is rated for NEMA 5-20R and supports side and back wiring for easy installation.

Key Features

• Voltage: Compatible with standard residential voltage levels.
• Amperage: Rated for 20A to handle high-power devices.
• NEMA Configuration: NEMA 5-20R for standard plug compatibility.
• Tamper-Resistant: Yes, includes safety shutters to prevent foreign object insertion.
• Weather-Resistant: No, designed for indoor use only.
• Grade: Suitable for residential applications.
• Dimensions: 1.82 in. W x 2.66 in. H x 1.77 in. D.
• Certifications: CULUS listed for safety and performance.
• GFCI Protection: Provides ground fault protection to prevent electrical shock.
• Self-Test Feature: Automatically tests every 3 seconds to ensure functionality.
• Finish: Magnesium with a frosted appearance for a modern look.
• Mounting Type: Box mount for secure installation.

Construction & Interface

This outlet features a contemporary design with a magnesium finish, suitable for modern interiors. It is constructed for durability and ease of use, with side and back wiring options. Please note, the wallplate is sold separately.

Safety & Ground Fault Protection

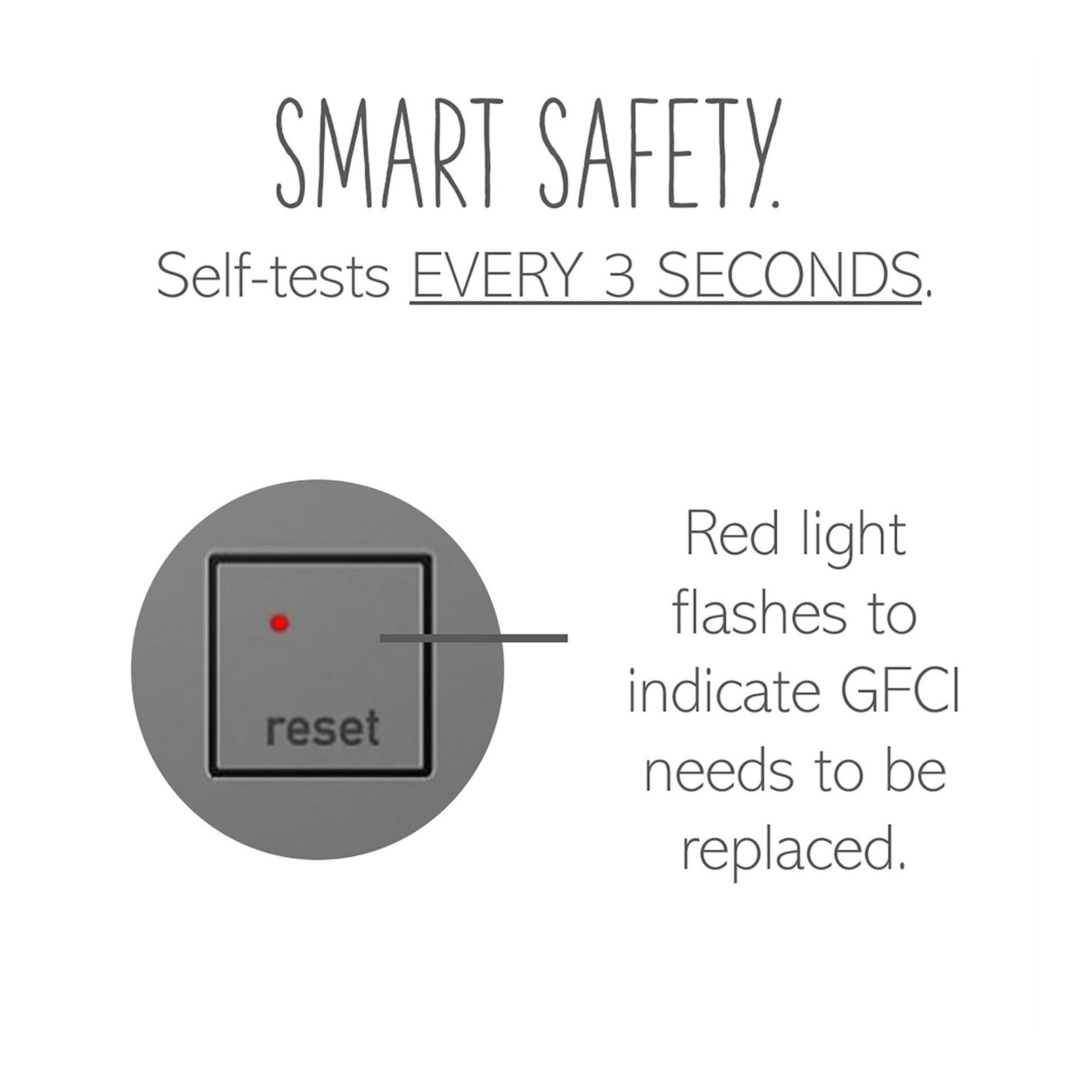

The outlet includes a self-testing GFCI mechanism that automatically tests itself every 3 seconds. It also features an indicator light that signals when the outlet needs replacement, ensuring continuous protection against electrical shock.

Wiring & Installation

Installation is straightforward with side and back wire connections. It accepts wire gauges from #14 to #10 AWG and features internal pressure plates for secure connections. The outlet is designed for single-phase applications and does not require a neutral wire.
