Legrand radiant Duplex Outlet — Graphite & Tamper-Resistant

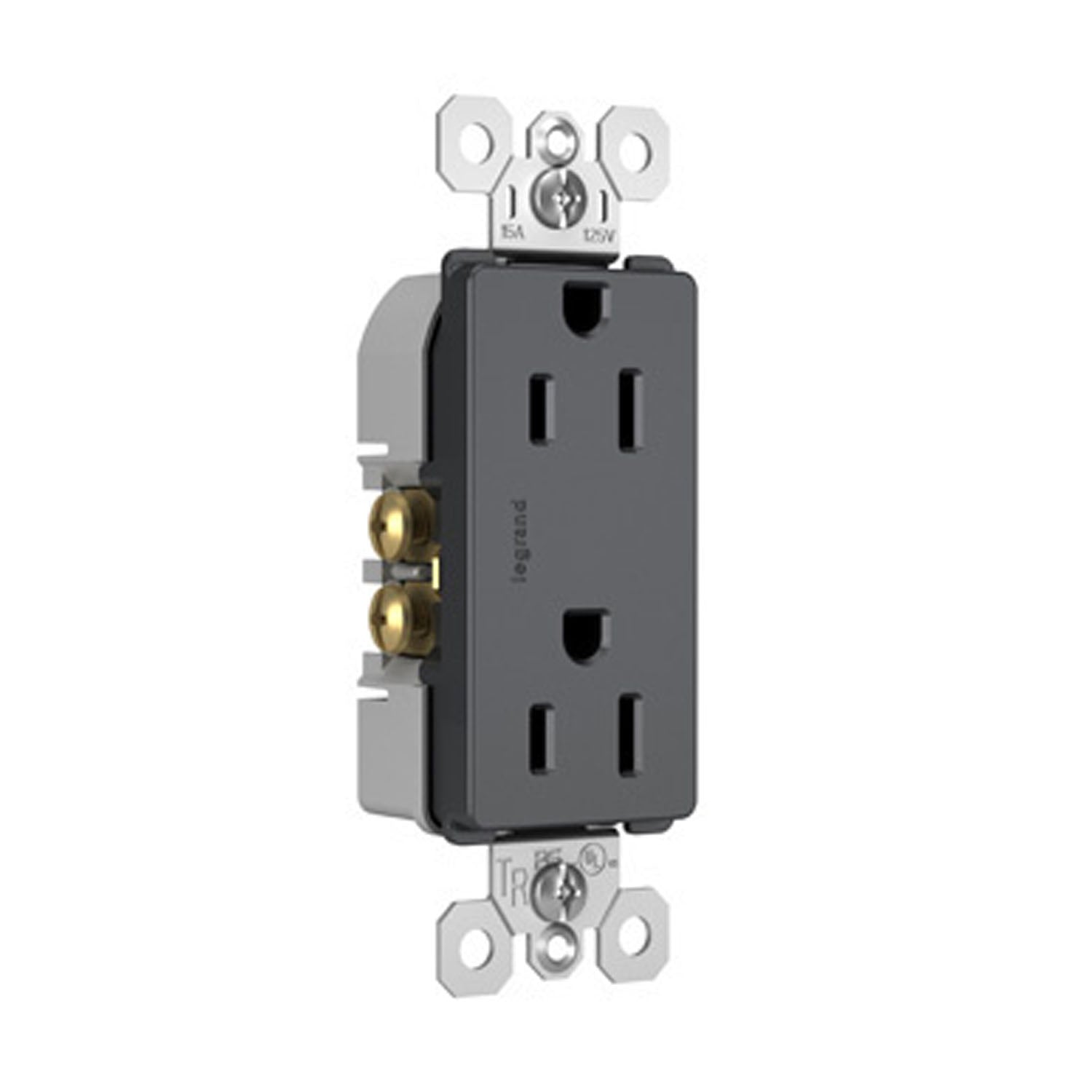

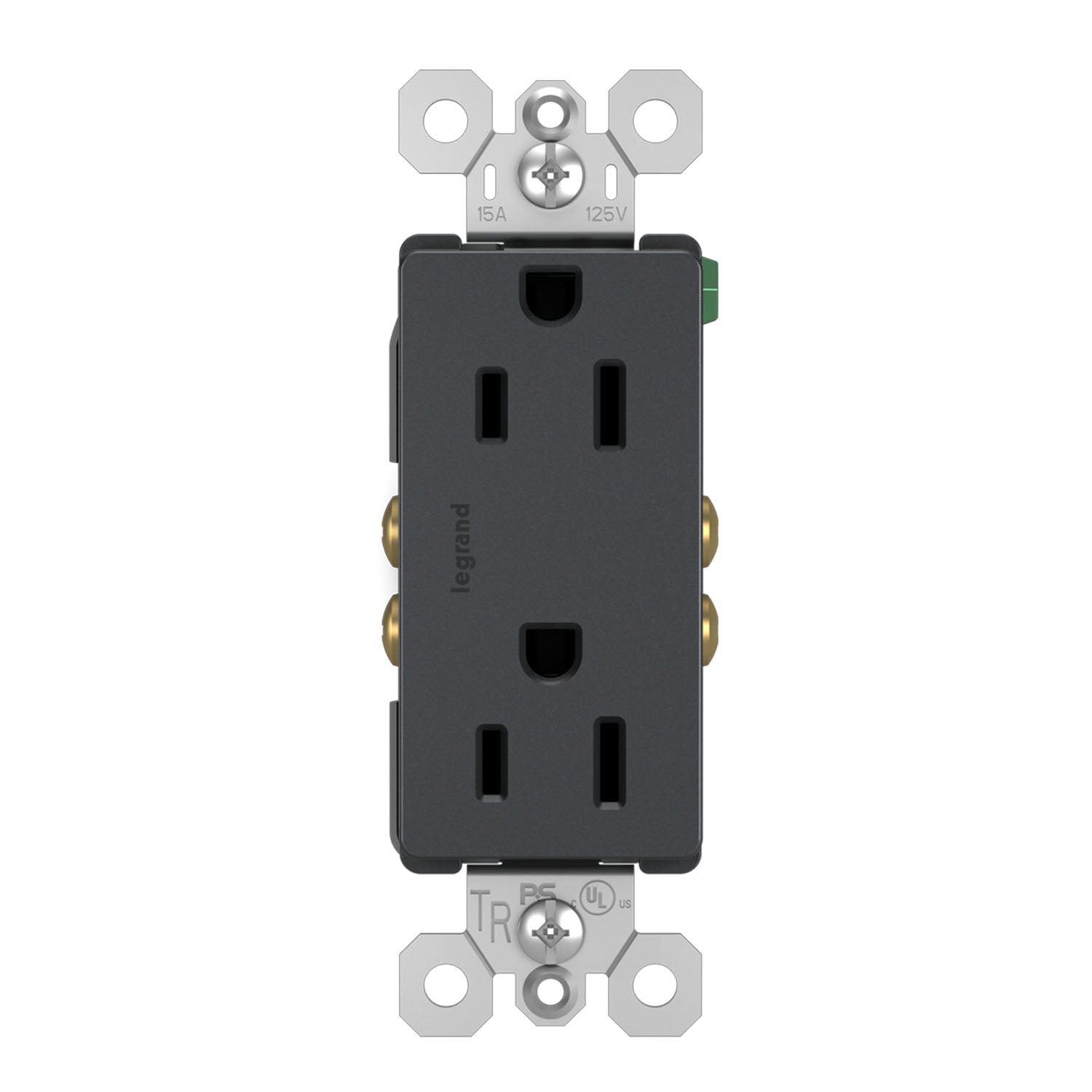

The Legrand 885TRGCC12 is a graphite tamper-resistant duplex outlet from the radiant Collection. It is rated for 15A and operates at 125V with a NEMA 5-15R configuration. This outlet is designed for indoor residential use, featuring a patented tamper-resistant shutter system for enhanced safety.

Key Features

• Voltage: Operates at 125V for standard electrical systems.
• Amperage: Supports up to 15A, ideal for household appliances.
• NEMA Configuration: NEMA 5-15R, compatible with standard plugs.
• Tamper-Resistant: Yes, includes a patented shutter system for safety.
• Indoor Use: Designed for residential indoor applications.
• Construction: High-impact resistant thermoplastic for durability.
• Dimensions: 1.29 in. width, 4.20 in. height, 1.00 in. depth.
• Color: Graphite finish for a modern look.
• Certification: cULus Listed for safety and compliance.
• Warranty: Comes with a 1-year limited warranty.

Construction & Interface

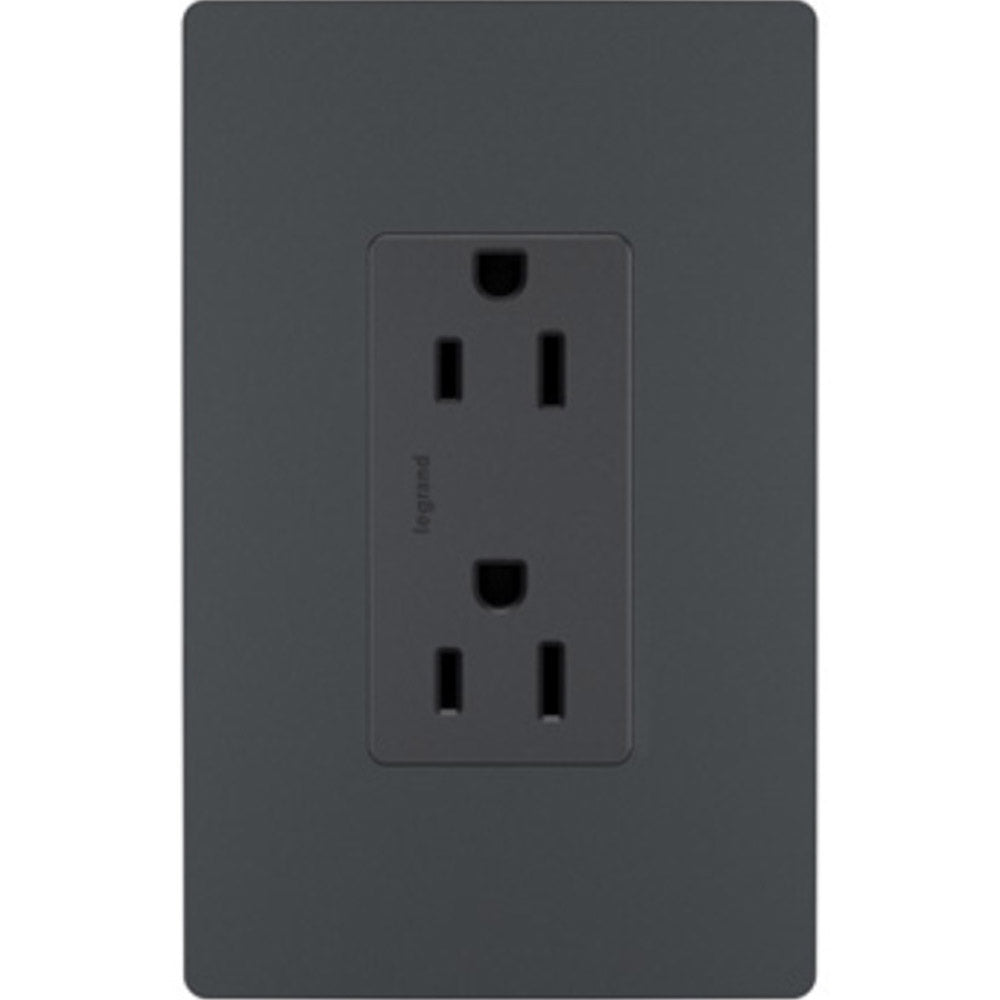

This outlet features a sleek design with a graphite finish, constructed from high-impact resistant thermoplastic. It is compatible with screwless wall plates from the radiant Collection, which are sold separately.

Safety & Ground Fault Protection

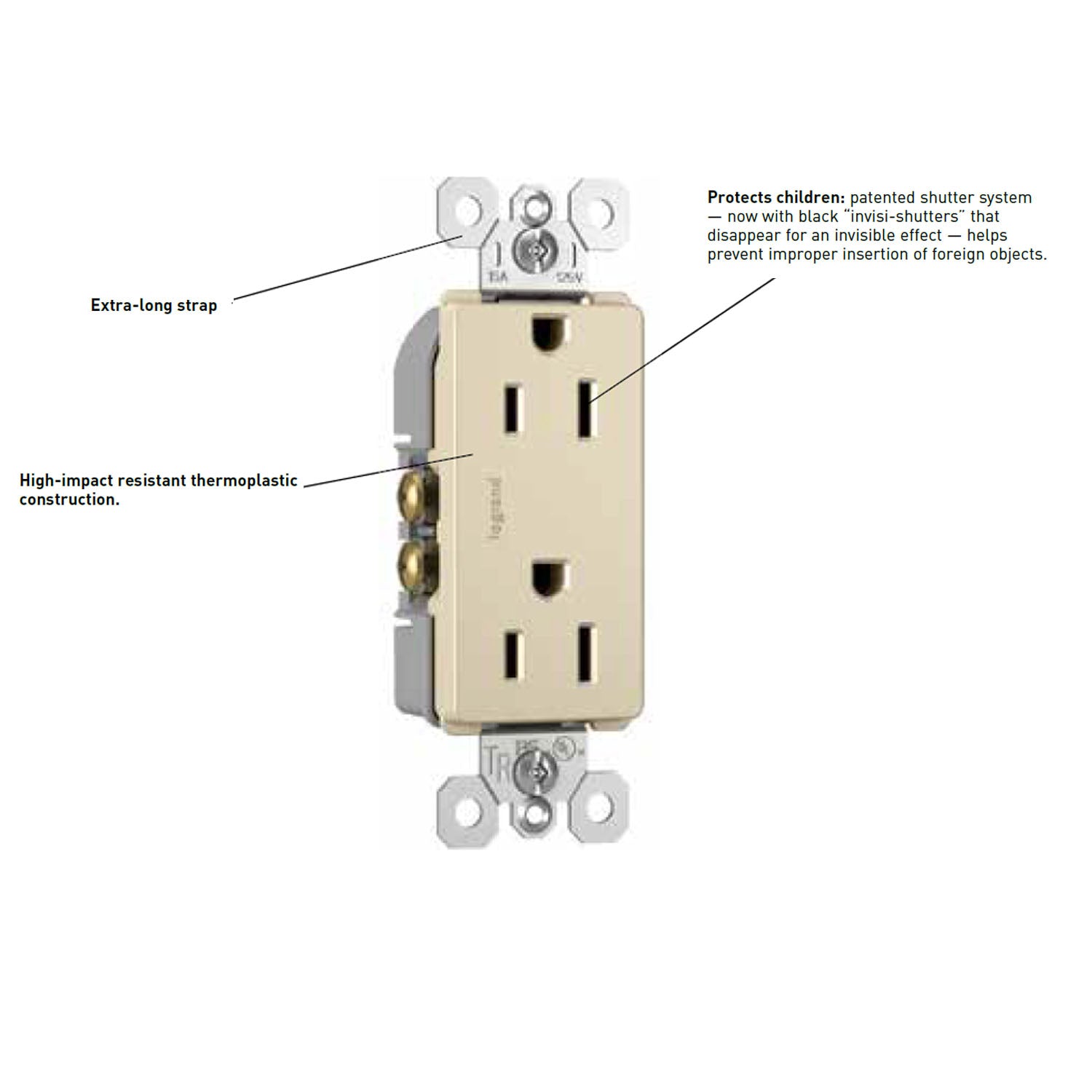

The tamper-resistant design includes patented shutters to prevent the insertion of foreign objects, enhancing safety in residential environments.

Wiring & Installation

Designed for easy installation with box mounting, this outlet supports back and side wiring methods. It accommodates wire sizes from #14 to #10 AWG and includes a grounding screw for secure connections.
