Legrand radiant Duplex Outlet — Light Almond & Standard

The Legrand 885LA radiant Duplex Outlet in Light Almond offers a sleek and modern design for residential applications. This outlet supports a maximum of 15A and operates at 125V, featuring a NEMA 5-15R configuration. It is designed for indoor use and is part of the radiant Collection, known for its clean lines and sophisticated appearance.

Key Features

• Voltage: Operates at 125V for standard residential circuits.
• Amperage: Rated for 15A, suitable for most home applications.
• NEMA Configuration: 5-15R, compatible with standard plugs.
• Tamper-Resistant: No, standard outlet design.
• Weather-Resistant: No, intended for indoor use only.
• Grade: Suitable for residential and commercial applications.
• Dimensions: Measures 1.29 in. width, 4.2 in. height, and 1.0 in. depth.
• Certifications: UL 498 and cULus listed for safety and performance.
• Material: Constructed from high-impact resistant thermoplastic.

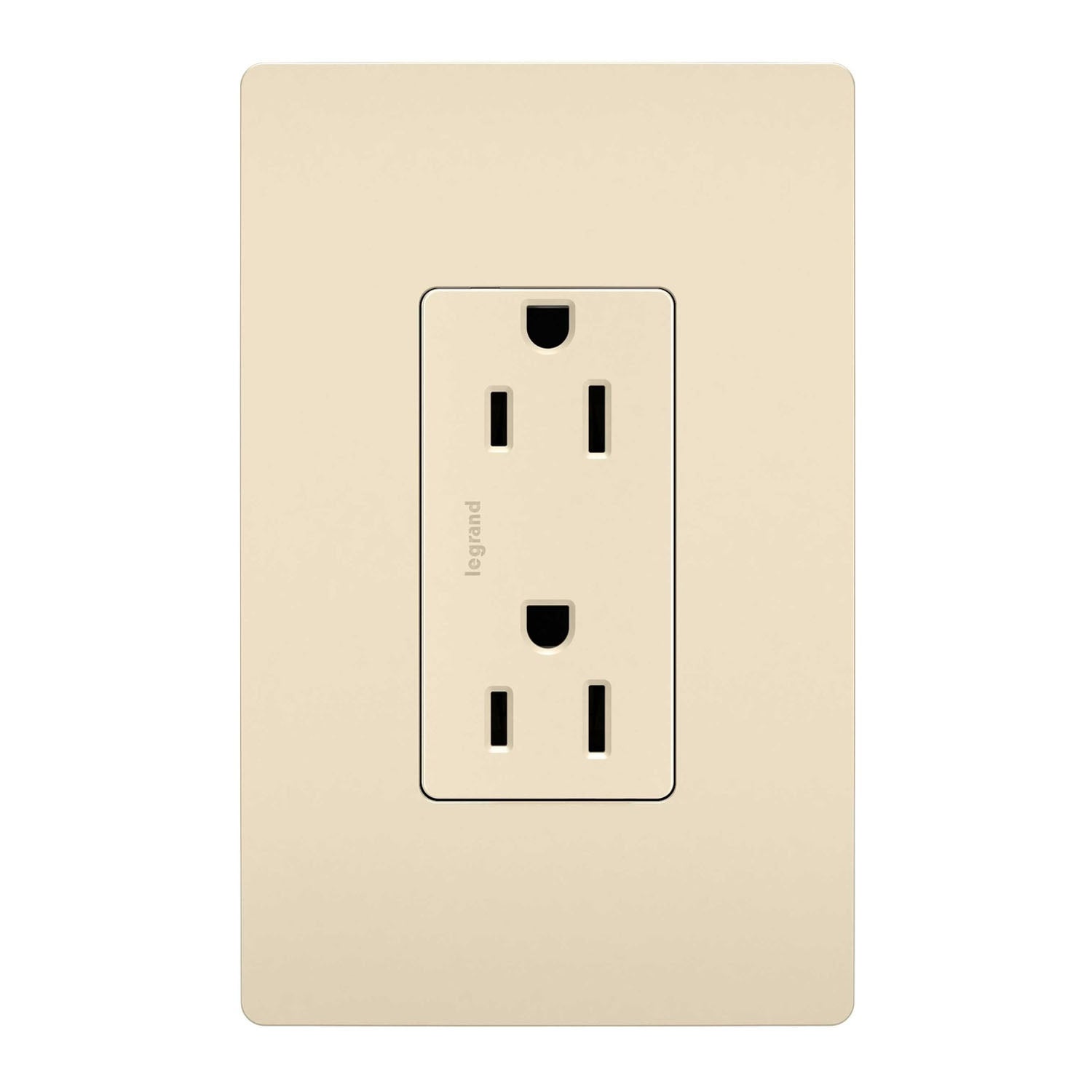

• Wallplate: Compatible with screwless wall plates from the radiant Collection, sold separately.

Construction & Interface

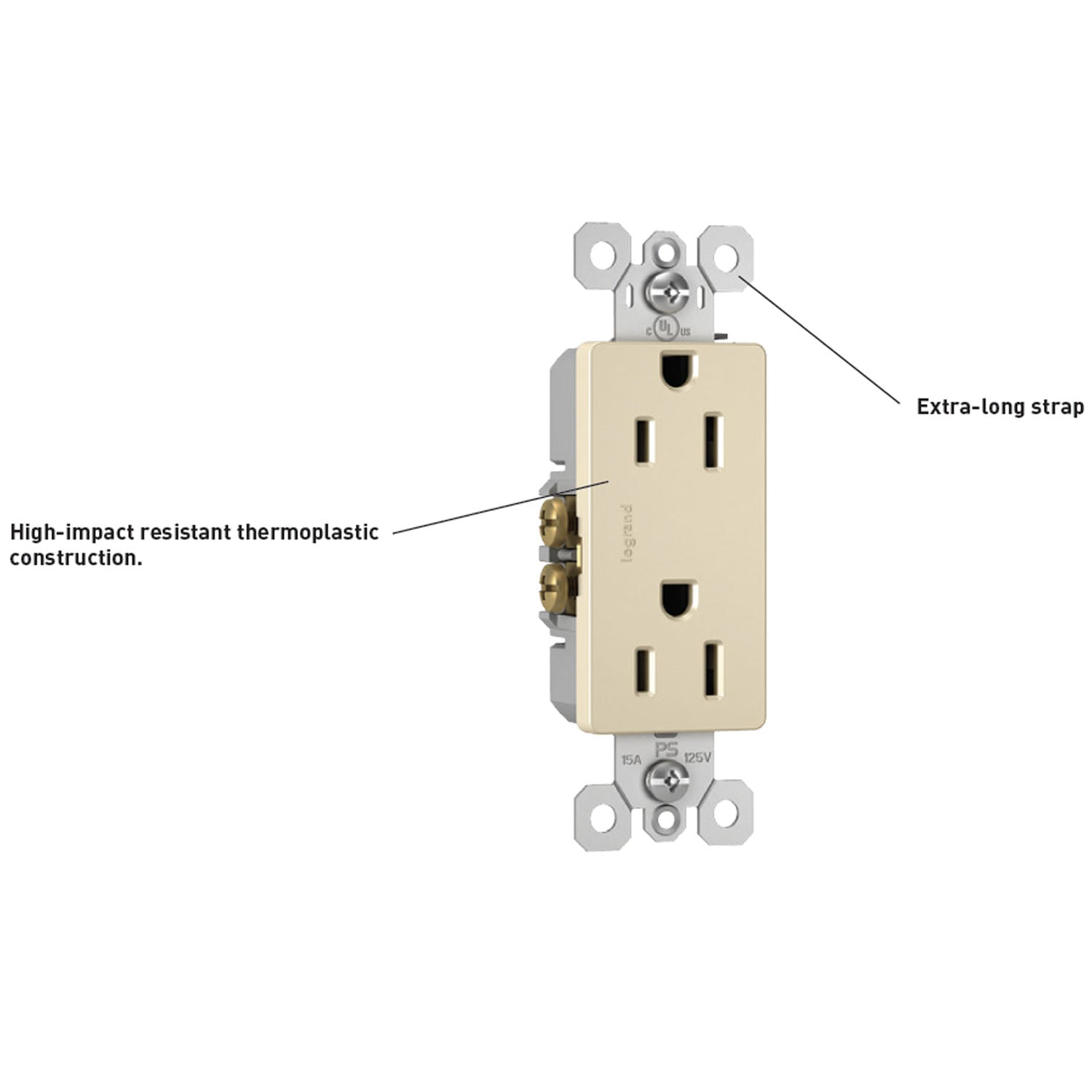

This outlet features a decorator style interface with a matte Light Almond finish. It is constructed from high-impact resistant thermoplastic for enhanced durability. Please note that the wallplate is sold separately.

Power & Electrical Performance

Designed for standard electrical performance, this outlet supports up to 15A and features a NEMA 5-15R configuration, making it suitable for a wide range of residential applications.

Wiring & Installation

The Legrand 885LA supports box mounting and is compatible with standard wiring methods. It accepts #14 to #10 AWG wire and features double pole connections for secure installation.
