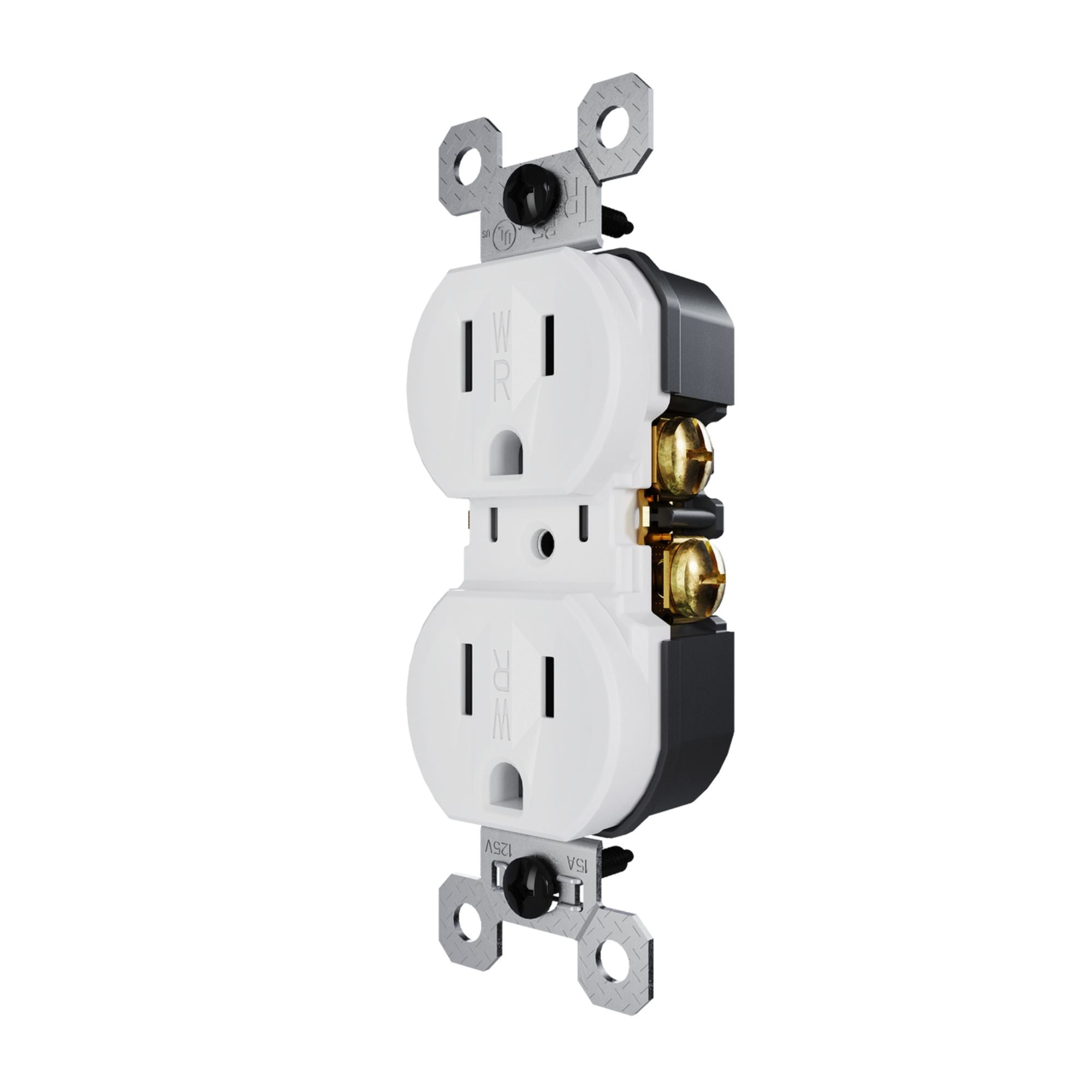

Pass & Seymour Trademaster Duplex Outlet — White & Tamper-Resistant

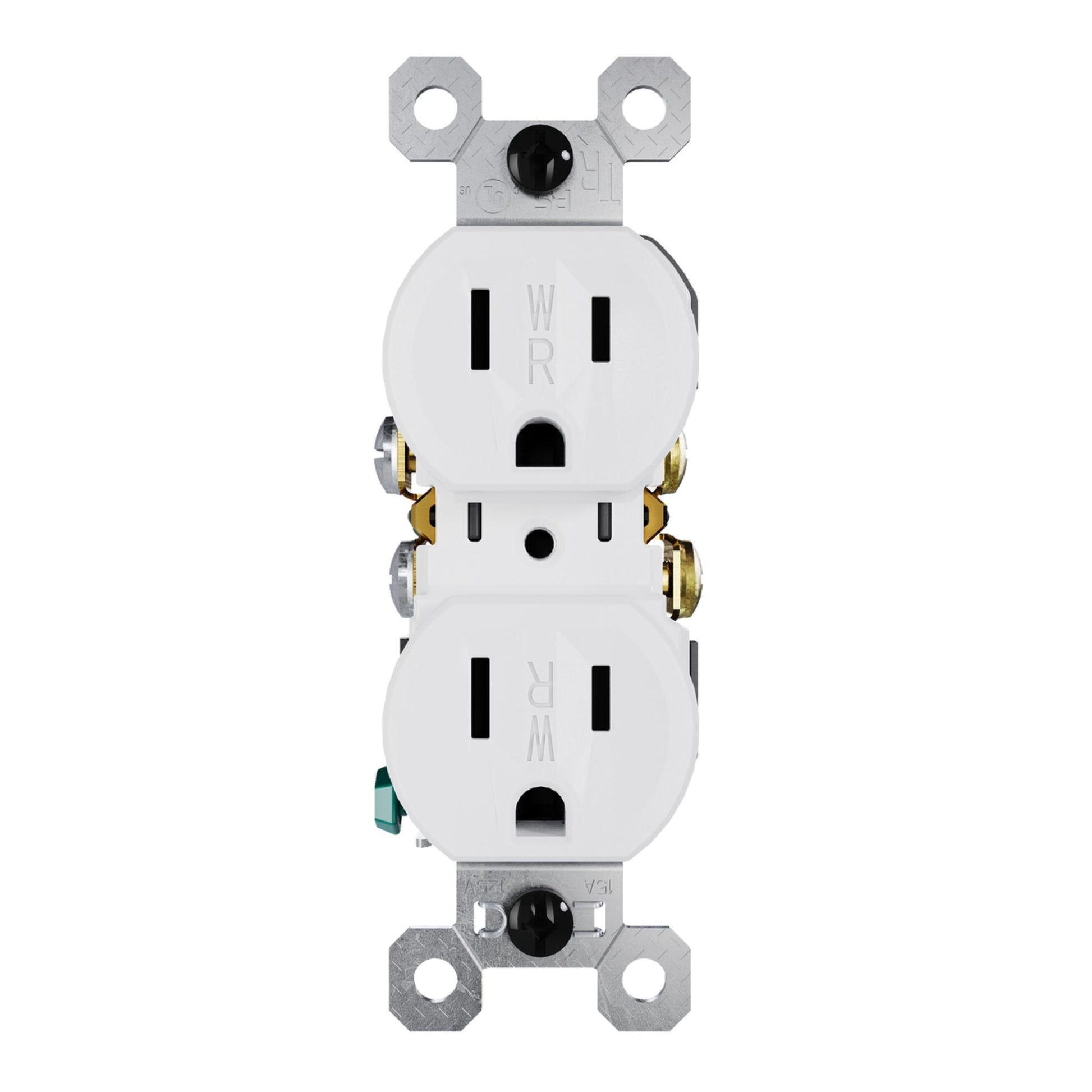

The Pass & Seymour 3232TREXWRW is a white duplex outlet designed for outdoor use. This 15A outlet features a NEMA 5-15R configuration and is both tamper-resistant and weather-resistant. It operates at 125V, making it suitable for residential applications.

Key Features

• Voltage: Operates at 125V for standard electrical systems.
• Amperage: Supports up to 15A for various electrical devices.
• NEMA Configuration: NEMA 5-15R for compatibility with standard plugs.
• Tamper-Resistant: Features a patented shutter system to prevent foreign object insertion.
• Weather-Resistant: Suitable for outdoor use with weather-resistant properties.
• Grade: Designed for residential and multi-dwelling unit applications.
• Dimensions: Measures 1.32 in. width, 3.31 in. height, and 1.0 in. depth.
• Certifications: UL 498 and cULus listed for safety and performance.

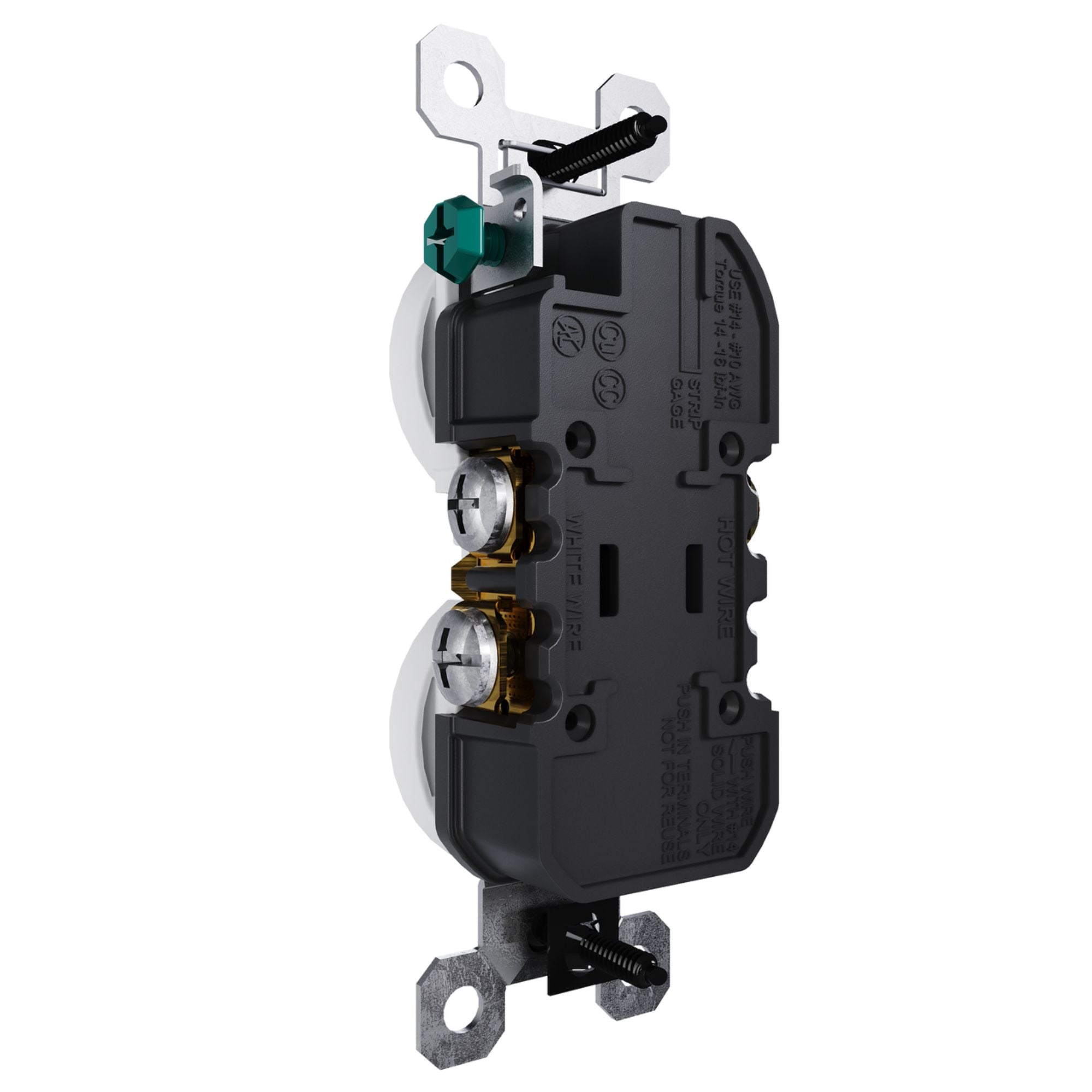

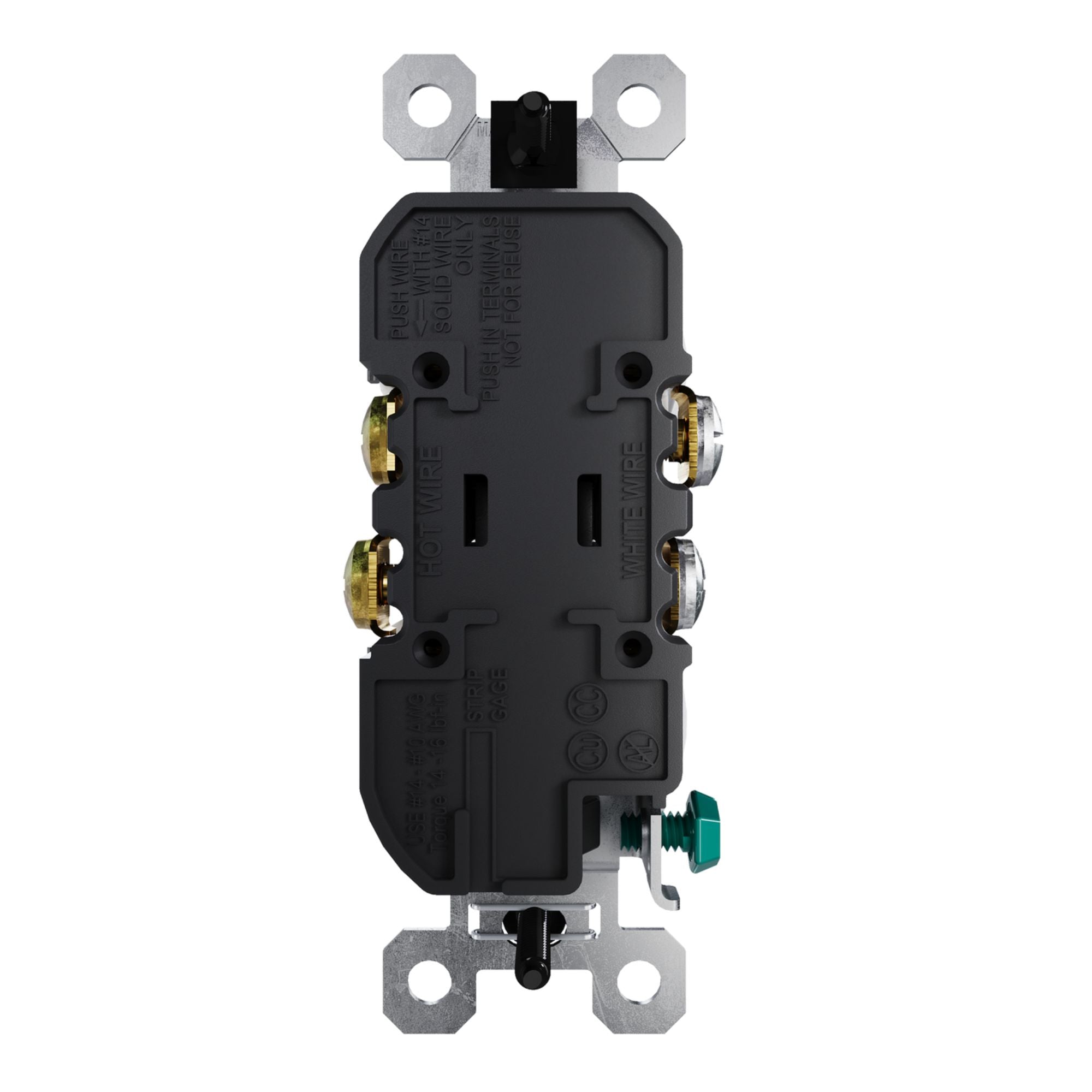

• Wiring: Supports back and side wiring with external pressure plates.
• Material: Made with quality materials for durability and long-lasting use.
• Installation: Requires installation in a weatherproof enclosure per NEC requirements.

Construction & Interface

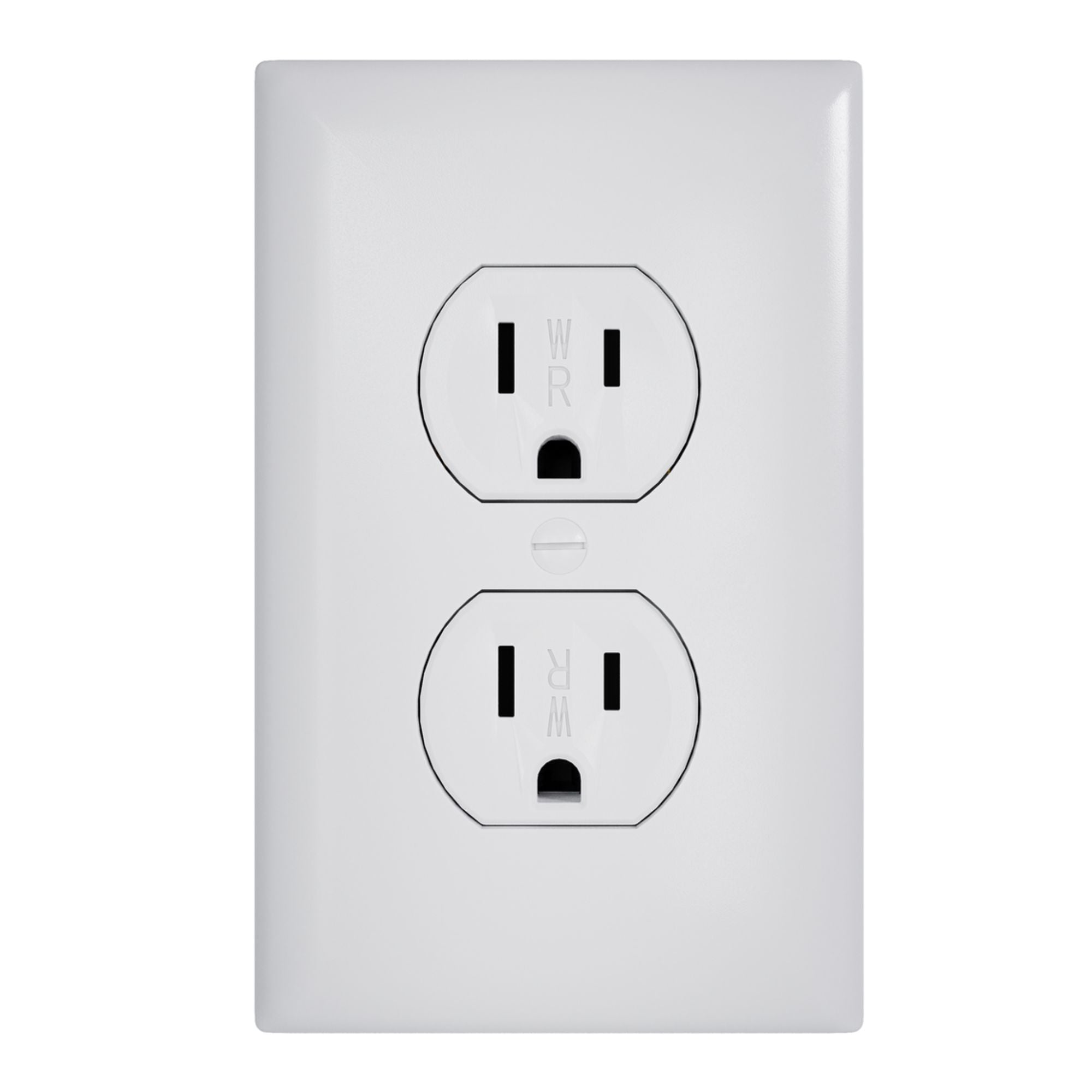

This duplex outlet features a standard design with impact-resistant materials and a white finish. The wallplate is sold separately.

Safety & Ground Fault Protection

The outlet includes tamper-resistant shutters to protect against improper insertion of foreign objects, ensuring safety in residential environments.

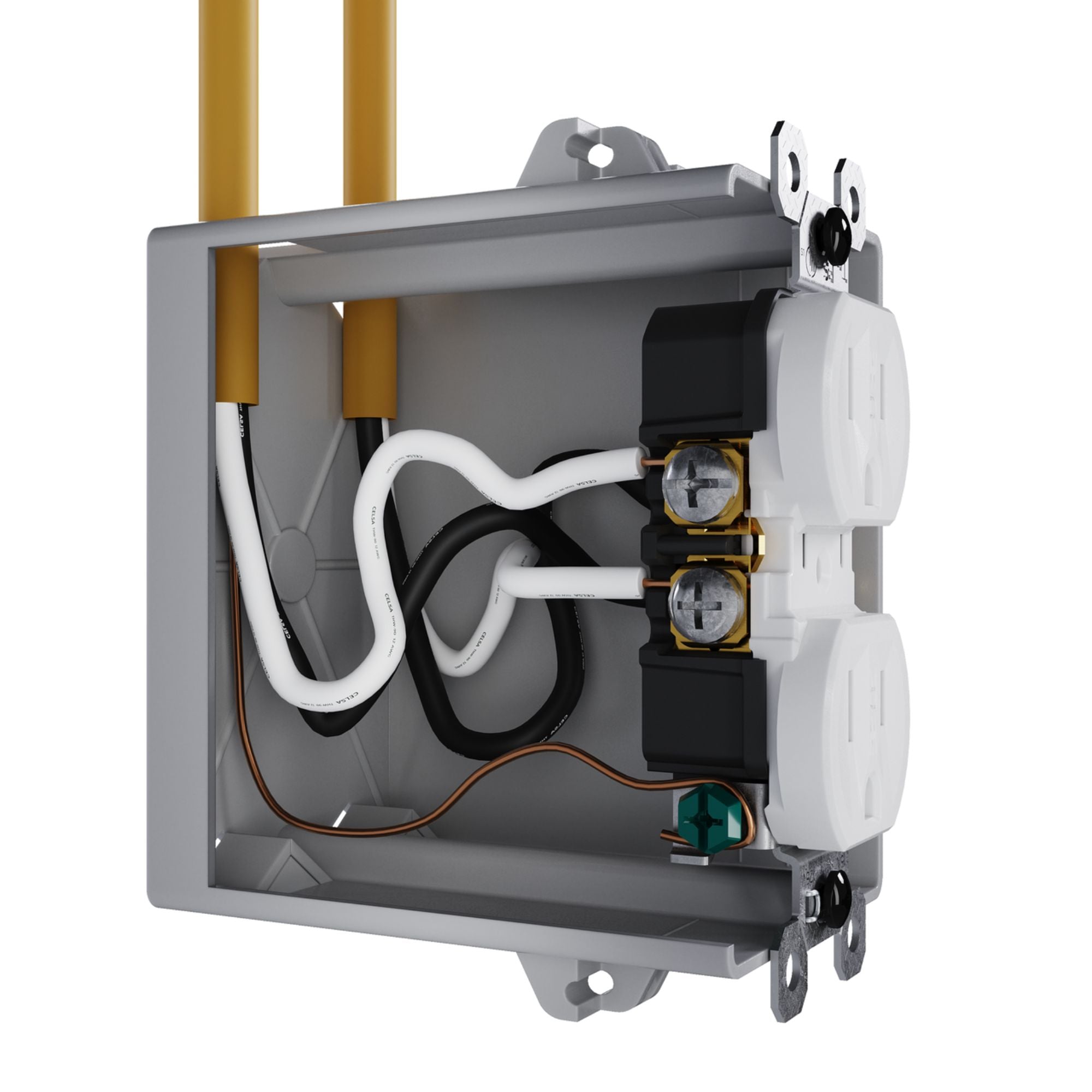

Wiring & Installation

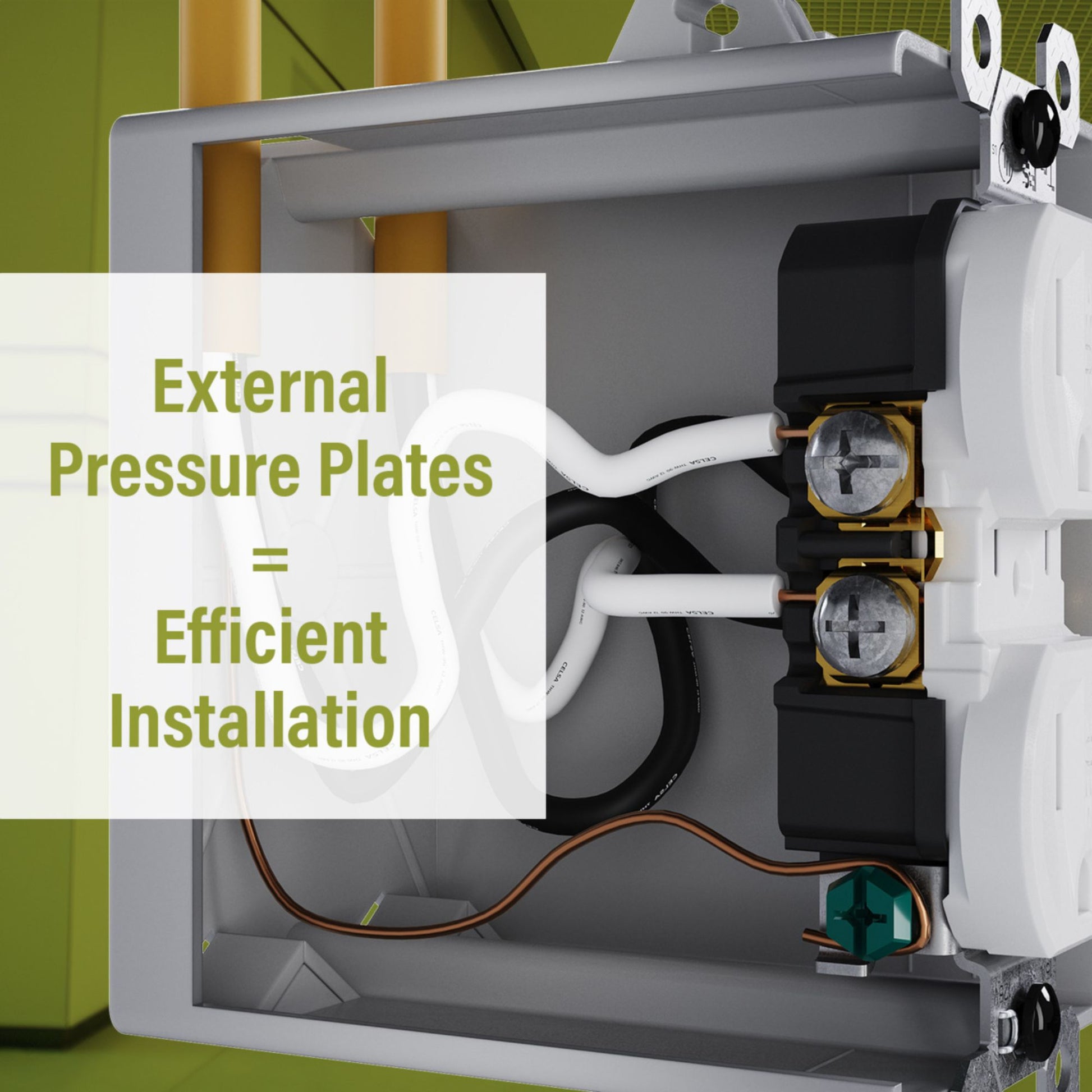

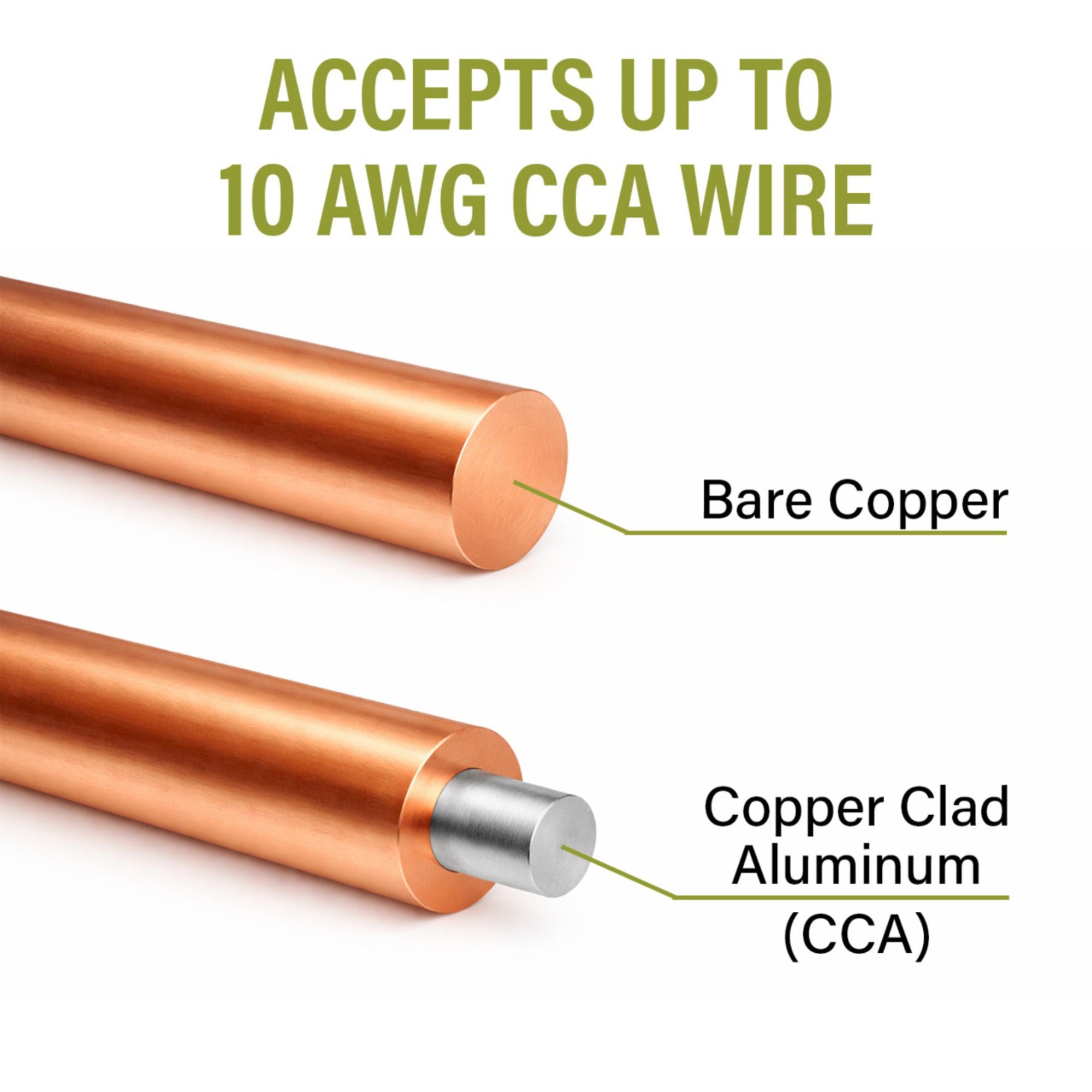

Installation is simplified with back and side wire termination options, accepting #14 to #10 AWG solid and stranded wires. The external pressure plate expedites installation by eliminating the need to loop wires.
