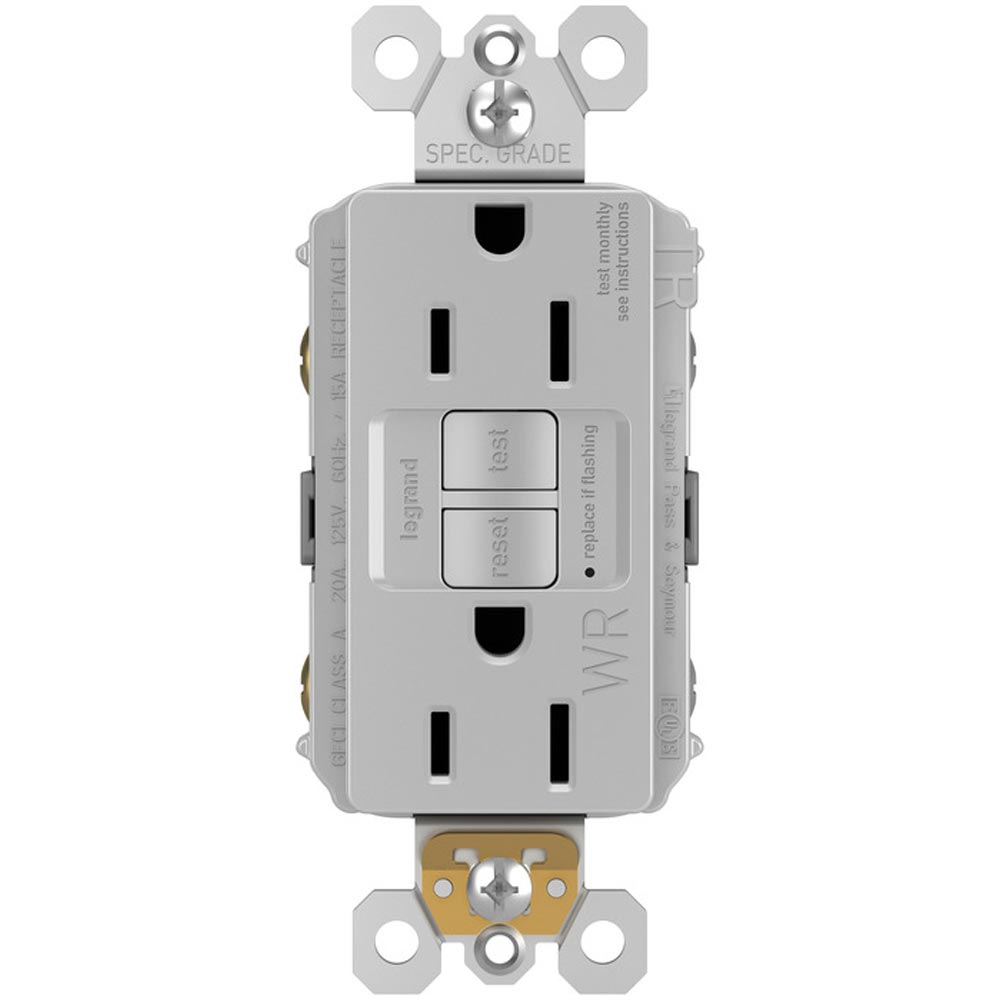

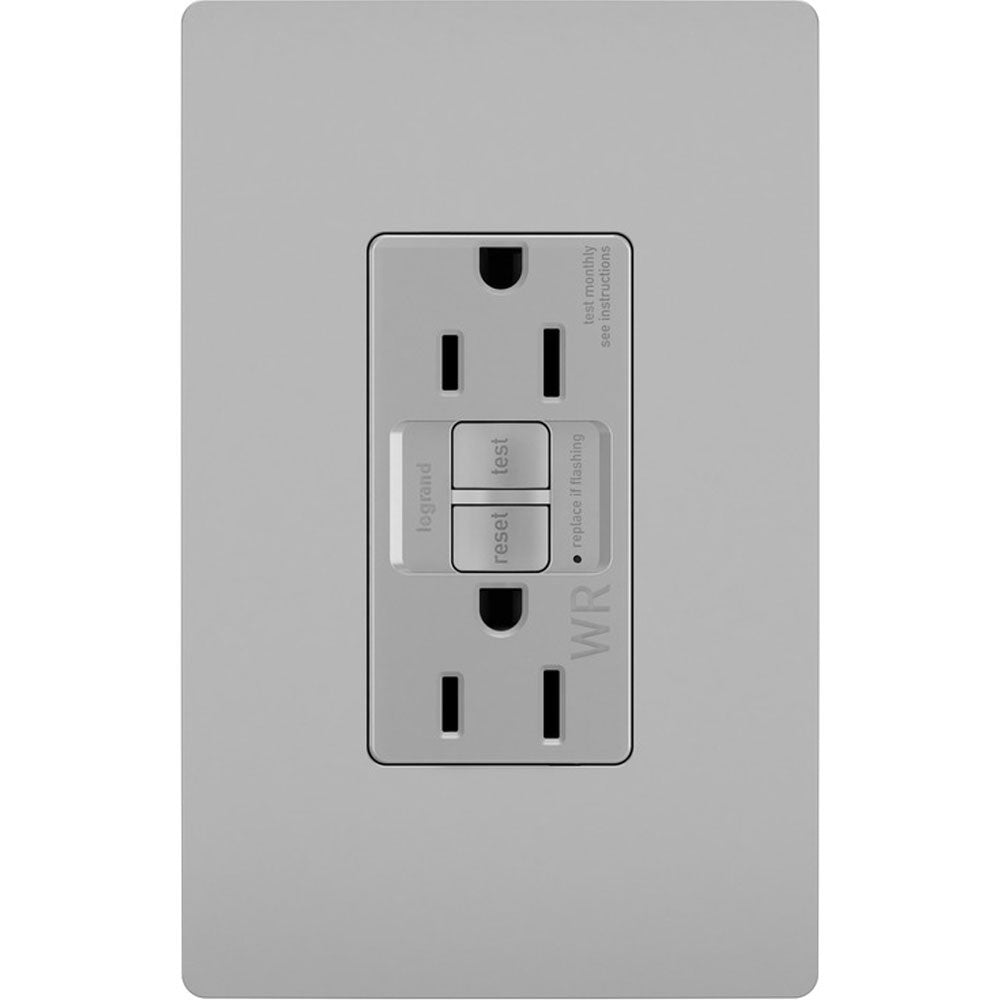

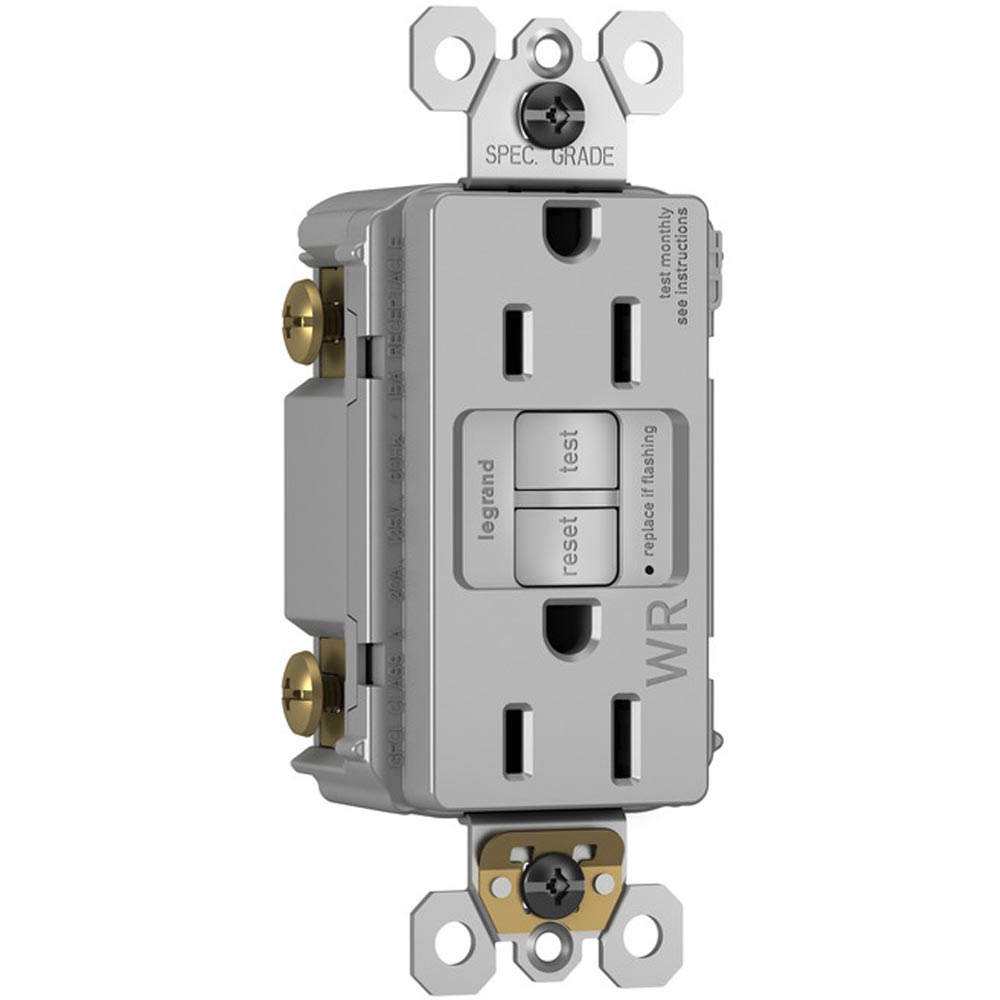

Legrand radiant Duplex GFCI Outlet — Gray & Tamper-Resistant

The Legrand 2097TRWRGRY is a Gray Duplex GFCI Outlet from the radiant Collection, offering 20A capacity and Weather-Resistant features. It includes Tamper-Resistant shutters and a NEMA 5-20R configuration, making it suitable for both residential and commercial applications. This outlet is designed for outdoor use, providing reliable protection against ground faults.

Key Features

• Voltage: Compatible with standard voltage requirements for GFCI outlets.
• Amperage: 20A capacity supports larger appliances.
• NEMA Configuration: NEMA 5-20R ensures secure and reliable connections.
• Tamper-Resistant: Yes, includes safety shutters to prevent accidental insertion of foreign objects.
• Weather-Resistant: Yes, suitable for outdoor installations.
• Grade: Spec-Grade for commercial use.
• Dimensions: 1.73 in. width x 4.20 in. height x 1.03 in. depth.
• Certifications: cULus and UL Listed for safety and performance.
• Self-Testing: Conducts automatic self-tests every 3 seconds to ensure functionality.
• SafeLock Protection: Disconnects power if critical components are damaged.
• Mounting Type: Box mount for secure installation.
• Environmental Conditions: Rated for 95% humidity and UL 94 V2.

Construction & Interface

This outlet features a sleek, matte gray finish with a high-impact resistant thermoplastic construction. It is designed for use with screwless wall plates from the radiant Collection, which are sold separately.

Safety & Ground Fault Protection

The outlet includes advanced GFCI protection with automatic self-testing every 3 seconds and an indicator light to signal functionality. It features SafeLock protection to disconnect power if protection is compromised.

Wiring & Installation

Designed for easy installation, this outlet supports back and side wiring methods, accommodating wire sizes from #14 to #10 AWG. It includes a grounding screw for secure grounding connections.
