Description

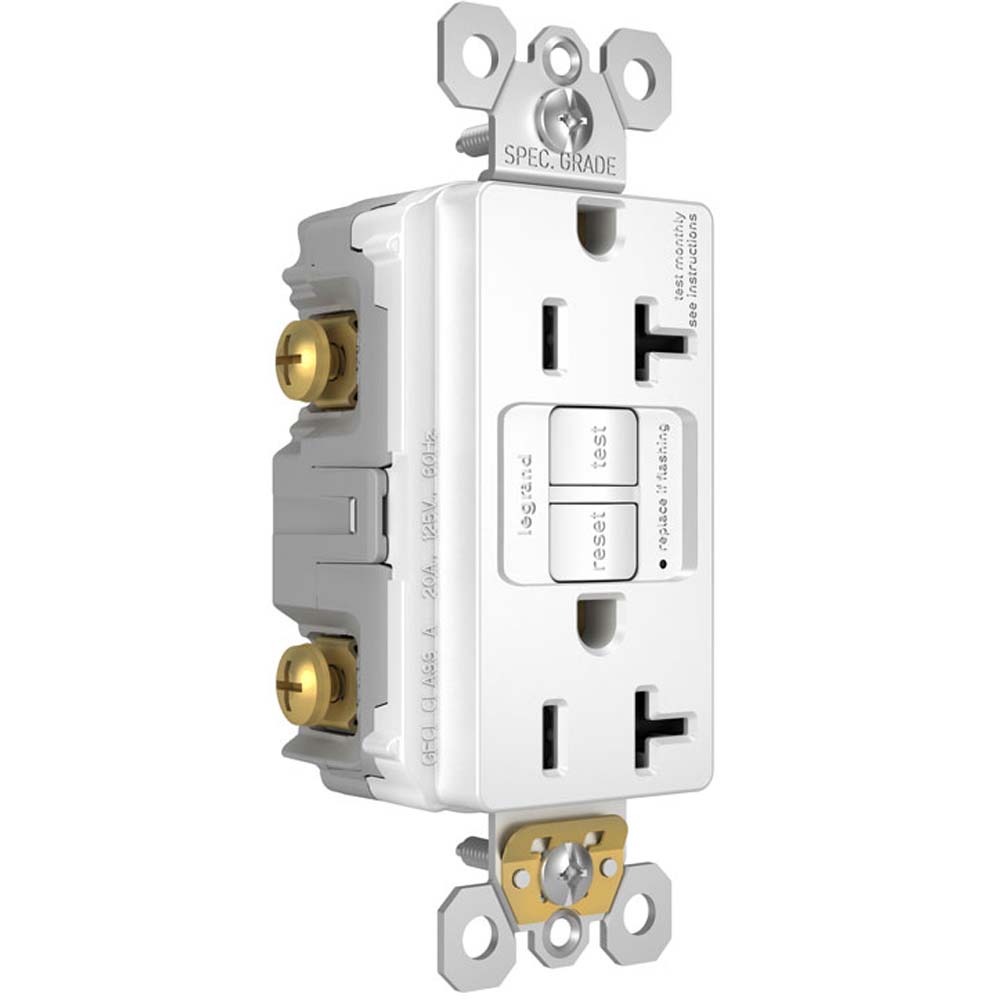

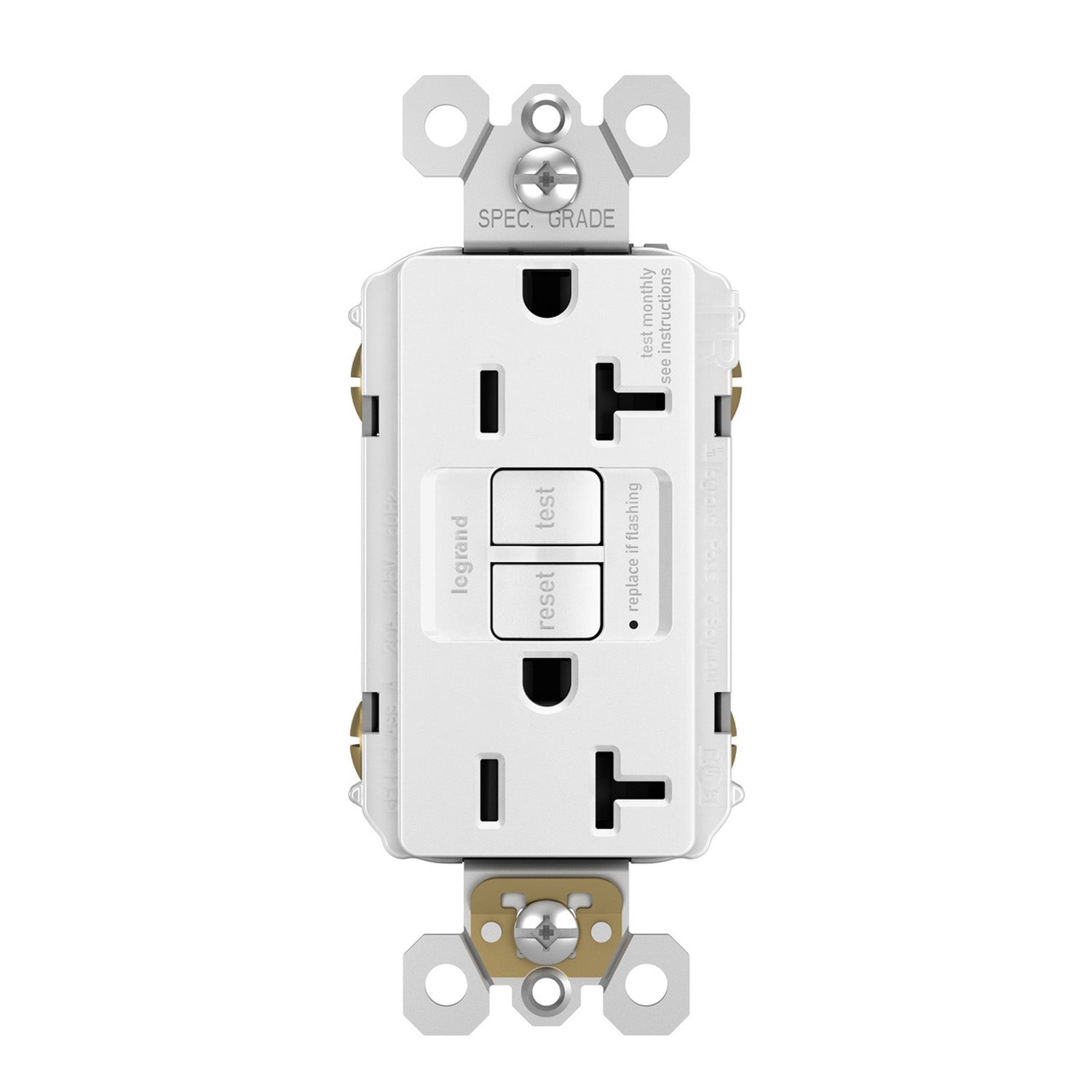

Legrand radiant Tamper-Resistant Duplex GFCI Receptacle — White & 20 A

2097TRW is a white duplex GFCI receptacle rated 20 A, 125 V, NEMA 5-20R. It provides ground-fault protection.

Key Features

  • Electrical Ratings: Rated 20 A, 125 V, NEMA 5-20R for electrical configuration matching.
  • Ground-Fault Protection: GFCI protection helps protect against shock caused by ground faults, with a reset button on the device.
  • Automatic Self-Test: The device self-tests every three seconds to check ground-fault protection.
  • Tamper-Resistant Design: A shutter system helps prevent improper insertion of foreign objects into the receptacle.
  • Device Grade: Specification Grade construction identifies the manufacturer-rated product class for specification.

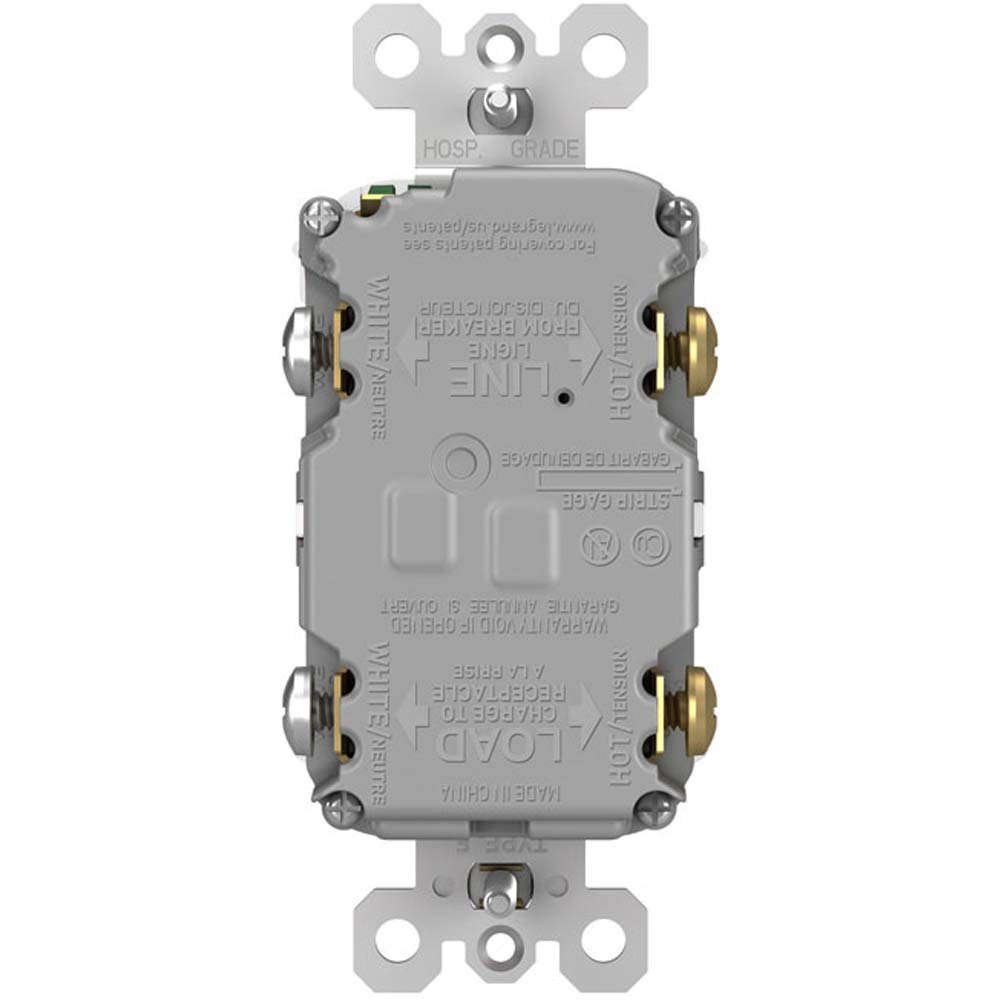

  • Wiring Interface: The wiring interface uses back and side connections with internal pressure plates, screw terminals.
  • Conductor Size: The documented terminal accommodation is #14 AWG - #10 AWG; follow the manufacturer instructions for conductor selection.
  • Listing: A cULus listing is documented for this model.
  • Dimensions: 1.73 in. W x 4.2 in. H x 1.13 in. D.

Construction & Interface

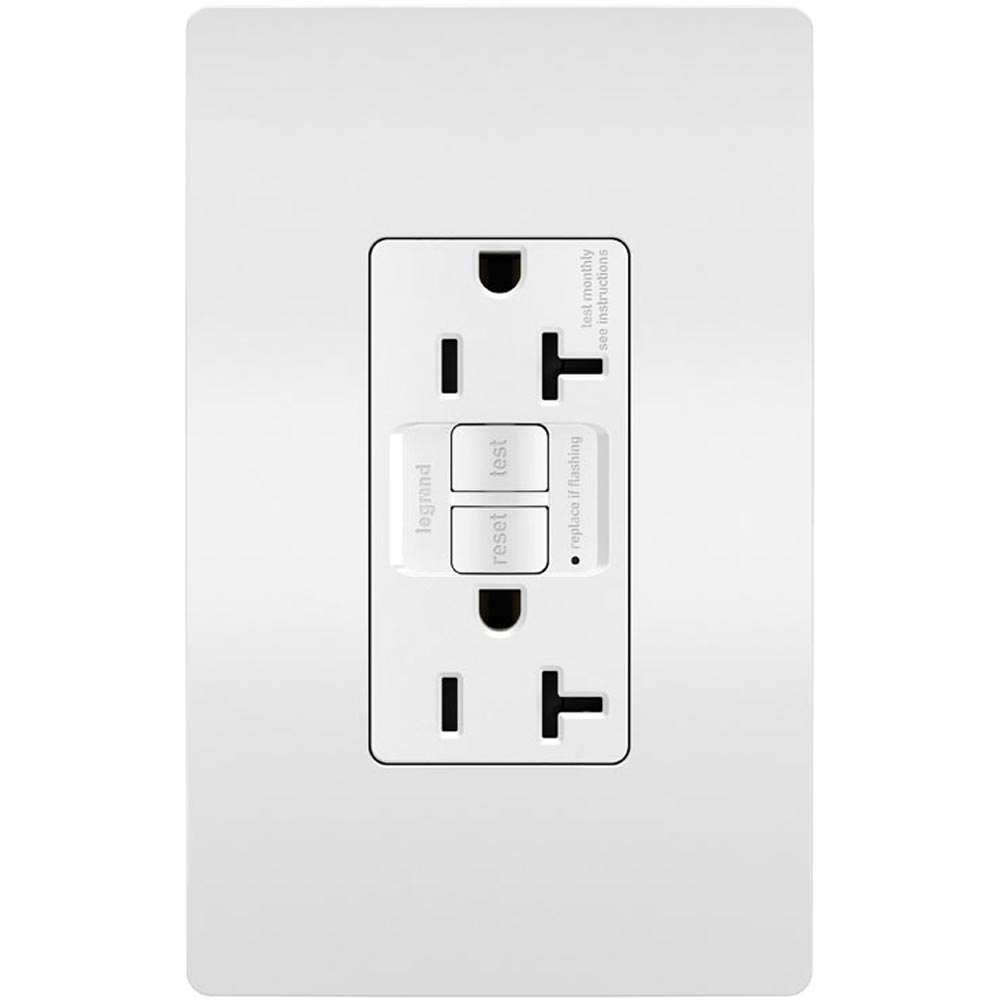

White satin finish. Construction: high-impact-resistant thermoplastic. Wallplate included.

Safety & Ground-Fault Protection

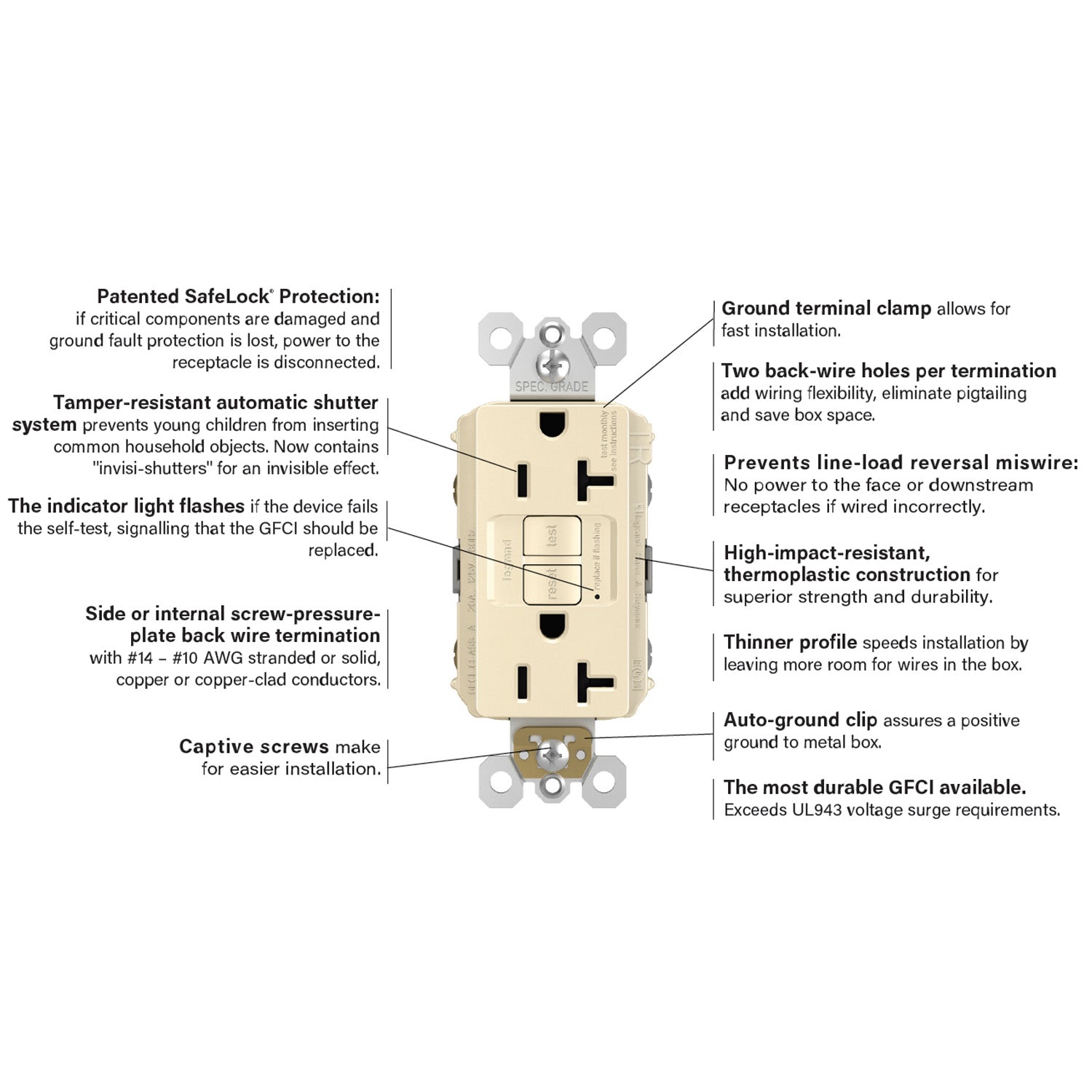

GFCI protection includes SafeLock power disconnection if critical components fail. Feed-through wiring can extend ground-fault protection downstream.

Wiring & Installation

Terminations: internal pressure plates, screw terminals. Connection location: back and side. Wire size: #14 AWG - #10 AWG. Consult manufacturer installation instructions.

Specifications

Dimensions

Length/Depth
1.03 in
Width/Diameter
1.73 in
Height
4.2 in
Weight
0.28 lb

Style & Materials

Finish
Matte White
Material
Thermoplastic

Electrical Information

Amps Rating
20.0 A

Item Details

MPN
2097TRW
Brand
Legrand
Family
Radiant
UPC
785007035872

Warranty & Certifications

Product Warranty
1 Year
Product Rating
NEMA 5-20R, Tamper Resistant

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What protection does this receptacle provide?

It provides GFCI ground-fault protection and automatic self-testing.

Is this model tamper-resistant?

Yes. The manufacturer identifies this model as tamper-resistant, with a shutter system that helps prevent improper insertion of foreign objects.

What electrical ratings and NEMA configuration are documented?

20 A, 125 V, NEMA 5-20R is the documented electrical configuration.

What wiring details are documented?

Terminal method: Internal Pressure Plates, Screw Terminals. Connection location: Back and Side. Wire size: #14 AWG - #10 AWG. Consult the manufacturer installation instructions before installation.

Is a wallplate included?

Yes. The manufacturer specification table lists a wallplate as included.
