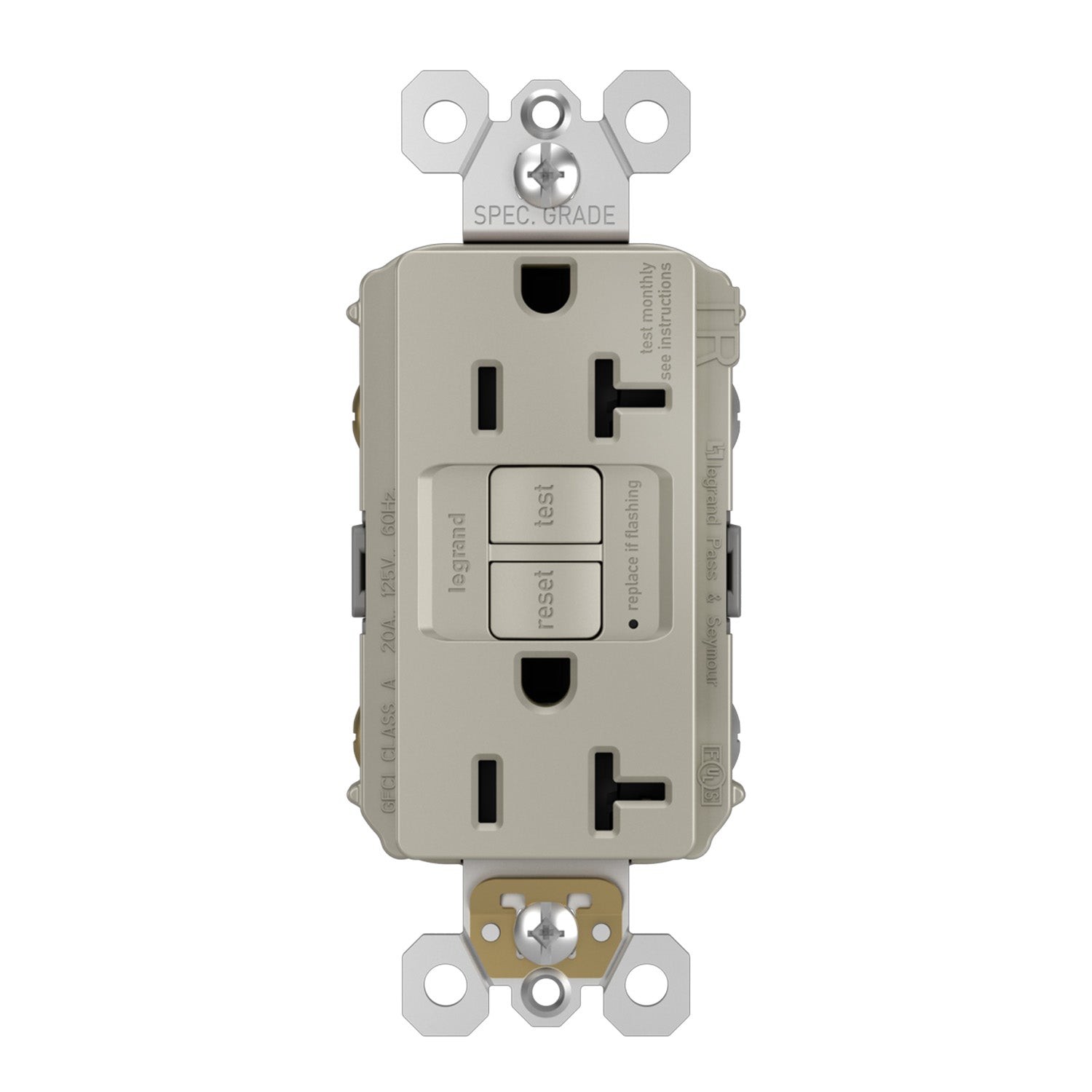

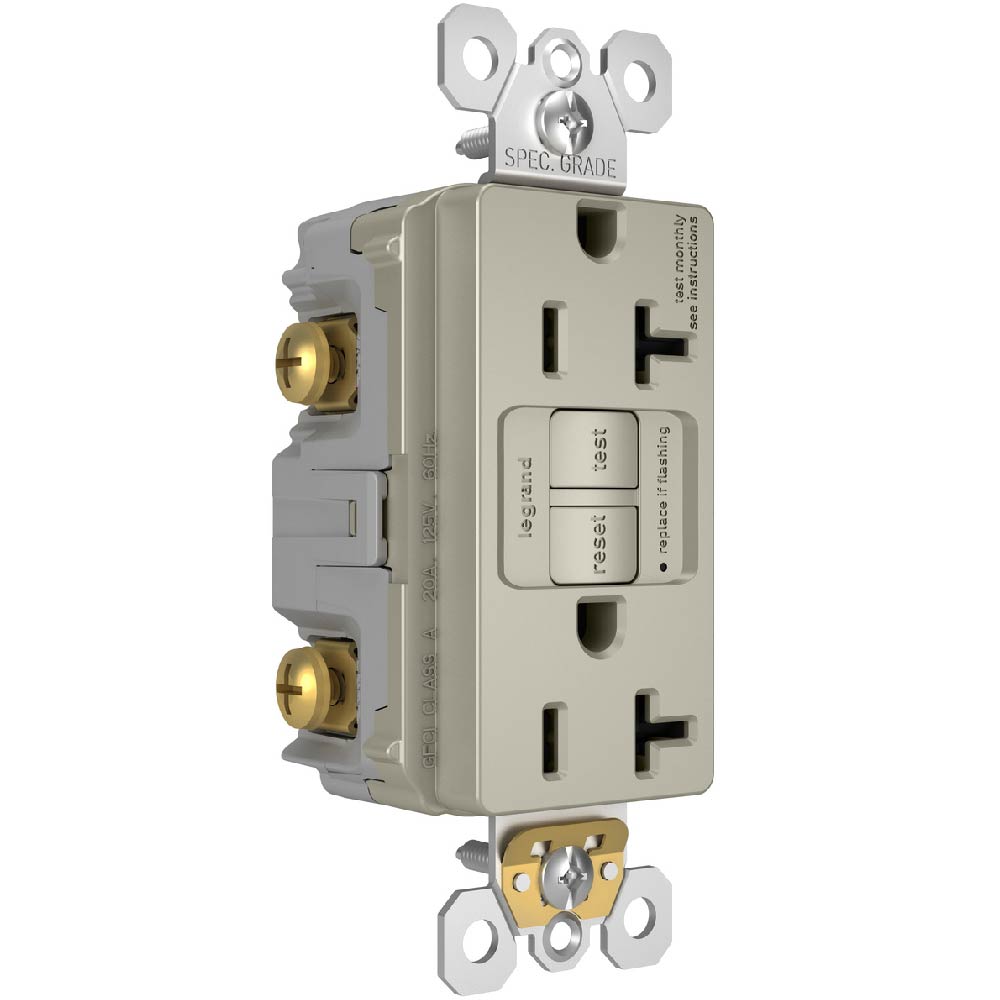

Legrand radiant GFCI Duplex Outlet — Nickel & Self-Test

The Legrand 2097TRNICC4 is a Nickel finished GFCI Duplex Outlet designed for both commercial and residential applications. This outlet features a 20A rating and a NEMA 5-20R configuration, providing reliable GFCI protection with a self-testing mechanism. The outlet is Tamper-Resistant, ensuring safety by preventing the insertion of foreign objects.

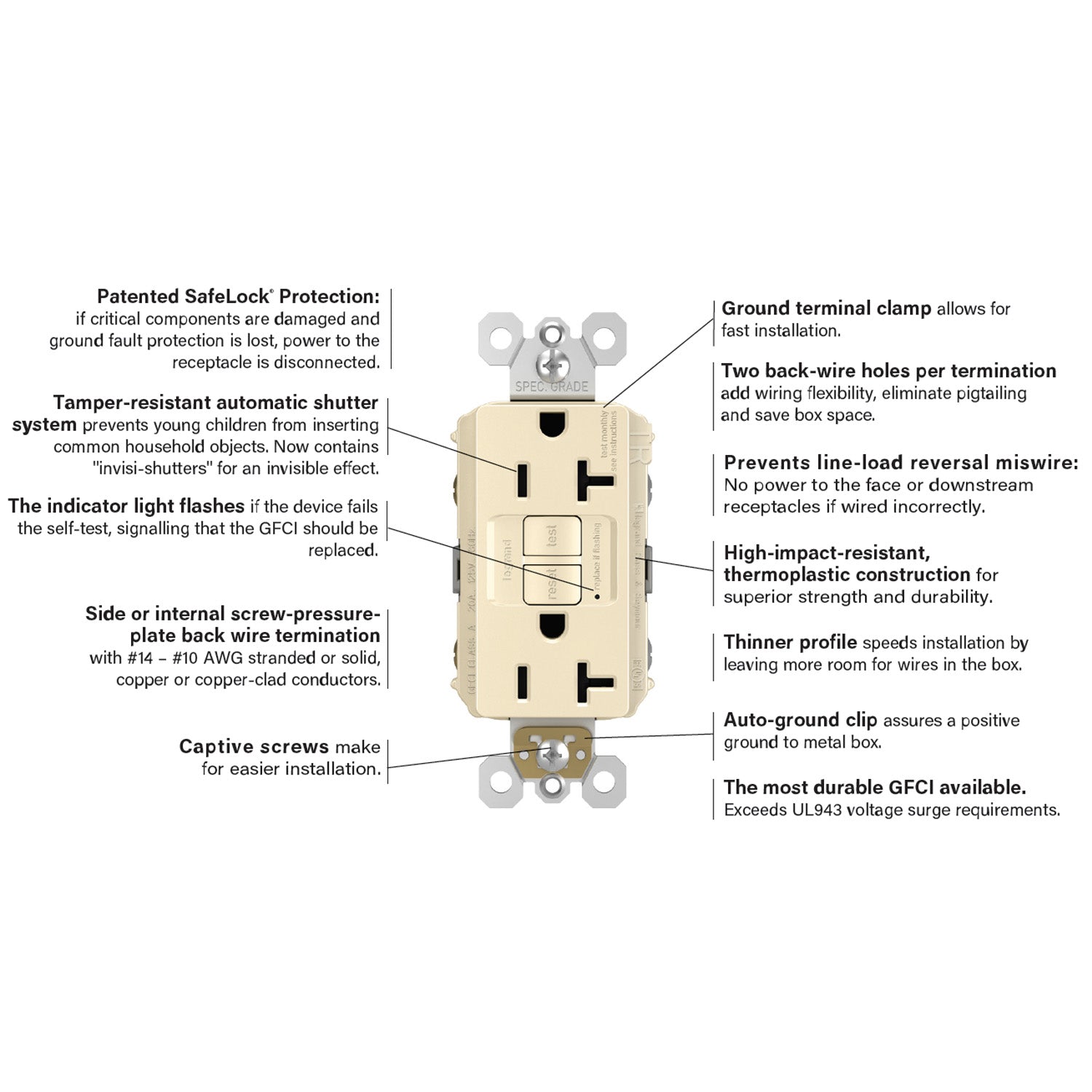

Key Features

• Voltage: Compatible with standard voltage requirements for GFCI outlets.
• Amperage: 20A, ideal for high-demand appliances.
• NEMA Configuration: 5-20R, suitable for commercial and residential use.
• Tamper-Resistant: Yes, includes patented shutter system for safety.
• Weather-Resistant: No, designed for indoor use.
• Grade: Spec-Grade for commercial installations.
• Dimensions: 1.73 in. width, 4.20 in. height, 1.03 in. depth.
• Certifications: UL 94 V2, 10kA short circuit rating.
• Self-Test: Automatic self-test every 3 seconds with indicator light.
• SafeLock Protection: Disconnects power if protection is compromised.
• Construction: High-impact resistant thermoplastic.

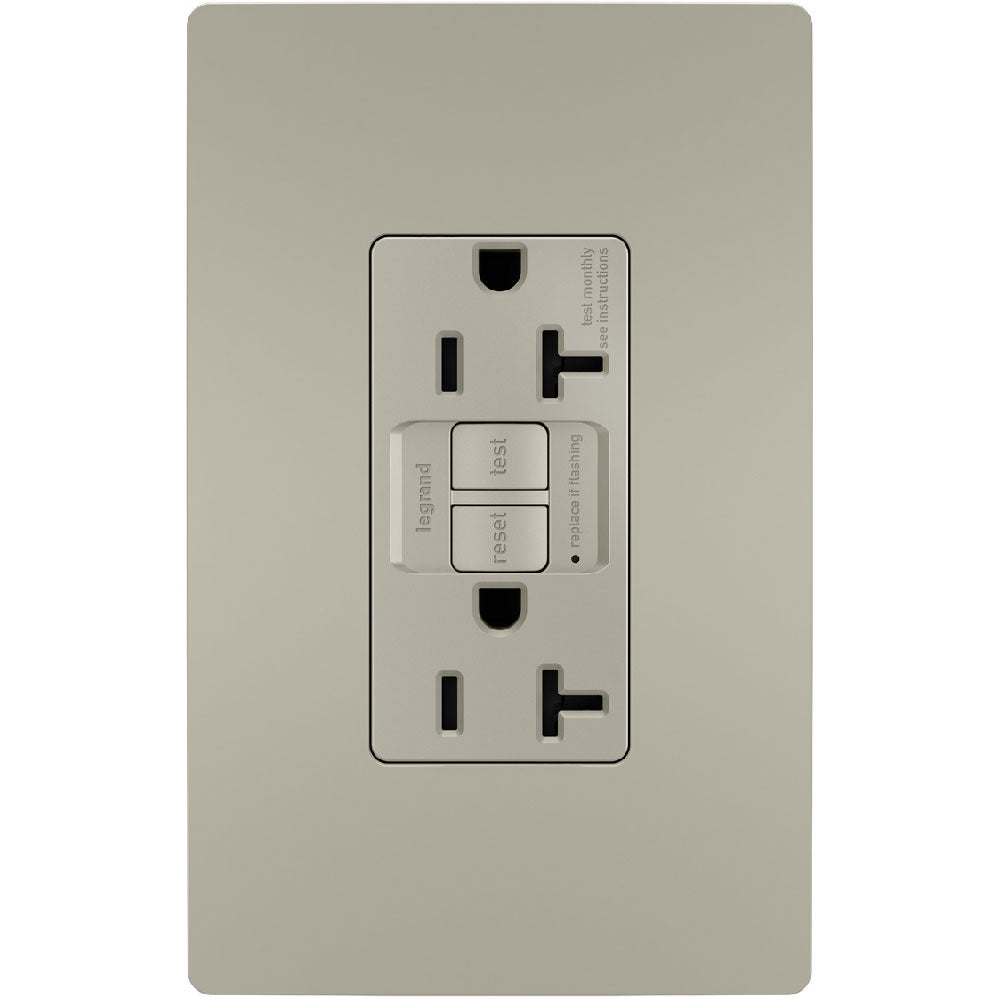

• Wallplate: Sold separately, compatible with radiant Collection screwless wall plates.

Construction & Interface

The outlet features a decorator-style interface with a durable, high-impact resistant thermoplastic construction. It is finished in Nickel and designed for use with screwless wall plates from the radiant Collection, which are sold separately.

Safety & Ground Fault Protection

This GFCI outlet includes a self-test feature that automatically checks the device every three seconds. It also has a SafeLock Protection feature that disconnects power if critical components are damaged, ensuring continuous safety.

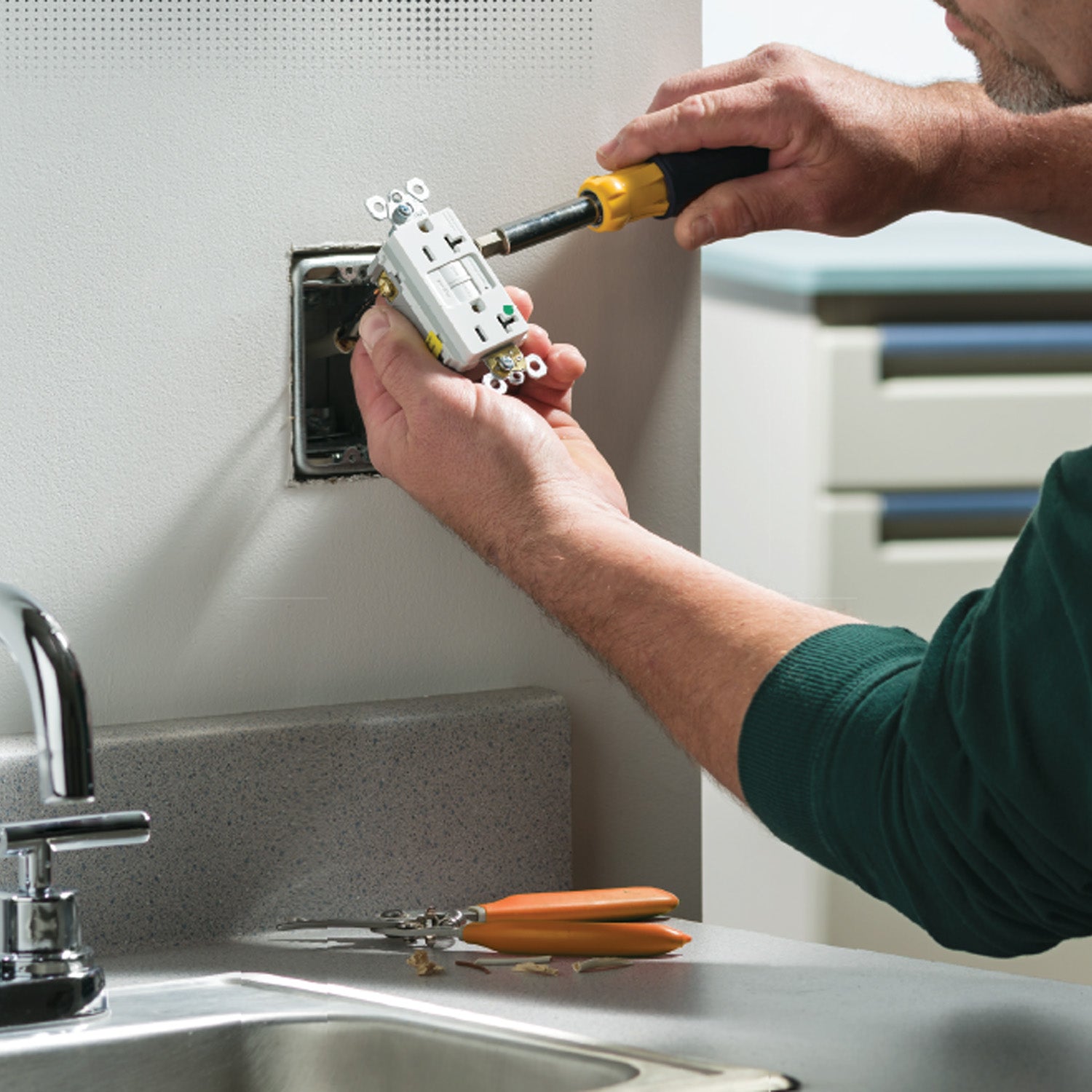

Wiring & Installation

Designed for easy installation, the outlet supports feed-thru wiring configuration and features back and side wire terminals. It accepts #14 to #10 AWG wire and includes a mounting strap for secure installation.
